Description
Rockford Fosgate PMX-HD14
The PMX-HD14 is a digital media receiver / infotainment source unit designed as a direct replacement for many 2014-onward Harley-Davidson touring motorcycles. It gives you a modern touchscreen interface with a full suite of media features, while retaining compatibility with factory controls and wiring making it ideal for upgrading a Harley’s audio system without complicated rewiring.
Specifications
| Specification | Details |
|---|---|
| Display Size | 7″ |
| Frequency Response | 20 Hz – 20 kHz |
| Output Power | — |
| Display Type | Color TFT |
| EQ Bands | 14 |
| EQ Type | Graphic |
| Source Zones | 1.0 |
| Audio Zones | 1.0 |
| Output Impedance | < 500Ω |
| Pre-Amp Output Voltage | 4.0 VRMS Front 4.0 VRMS Rear |
| Android via USB | Charge Only |
| iPhone via USB | Yes |
| Pre-Amp Outputs | 6 (Left/Right) |
| USB Max Capacity | 32 GB |
| USB Max Folders/Files | 999 |
| USB Charging Current | 1.5 A |
| USB Type | Type A |
| AUX Inputs | 1 (Left/Right) |
| Bluetooth | 5.0 |
| AUX Input Sensitivity | 800 mV – 4 V |
| Apple CarPlay | Yes |
| Made for iPhone | Yes |
| SiriusXM® | Yes (SXV300) |
| AM/FM Tuner | Yes |
| Android Auto | No |
| Clock | Yes |
| Playback: MP3 | Yes |
| Street Party Mode | Broadcast: 100 ft max Receiving: 8 radios max |
| SD Card Input | No |
| Playback: FLAC | Yes |
| Playback: WMA | Yes |
| Playback: AAC | No |
| Playback: LC3 | No |
| Playback: DRM | Yes |
| Playback: USB | Yes |
| Operating Voltage | 9–16 VDC |

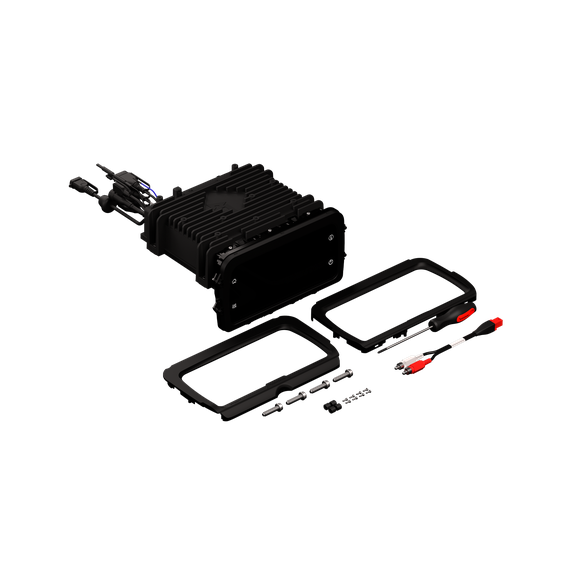

Included In The Box
| Item |
|---|
| (1) Road Glide trim bezel |
| (1) Street Glide trim bezel |
| (8) Trim panel screws |
| (1) Mini Phillips screwdriver for trim bezel |
| (4) Radio chassis mount screws |
| (8) Rubber sleeves for radio chassis screws |
About The Product
The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across to multiple radios simultaneously.

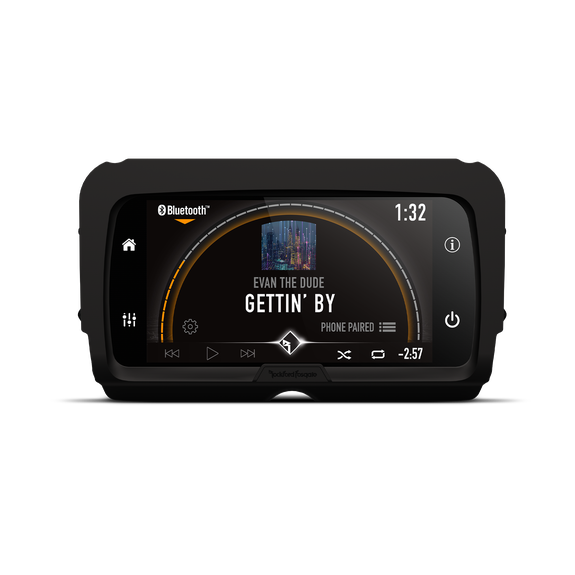

Full Color Display:
Equipped with a 7” TFT display, this ultra-crisp infotainment center not only looks amazing, but features full touchscreen functionality that even works with riding gloves.
Complete Control:
Control however you want it. This source unit keeps all factory handlebar controls as well as CB and wireless headset connectivity, and with built in Apple Car Play®, controlling your playlists and apps has never been easier (diagnostic functions not included at this time).
Optimized Tunes:
Designed specifically for your current Rockford Fosgate motorcycle audio system, we have optimized speaker specific location tunes, so no matter your current audio system you will get class leading sound.
Street Party Mode™:
Bring the party to the streets. Street Party Mode allows up to 8 radios to pair and stream the same song from one broadcasting PMX-HD14.
ICONIC PERFORMANCE
The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across multiple radios simultaneously.
The PMX-HD14 includes these accessory trim bezels:
• (1) Batwing Trim Bezel (Street Glide)
• (1) Sharknose Trim Bezel (Road Glide)
