Description

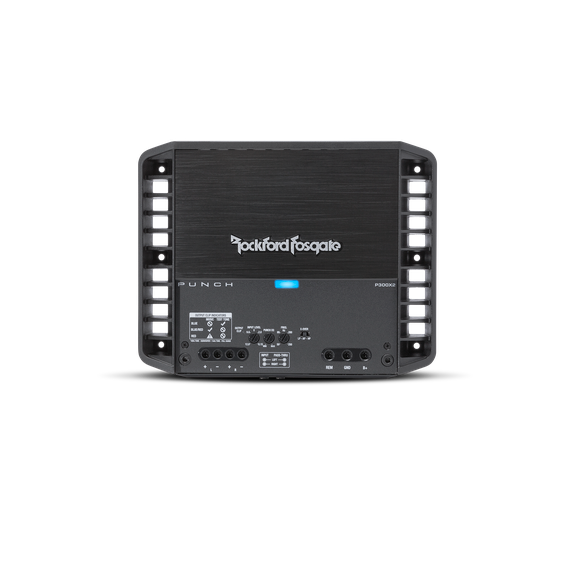

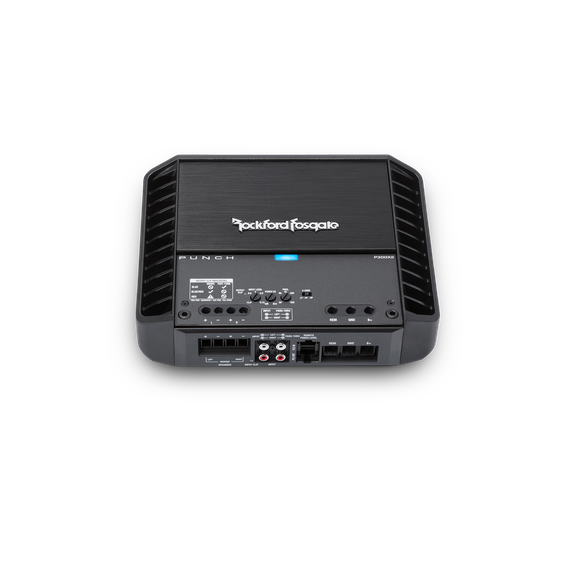

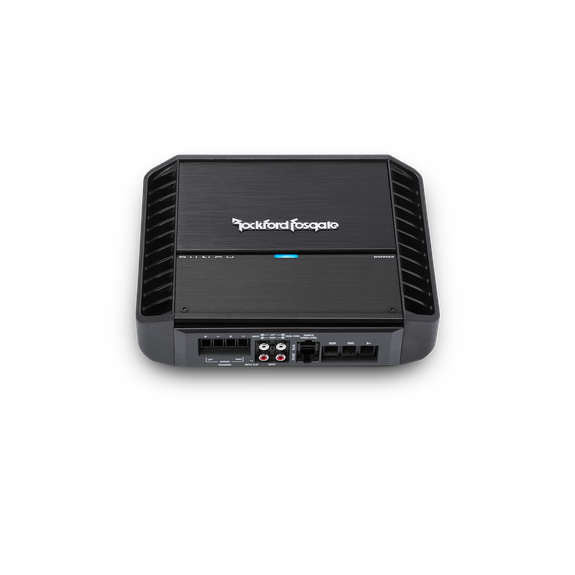

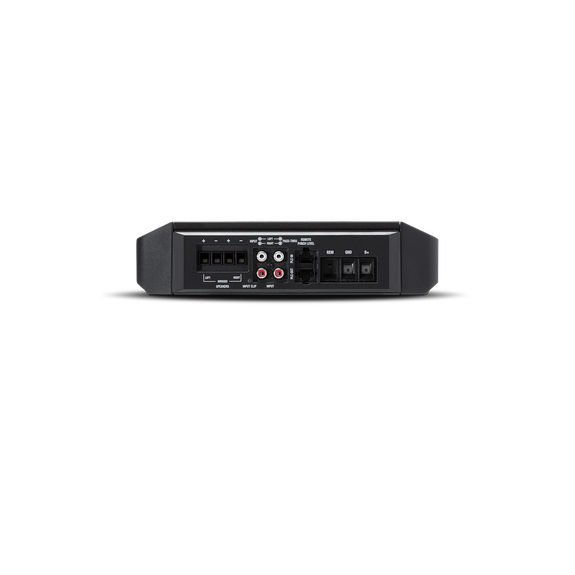

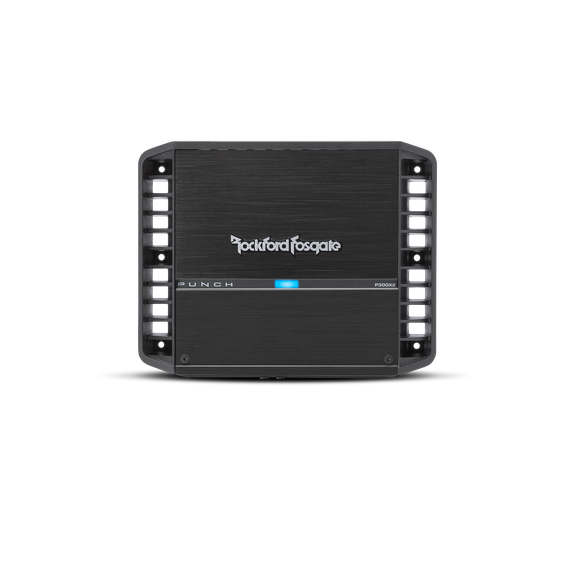

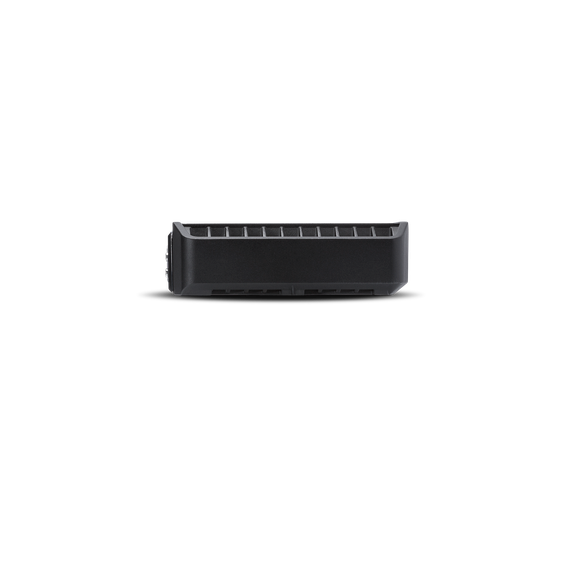

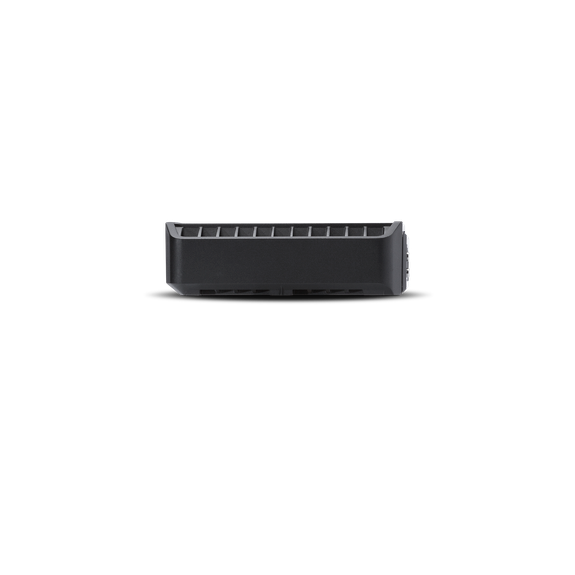

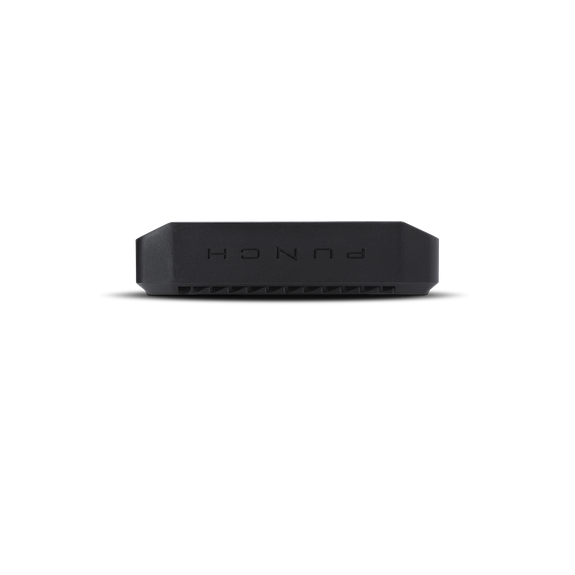

Rockford Fosgate Punch P300X2
The P300X2 is a compact, full-range 2-channel amplifier designed to deliver powerful and clean audio output. With a Class-AB design and MOSFET power stages, it ensures efficient power delivery and minimal distortion. The amplifier features a convection cooling system, utilizing the aluminum heatsink to dissipate heat evenly, ensuring cooler internal components and higher efficiency.
Features
| Feature | Details |
|---|---|
| RMS Power Output | 100 W × 2 @ 4 Ω |
| 150 W × 2 @ 2 Ω | |
| 300 W × 1 (bridged) @ 4 Ω | |
| Amplifier Design | Class-AB (efficiency of Class D + fidelity of Class A/B) |
| Cooling System | Convection cooling with extruded aluminum heatsink |
| C.L.E.A.N. System | Input/output clip detection with setup tone integration |
| Sound Tuning | Variable HP/LP filters |
| Bass/treble boost | |
| Optional remote bass/treble boost control | |
| Overall Description | Clean, powerful sound with flexible tuning and advanced protection features |
Specifications
| Specification | Details |
|---|---|
| Model | P300X2 |
| Channels | 2 |
| RMS Power Output | 100W x 2 @ 4Ω; 150W x 2 @ 2Ω; 300W x 1 @ 4Ω bridged |
| Dynamic Power Output | 120W x 2 @ 4Ω; 203W x 2 @ 2Ω; 435W x 1 @ 4Ω bridged |
| Frequency Response | 20Hz – 20kHz ±1dB |
| Amplifier Class | Class-AB |
| Cooling System | Convection |
| Input Sensitivity | 150mV – 12V |
| Crossover Controls | High-Pass: 50Hz – 250Hz @ 12dB/octave Butterworth; Low-Pass: 50Hz – 250Hz @ 12dB/octave Butterworth |
| Tone Controls | Bass: 0–18dB @ 45Hz; Treble: 0–14dB @ 12.5kHz |
| Remote Control | Optional Punch Level Control (PLC2) |
| Power Wire Gauge | 8 AWG to 4 AWG |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Operating Voltage | 9V – 16V DC |
| Dimensions (L x W x H) | 9.86″ x 7.76″ x 2.38″ |
| Weight | 9.5 lbs (4.3 kg) |
