Description

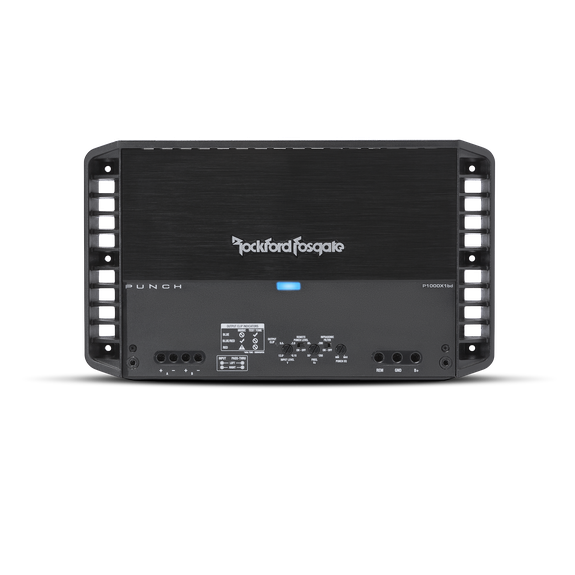

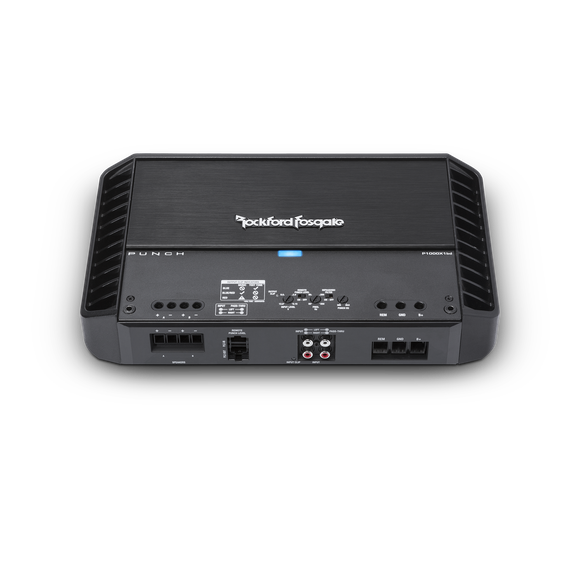

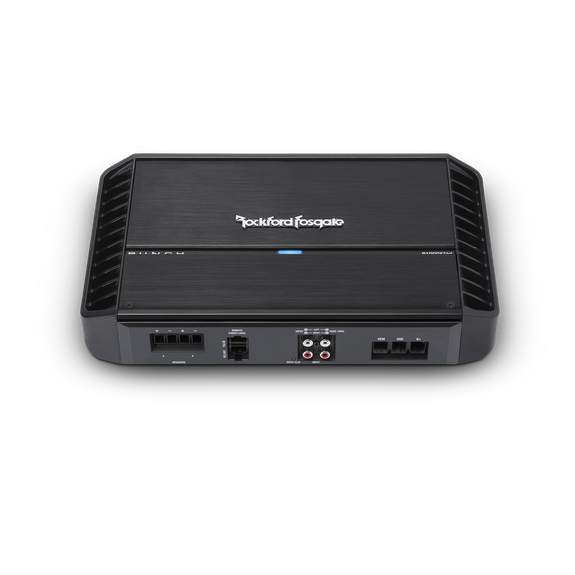

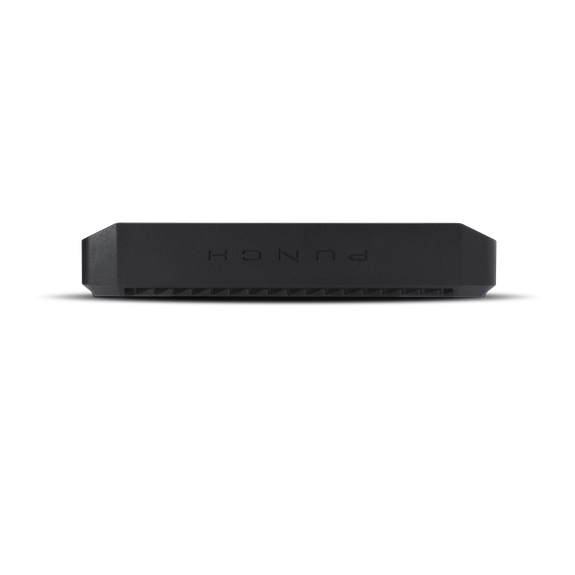

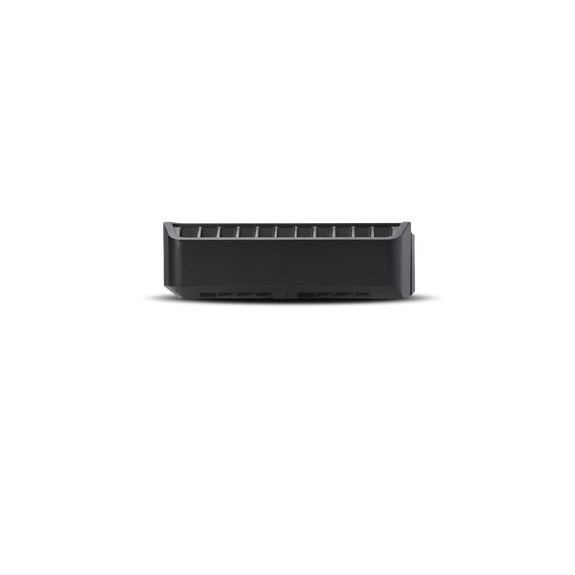

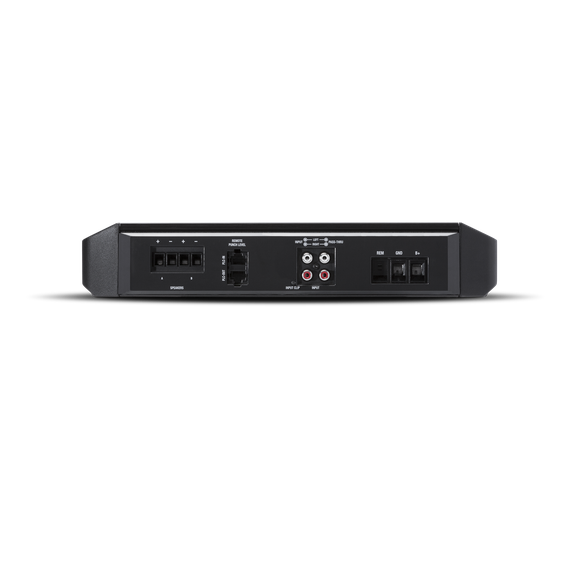

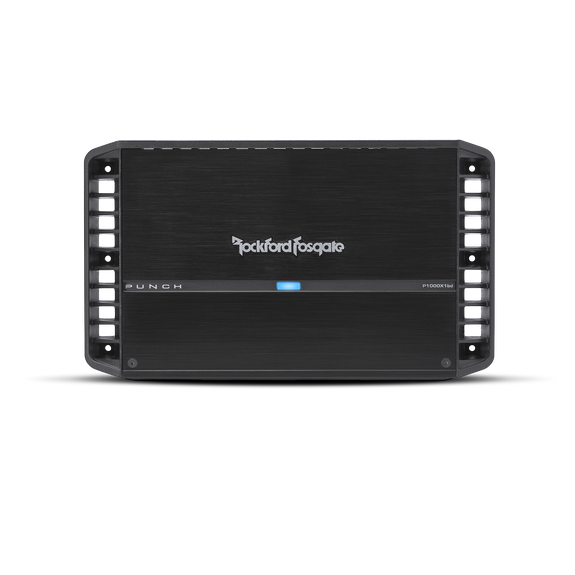

Rockford Fosgate Punch P1000X1bd
The P1000X1BD is a powerful mono amplifier designed for subwoofers, using Rockford’s Class‑BD topology for better efficiency. It delivers up to 1,000 Watts RMS at 1 ohm, with stepped down output at higher impedances. Features include built‑in crossovers, bass boost, high/low‑level input compatibility, and protections to handle serious bass without overheating.
Features
| Feature | Details |
|---|---|
| Power Output | 1,000W RMS @ 1Ω; 500W @ 2Ω; 300W @ 4Ω |
| Punch EQ | On-board, +18 dB boost at 45Hz |
| Filters | Infrasonic filter; Low-pass Butterworth crossover (50‑250Hz) |
| Inputs | High-level (speaker) inputs; Auto turn-on circuit |
| C.L.E.A.N Setup | Input/output clip LEDs; Cast aluminum heatsink; Protection: short circuit / over current |
Specifications
| Specification | Details |
|---|---|
| Model | P1000X1BD |
| Channels | Mono (1) |
| RMS Power Output | 300W ×1 @ 4Ω; 500W ×1 @ 2Ω; 1000W ×1 @ 1Ω |
| Dynamic Power (PowerCube / Peak) | ~491W @ 4Ω; ~874W @ 2Ω; ~1,430W @ 1Ω |
| Frequency Response | 20Hz – 250Hz ± 1.0dB |
| Input Sensitivity | 150 mV ‑ 12 V |
| Circuit Topology | Class BD |
| Efficiency (At 4Ω) | ~86 % |
| THD + Noise | <1.0 % at 4Ω / 2Ω / 1Ω |
| Signal Input | Hi/Low‑level input (1 RCA pair) |
| Crossover Controls | Low‑Pass 50‑250 Hz @ 12 dB/octave Butterworth; Infrasonic filter ~28 Hz |
| Remote Control | Optional Punch Level Control (PLC2) ready |
| Power Wire Gauge | 4 AWG |
| Recommended Fuse | 140 A |
| Operating Voltage | 9‑16V DC |
| Dimensions (H × W × D) | 2.38″ × 7.76″ × 13.28″ |
| Weight | ~12.9 lbs (≈ 5.85 kg) |
