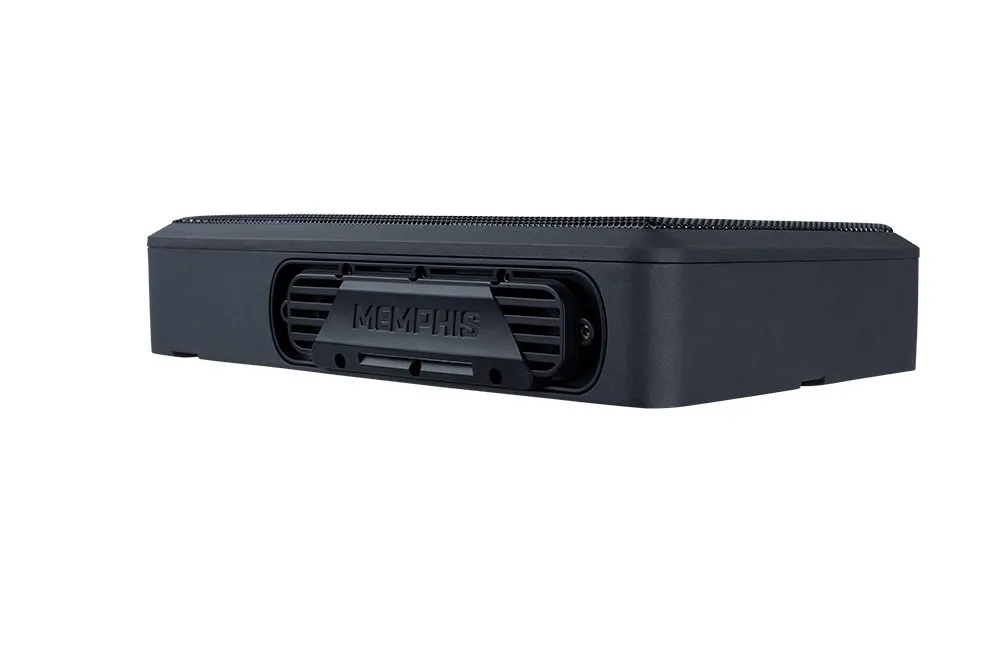

Memphis NANO110P

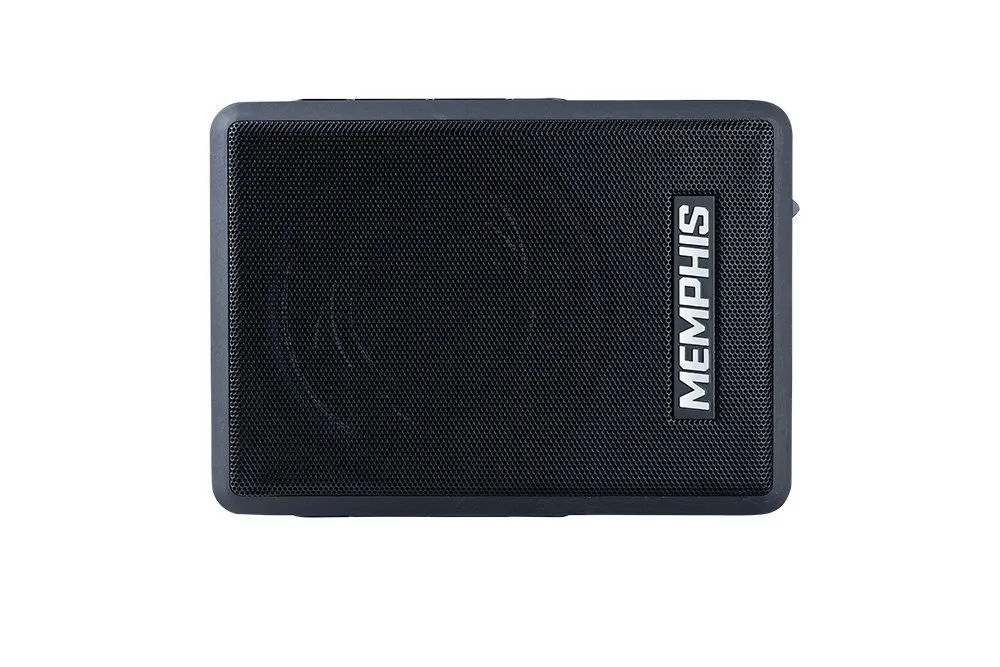

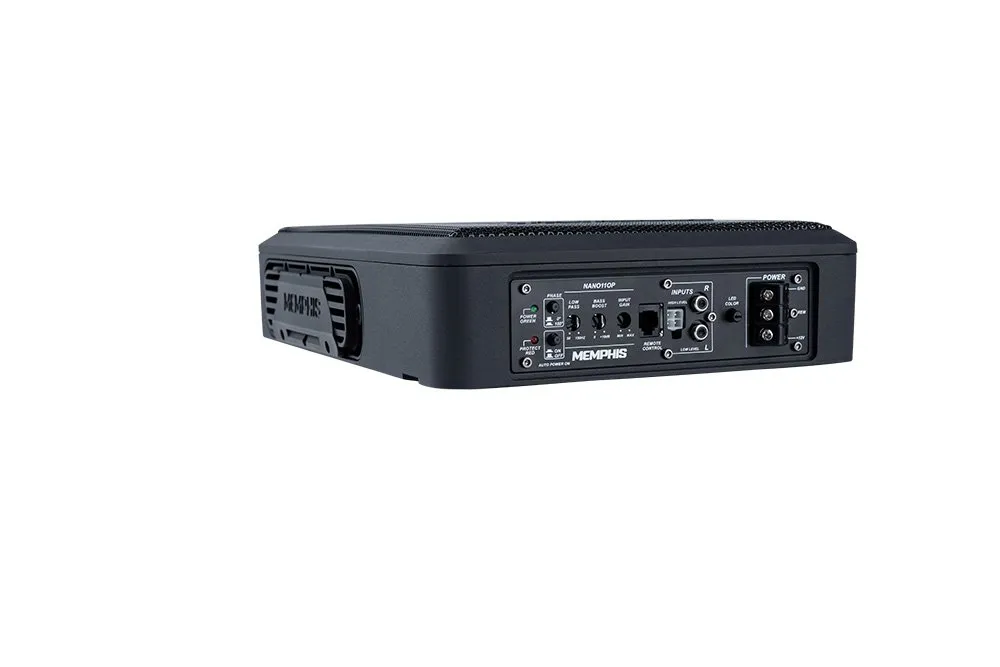

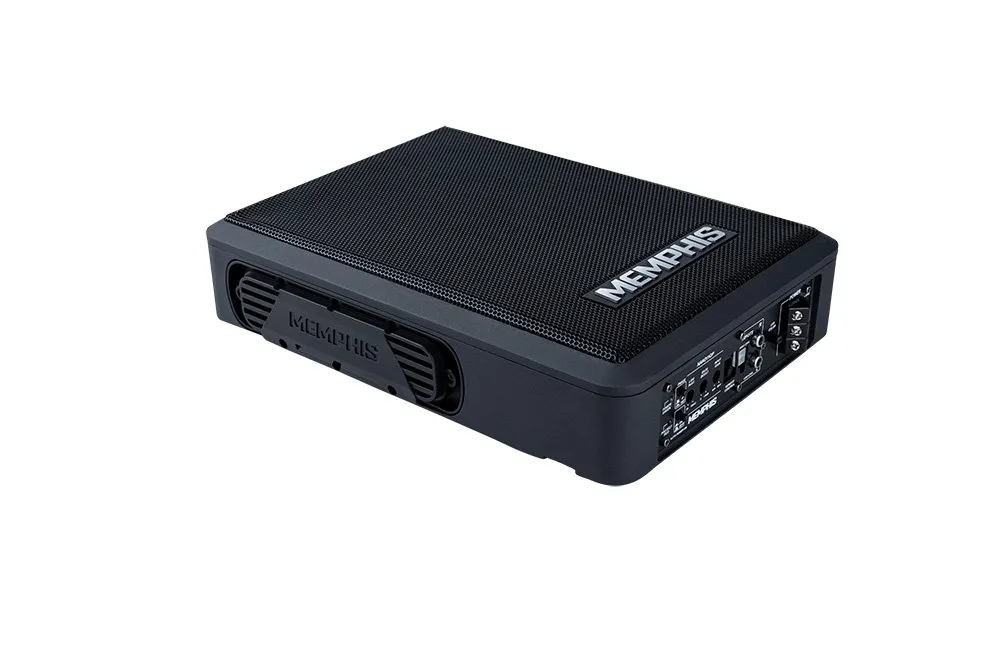

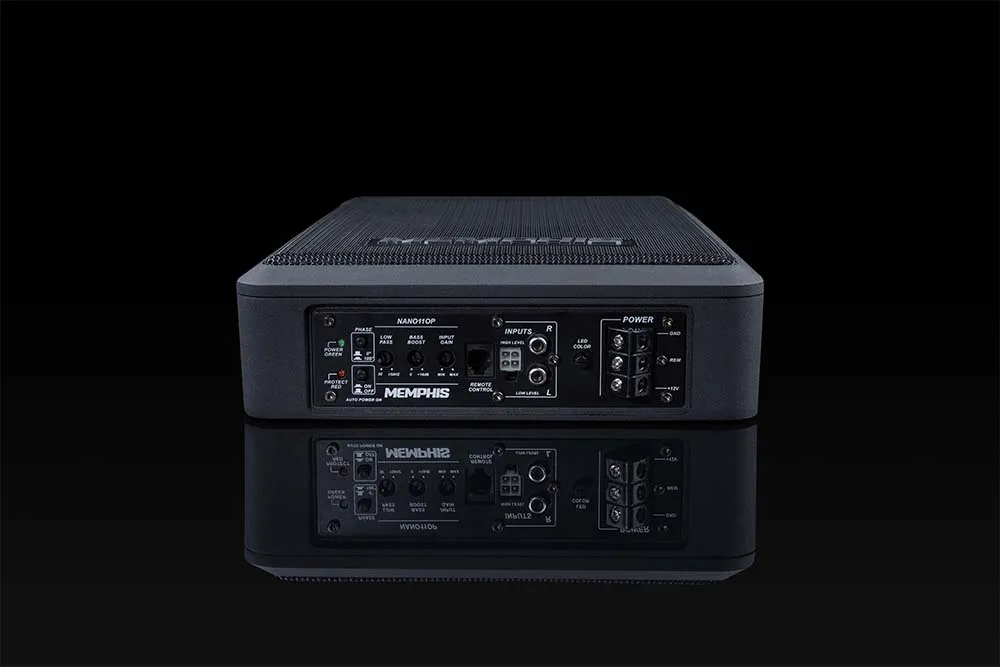

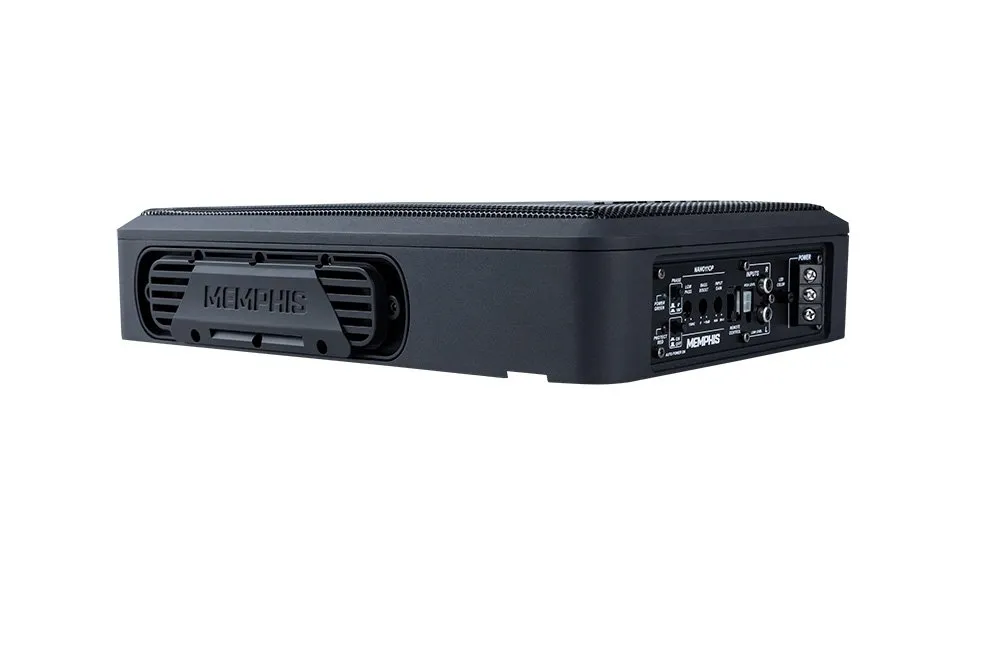

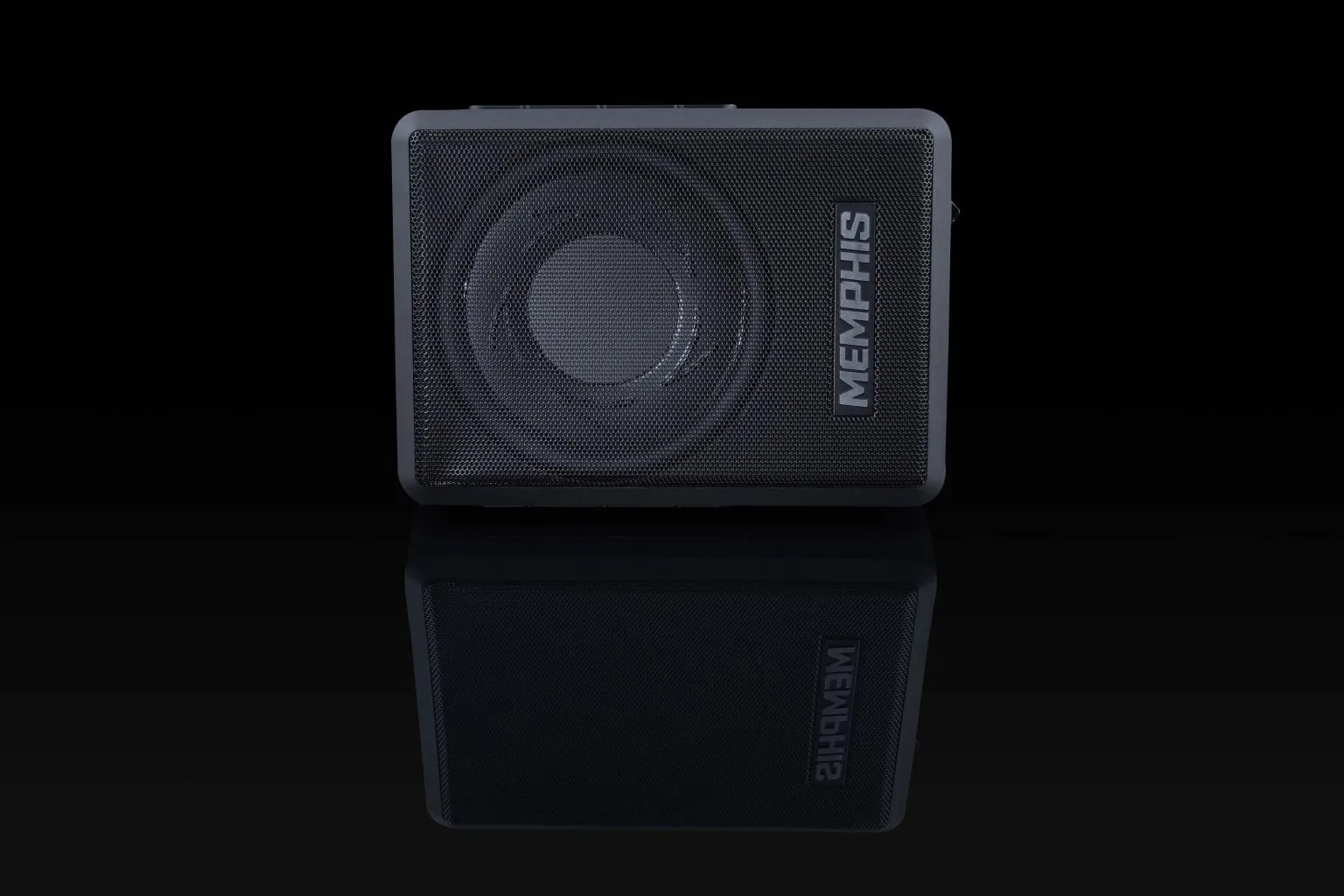

The NANO110P is a slim under-seat powered subwoofer system designed for cars with very limited space. It includes a built-in Class D amplifier paired with a 10″ subwoofer and an oversized passive radiator for enhanced bass. The enclosure has a die-cast aluminum construction, integrated RGB LED ground-lighting, remote gain control, high/low level inputs, bass boost, low-pass and subsonic filters, and protection circuits for thermal, short-circuit, and overload safety.
Features
| Feature | Description |
|---|---|

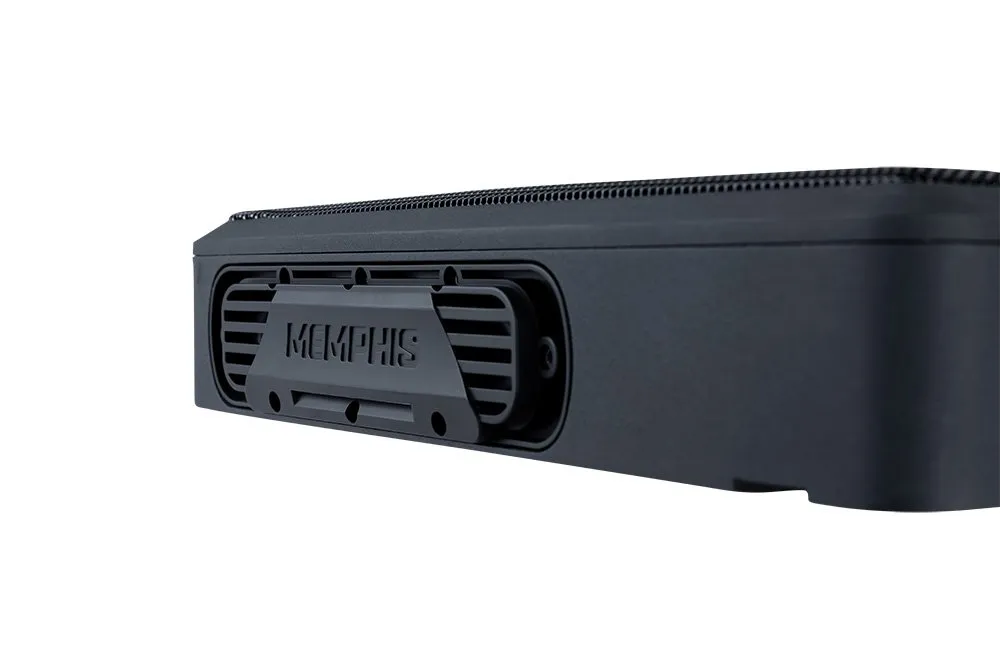

| Passive Radiator | Oversized cone |
| Amplifier | Built-in Class D |
| Enclosure | Die cast aluminum |
| Controls | Remote level control |
| Inputs | High and low level inputs |
| Bass Boost | 0–12 dB |
| Filters | Low pass and subsonic |
| Protection | Thermal, short circuit, and overload |

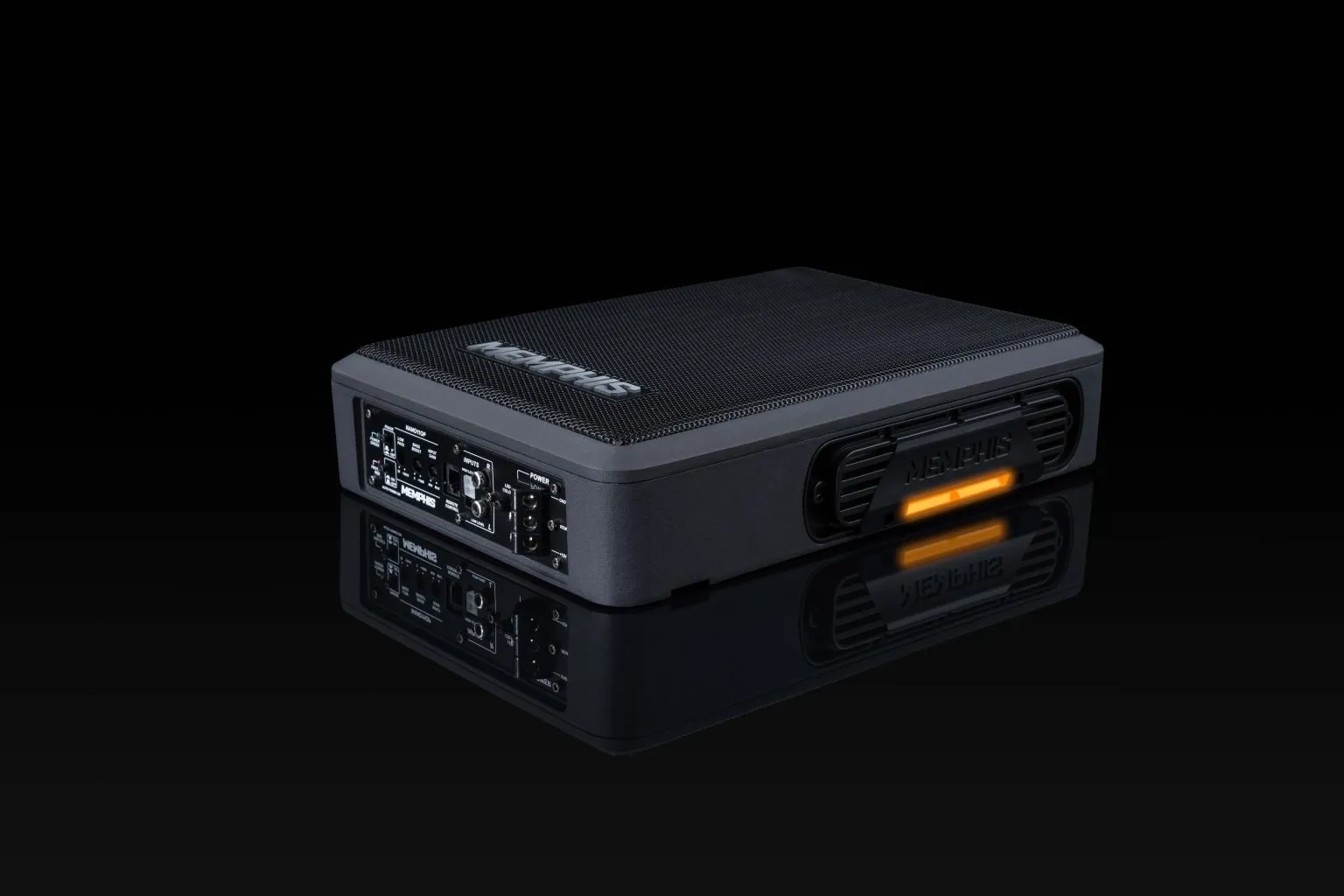

| Lighting | RGB LED ground lighting |
Specifications
| Feature | Specification |
|---|---|
| RMS Power | 180 W |
| Max Power | 360 W |
| Total Harmonic Distortion (THD) | < 1% |
| Signal-to-Noise Ratio | > 90 dB |
| Frequency Response | 20–150 Hz |
| Low Pass Filter | 50–150 Hz |
| Subsonic Filter | 20 Hz |
| Subwoofer | 10″, 2″ voice coil |
| Dimensions (L × W × H) | 13.6 × 9.6 × 2.75 in |
