Description

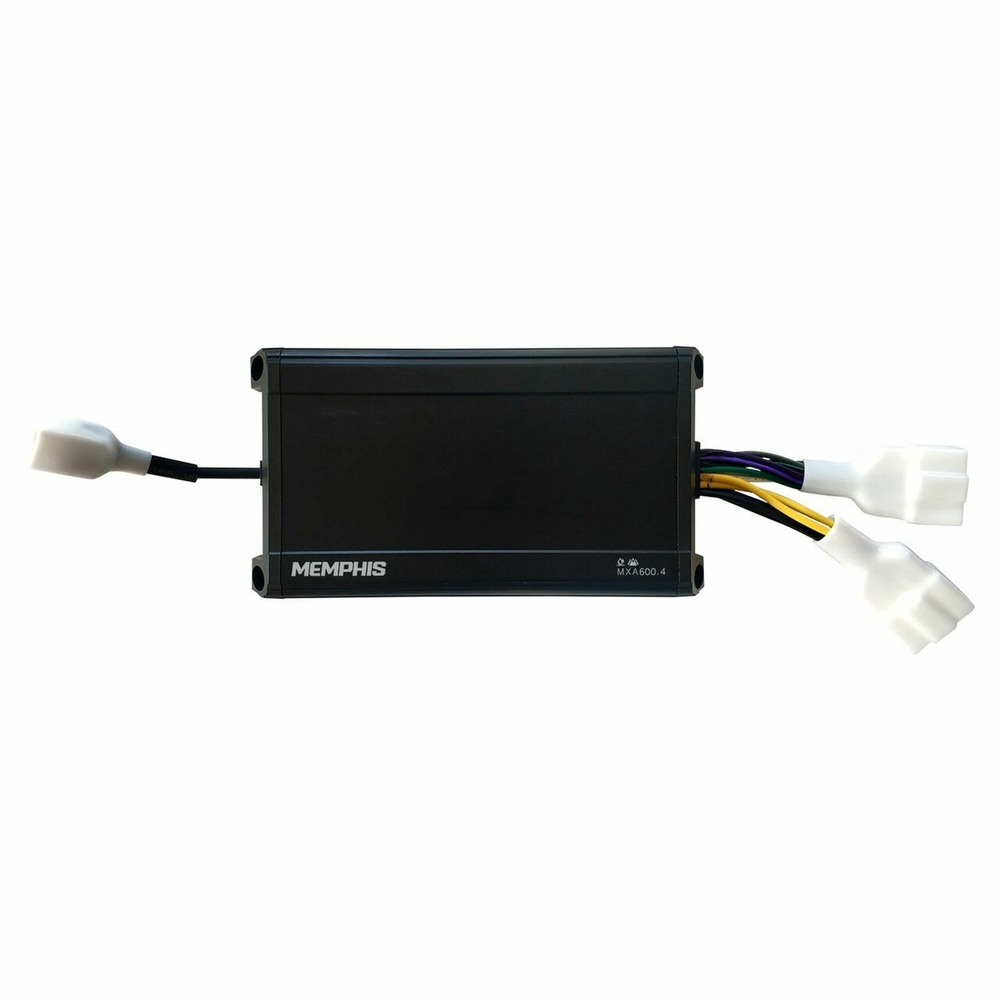

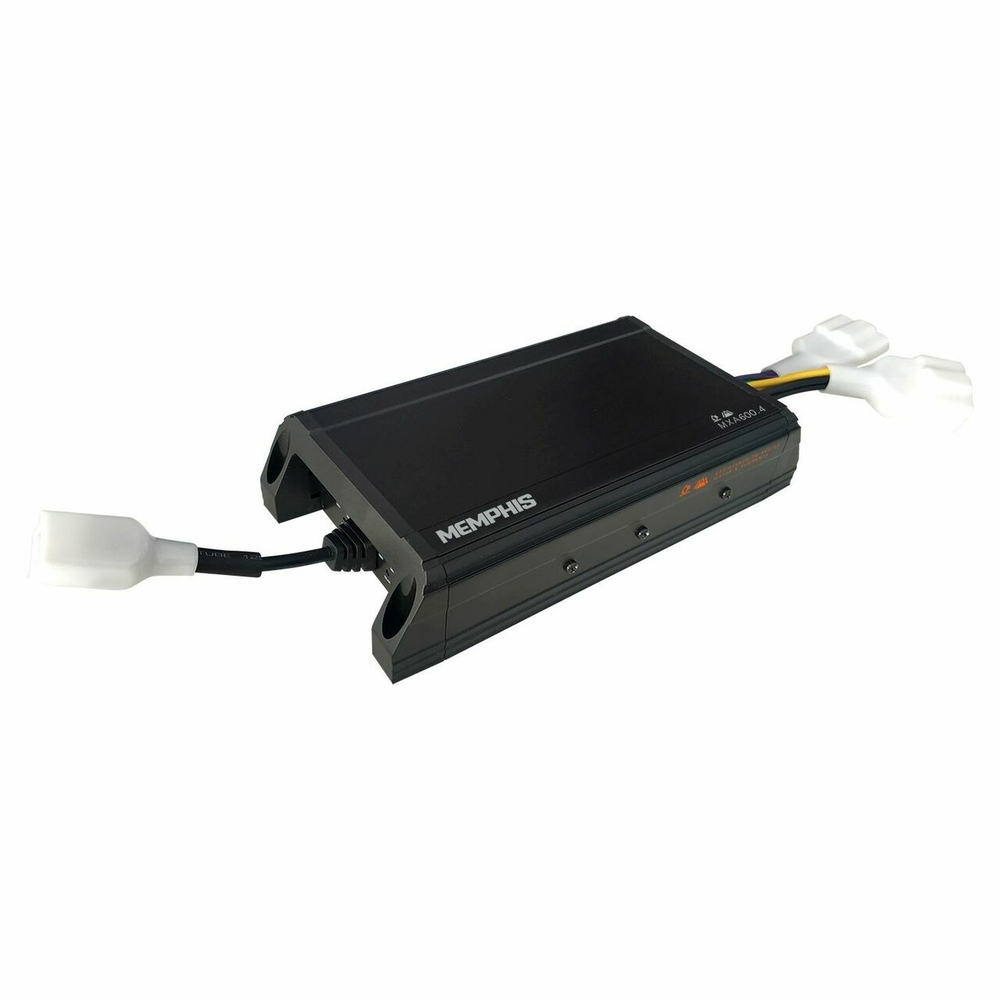

Memphis MXA600.4
The MXA600.4 is a high-performance 4-channel amplifier designed for powersports, marine, motorcycles, and outdoor audio systems. It delivers robust and clean audio output for multiple speakers or bridged subwoofer setups. Built with a sealed, weather-resistant chassis and conformal-coated circuitry, it is engineered to withstand water, mud, and vibrations. Adjustable crossovers and flexible input options make the MXA600.4 ideal for upgrading factory or custom audio systems on any outdoor vehicle.
Specifications
Amplifier Key Features
| Feature | Availability |
|---|---|
| Compact Design | Yes |
| Speaker Level Inputs | Yes |
| Weather-Resistant | Yes |
Power Specifications – Full Range Channels
| Specification | Value |
|---|---|
| RMS Power @ 4Ω | 130 W x 4 |
| RMS Power @ 2Ω | 150 W x 4 |
| Bridged RMS Power | 300 W x 2 |
Amplifier Specifications
| Specification | Value |
|---|---|
| Series | MXA Series |
| Amplifier Class | D |
| Number of Channels | 4-Channel |
| Total RMS Power Output | 600 W |
| Maximum Input Gauge Size | 1/0 AWG |
| Minimum Impedance Unbridged | 2 Ω |
| Minimum Impedance Bridged | 4 Ω |
| Frequency Response | 20 – 20,000 Hz |
| THD at Rated RMS Power | <1% |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Built-in Crossover | LP & HP |
| High-Pass Crossover Frequency | 50 – 500 Hz |
| Low-Pass Crossover Frequency | 50 – 500 Hz |
| Remote Bass/Level Controller | No |
| Strappable | No |
| Amp Bluetooth Connectivity | No |
| Hi-Res Certified | No |
| Low-Level Input Sensitivity | 300 mV – 8.5 V |
