Description
Rockford Fosgate M2-750X5
The Rockford Fosgate M2-750X5 is a 5-channel marine amplifier designed to deliver high-quality audio performance in harsh marine environments. With a total power output of 750 watts, this amplifier provides 50 watts RMS to four full-range channels and 200 watts RMS to a subwoofer channel at 4 ohms. It features Class-D technology for efficient power delivery and includes advanced features like C.L.E.A.N. input/output clip detection and integrated Punch EQ for optimal sound tuning.
Features
| Feature | Description |
|---|---|
| 5-channel amplifier | Powers four full-range speakers and one subwoofer |
| Class-D technology | Efficient power delivery with minimal heat generation |
| Element Ready™ design | Marine-grade build with UV-stable powder-coated cast aluminum heatsink |
| C.L.E.A.N. circuitry | Easy gain setting with clip detection and indicator LEDs |
| Integrated Punch EQ | On-board adjustments for bass, treble, and punch |
| Conformal-coated circuit board | Protection against dust and water intrusion |
| Zinc nickel-plated marine-grade brass terminals | Corrosion-resistant connection points |
| Includes RLC Remote Level Control | Enables convenient volume adjustments |
Specifications
| Specification | Description |
|---|---|
| Brand | Rockford Fosgate |
| Model | M2-750X5 |
| Type | 5-Channel Marine Amplifier |
| Power Output (RMS) | 50W x 4 @ 4Ω + 200W x 1 @ 4Ω |
| Power Output (RMS) | 100W x 4 @ 2Ω + 350W x 1 @ 2Ω |
| Bridged Power Output | 200W x 2 @ 4Ω |
| Frequency Response | 20Hz – 20kHz |
| Signal-to-Noise Ratio | >80 dBA (measured at 1 watt into 4Ω) |
| Dimensions (H x W x D) | 1.9″ x 11.2″ x 6.8″ |
| Recommended Power Wire | 4 AWG |

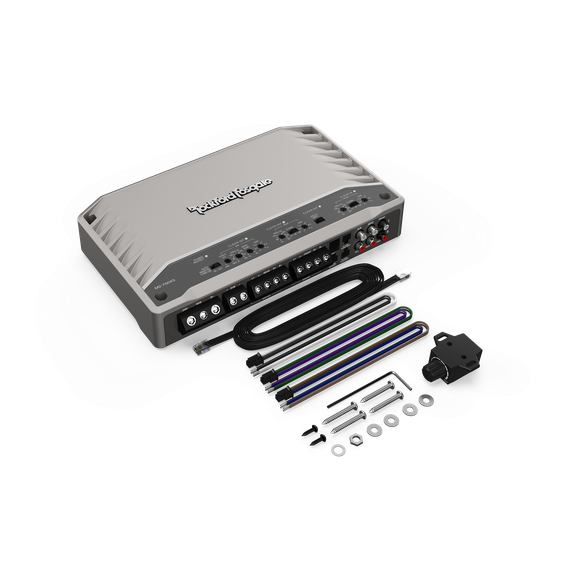

| Included Accessories | RLC Remote Level Control |
