Description

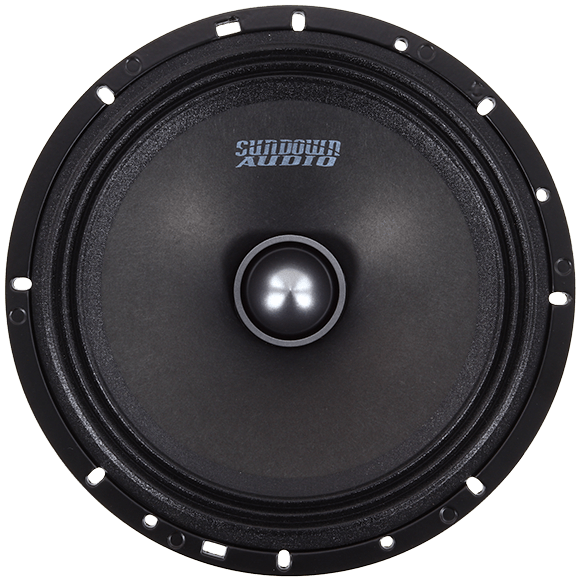

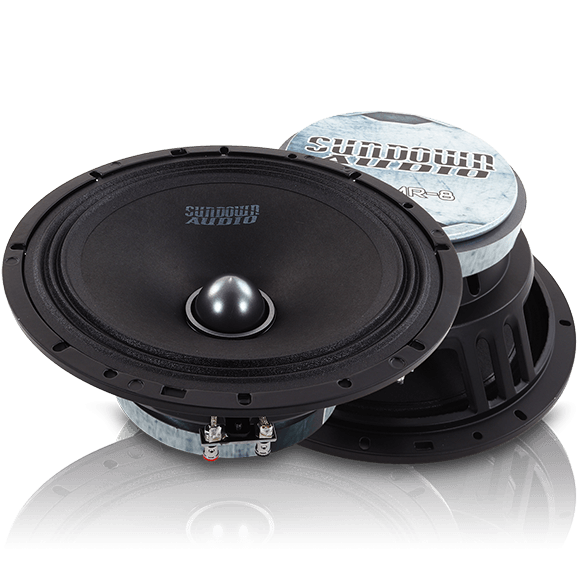

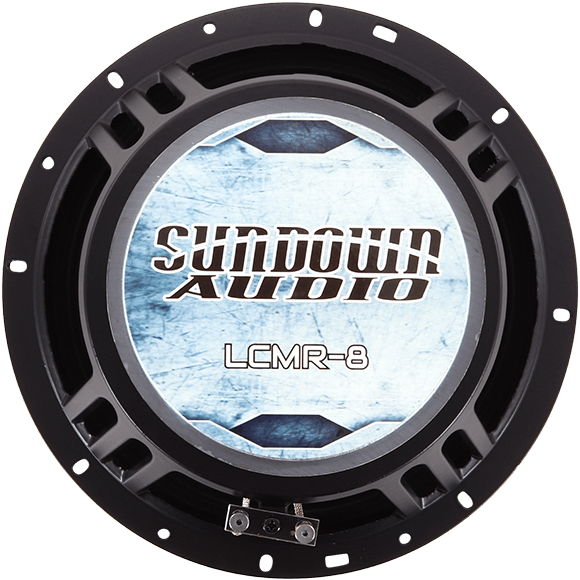

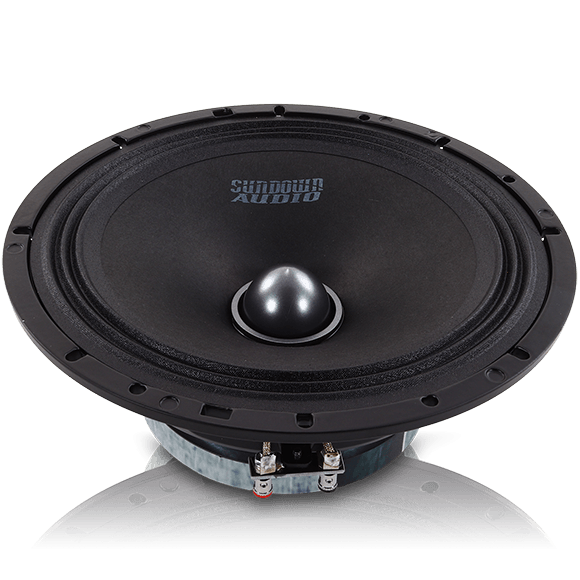

Sundown Audio LCMR-8
The Sundown Audio LCMR-8 is an 8-inch pro-audio midrange driver engineered to deliver powerful, clear, and accurate mid-frequency sound for car audio systems and custom installations. Built with a robust motor structure, phase plug, and durable cone design, it offers a smooth frequency response from roughly 120 Hz to 6 kHz, making it ideal for vocals and midrange instruments. Rated for 100 W RMS power handling and available in either 4 ohm or 8 ohm impedance options, the LCMR-8 is flexible for use with various amplifier configurations. With a sensitivity around 94 dB, it provides strong output and reliability whether used in door pods, kick panels, or dedicated midrange locations. This driver enhances overall system clarity and detail when paired with appropriate tweeters and woofers.
Features
- Sold Individually
- Power Handling: 100 Watts RMS
- Impedance: 4/8 Ohm
- Frequency Range: 120Hz – 6kHz
- Phase Plug
- Outside Diameter: 8.25″
- Cutout Diameter: 7.125″
- Mounting Depth: 3.50″
- Resonant Frequency, FS: 81.18Hz
- D.C.Voice coil resistance, Re: 3.2
- Mechanical quality factor, Qms: 9.46
- Electrical quality factor, Qes: 0.55
- Total quality factor, Qts: 0.52
- Equivalent air volume to Cms. Vas: 7.5L
- Mechanical compliance, Cms: 0.24MM/N
- BL factor, Bl: 6.3N/A
- Effective surface area,Sd: 12.469Mm*
- Sensitivitv(1w/1m): 94dB +/- 2dB
Specifications
|
RE (Ohms)
|
|
|---|---|
|
FS (Hz)
|
|
|
VAS (L)
|
|
|
Qes
|
|
|
Qms
|
|
|
Qts
|
|
|
BL (NA)
|
|
|
CMS (uM/N)
|
|
|
Sens (dB @ 1w/1m)
|
|
