Description

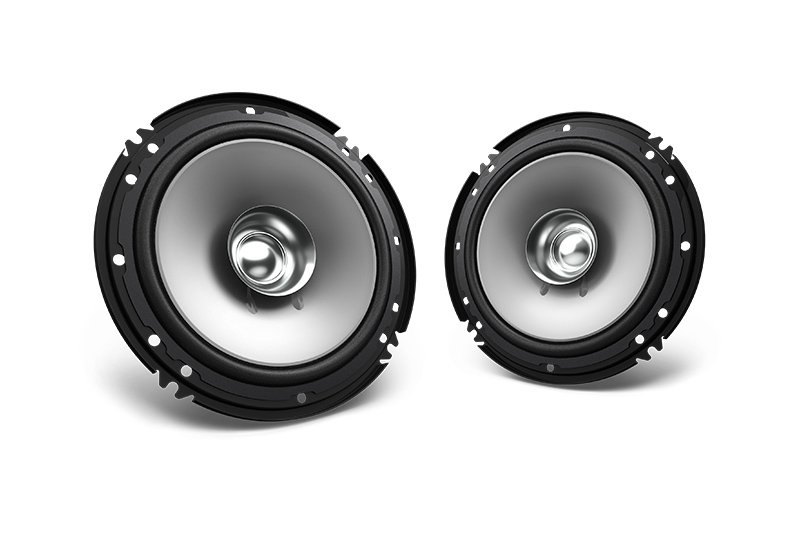

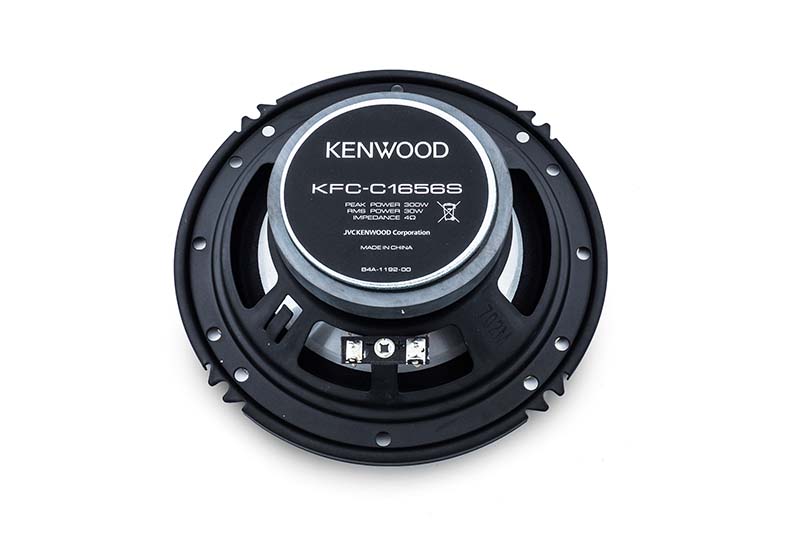

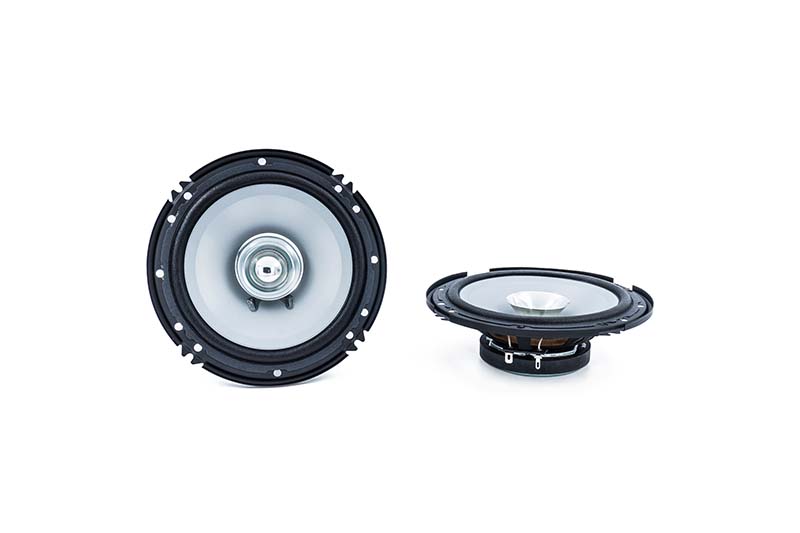

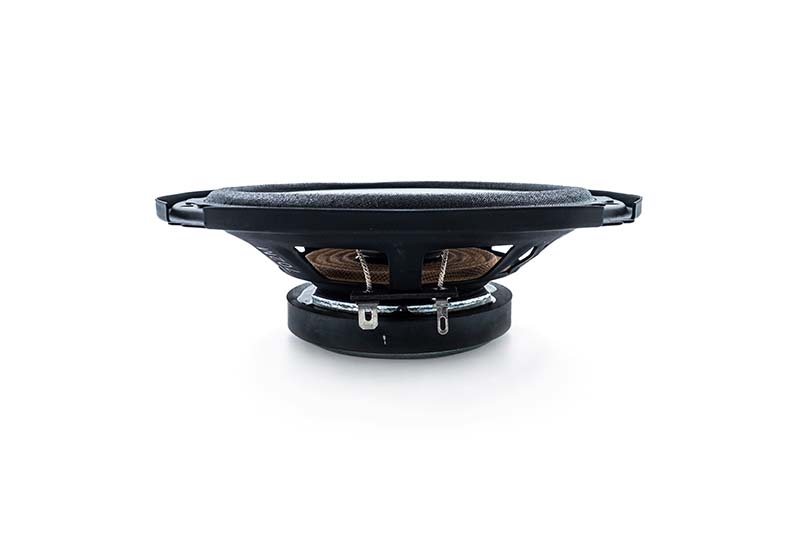

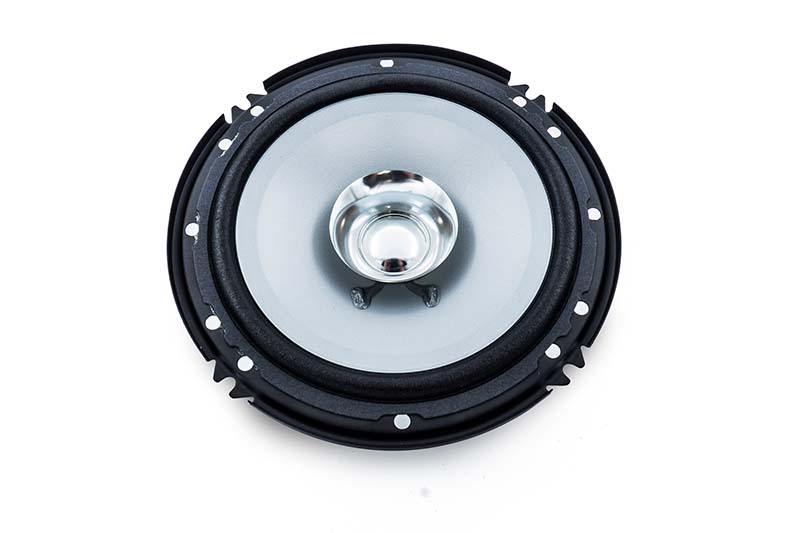

Kenwood KFC-C1656S
The Kenwood KFC-C1656S is a 6.5-inch (16 cm) 2-way component speaker system designed for high-quality sound upgrades. With separate tweeters and external crossovers, it delivers powerful mids, crisp highs, and a wide soundstage—perfect for front-stage SQ builds and clean audio setups.
Specification
| Category | Parameter | Value |
|---|---|---|
| Electrical | Peak Input Power | 300 W |
| Electrical | Rated Input Power | 30 W |
| Electrical | Impedance | 4 ohms |
| Woofer | Size | 6-1/2 inch |
| Woofer | Material | PP Cone |
| Specifications | Sensitivity | 90 dB / W / m |
| Specifications | Frequency Response | 40 Hz – 18 kHz |
| Dimension | Cutout Diameter | 4-7/8 inch |
| Dimension | Mounting Depth | 1-11/16 inch |
| Weight | Gross Weight | 2.5 lbs |
| Weight | Woofer Magnet Weight | 0.49 lbs |
| Category | Parameter | Metric | Imperial / Details |
|---|---|---|---|
| Electrical | Impedance | 4 Ω | — |
| Electrical | Peak Input Power | 260 W | — |
| Electrical | RMS Input Power | 30 W | — |
| Electrical | Sensitivity (at 1m) | 89 dB | — |
| Electrical | Frequency Response | 45 – 18,000 Hz | — |
| Woofer | Diaphragm | PP (Silver) | — |
| Woofer | Size | 130 mm | 5.25 in |
| Woofer | Surround | Cloth | — |
| Woofer | Magnet | Ferrite (φ70×t10) | — |
| Dimension | Width | 130.0 mm | 5-1/4 in |
| Dimension | Height | 130.0 mm | 5-1/4 in |
| Dimension | Cutout Diameter | 112 mm | 4-7/16 in |
| Dimension | Tweeter Height | 4.1 mm | 3/16 in |
| Dimension | Mounting Depth | 43.5 mm | 1-11/16 in |
| Weight | Speaker Weight (per pc) | 404 g | 0.9 lbs |
| Weight | Woofer Magnet Weight | 160 g | 5.6 oz |
| Weight | Gross Weight | 870 g | 1.9 lbs |
| Accessory | Screw Sets | φ4×25 (8 pcs) | Tapping Screws |
| Accessory | Speed Nut | 8 pcs | — |
| Accessory | Speaker Cord | 0.3 m × 2 pcs | — |
| Accessory | Warranty Card | 1 pc | — |
