Description

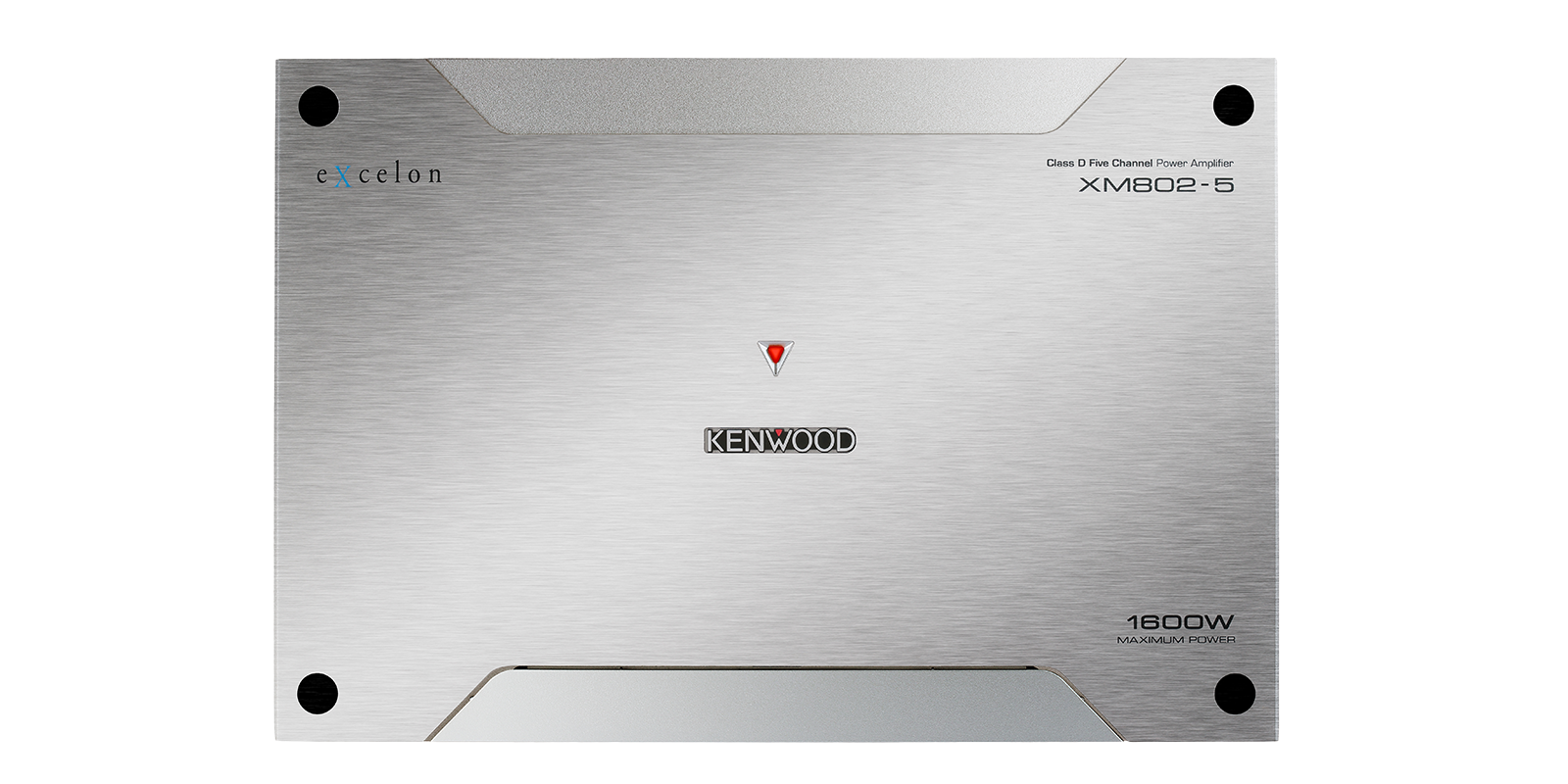

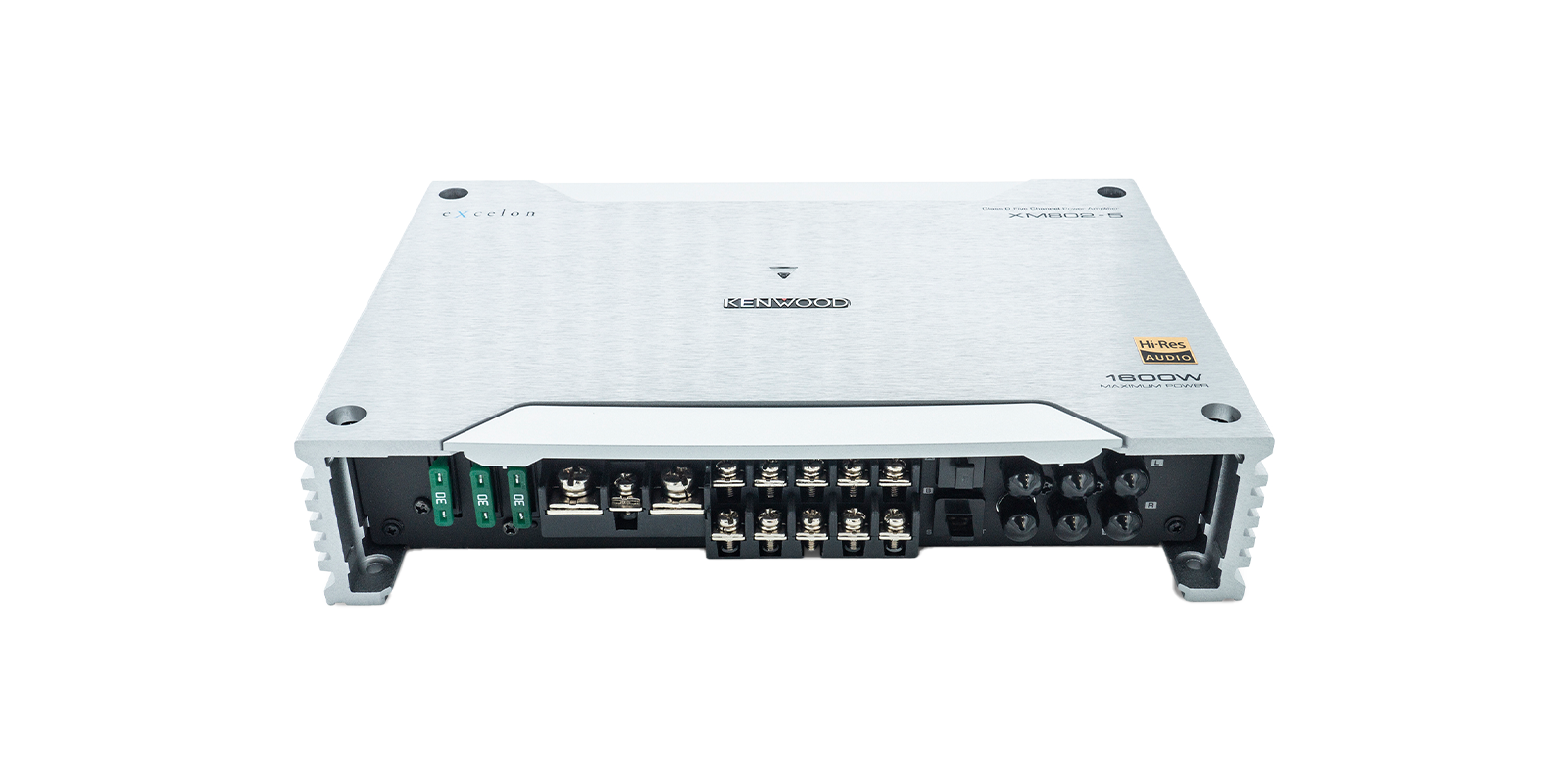

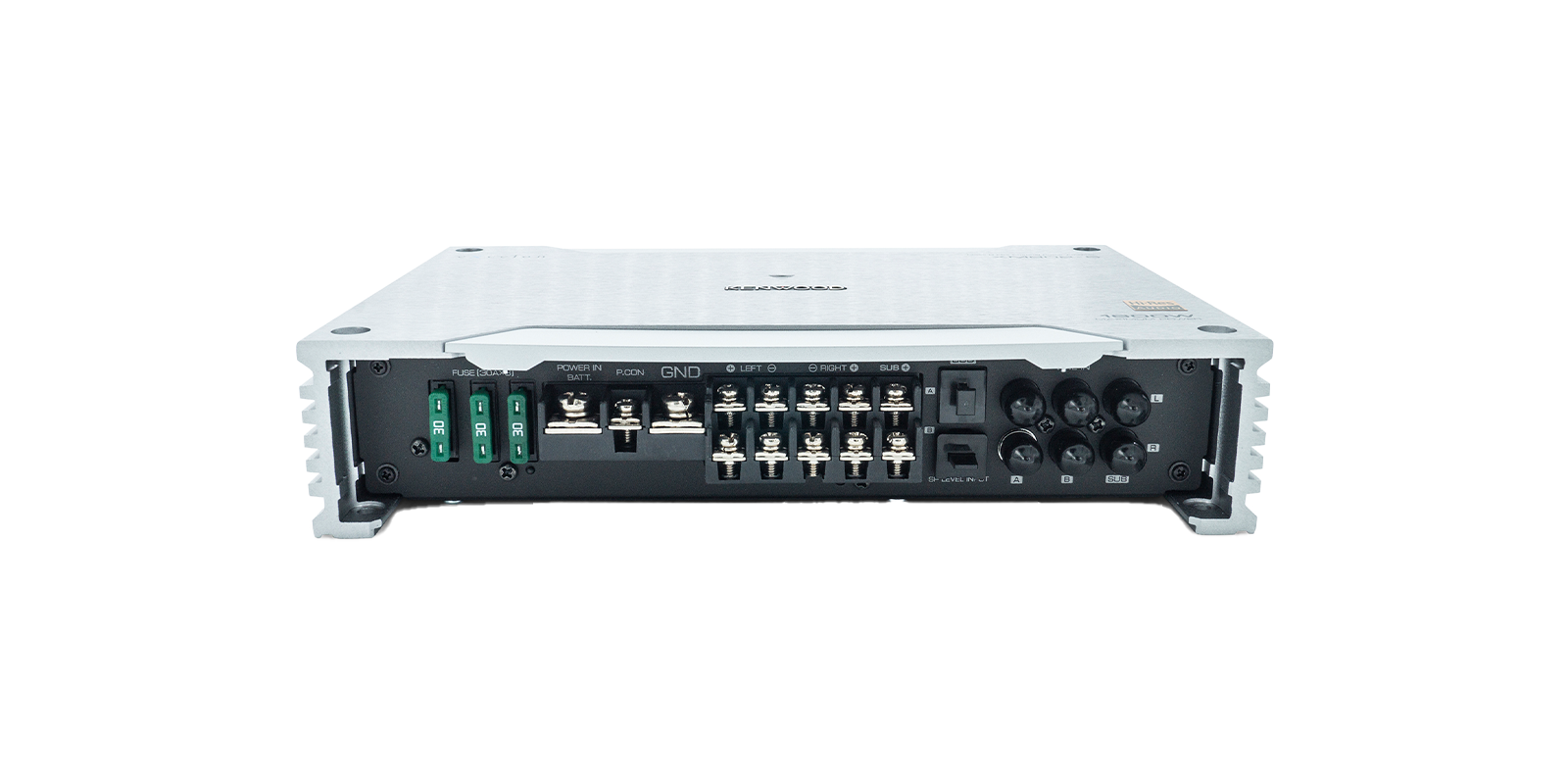

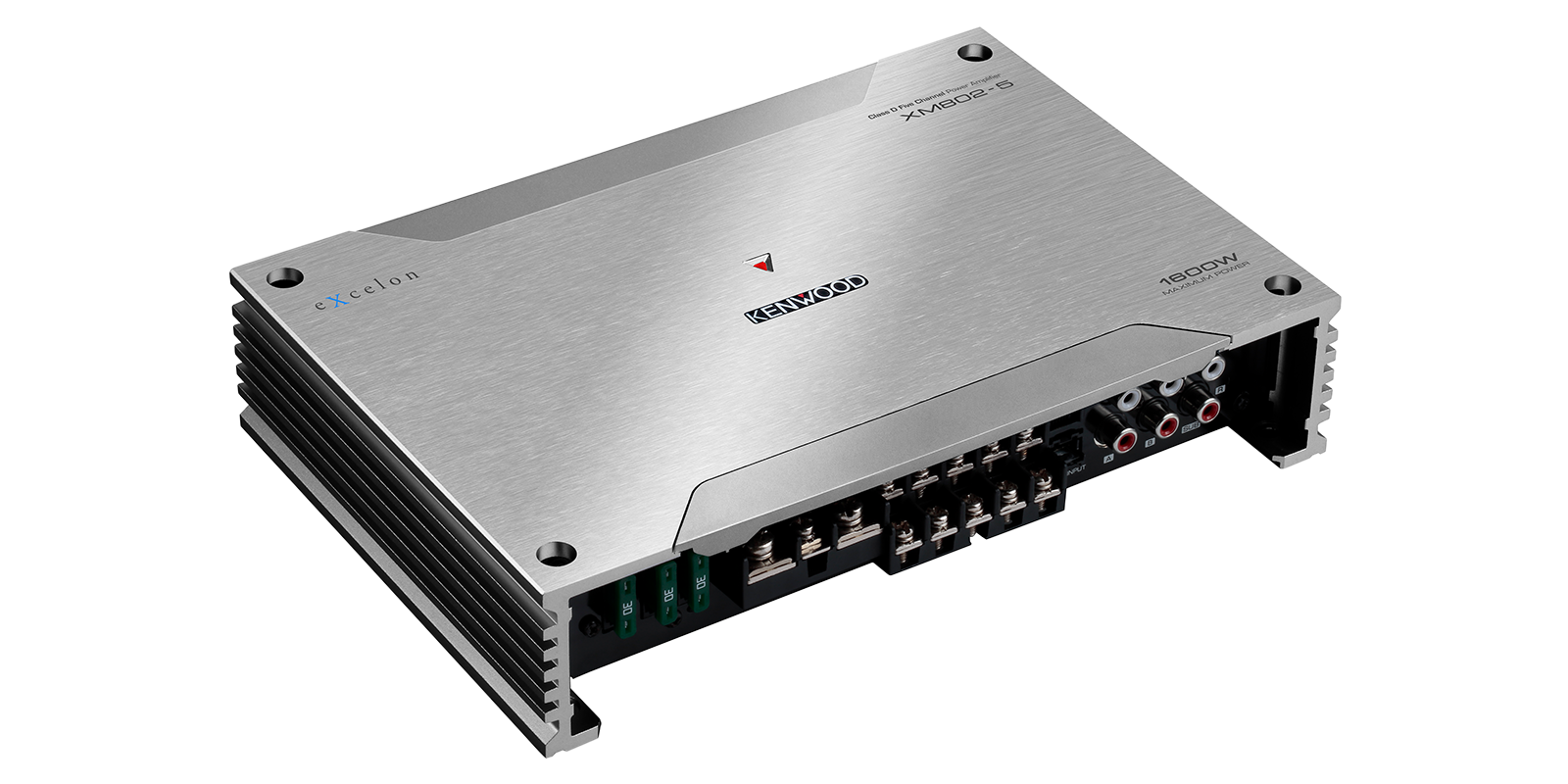

Kenwood eXcelon XM802-5
The Kenwood XM802-5 is a 5-channel Class D car audio amplifier (eXcelon Motorsports series) designed to run a complete system from a single unit — powering front speakers, rear speakers, and a subwoofer together. It is basically a “full system amplifier” for clean, space-saving installations.
Specifications
| Specification | XM802-5 | XM502-1 | XM302-4 |
|---|---|---|---|
| MAX POWER | 1600W | 1000W | 600W |
| RMS POWER OUTPUT (4Ω) | 50W × 4 + 300W | 300W | 50W × 4 |
| RMS POWER OUTPUT (2Ω) | 75W × 4 + 500W | 500W | 75W × 4 |
| RMS POWER OUTPUT Bridged | 150W × 2 (Bridged) + 300W | — | 150W × 2 (Bridged) |
| Features | Speaker Level Input | Speaker Level Input | Speaker Level Input |
| Signal Sensing Turn-On | Signal Sensing Turn-On | Signal Sensing Turn-On | |
| Variable High Pass Filter | Variable Low Pass Filter | Variable High Pass Filter | |
| Variable Low Pass Filter | Infrasonic Filter | Variable Low Pass Filter | |
| Conformal Coating | Conformal Coating | Conformal Coating | |
| Bass Boost | Bass Boost | Bass Boost | |
| Optional Wired Remote Ready | Optional Wired Remote Ready | — | |
| Dimensions | (W) 9-3/4″ × (H) 2-1/16″ × (D) 6-5/8″ | (W) 8-3/8″ × (H) 2-1/16″ × (D) 5-7/8″ | (W) 8-3/8″ × (H) 2-1/16″ × (D) 5-7/8″ |
| Weight | 4.6 lbs (2.1 kg) | 3.3 lbs (1.5 kg) | 3.1 lbs (1.4 kg) |
Reviews
There are no reviews yet.
