Description
JBL Marine A600

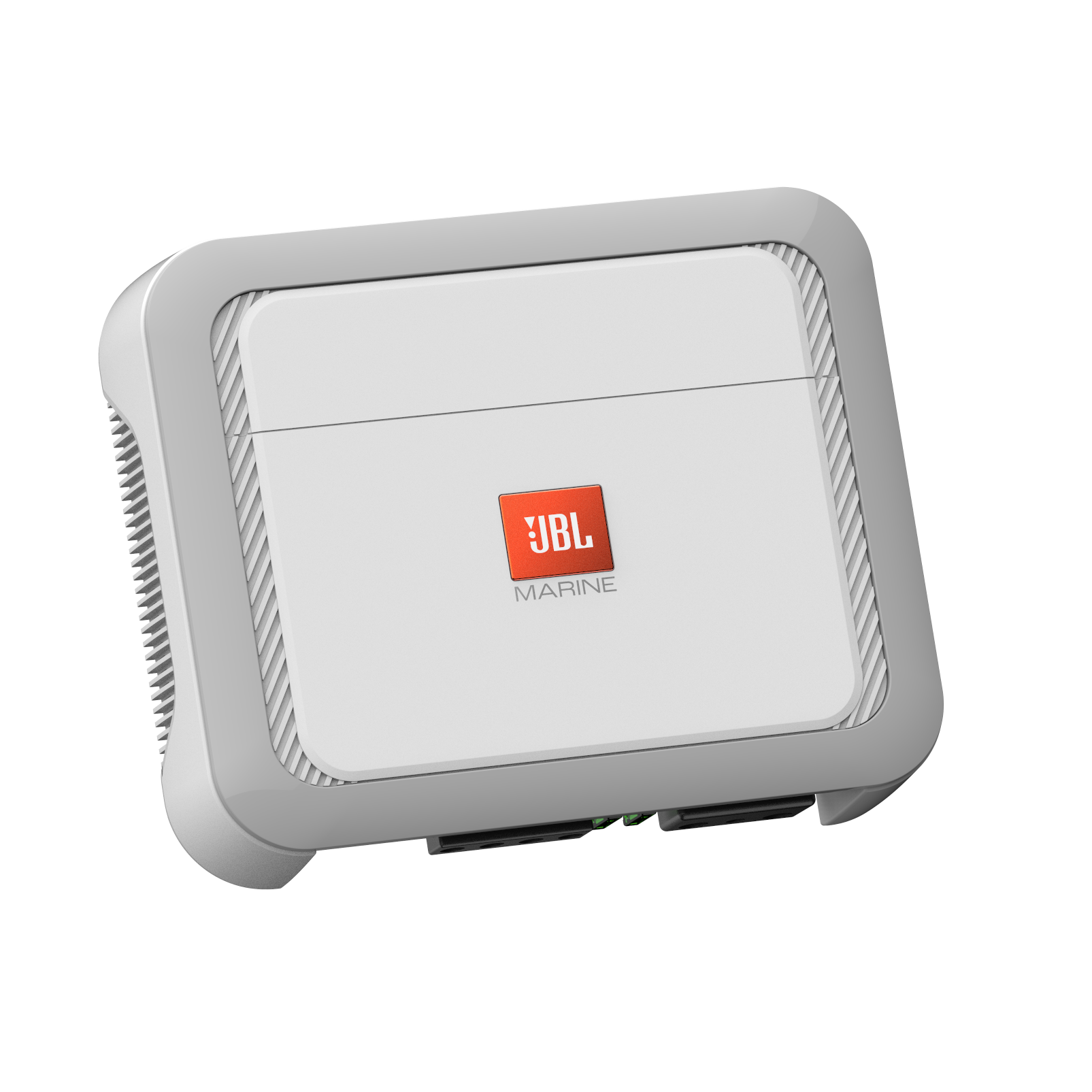

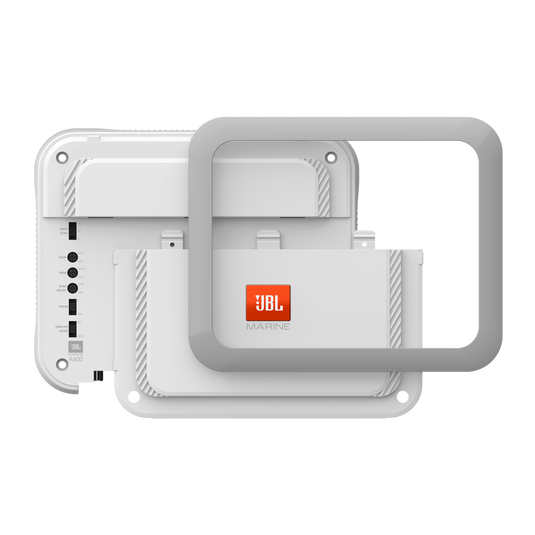

The JBL Marine A600 is a mono Class D marine subwoofer amplifier engineered to deliver deep, powerful bass with efficient performance and reliable marine durability. It features a compact, low‑profile design ideal for boats, marine vehicles, and outdoor audio systems, with both high‑level (speaker‑level) and low‑level (RCA) inputs for flexible connection to factory or aftermarket sources. The amplifier includes variable low‑pass crossover, variable bass boost, and a phase switch for system tuning, plus a wired remote bass control for easy level adjustment from the driver’s position. Built‑in protection guards against shorts, high temperature, and voltage issues while Balanced Differential Inputs reduce noise and distortion for clean output.
Specifications
| Specification | Value |
|---|---|
| RMS Power Output | 350 W × 1 @ 4 ohms (600 W × 1 @ 2 ohms) |
| Max Power | 1200 W |
| Amplifier Technology | Class D |
| Low-Pass Filter | Variable (32–320 Hz, 12 dB/octave) |
| Bass Boost | Variable (0–12 dB @ 45 Hz) |
| Phase Switch | 0°, 180° |

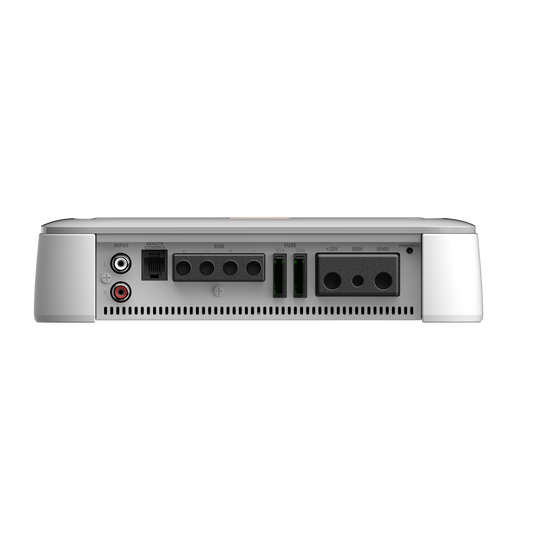

| Inputs | Preamp and Speaker-Level |
| Fuse Rating | 30 A × 2 |
| Wiring Recommendation | 8-gauge power and ground leads (hardware not included) |
| Dimensions (WxHxD) | 220 mm × 51.3 mm × 180 mm / 8-11/16″ × 2-1/16″ × 7-1/8″ |
