Description

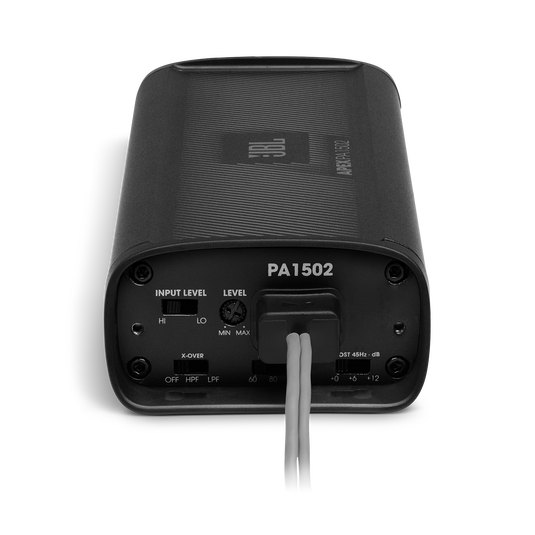

JBL Apex PA1502
The JBL Apex PA1502 is a 2‑channel Class D amplifier designed for car audio systems and powersports applications where efficiency, power, and compact size matter. It delivers 150 W RMS × 2 channels at 4 Ω with low distortion and high thermal efficiency, making it ideal for powering a pair of speakers or a subwoofer in bridged mode. The amplifier includes selectable high‑pass and low‑pass crossover filters for tuning the audio response, and supports speaker‑level and low‑level (RCA) inputs for flexible connection options. Built with a weather‑resistant rugged design, the Apex PA1502 is suited for cars, trucks, ATVs, and outdoor vehicles.
Specification
| Specification | Value |
|---|---|
| Max Power | 750 W Peak |
| RMS Power Output @ 2Ω (Full-Range) | 150 W × 2, <1% THD+N |
| RMS Power Output @ 4Ω (Full-Range) | 100 W × 2, <1% THD+N |
| RMS Power Output @ 4Ω Bridged (Full-Range) | 300 W × 1, <1% THD+N |
| Selectable All-/Hi-/Lo-Pass Filter | 60 Hz, 80 Hz, 120 Hz @ 12 dB/octave |
| Selectable Bass Boost | 0, 6, 12 dB @ 45 Hz |
| Frequency Response | 20 Hz – 20 kHz |
| Signal-to-Noise Ratio (Full-Range) | >75 dB (ref 1 W output @ 4Ω) |
| Fuse Rating | 25 A |
About The Product
The Apex Series PA1502 powersports amplifiers deliver efficient Class D power, from an ultra-compact chassis, designed to fit into tight spaces and withstand outdoor environments without missing a beat. Available with 2-channels of output power, the Apex Series PA1502 includes selectable electronic crossover frequency adjustment, with lo-pass capability & selectable bass boost, for quick and easy installation. Plus, it has been engineered for harsh conditions, with power and performance to meet the needs of most audio systems making it the perfect match for all of your JBL car, marine and powersports products.
