Description
DS18 EXL-SQ5.25

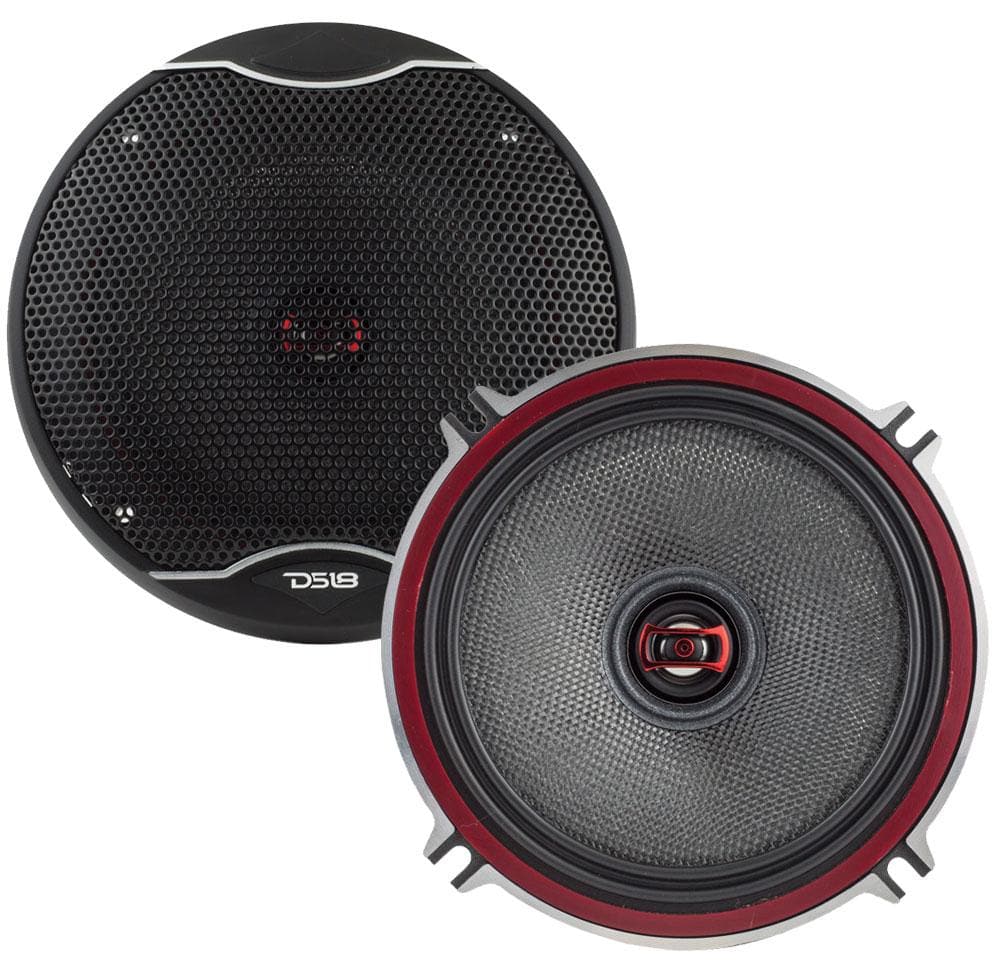

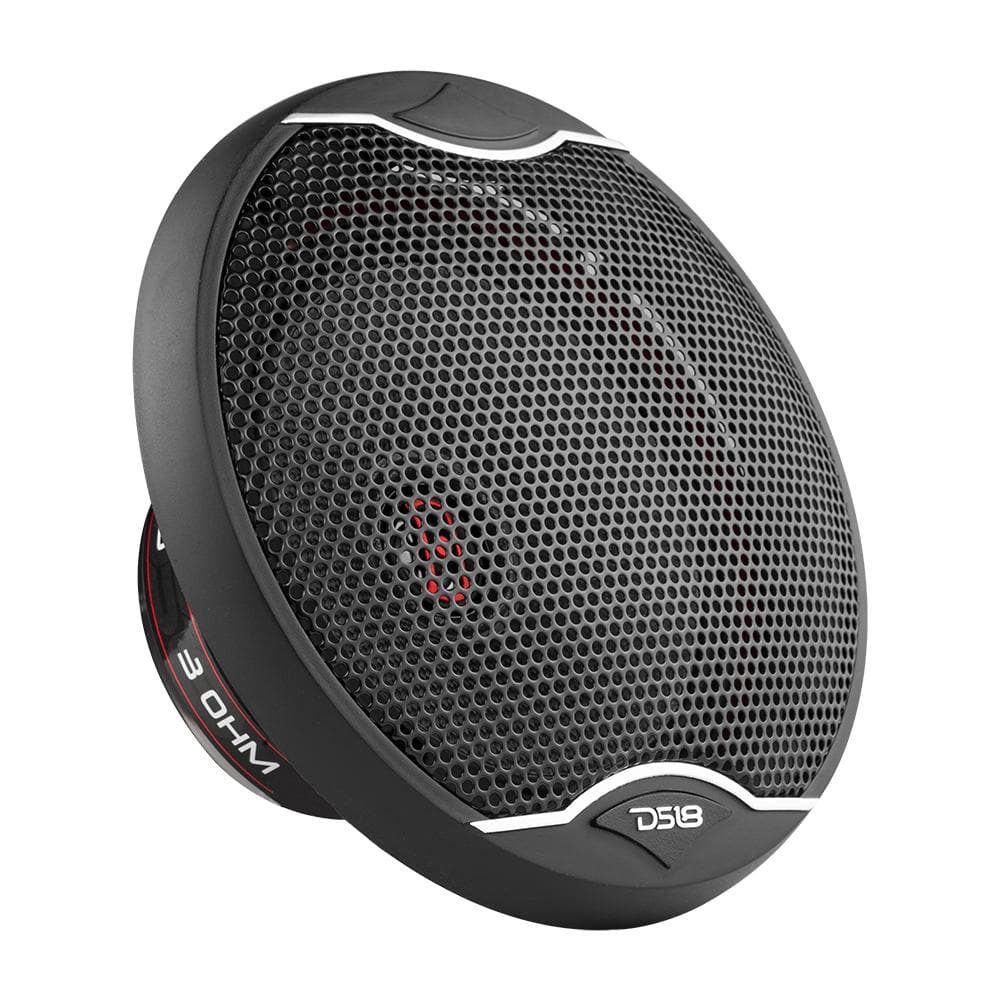

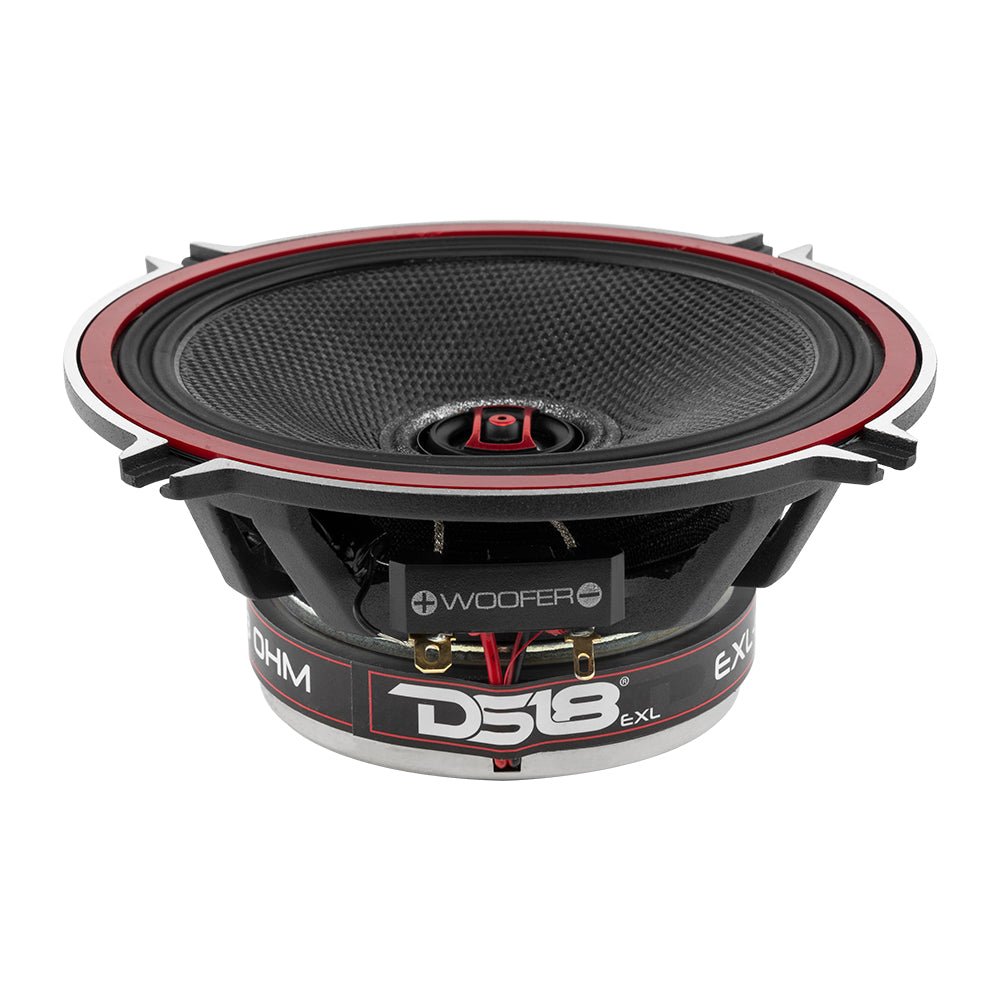

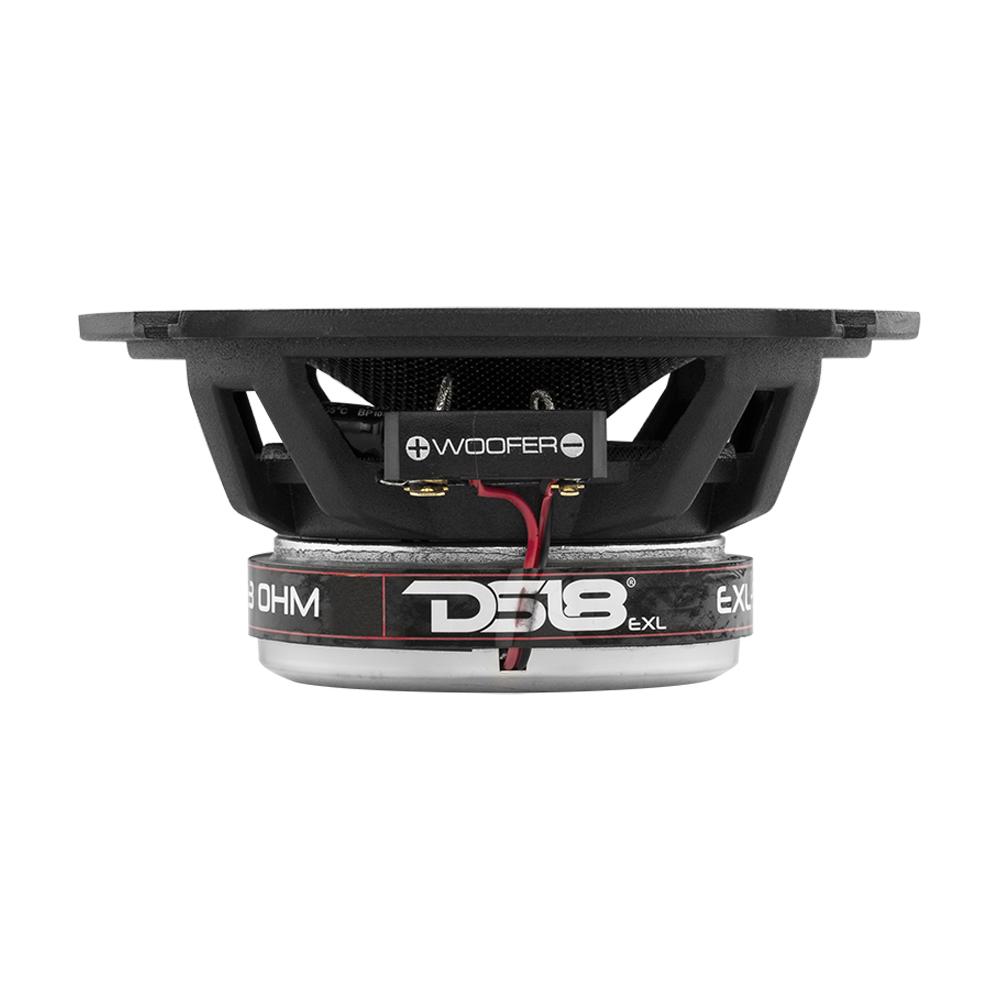

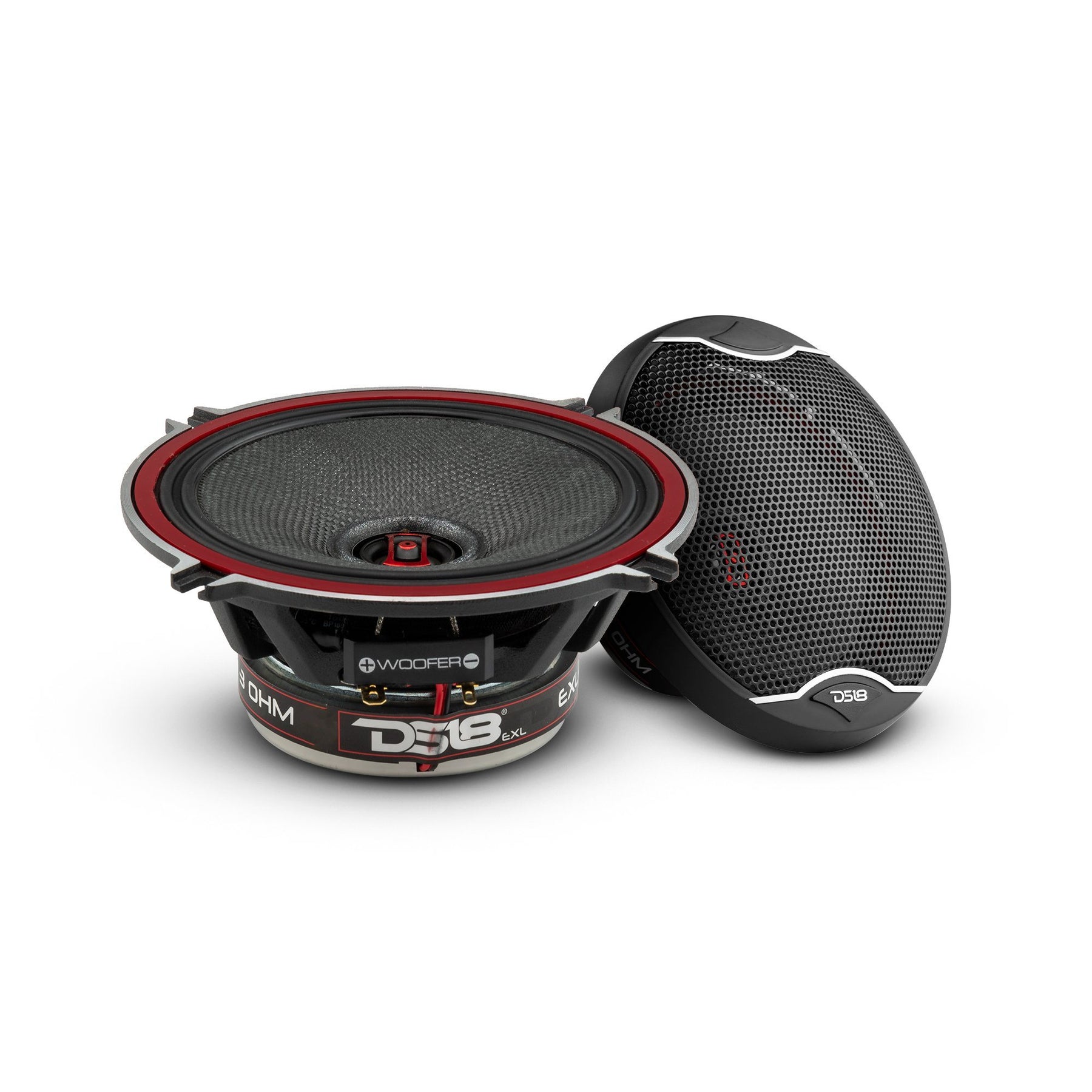

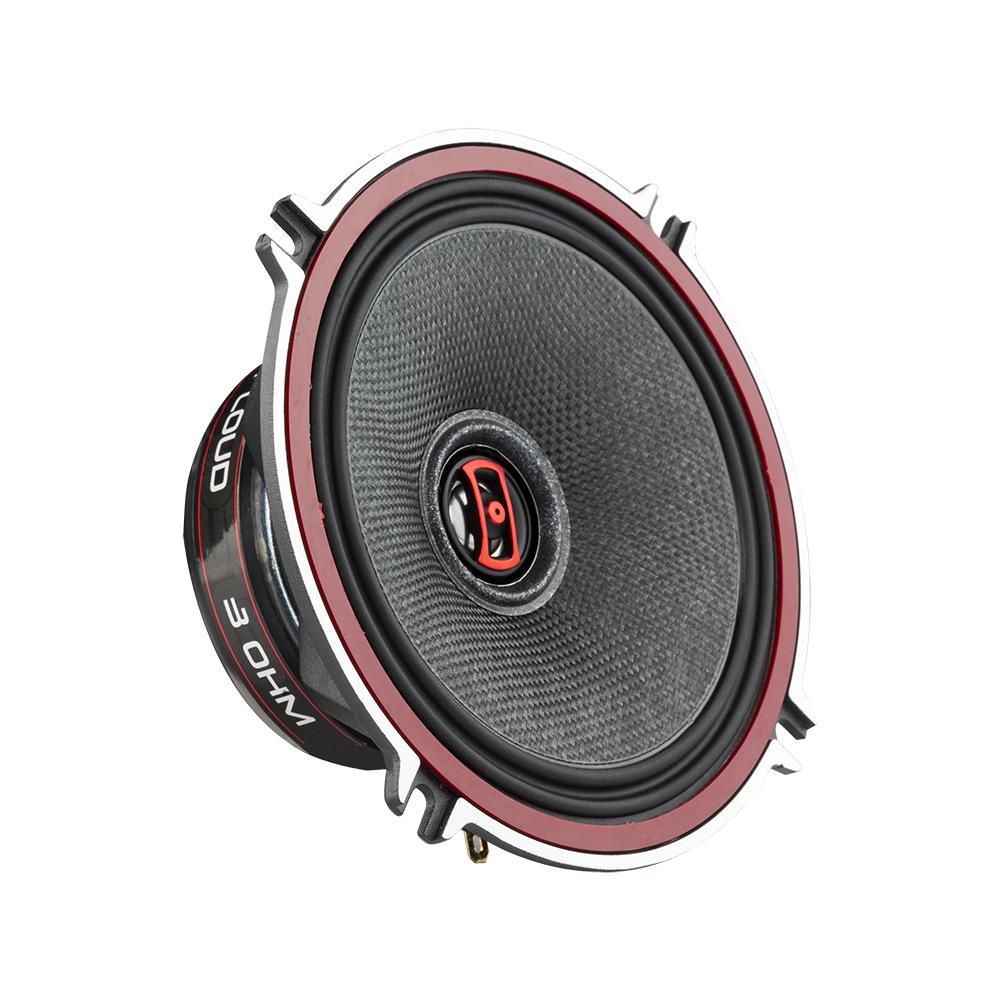

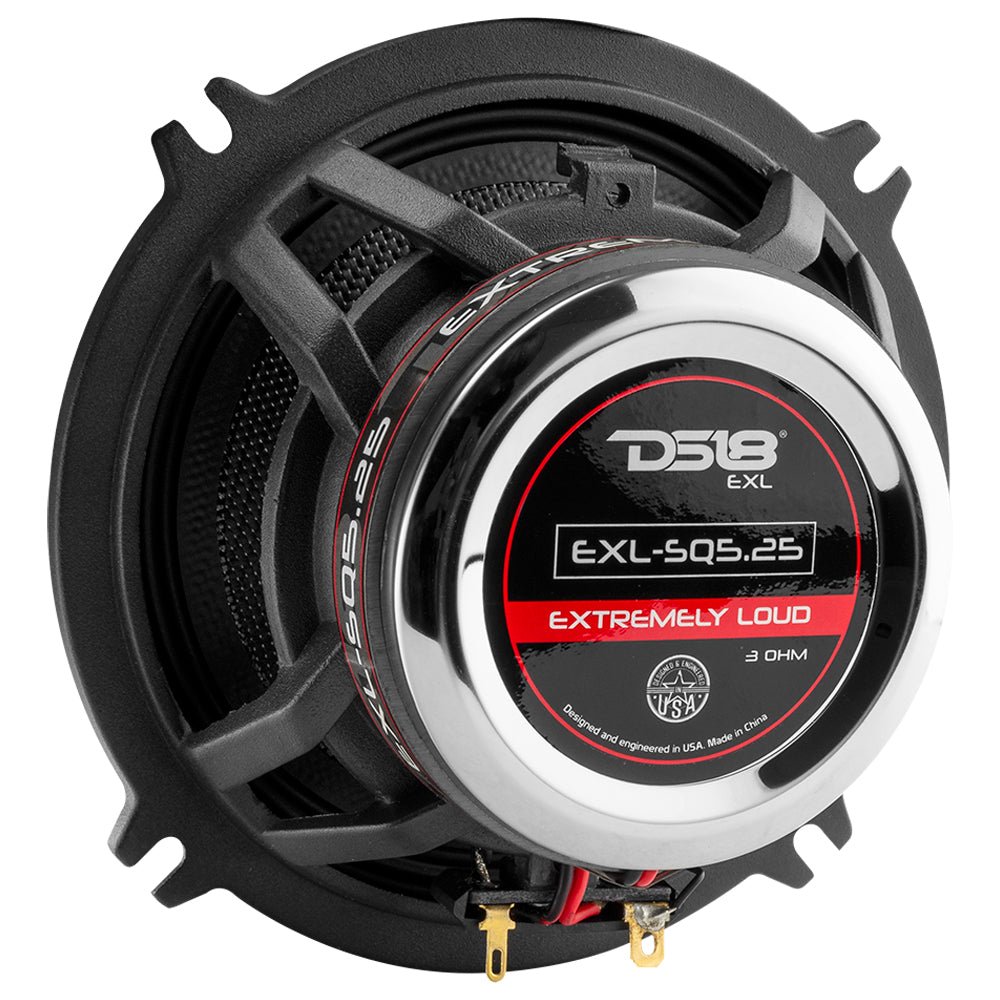

The EXL-SQ5.25 is a 5.25‑inch 2‑way coaxial car audio speaker pair designed to deliver balanced sound with clear mids and crisp highs, making it a reliable upgrade over standard factory-installed speakers. Each speaker features a 4 Ω nominal impedance with 40 W RMS (120 W peak) power handling, providing efficient performance for head units and small amplifiers. With a frequency response from 60 Hz to 20 kHz and 85 dB sensitivity, the EXL-SQ5.25 ensures detailed, dynamic audio suitable for everyday listening and compact installations. The speakers incorporate treated paper woofers with rubber surrounds and Mylar dome tweeters for precise high-frequency reproduction. Constructed with sturdy steel baskets and included protective grills, the EXL-SQ5.25 is perfect for car doors, rear decks, or custom setups where reliable, full-range sound is required.
Specifications
| Category | Specification |
|---|---|
| SKU | EXL-SQ5.25 |
| Speaker Type | 2-Way Coaxial |
| Nominal Diameter | 5.25″ |
| Voice Coil | BASV 25.5 mm / 1″ |
| RMS Power | 80 W |
| MAX Power | 340 W |
| Nominal Impedance | 3 Ω |
| Sensitivity (1W/1m) | 86 dB |
| Frequency Response | 100 Hz – 22 kHz |
Tweeter
| Parameter | Specification |
|---|---|
| Diameter | 0.83″ |
| Material | PEI Dome with Neodymium Magnet |
Woofer
| Parameter | Specification |
|---|---|
| Cone Material | Glass Fiber |
| Surround Material | Rubber Edge |
| Magnet Material | Strontium |
| Magnet Weight | 8.94 oz |
Product Overview
Glass Fiber 5.25″ 2-Way Coaxial Car Speaker 560 Watts 3-Ohm
Instantly increase the sound quality in your car and get EXTREMELY LOUD with powerful clear sound that fills any space using DS18’s EXL-SQ5.25.
The 2-way design of the EXL-SQ5.25 equips it with both a woofer and a tweeter, which work together to produce a full and dynamic sound. These speakers are capable of reproducing both high and low frequencies with remarkable accuracy. From soaring vocals to deep, thumping bass lines, you’ll hear every nuance and detail of your favorite songs.
The EXL-SQ5.25 has a 2-way design with a 3-ohm impedance, making these speakers extremely easy to incorporate into any high-powered audio system.
The glass fiber cone equipped on the EXL-SQ5.25 guarantees it performs at its best and has a longer lifespan. The glass fiber cone provides stiffness, ensures accurate sound reproduction, and minimizes distortion. Its lightweight design enables faster and more responsive changes to the signal, while also maximizing energy efficiency.
One of the key features of the EXL-SQ5.25 is its advanced engineering, which has been carefully optimized to ensure maximum sound quality and clarity. Every component, from the advanced PEI dome tweeter to the neodymium magnets, and black glass fiber cone has been carefully chosen and tuned to deliver the best possible audio performance. This attention to detail ensures that every note, every beat, and every detail of your music is reproduced with incredible accuracy and fidelity.
