Description
DS18 ZR1500.1D
Power Specifications
| Specification | Value |
|---|---|
| SKU | ZR1500.1D |
| Total Watts (Peak) | 4500W |
| RMS Power @ 4 Ohm | 550W |
| RMS Power @ 2 Ohm | 950W |
| RMS Power @ 1 Ohm | 1500W |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| Power Input Terminal Size | 4 GA |
| Fuse Size | 160A |
| Operation Voltage | 8.5–16V (approx, per protection spec) |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 10–220Hz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 Ohm | 85% |
| Damping Factor | 220 |
| Input Impedance | 20KΩ |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2–6V |
| High Level Input | No |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 40–180Hz |
| Bass Boost Range | 0–12dB |
| Bass Boost Frequency | 30–80Hz |
| Infrasonic Filter | 10–50Hz |
| Phase Selector | No |
Features & Protection
| Specification | Value |
|---|---|
| LED Indicator | Clipping / Protect / Power |

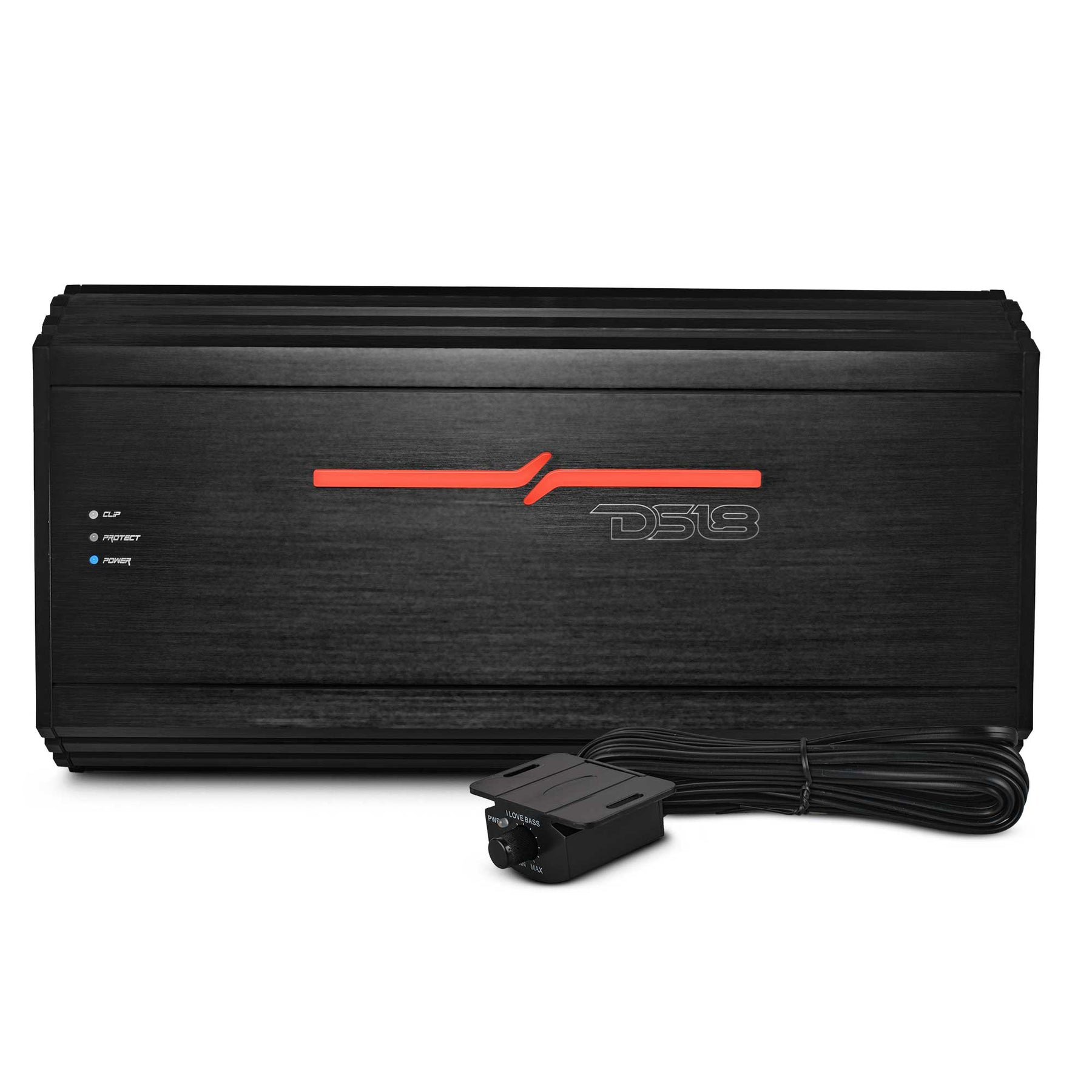

| Remote Level Control | Yes / Dash Mount |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (<9V / >16V) |
| Clipping Protection | Yes |
| Body Color / Finish | Black Aluminum Brush |
Measurements
| Measurement | Value |
|---|---|
| Overall Length | 14.8″ / 376mm |
| Overall Width | 7.24″ / 184mm |
| Overall Height | 2″ / 53mm |
| Heatsink Length | 13.4″ / 341mm |
| Gross Single Unit Weight | 7 lb |
Product Overview
ZR Class D 1-Channel Monoblock Car Amplifier 1500W RMS @ 1 Ohm
DS18’s ZR1500.1D is a high-performance, Monoblock amplifier built to shatter expectations with deep, resonant bass!
Encased in a sleek, brushed black aluminum chassis, this amplifier is as durable as it is stylish, ensuring superior heat dissipation and long-term reliability. Compact at 14.8 inches and weighing just 7 lbs, it fits seamlessly into any vehicle without compromising on power or design.
A jaw-dropping 4500W peak output fuels your audio experience. Its 1-ohm stable design delivers adaptability, while the remote bass control puts you in control of your audio environment. With a fixed low-pass filter and adjustable subsonic filter, the ZR1500.1D ensures unparalleled clarity and precision. State-of-the-art protection systems guard against thermal overloads and voltage fluctuations, giving you peace of mind as you push your system pass its limits.
The ZR1500.1D delivers an impressive 550W RMS @ 4-Ohm, 950W RMS @ 2-Ohm, and 1500W RMS @ 1-Ohm: for rock-solid bass reproduction that hits hard, immersing you in an audio experience like no other.
Experience the DS18 difference today with the ZR1500.1D!
