Description
DS18 VOC8PRO

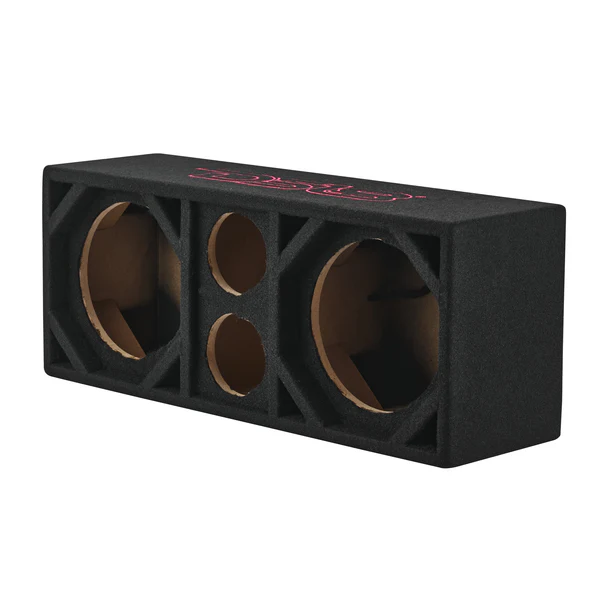

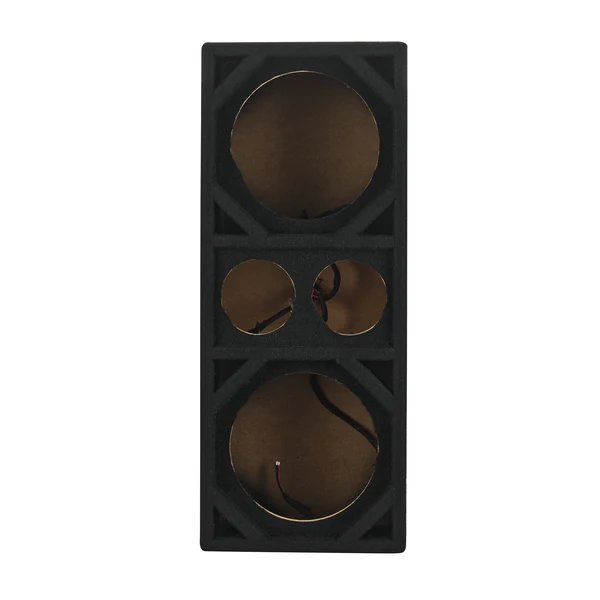

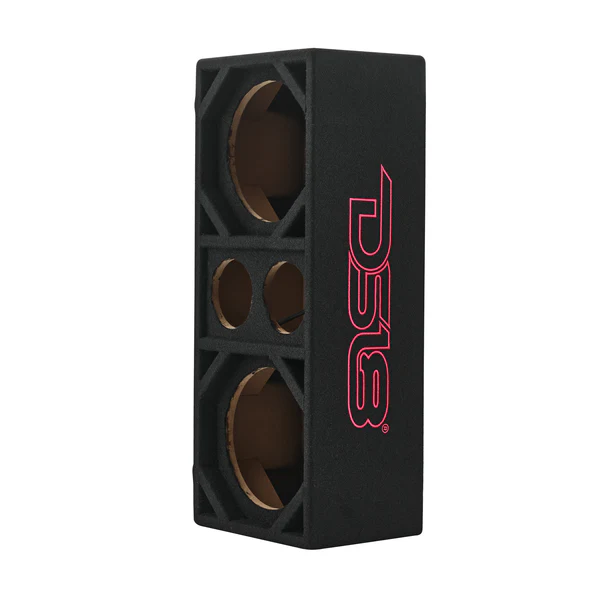

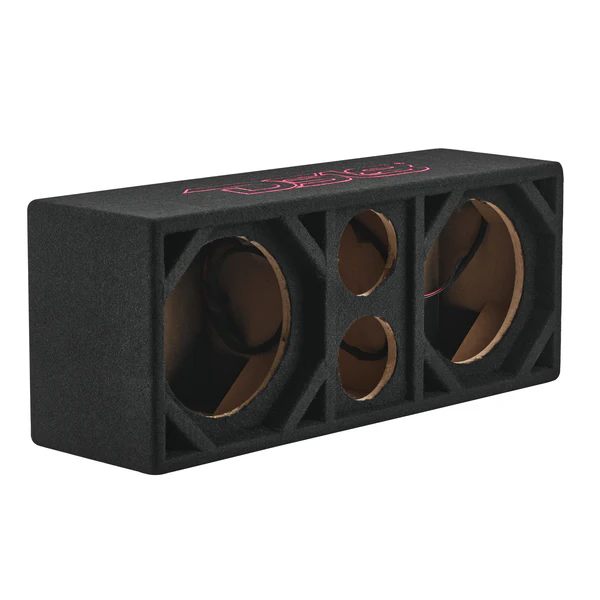

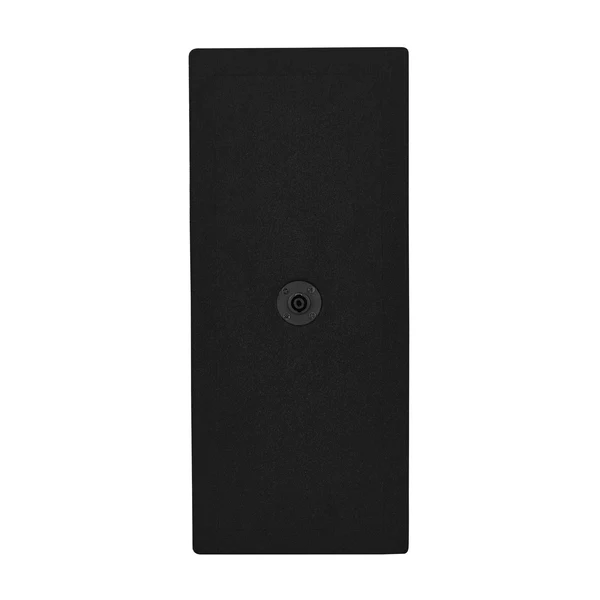

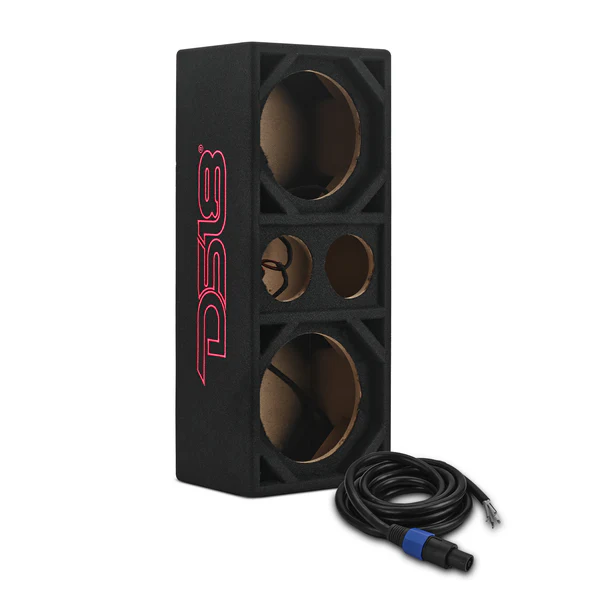

The DS18 VOC8PRO is a dual-8″ + dual-4″ ported Voceteo speaker enclosure from DS18 designed to house a complete high-output midrange and tweeter setup in a compact form factor. This empty ported enclosure accommodates two 8″ midrange speakers and two 4″ tweeters, making it ideal for vocal-forward sound systems where clear mids and highs are essential. It features a built-in Speakon terminal and comes with a 12 ft OFC 4-conductor Speakon cable for easy plug-and-play connection to your amplifier. Constructed from ½″ MDF with a black carpet finish, the VOC8PRO is lightweight yet rugged for both mobile and static sound installations. The midrange drivers are wired in parallel and the tweeters in series to optimize power handling and response, while the ported design enhances projection and overall acoustic performance.
Specifications
Enclosure Specifications
| Item | Specification |
|---|---|
| Speaker Fit | 2 × 8” Midrange Speakers |
| Midrange Mount Depth | 4.75” (121 mm) |
| Tweeter Fit | 2 × 4” Tweeters |
| Tweeter Mount Depth | 5.5” (140 mm) |
| Internal Volume | 8.36 L / 0.648 ft³ |
| Load Configuration | WF: Parallel / TW: Series |
| Enclosure Type | Ported |
| Enclosure Material | 1/2” (15 mm) MDF |
| Finish Material | Black Carpet |
Enclosure Measurements
| Dimension | Inches | Millimeters |
|---|---|---|
| Height | 25” | 625 mm |
| Width | 9.8” | 250 mm |
| Depth | 7.5” | 190 mm |
| Speaker Front Baffle Cutout | 7.3” | 185 mm |
| Speaker Mounting Depth | 4.75” | 121 mm |
| Tweeter Front Baffle Cutout | 3.6” | 91 mm |
| Tweeter Mounting Depth | 5.5” | 140 mm |

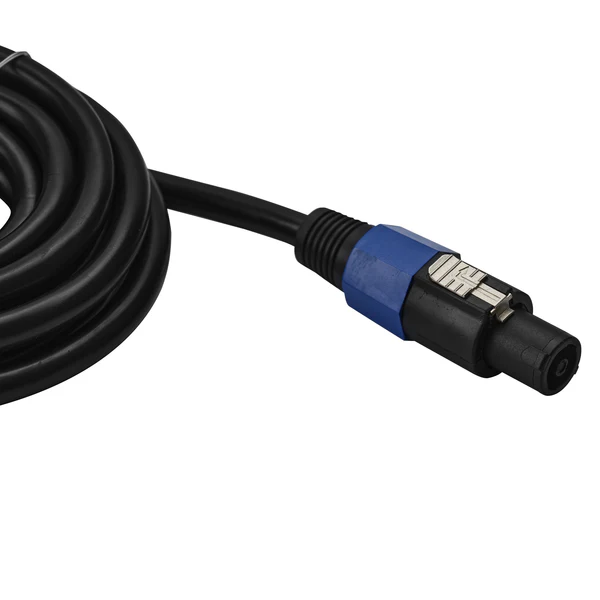

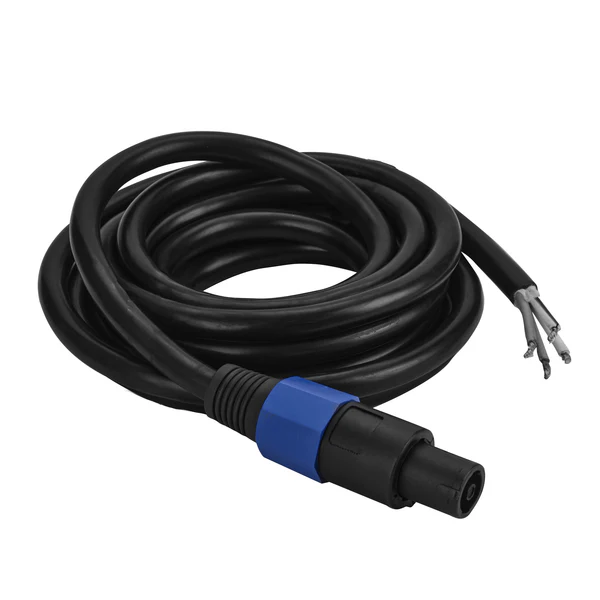

Speaker Wire Specifications
| Item | Specification |
|---|---|
| Connector Type | Speakon (Male) |
| Total Length | 12 ft / 3.6 m |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Number of Conductors | 4 |
| Wire Gauge | 14 AWG |
| Outside Diameter | 8 mm |
| Construction Type | Stranded / Multi-Twist |
| Shield Material / Color | PVC / Black |
Product Overview
Dual 8” + Dual 4” Tweeter Ported Voceteo Enclosure | Speakon-Ready
DS18’s VOC8PRO is a compact, ported enclosure engineered to deliver ultra-clear vocals and highs in any build. Designed to house two 8” midrange speakers and two 4” tweeters, this ported enclosure is perfect for vocal-heavy setups where space is limited but volume can’t be compromised.
Designed for Easy Wiring

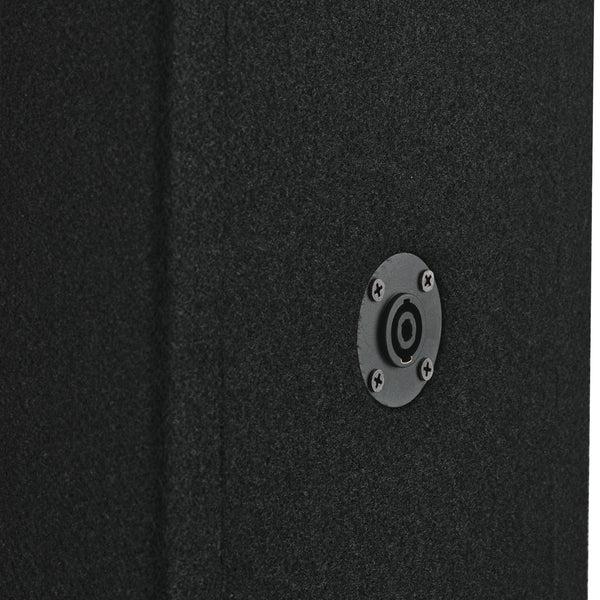

With a built-in Speakon terminal and included 12ft OFC Speakon cable, the VOC8PRO lets you plug and play straight into your amp system. The midrange drivers are wired in parallel, while the tweeters are connected in series—a setup optimized for consistent power handling and frequency response.
Lightweight, Loud, and Ready to Mount
Constructed from ½” MDF and wrapped in black carpet, this box is lightweight but tough enough for mobile or static sound systems. The internal volume of 0.648 ft³ ensures your mids perform with clarity, while the ported design enhances projection.
