Description
DS18 RV.R1

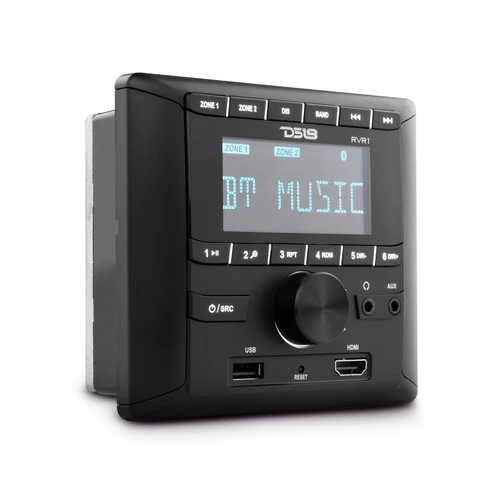

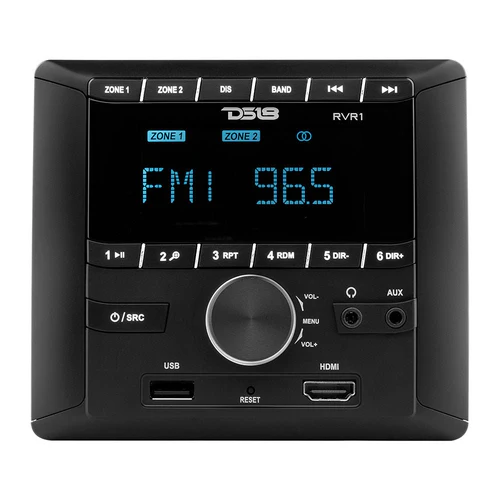

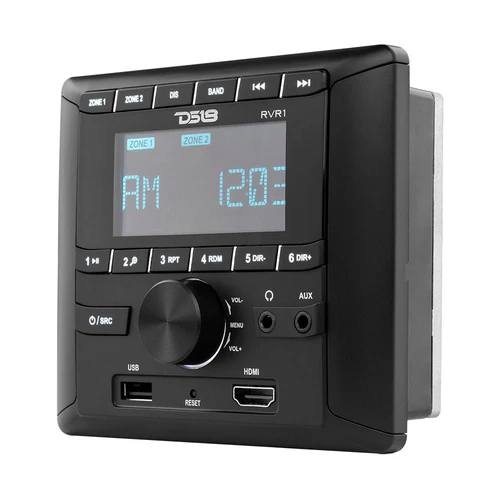

The DS18 RV.R1 is a dedicated digital media receiver designed specifically for RVs, trailers, campers, and recreational vehicles. Featuring a 2.75″ VA LCD display, built‑in Bluetooth v5.0, USB and AUX inputs, AM/FM radio with RDS, and HDMI pass‑through, it brings versatile audio and media control to road trip entertainment systems. With dual‑zone audio control, integrated equalizer, and multiple preamp outputs, this unit provides flexible connectivity and enhanced sound tuning for multi‑room audio setups while on the road.
Specifications
| Feature | Specification |
|---|---|
| SKU | RVR1 |
| Rated Power Source | 14.4V DC (11V to 16V operation) |
| Maximum Current Consumption | 10 Amp |
| Screen Size | 2.75 inch / 66 × 31 mm |
| Display Type | VA LCD |
| Temperature Operation | -20°C to +60°C (14°F to 140°F) |
Audio
| Feature | Specification |
|---|---|
| Maximum Power Output | 50W × 4 Ch @ 4 Ohms (14.4V) |
| Continuous Power Output | 17W × 4 Ch @ 4 Ohms (14.4V) |
| Pre-output Level | Zone 1/2: 2.5V / Subwoofer: 4V (14.4V) |
| Equalizer | 2 Bands (Bass: 100Hz, Treble: 10kHz), Gain ±7dB |
| Preset EQ | Flat / Rock / Pop / Classic |
| Audio Control | Volume / Balance / Loudness / Bass / Treble / Zone Volume |
| Signal-to-Noise Ratio | >60 dB |
| THD | <0.3% |
| Frequency Response | 20 Hz – 20 kHz |
Tuner
| Feature | Specification |
|---|---|
| FM Frequency Range | 87.5 – 107.9 MHz |
| AM Frequency Range | 530 – 1710 kHz |
| IF FM | 10.7 MHz |
| IF AM | 450 kHz |
| Sensitivity FM | 4 µV (S/N = 30 dB) |
| Sensitivity AM | 36 dBuV (S/N = 20 dB) |
| Stereo Separation FM | >25 dB |
| Presets Memory | 18 FM / 12 AM |
| Region | North America (USA) and Europe |
| Sensitivity Adjustment | LOC / DX & ST / Mono |
USB Player
| Feature | Specification |
|---|---|
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported | MP3, WMA, FLAC, MA |
| Info Display Format | ID3 Tag |
| Memory Size Reader | Up to 64 GB |
| Max Current Supply | 1.5 Amp (USB Charging Port) |
| Number of USB Ports | 1 × Front (Audio / Charging) |
Connectivity
| Feature | Specification |
|---|---|
| Bluetooth Version / Service | V5.0 / Audio Streaming |
| Audio Protocol | A2DP |

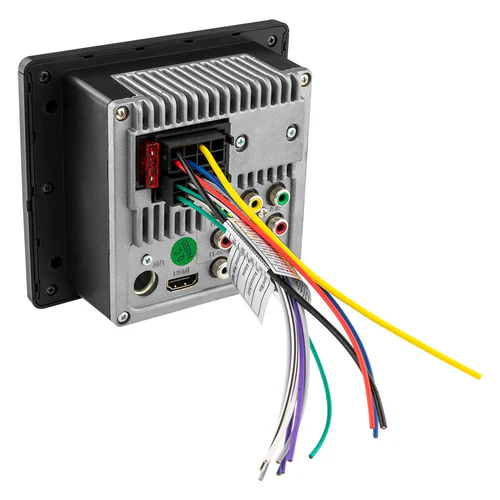

| Aux Input | Front 3.5mm Jack Stereo / Rear RCA A/V |
| Headphone | Front 3.5mm Jack Stereo |
| HDMI | Rear Output (to HDTV) / Front Input (from Source) |
Measurements
| Feature | Specification |
|---|---|
| Chassis | 97 × 100 × 150 mm |
| Bezel Frame | 130 × 112 × 17 mm |
| Weight | 14.2 oz / 403 g |
| Product Weight | 1.2 lbs |
| Product Dimensions | 6.875 × 6.25 × 4.875 |
| Master Carton Weight | 24 lbs |
| Master Carton Dimensions | 21.5 × 19.5 × 10.5 |
| Master Carton Quantity | 18 |
| Sold In | Piece |
Product Overview
RV And Trailers Digital Media Receiver
Take control of your RV’s audio experience with DS18’s RV.R1! Designed specifically for recreational vehicles, the RV.R1 is packed with features that will elevate your road trip.
With its easy wall mounting, the square design of the RV.R1 makes installation a breeze. You’ll have access to FM radio with RDS and 18 memory stations, allowing you to easily tune in to your favorite stations while on the go. The AM radio feature includes 12 memory stations for even more listening options.
Connectivity is key. Equipped with Bluetooth v5.0 technology, the RV.R1 allows streaming wirelessly from any compatible device, even at extreme distances. The USB port allows for music streaming and device charging, ensuring you stay connected throughout your journey. Plus, the HDMI pass-through feature enables seamless integration with your television, giving you the freedom to enjoy your favorite shows and movies from anywhere in your vehicle.
Unleash your inner enthusiast with the RV.R1’s comprehensive audio control features. The 2-band equalizer provides precise control over your frequency spectrum, allowing you to fine-tune your sound to perfection. With volume, bass, treble, balance, EQ, and loudness controls at your fingertips, you have complete control over your soundstage.
Powerful yet versatile, this receiver offers 4CH x 17W continuous power output at 4 ohms, making it suitable for powering entry-level speakers. The PRE-AMP outputs deliver a maximum of 4V for subwoofers and 2.5V per zone for amplifiers, ensuring crystal-clear and distortion-free sound reproduction. Additionally, the 3 sets of preamp outputs (SUB, Front, and Rear) allow for easy configuration to suit your specific setup.
Transform your RV into a rolling concert hall and enjoy a truly immersive audio experience wherever you go.
