Description

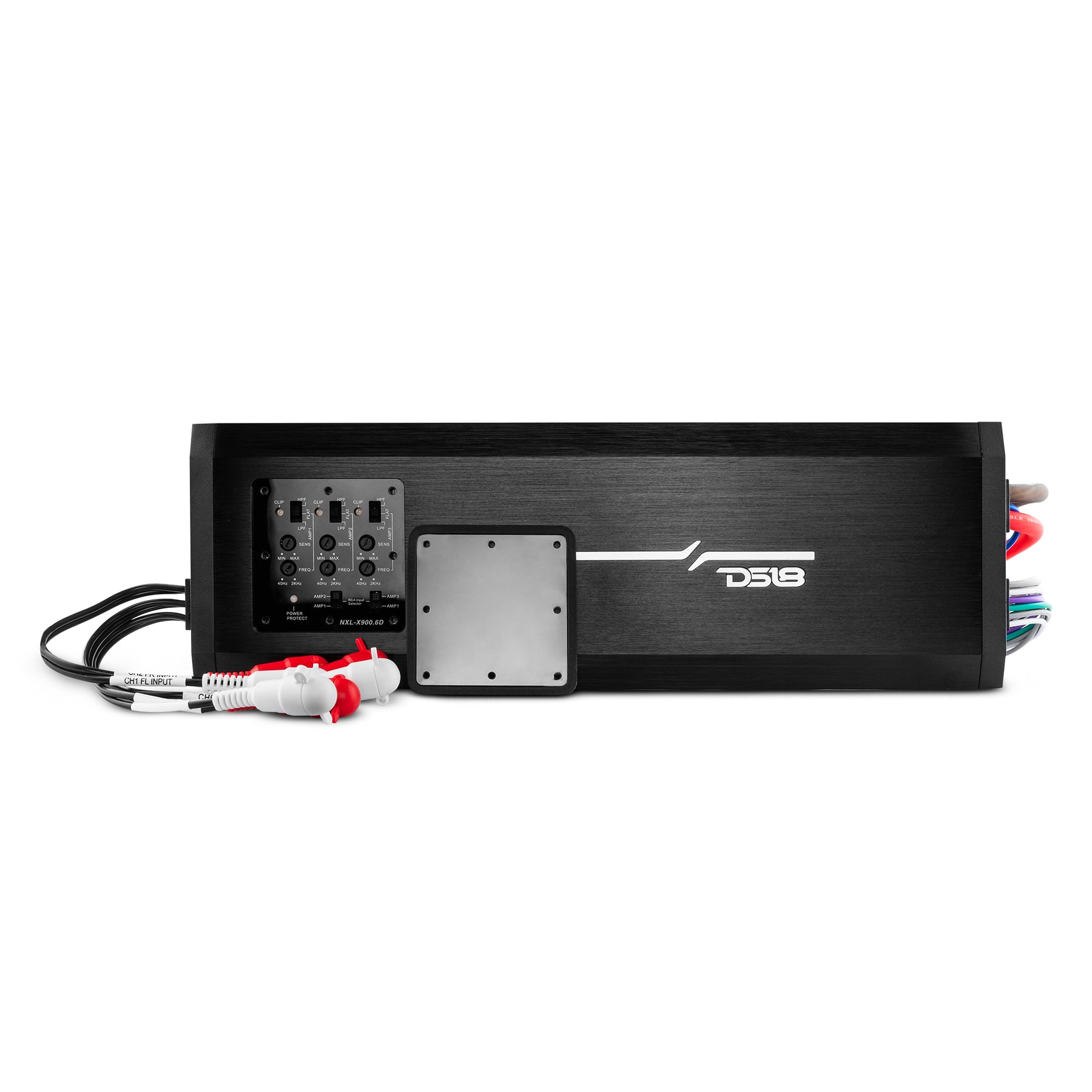

DS18 NXL-X900.6D
The NXL-X900.6D is a 6-channel Class D amplifier built for high-efficiency, high-output audio in automotive, marine, and powersports applications. With a rugged, compact chassis and IP67-rated waterproof and dustproof protection, it delivers clear, distortion-free sound even in demanding outdoor conditions. Ideal for cars, boats, UTVs, ATVs, and custom audio systems, this amplifier provides reliable power for both speakers and subwoofers.
Specifications
| Specification | Details |
|---|---|
| SKU | NXL-X900.6D |
| Total Watts (Peak) | 3000W |
| RMS Power @ 4Ω | 6 × 150W |
| RMS Power @ 2Ω | 6 × 250W |
| RMS Power @ 4Ω (Bridge) | 3 × 500W |
AUDIO
| Specification | Details |
|---|---|
| Frequency Response | 10Hz – 250Hz |
| Signal-to-Noise Ratio (1W @ 4Ω) | >84dB |
| Efficiency @ 4Ω | 87% |
| Input Impedance | 20KΩ |
| Channel Separation | 60dB |
| Total Harmonic Distortion (THD) | <0.03% |
| Low Level Input Range | 200mV – 5V |

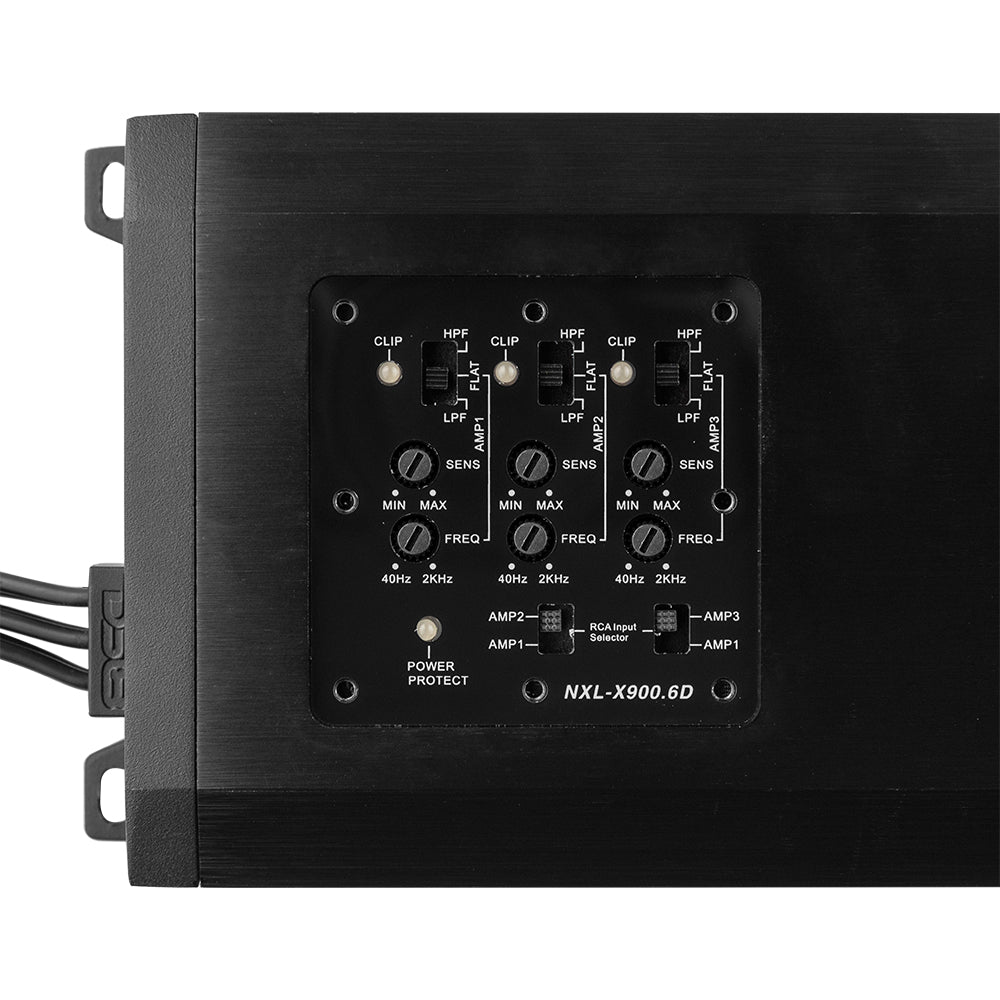

| Selectable X-Over | HPF / Full / LPF |
| X-Over Filter Range | 40Hz – 2KHz |
FEATURES 1
| Specification | Details |
|---|---|
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 6 |
| Minimum Impedance | 2Ω (Stereo) / 4Ω (Bridge) |
| LED Indicator | Power / Protection / Clip |
| Power Input Size | 4GA Tinned OFC |
FEATURES 2
| Specification | Details |
|---|---|
| Fuse Size | 2 × 60A (120A) |
| Thermal Protection | Yes (75°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7–16V) |
| Body Color / Finish | Black Brushed Aluminum |
EXTRA FEATURES
| Specification | Details |
|---|---|
| 2Ch / 4Ch Input Selector | Yes (2 / 4 / 6 CH) |
| RCA Audio Output | No |
| Water Resistant Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Quick Connect Plug | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
MEASUREMENT
| Specification | Details |
|---|---|
| Overall Length | 14 in / 360 mm |
| Overall Width | 4.4 in / 112 mm |
| Overall Height | 1.77 in / 45 mm |
| Heatsink Length | 12.5 in / 320 mm |
| Gross Single Unit Weight | 2.6 kg |
| Product Weight | 7.5 lb |
| Product Dimensions | 17.75 × 9 × 3.75 in |
| Master Carton Weight | 33.5 lb |
| Master Carton Dimensions | 19.25 × 18 × 10 in |
| Master Carton Quantity | 5 |
| Sold In | Piece |
Product Overview
6-Channel Marine Waterproof Amplifier Class D Full-Range 150 x 6 @ 4 Ohm RMS
DS18’s NXL-X900.6D is a compact and powerful solution designed for marine enthusiasts seeking to elevate their sound experience.
The NXL-X900.6D is not just about power, but also efficiency and durability. Its robust construction ensures it can withstand harsh conditions, making it the go-to choice for those in need of a waterproof amplifier that can handle any challenge.
With its 6-channel configuration, the NXL-X900.6D is perfect for powering complex active setups, allowing you to create an immersive audio environment that will impress even the most discerning ears.
Tuning your speaker choice has never been easier, thanks to the high pass and low pass filters included in the NXL-X900.6D. Achieve crystal clarity at any volume level, from soft background tunes to blasting beats that will make your heart race.
DS18 takes pride in the quality of their products, and the NXL series is no exception. Featuring stable and reliable 4-layer PCB layouts and undergoing audio precision quality control verification, you can trust that this amplifier delivers superior performance every time.
With an IP67 waterproof rating and protection against UV, salt, and fog, this amplifier is ready to take on any adventure.

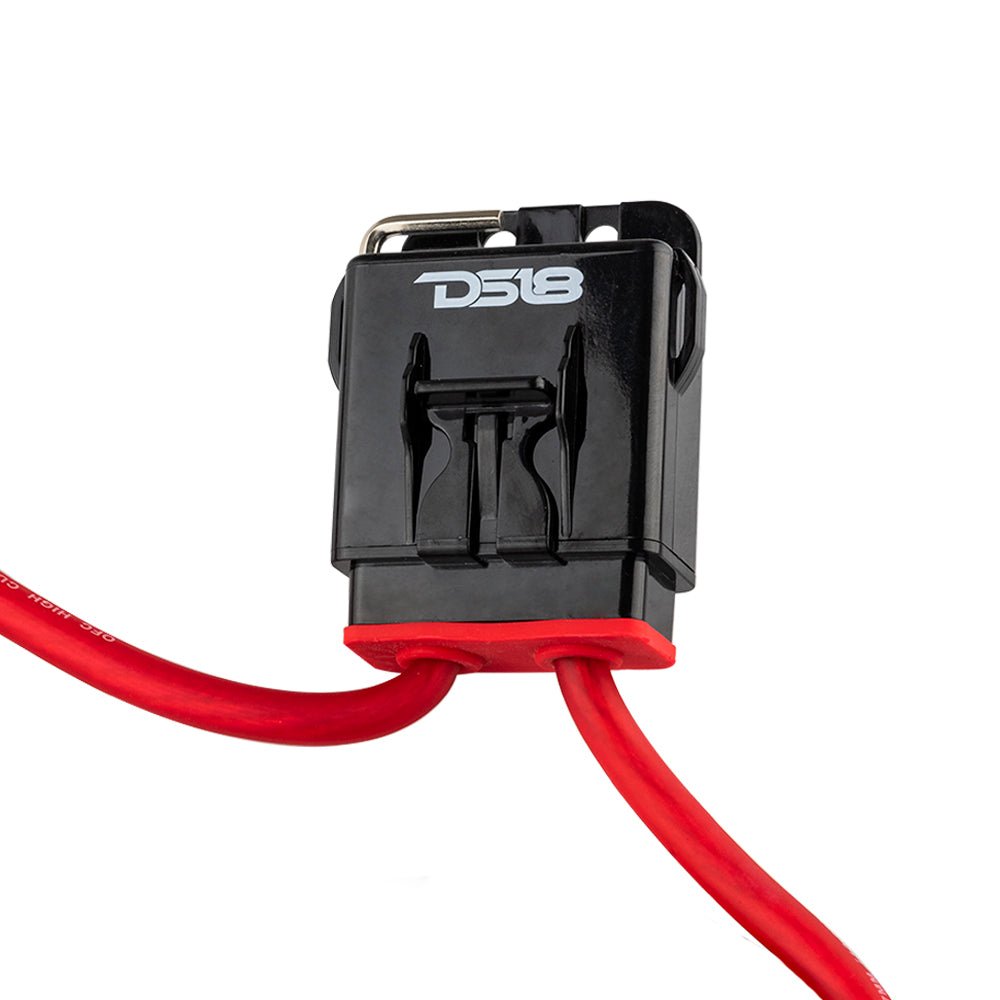

The NXL-X900.6D comes equipped with a marine-grade fuse and fuse holder, providing ultimate protection against the elements. Its direct power harness design with marine-grade OFC tinned wires ensures optimal performance even in challenging conditions.
Experience the latest digital amplifier design with SMC technology, delivering maximum output of 500W x 3CH at 1-Ohms, 150W x 6CH at 4-Ohms, and 250W x 6CH at 2-Ohms, the NXL-X900.6D is the perfect companion for your marine or DIY audio projects.
