Name: DS18 NVY-8PROEVO-N2
SKU: NVY-8PROEVO-N2
Availability: InStock

Description

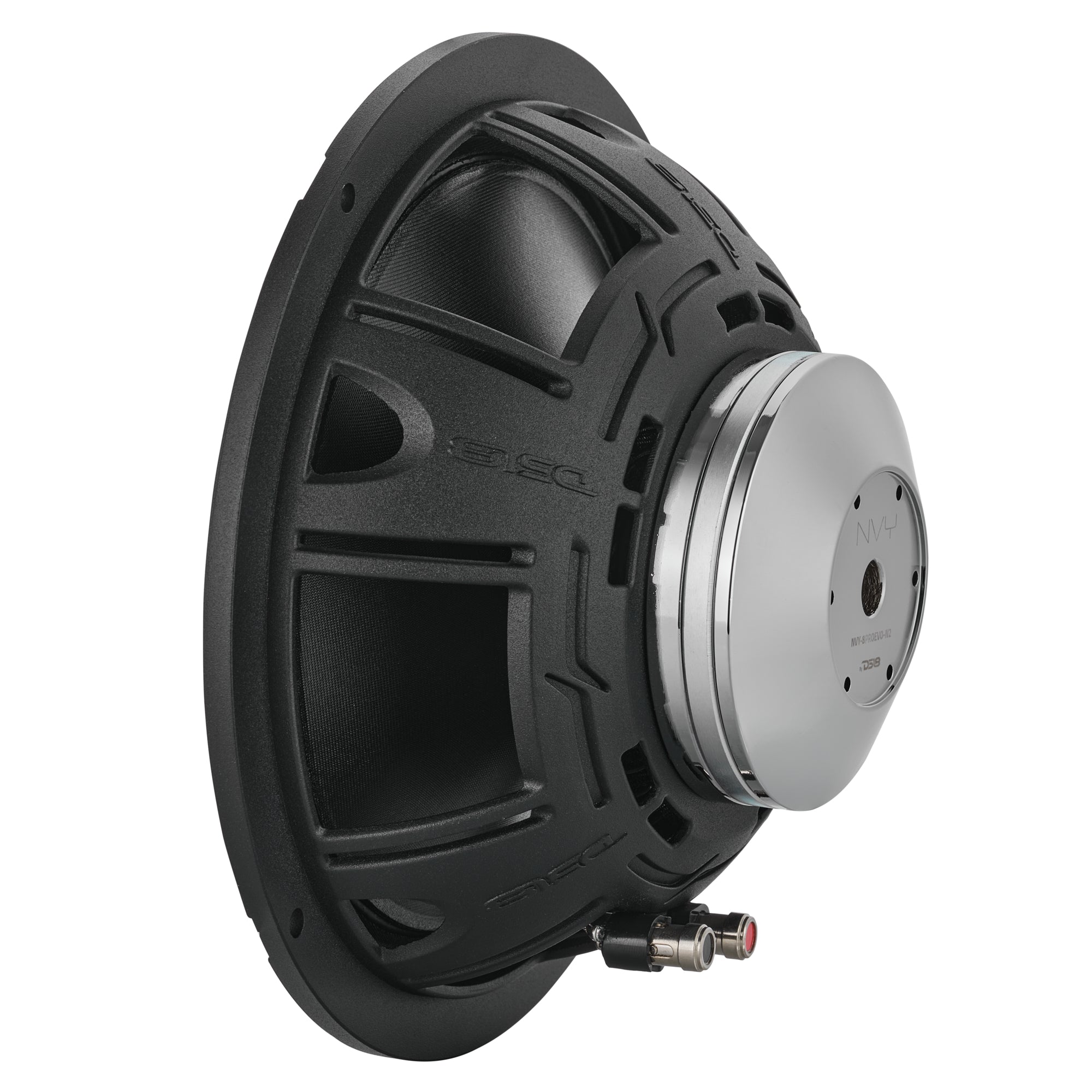

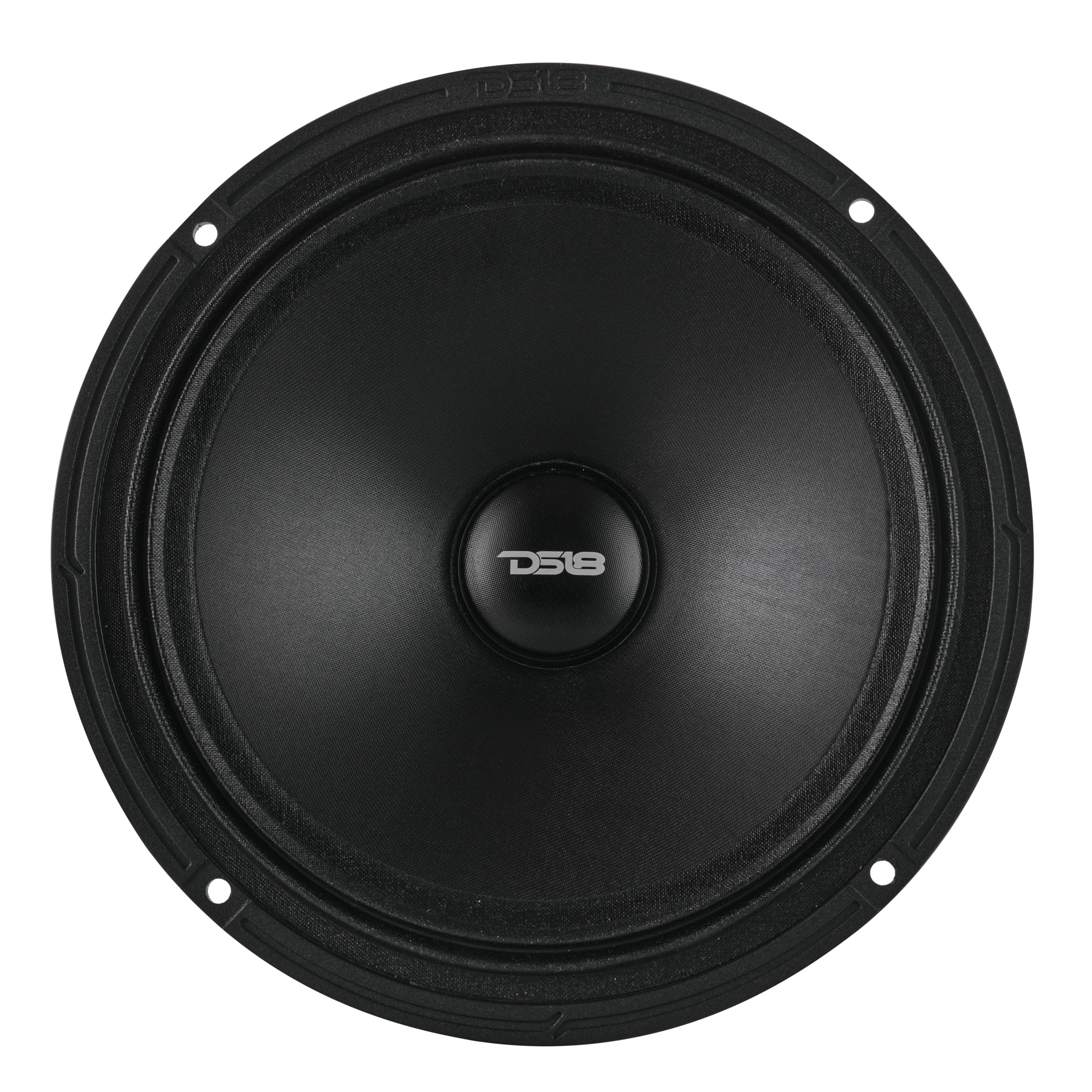

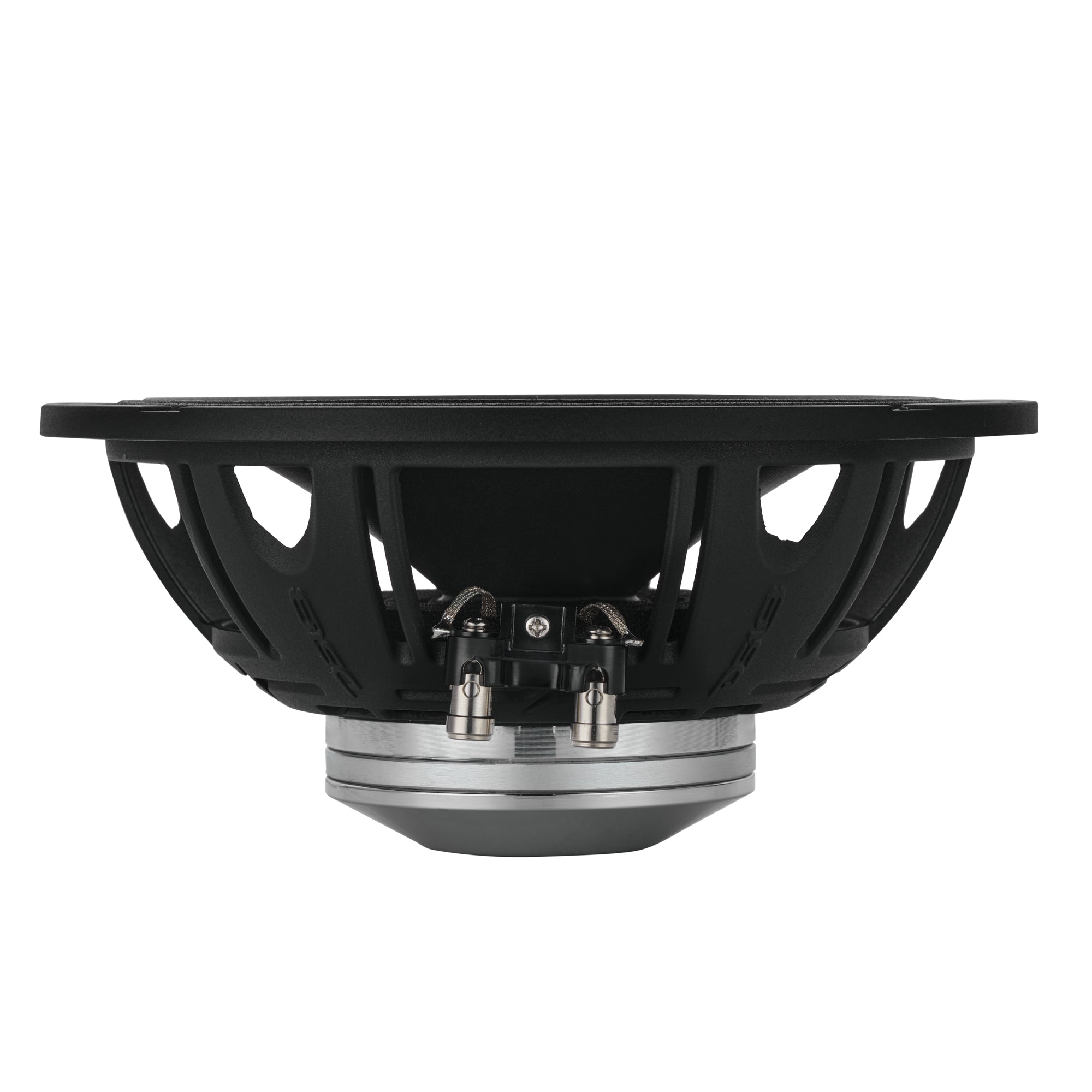

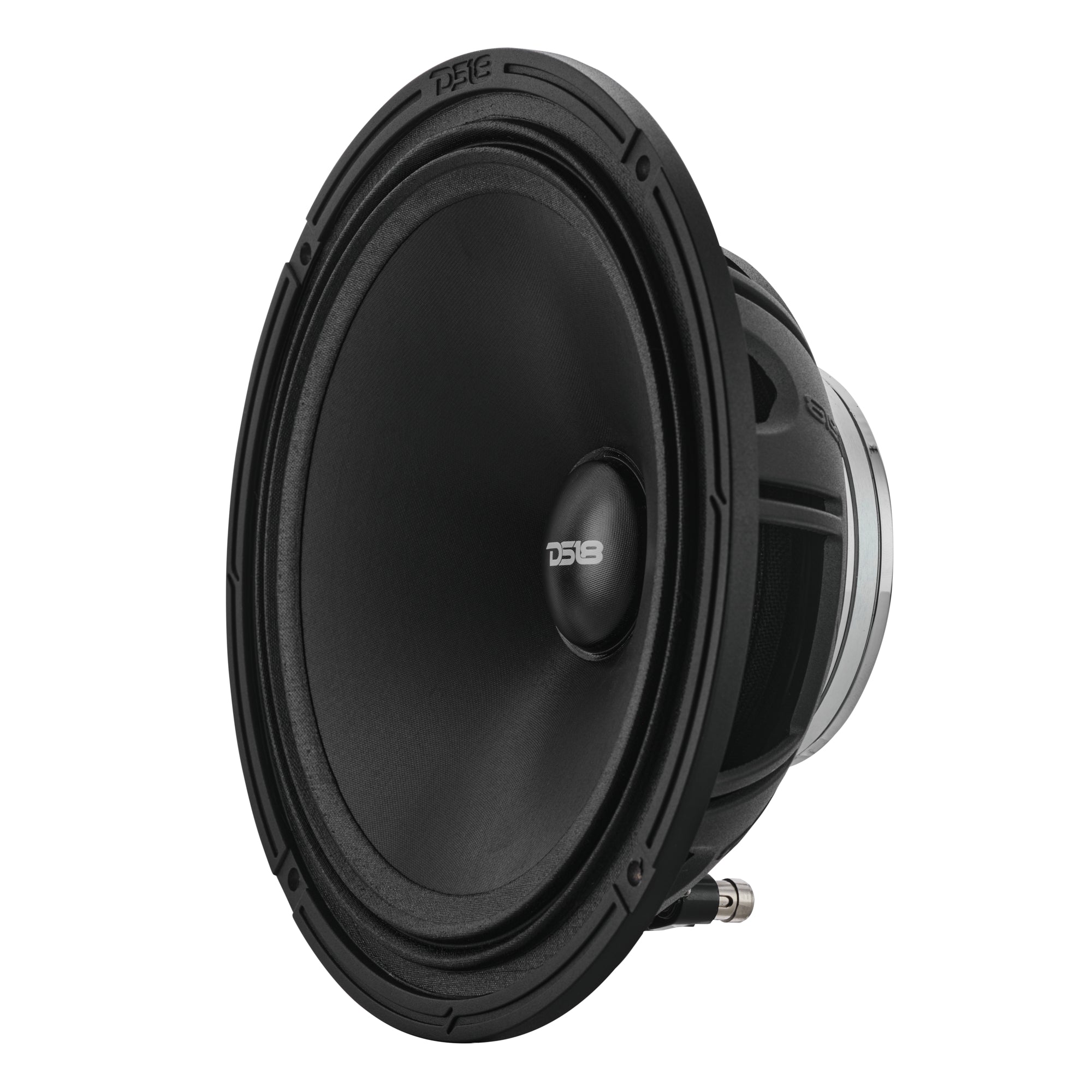

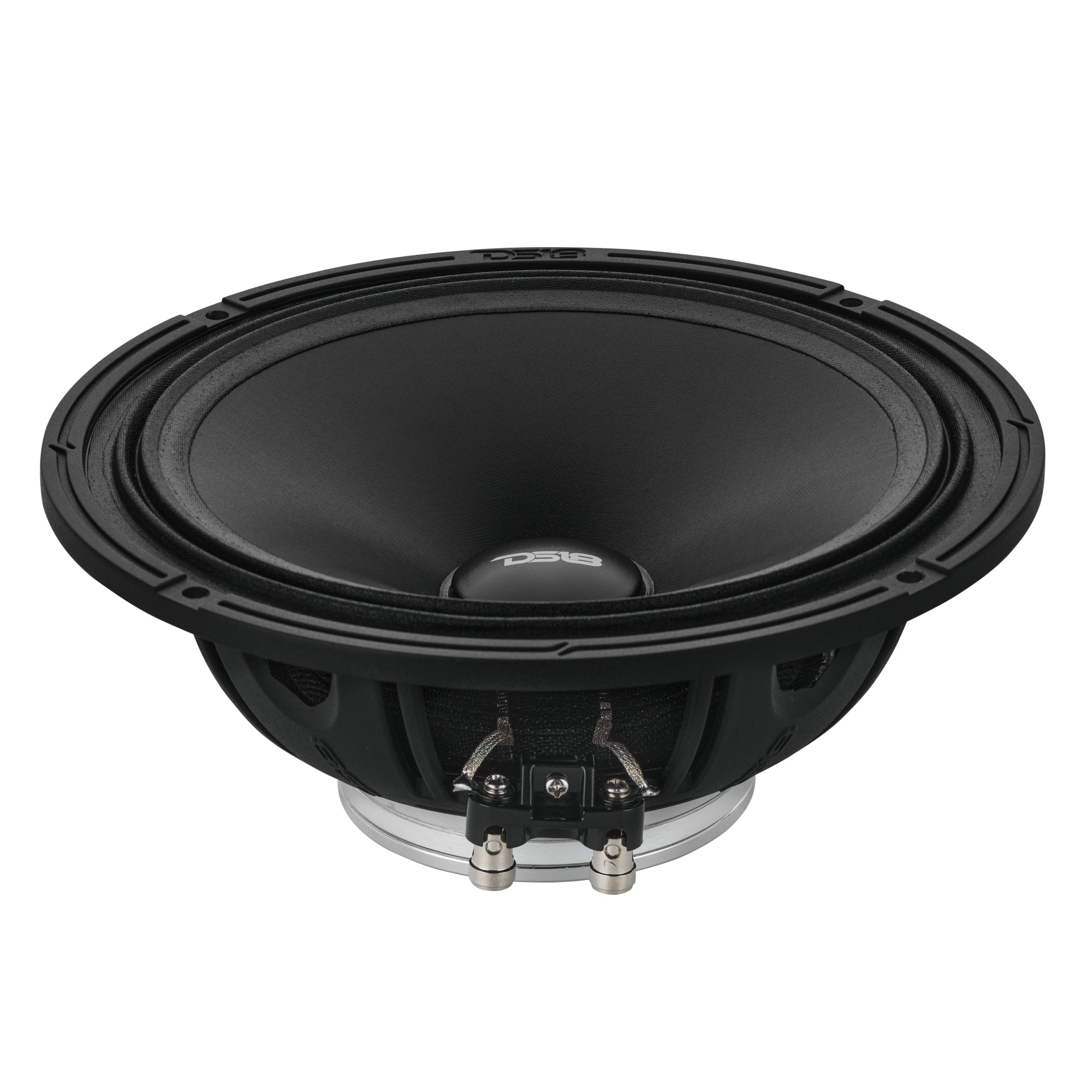

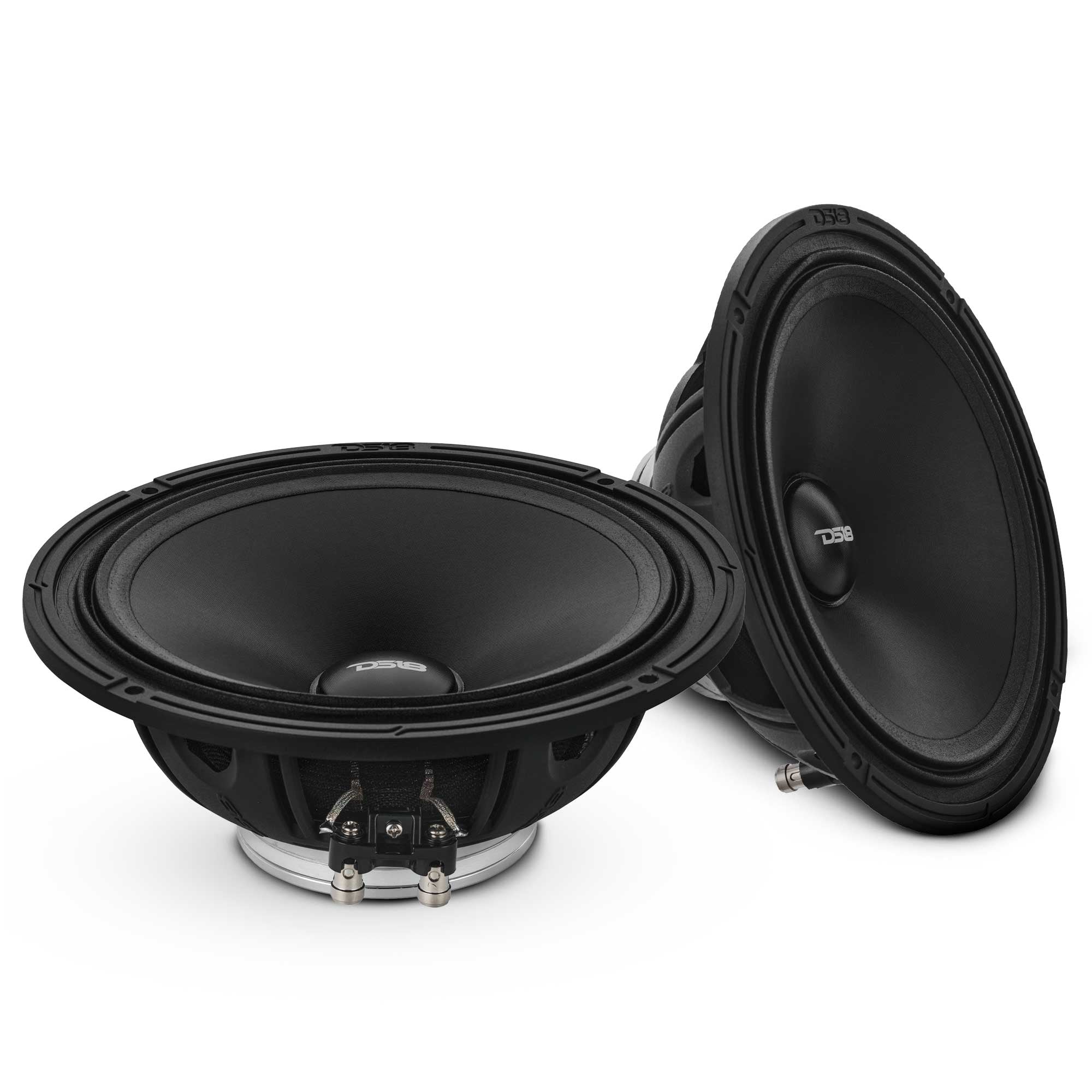

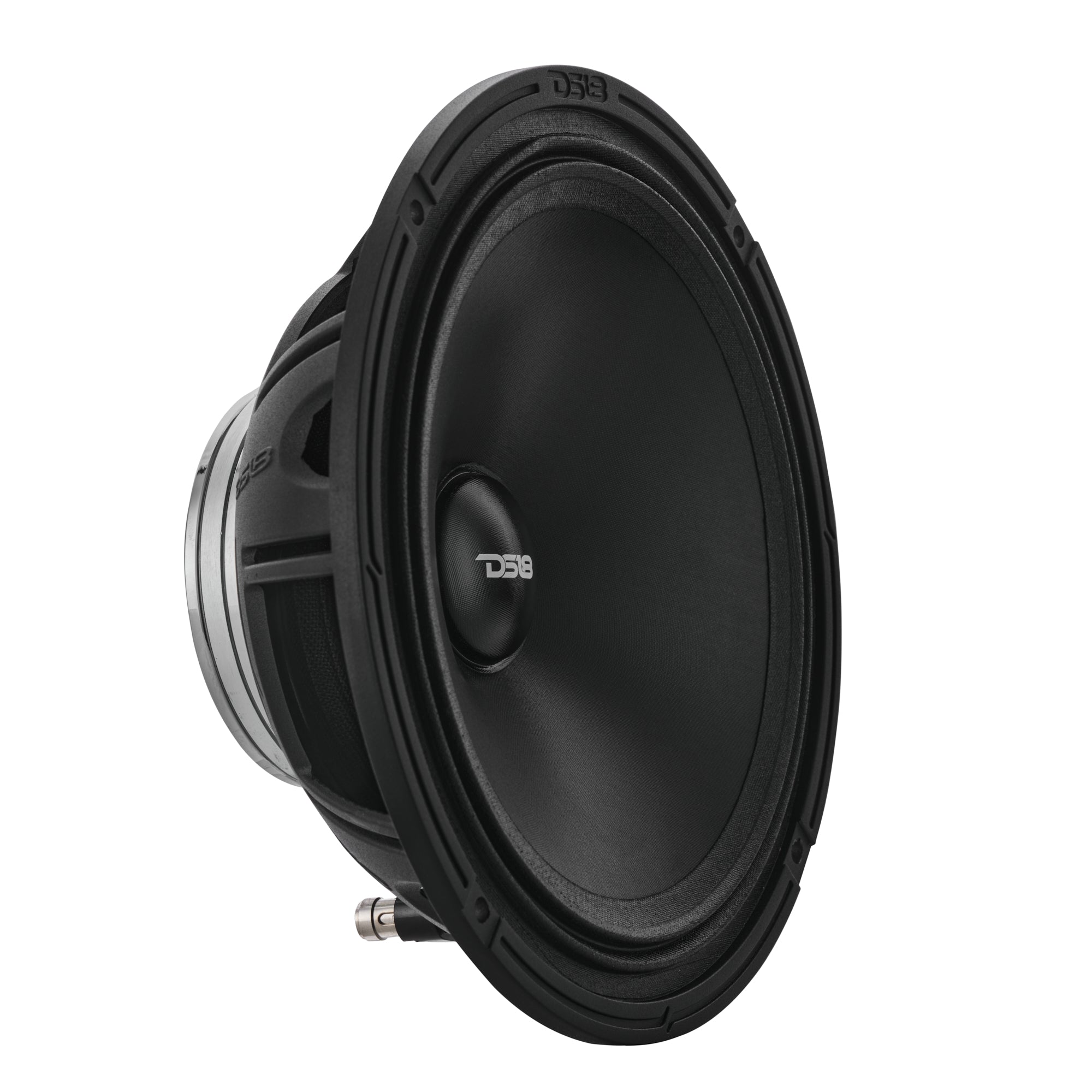

DS18 NVY-8PROEVO-N2

The NVY-8PROEVO is an 8″ professional EVO series midrange/mid-bass loudspeaker designed for high-output pro audio, PA systems, and SPL applications. Available in both 2-ohm and 4-ohm impedance options, it delivers powerful midrange clarity, punchy low-end response, and high efficiency. Its robust motor structure and high-temperature voice coil ensure reliable performance under demanding conditions, making it ideal for professional stage setups, PA speaker cabinets, custom car audio systems, and SPL builds.

Specifications

Specification	Value
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Push 14ga
Waterproof Rating	IP65

Motor Specifications

Specification	Value
Voice Coil Diameter	1.5″ / 38.5 mm
Voice Coil Former Material	TIL
Winding Material	Copper Ribbon
Cone Material	Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Dust Cap Material	Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Surround Material	Treated Cloth
Leads Connection Type	Spider Crossed
Basket Material	Aluminum
Basket Color / Finish	Black
Magnet Material	Neodymium
Magnet Weight	5.1 oz

Thiele & Small Parameters

Parameter	Value
Equivalent Volume	13.12 L / 0.46 ft³
Excursion (One Way)	2 mm
Free Air Resonance	82 Hz
Mechanical Factor	10.88
Electrical Factor	0.57
Total Factor	0.54
Mechanical Mass	21.051 g
Mechanical Compliance	0.171 mm/N
BL Factor	5.93
Voice Coil Inductance	0.041 mH
Cone Area	224.32 cm²
DC Resistance	2.2 Ohms
Mechanical Mass w/o Air	17.187 g

Speaker Measurements

Specification	Value
Overall Diameter	8.18″ / 208 mm
Overall Depth	6.6″ / 93 mm
Front Mount Baffle Cutout	7.12″ / 181 mm
Mounting Depth	3.37″ / 85.5 mm
Motor Diameter	3.54″ / 90 mm

Product Overview

Outlast The Ride

From the water-resistant glass fiber cone to its resin-treated composite finish, every element of the 8PROEVO is designed to endure.

Consistent Performance

With 250W RMS power and smart thermal management from its TIL former and copper ribbon coil, the 8PROEVO delivers performance you can trust—even under pressure.
