Description

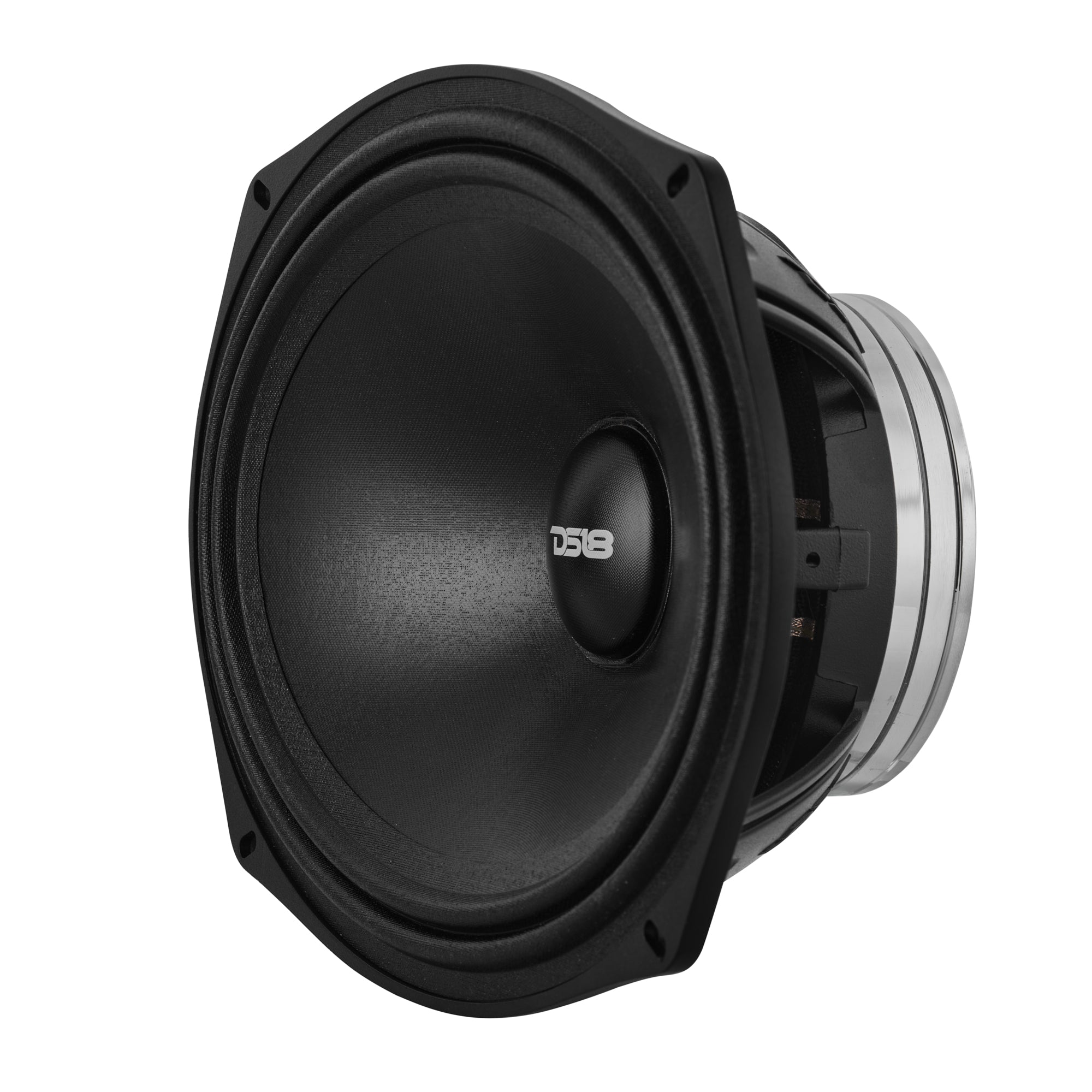

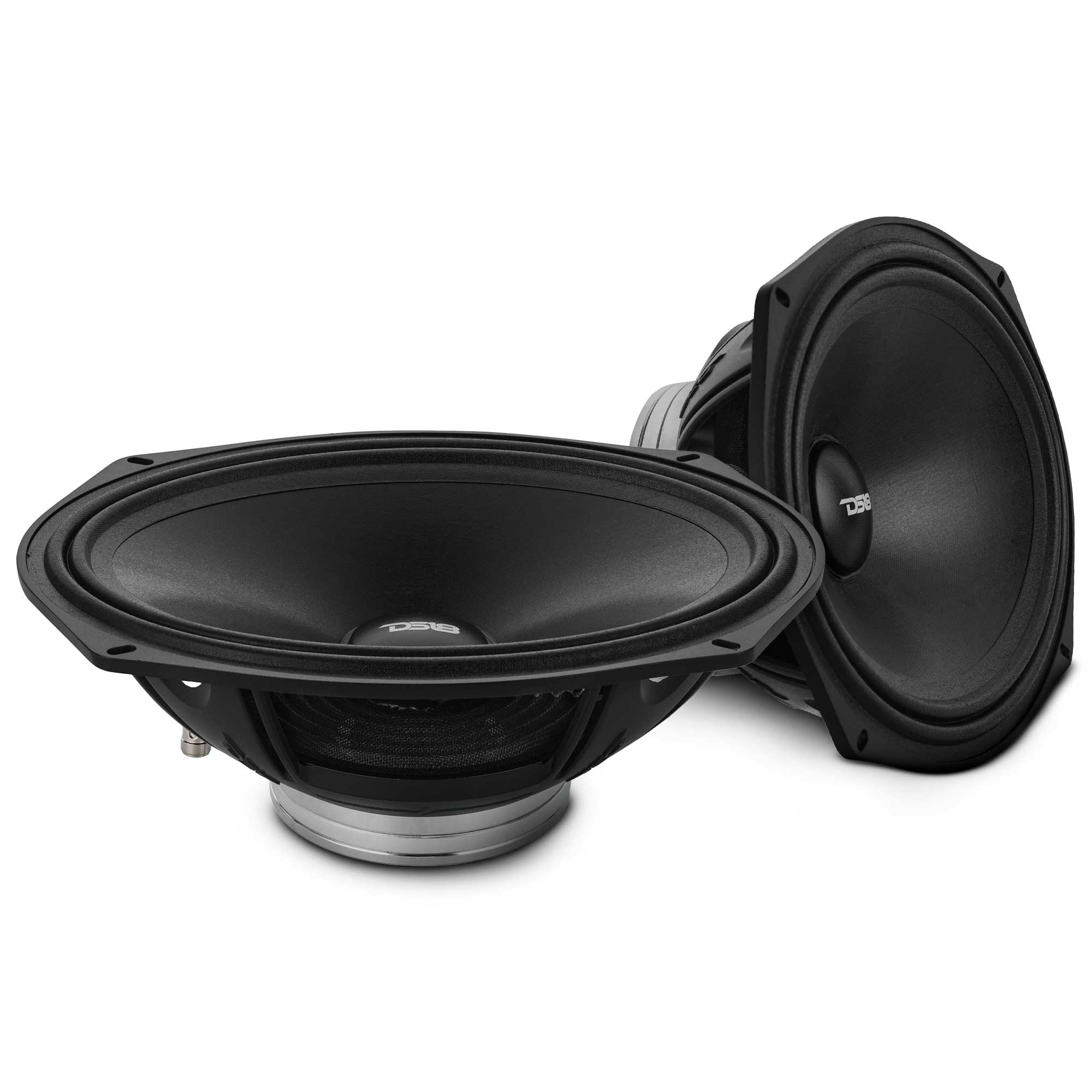

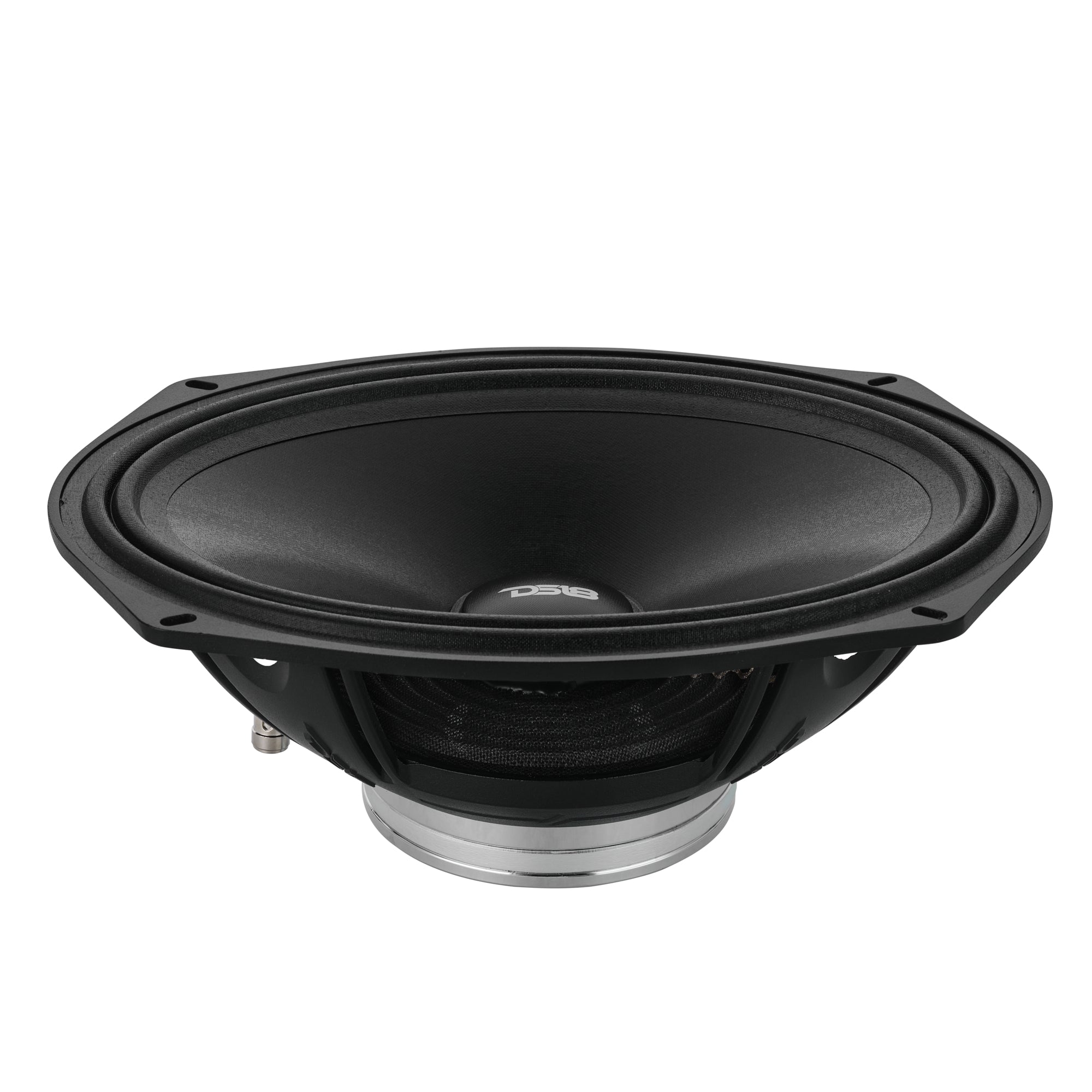

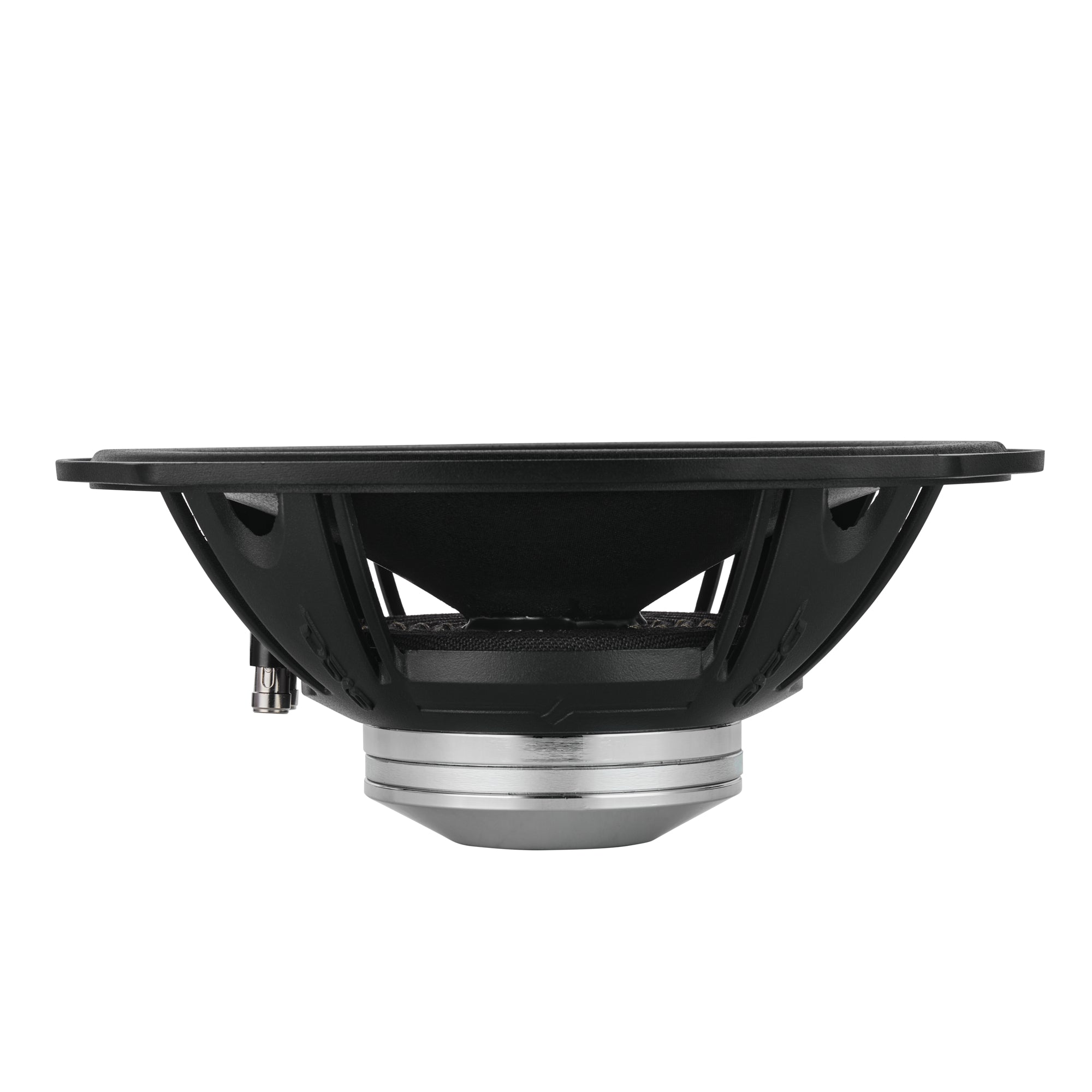

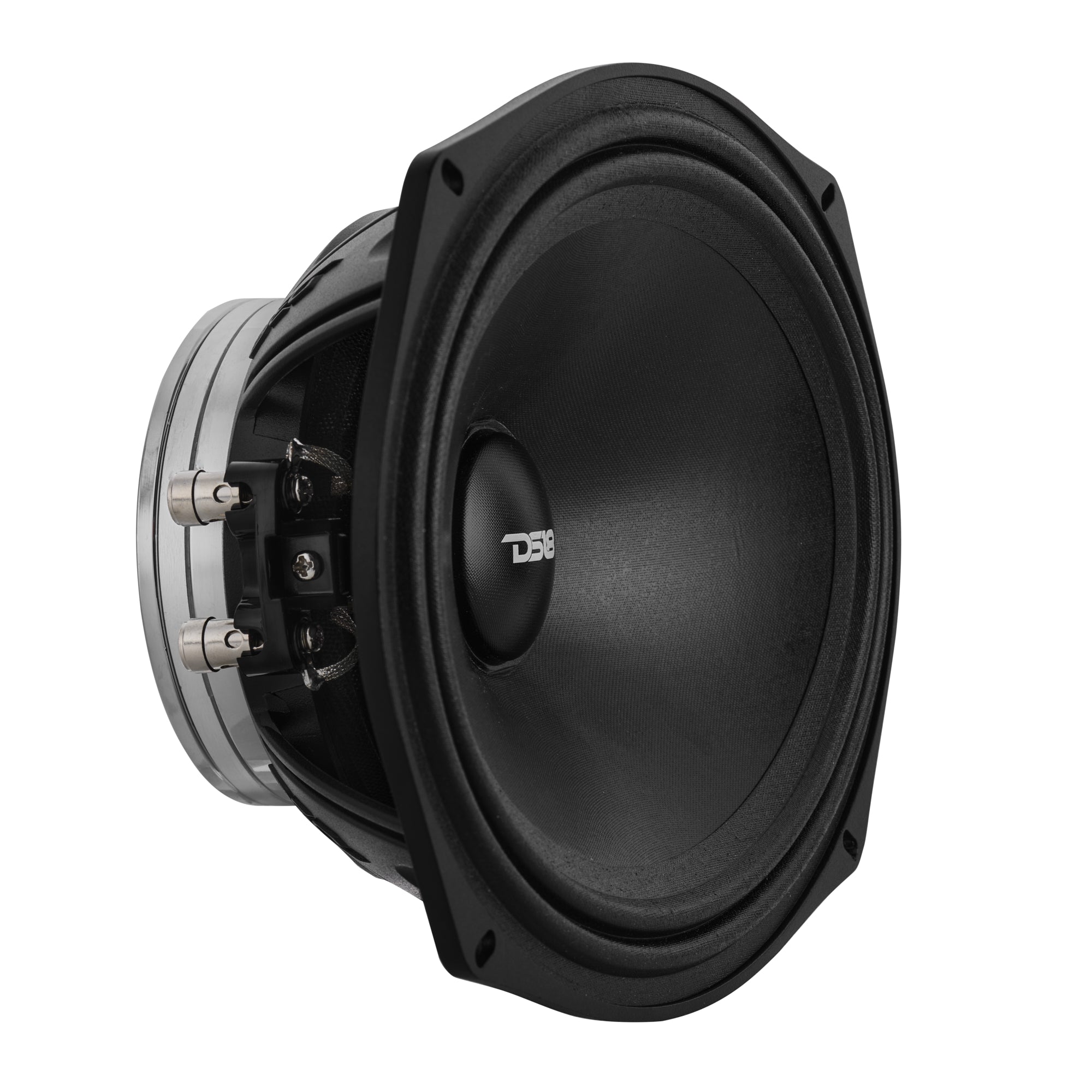

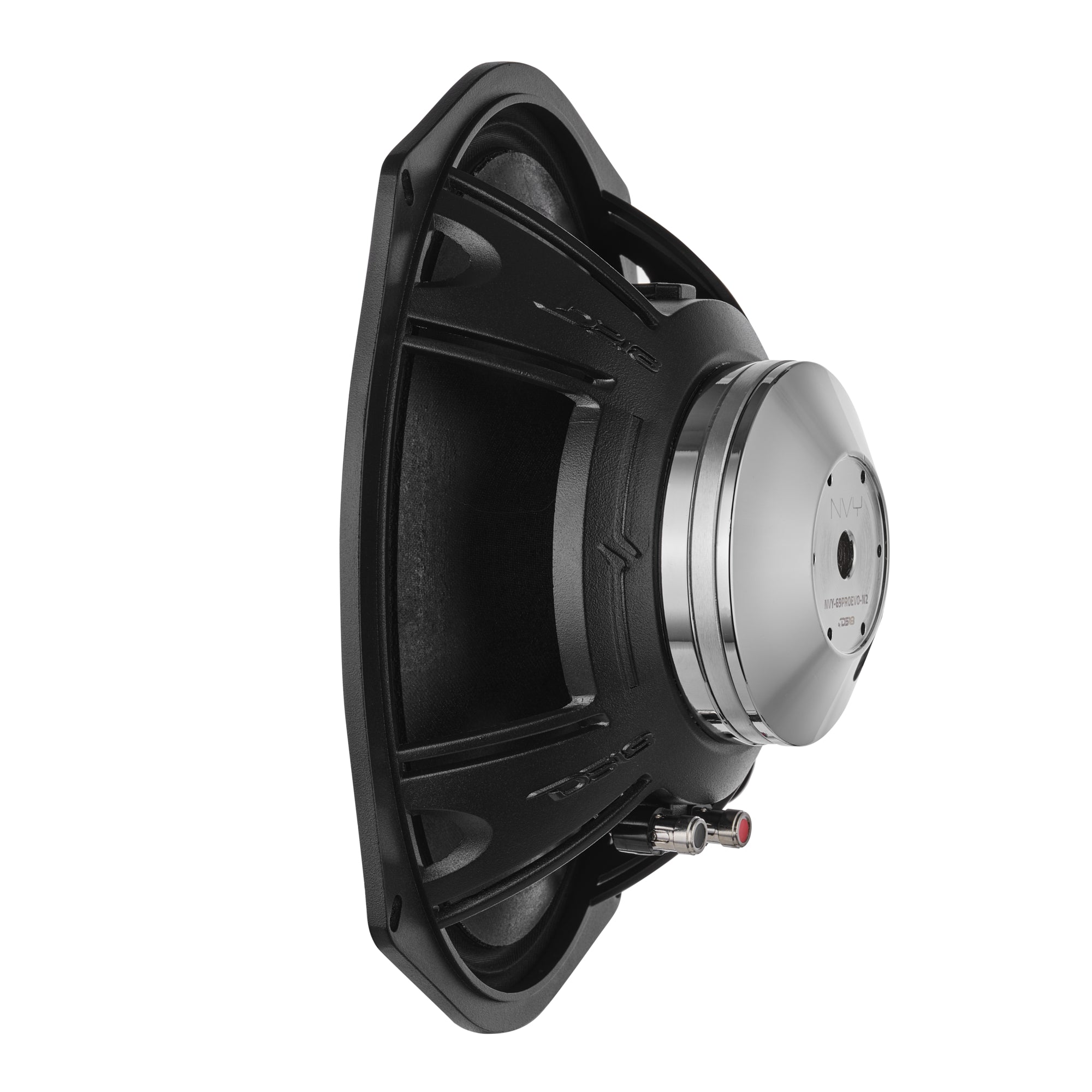

DS18 NVY-69PROEVO-N4

The NVY-69PROEVO is a 6×9″ professional EVO series midrange loudspeaker designed for high-output pro audio, PA systems, and SPL applications. Available in both 2-ohm and 4-ohm impedance configurations, it delivers strong midrange clarity, robust low-end punch, and high efficiency. Its durable motor structure and high-temperature voice coil ensure reliable performance under demanding conditions, making it ideal for pro speaker cabinets, custom car audio systems, and stage setups.


Specifications

Specification Value
Demodulating Rings Yes
Improved Heat Dissipation Yes
Cone Shape Curvilinear
Speaker Terminals Push 14ga
Waterproof Rating IP65

Motor Specifications
Specification Value
Voice Coil Diameter 1.5″ / 38.5 mm
Voice Coil Former Material TIL
Winding Material Copper Ribbon
Cone Material Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Dust Cap Material Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Surround Material Treated Cloth
Leads Connection Type Spider Crossed
Basket Material Aluminum
Basket Color / Finish Black
Magnet Material Neodymium
Magnet Weight 5.1 oz

Thiele & Small Parameters
Parameter Value
Equivalent Volume 23.72 L / 0.837 ft³
Excursion (One Way) 2 mm
Free Air Resonance 68 Hz
Mechanical Factor 10.76
Electrical Factor 0.7
Total Factor 0.66
Mechanical Mass 24.634 g
Mechanical Compliance 0.298 mm/N
BL Factor 6.34
Voice Coil Inductance 0.175 mH
Cone Area 226.98 cm²
DC Resistance 3.9 Ohms
Mechanical Mass w/o Air 21.1 g

Speaker Measurements
Specification Value
Overall Diameter 6.4 x 9.1″ / 163 x 232 mm
Overall Depth 3.6″ / 92 mm
Front Mount Baffle Cutout 5.7 x 8.6″ / 146 x 217 mm
Mounting Depth 3.4″ / 86 mm
Motor Diameter 3.54″ / 90 mm

Product Overview

Built For All Elements

An IP65-rated, resin-treated cone and sealed internals make this speaker strong in marine, motorcycle, and powersport conditions.


Consistent Quality

A copper ribbon voice coil and spider-crossed leads preserve balance and output at high volume. It’s engineered to stay consistent—no distortion, no fatigue.


Designed For Your Ride

With push terminals, sealed internals, and a precisely contoured frame, install is simple and clean in all motorcycles and powersports builds.

Reviews

There are no reviews yet.

Be the first to review “DS18 NVY-69PROEVO-N4”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of speaker is the NVY-69PROEVO?

A1: It is a 6×9-inch professional midrange loudspeaker designed for high-output pro audio, PA, and SPL systems.

Q2: What impedance options are available?

A2: The NVY-69PROEVO comes in both 2-ohm and 4-ohm versions.

Q3: Where is this speaker typically used?

A3: Ideal for PA speaker cabinets, stage monitors, portable rigs, custom car audio, and SPL systems requiring strong midrange and bass response.

Q4: Is this a full-range speaker?

A4: No, it is a dedicated midrange driver and should be paired with tweeters and a proper crossover for full-range performance.

Q5: Do I need an external amplifier?

A5: Yes, a dedicated amplifier is recommended to achieve optimal performance and high output.
