Name: DS18 NVY-10PROEVO-N4
SKU: NVY-10PROEVO-N4
Availability: InStock

Description

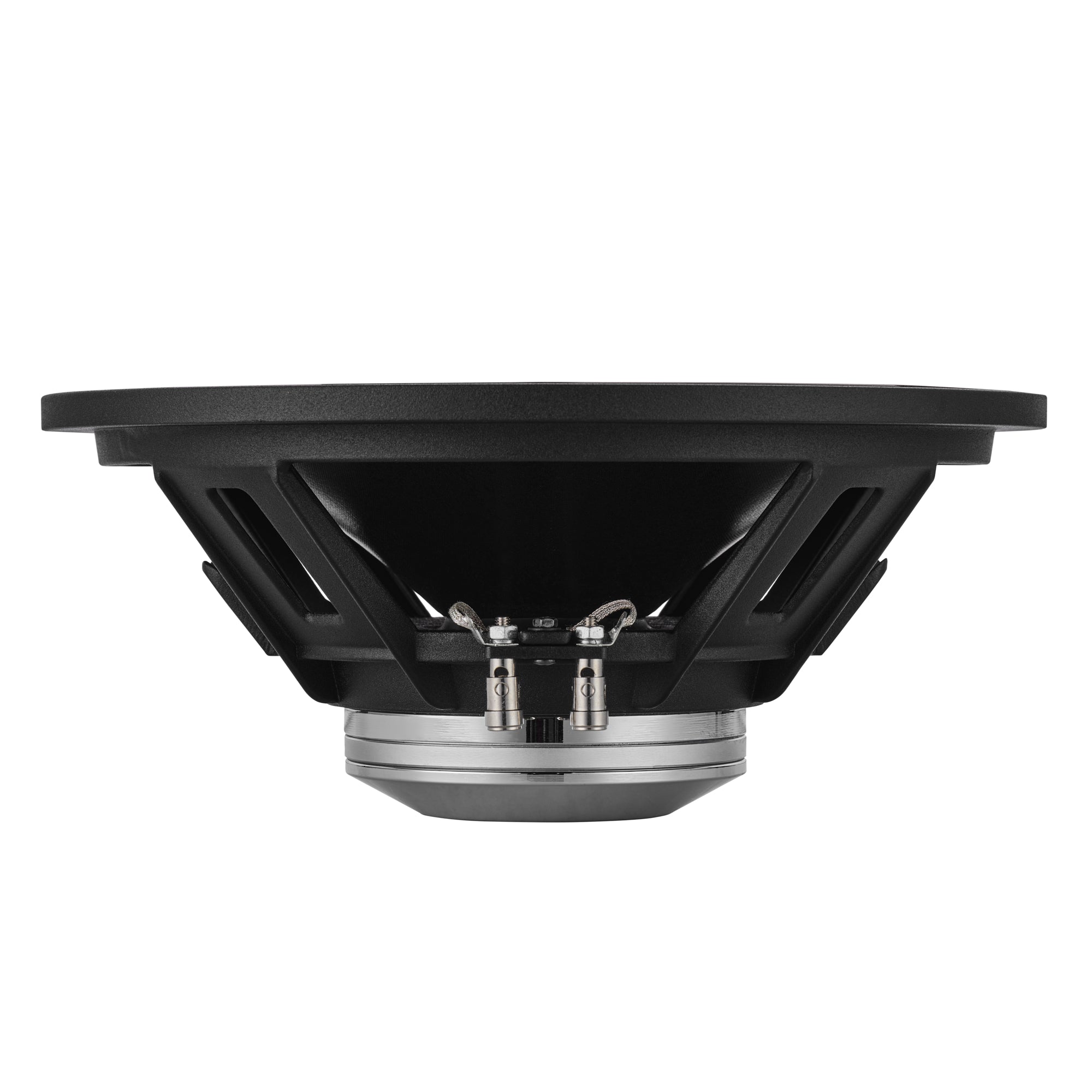

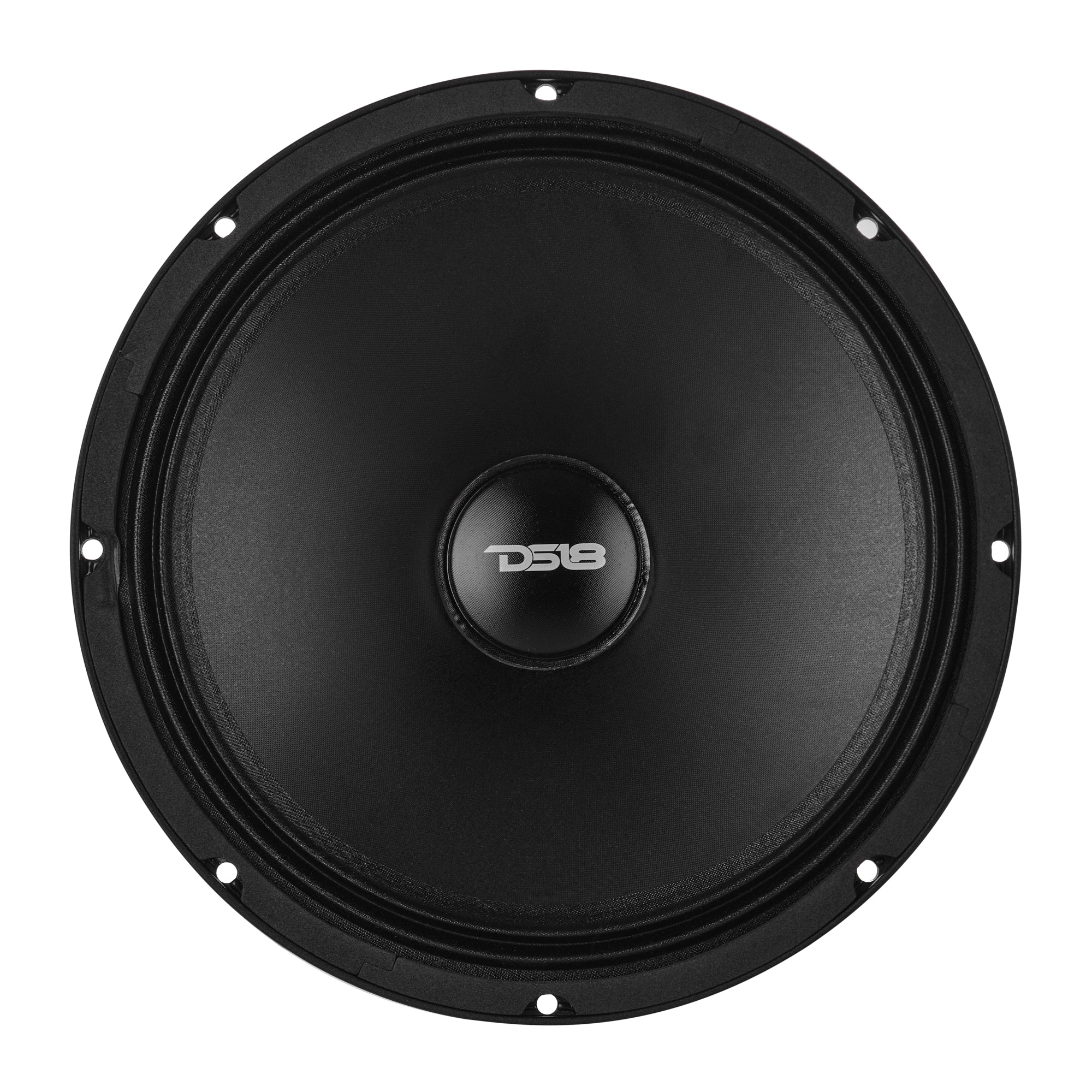

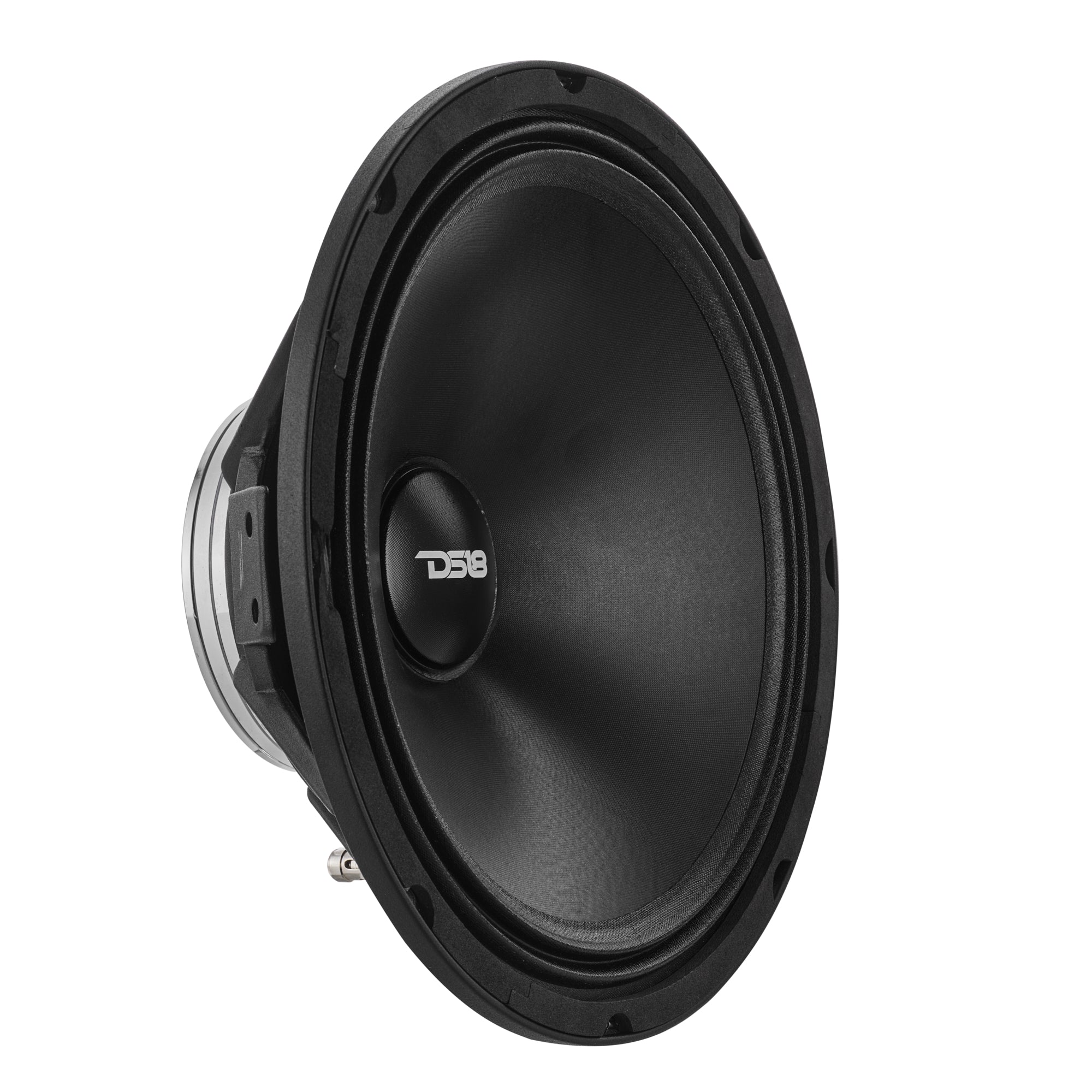

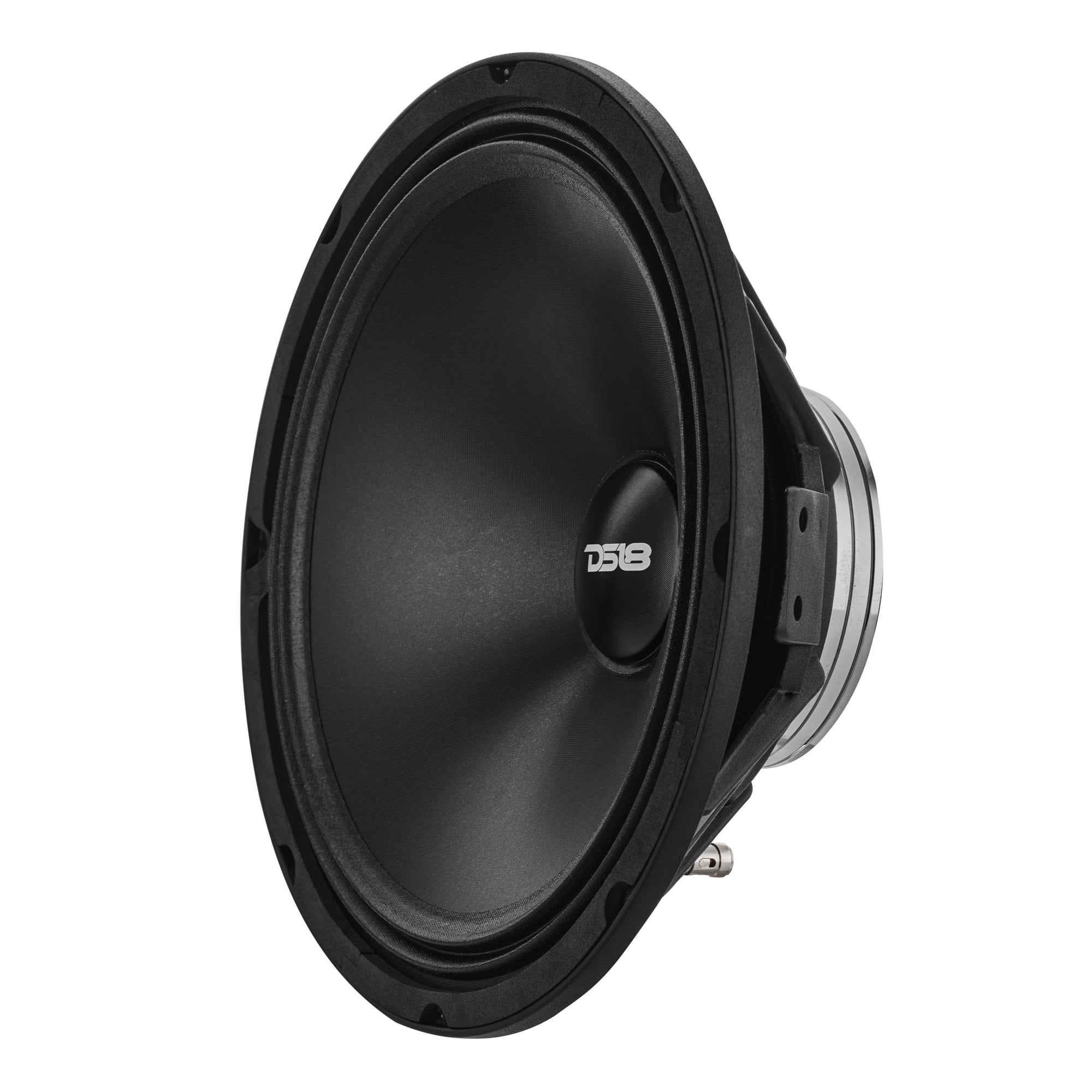

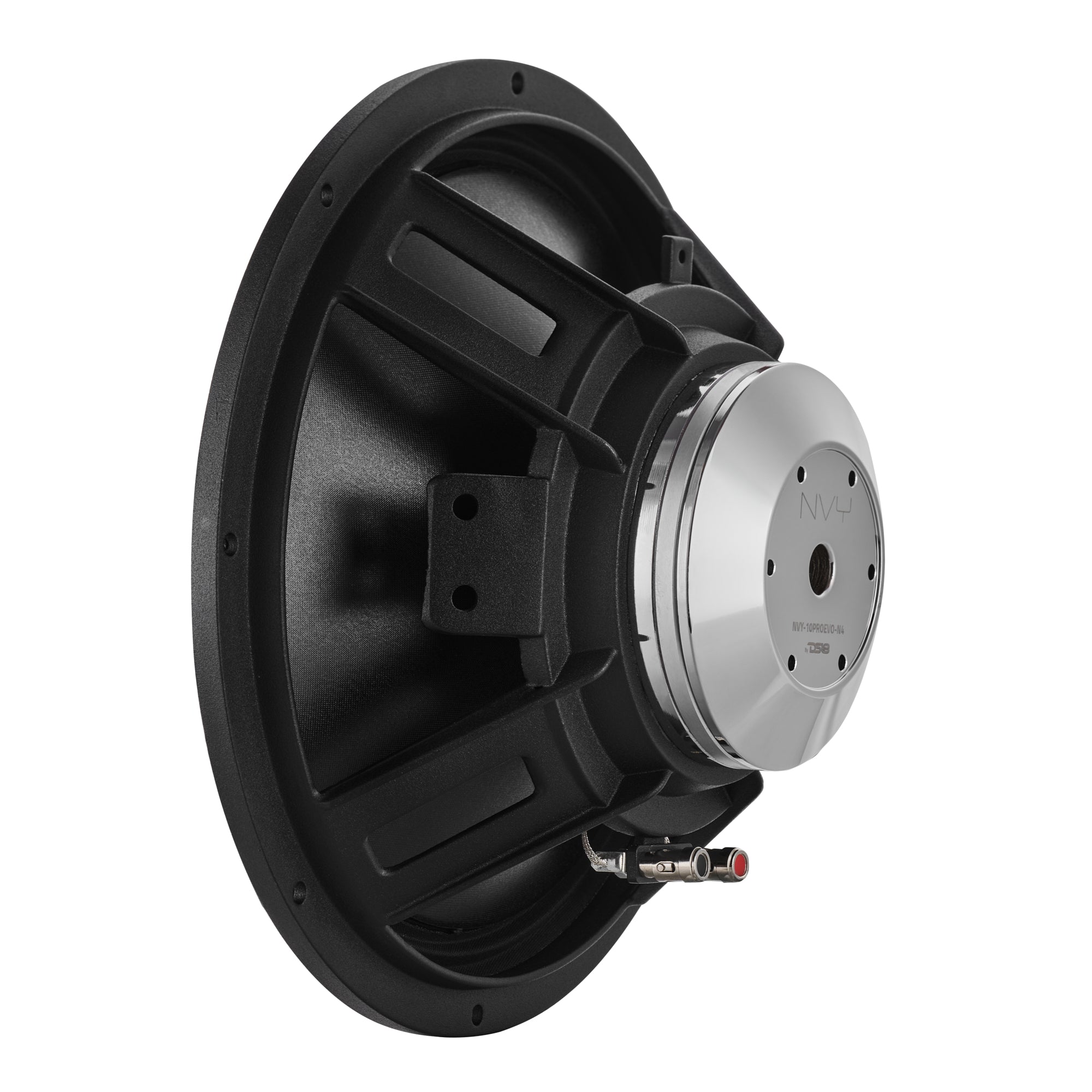

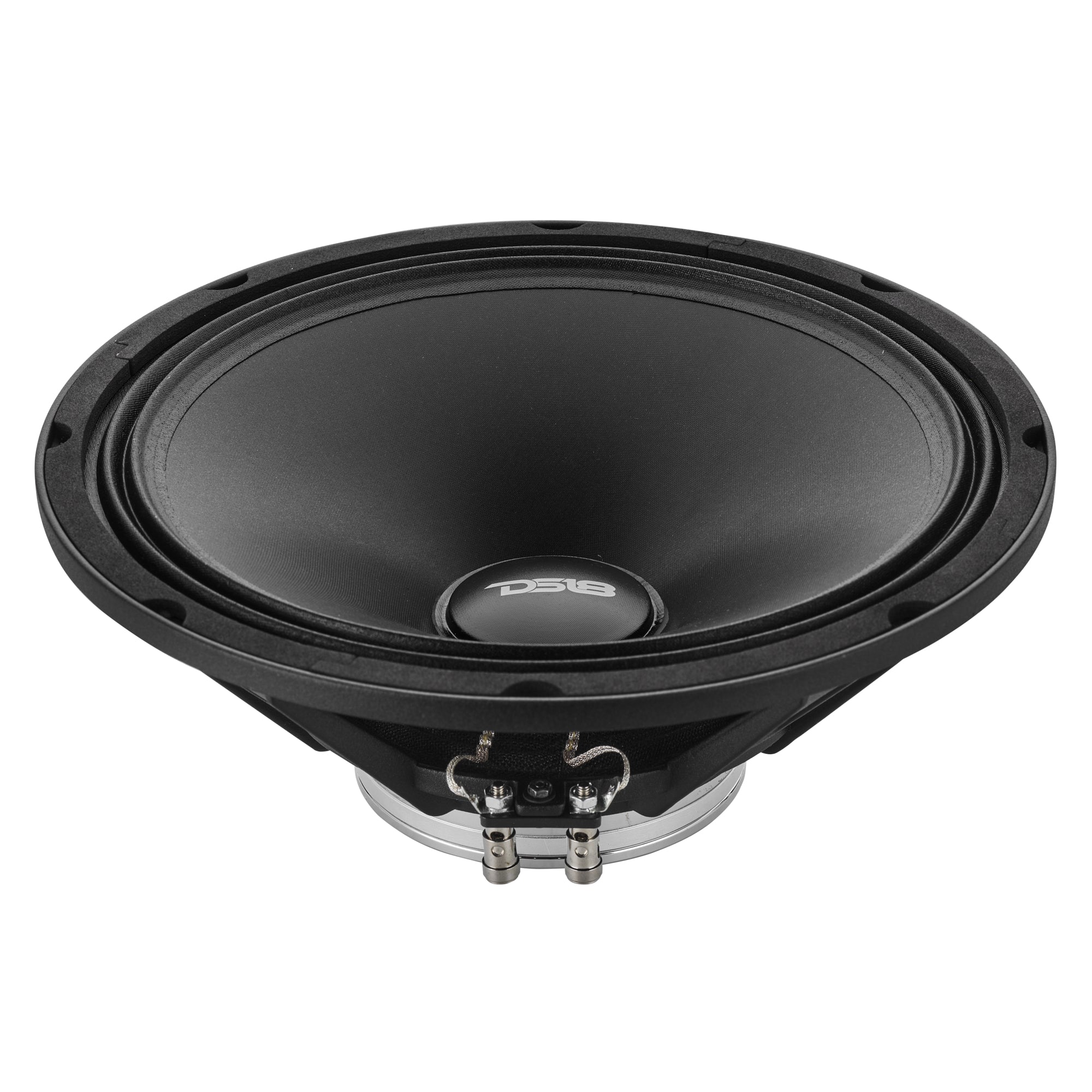

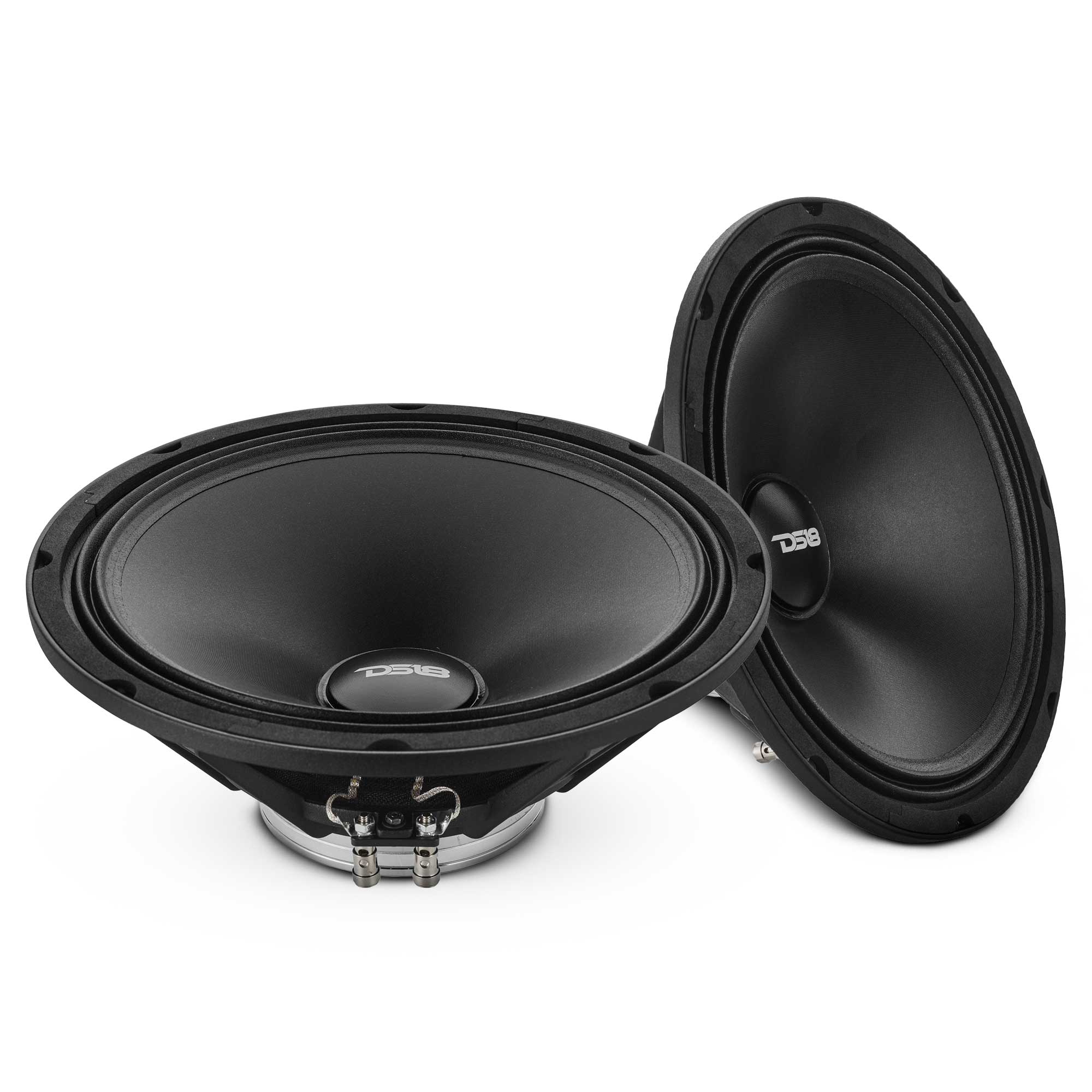

DS18 NVY-10PROEVO-N4

The NVY-10PROEVO-N4 is a 10″ professional EVO series midrange/mid-bass loudspeaker designed for high-output pro audio, PA systems, and SPL applications. Featuring a 4-ohm nominal impedance (N4), it delivers strong midrange clarity, punchy low-end response, and high efficiency. Engineered with a durable motor structure and high-temperature voice coil, it ensures consistent performance under demanding conditions, making it ideal for professional stage setups, PA speaker cabinets, custom car audio systems, and SPL builds.

Specifications

Specification	Value
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Push 14ga
Waterproof Rating	IP65

Motor Specifications

Specification	Value
Voice Coil Diameter	2″ / 50.8 mm
Voice Coil Former Material	TIL
Winding Material	Copper Ribbon
Cone Material	Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Dust Cap Material	Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Surround Material	Treated Cloth
Leads Connection Type	Spider Crossed
Basket Material	Aluminum
Basket Color / Finish	Black
Magnet Material	Neodymium
Magnet Weight	7.2 oz

Thiele & Small Parameters

Parameter	Value
Equivalent Volume	50.7 L / 1.79 ft³
Excursion (One Way)	2 mm
Free Air Resonance	53 Hz
Mechanical Factor	11.92
Electrical Factor	0.59
Total Factor	0.57
Mechanical Mass	34.127 g
Mechanical Compliance	0.252 mm/N
BL Factor	8.42
Voice Coil Inductance	0.035 mH
Cone Area	356.33 cm²
DC Resistance	3.94 Ohms
Mechanical Mass w/o Air	25.752 g

Speaker Measurements

Specification	Value
Overall Diameter	10.2″ / 260.7 mm
Overall Depth	4.3″ / 109 mm
Front Mount Baffle Cutout	9.1″ / 232.7 mm
Mounting Depth	4″ / 101 mm
Motor Diameter	4.1″ / 105 mm

Product Overview

Durability In The Details

From its water-resistant cone and resin finish to IP65-rated sealing, every element is tuned for endurance in any conditions.

Push Past Your Limits

A neodymium motor, TIL former, and copper ribbon coil give the 10PROEVO the headroom and control to perform under pressure.

Seamless Fit

Push terminals and spider-crossed leads make for a clean install, while its form factor adapts easily to marine and powersport applications.
