Description
DS18 MTLOC6
The DS18 MTLOC6 is a 6-channel digital sound processor designed to give precise control over complex car audio systems. With six output channels, it allows detailed tuning of crossovers, equalization, time alignment, and output levels for multi-speaker setups, ensuring a perfectly balanced and immersive listening experience. Built-in high-resolution digital processing ensures clean signal flow with minimal distortion, while its compact design allows flexible installation in a wide range of vehicles. Ideal for enthusiasts and professional installers, the MTLOC6 provides complete control over multi-amp systems, making it perfect for achieving high-fidelity, competition-level sound performance in cars.
Specifications
| Specification | Value |
|---|---|
| Maximum Speaker Level Input | Up to 40 V (400 W RMS) |
| Maximum Preamp Output | Up to 11 V |
| Nominal Conversion Ratio | 4:1 |
| Frequency Response | 10 Hz – 20 kHz |
| Total Harmonic Distortion (THD) | 0.01% |
| Signal-to-Noise Ratio | >110 dB |
| Input Impedance | Selectable 20 / 60 / 20 kΩ |
| Output Impedance | 100 Ω |
| Power Draw | 230 mA |
| Recommended Fuse Rating | 1 A |
Features
| Feature | Description |
|---|---|
| Bass Boost | 0 – 12 dB |
| Auto Turn-On | Yes (Audio Sense / REM / DC) |
| Remote Output | Yes |
| Level Matching Controls | Yes |
| Dash Remote Level Control | Yes |
| LED Indicators | Power / Clip |
| Housing Material / Color | Aluminum / Black |
| Wiring Connector | 14 Ga Quick Connector |
| Ground Isolation | Selectable (200 Ω / Isolated / Grounded) |
| Step-Down Method | Transformer |
| Input Selector | Selectable (2ch / 6ch) |
Measurements
| Measurement | Value |
|---|---|
| Overall Length | 5.7 in (145 mm) |
| Overall Width | 4.5 in (114 mm) |
| Overall Height | 1.1 in (28 mm) |
Product Overview

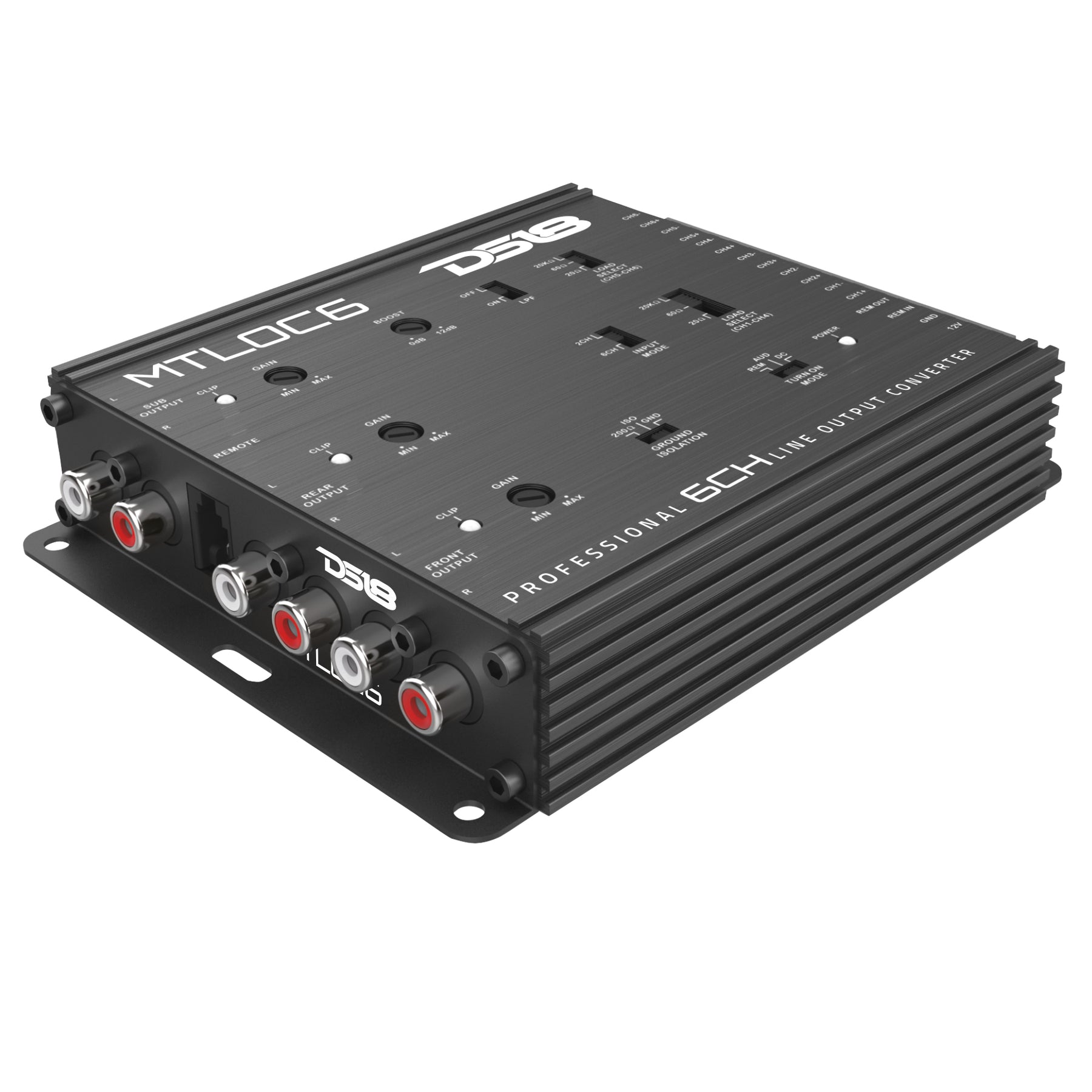

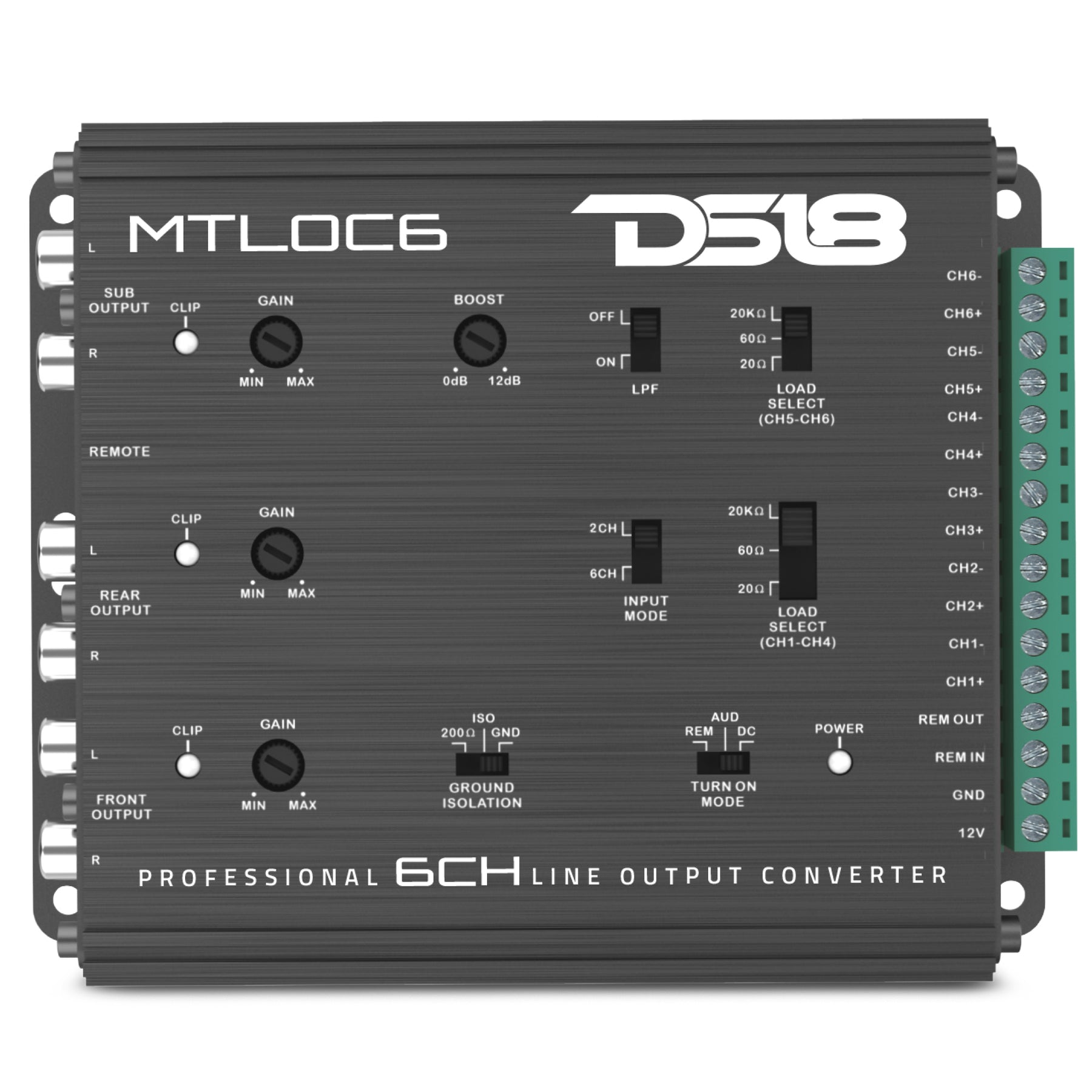

6-Channel High-to-Low Level Line Output Converter with Remote Turn-On

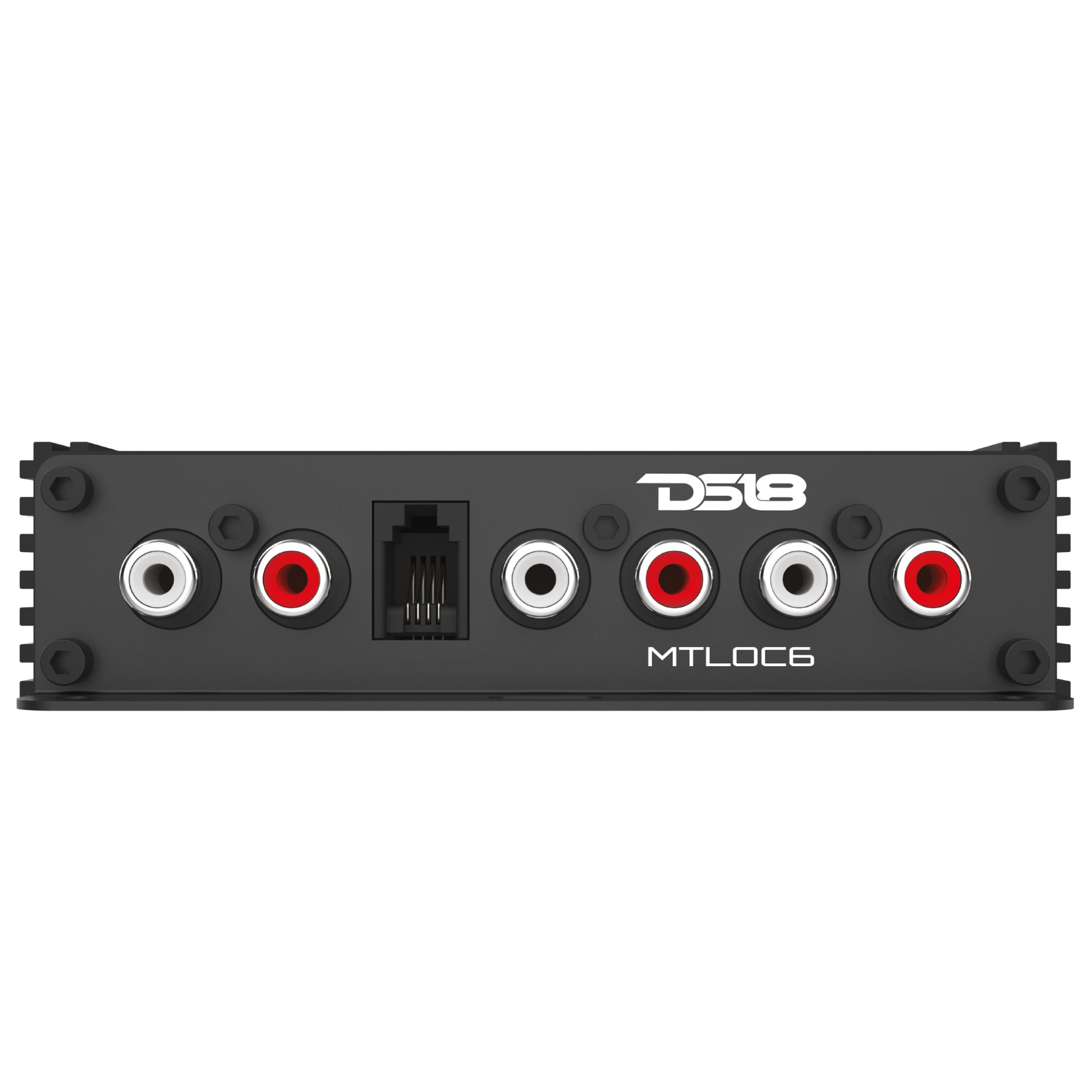

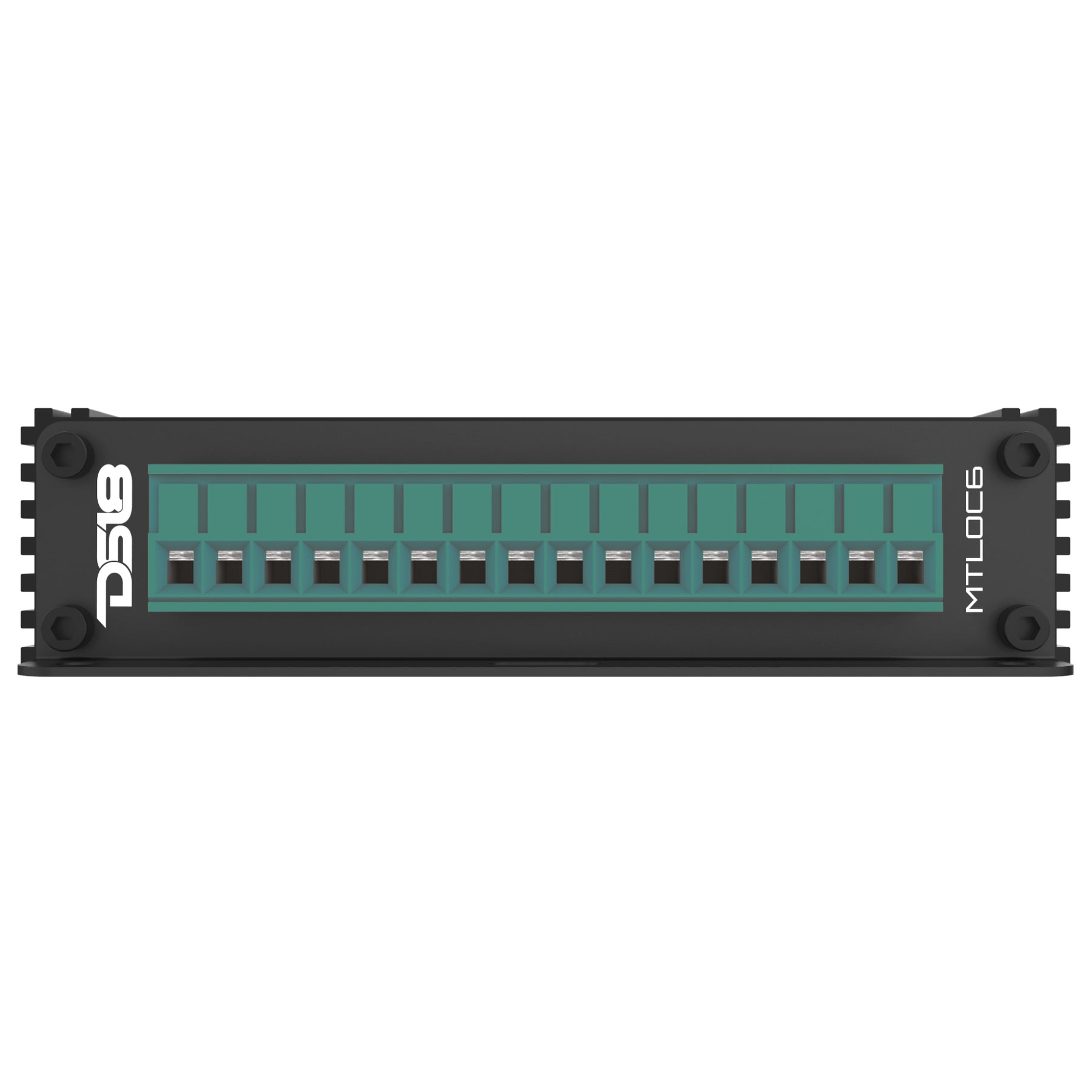

DS18’s MTLOC6 converts up to six factory speaker outputs to six RCA low-level signals. Selectable impedance settings and input modes make it compatible with various factory stereo configurations.
Automatic Turn-On Features
Trigger your amplifier via audio sensing, DC offset, or remote wire for convenience and reliability.
Robust Construction
A durable anodized aluminum housing with thermal and noise protection guarantees long-lasting performance in any environment.
Audio Purity
Delivering less than 0.01% distortion across 10Hz–20kHz, the MTLOC6 preserves your music’s detail and power.
Bring your system to life with DS18’s MTLOC6.
