Name: DS18 MRX150
SKU: MRX150
Availability: InStock

Description

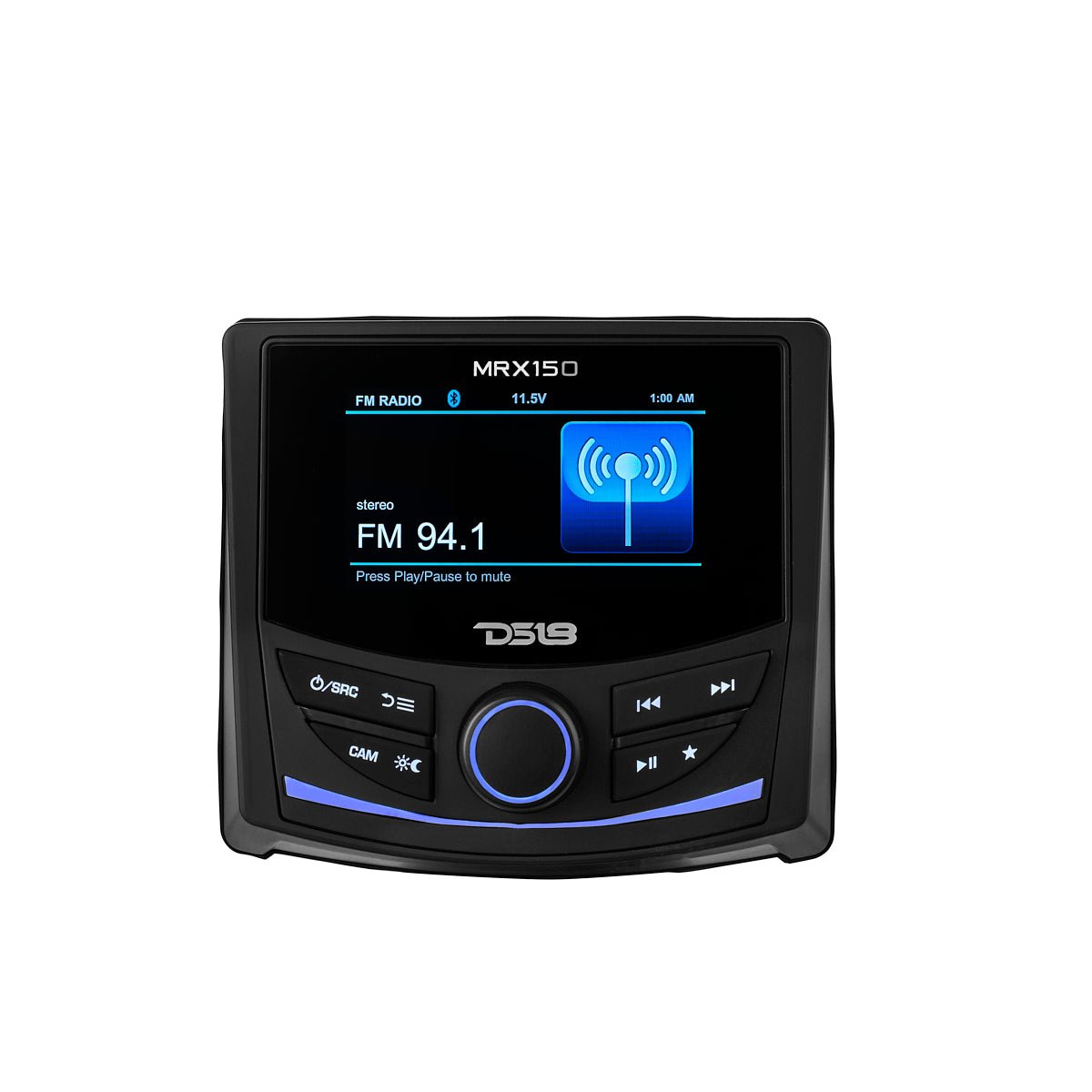

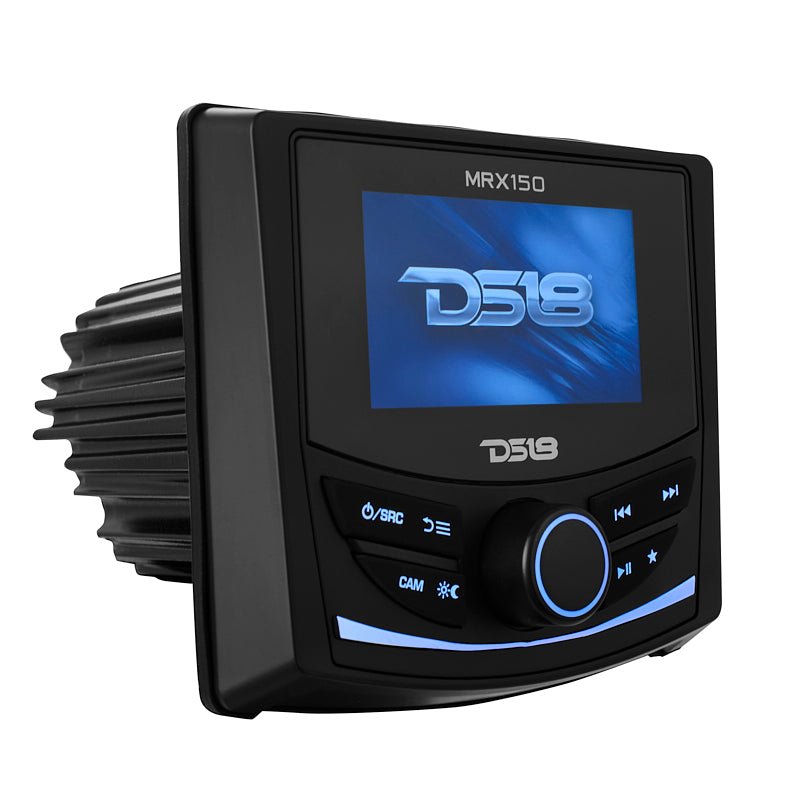

DS18 MRX150

The MRX150 is a premium marine and powersports digital media receiver designed to deliver reliable audio performance in harsh environments. Featuring a 3-inch TFT color display, Bluetooth 5.0 streaming, and dual-zone audio control, it provides flexible sound management for boats, motorcycles, and off-road vehicles. With an IP65 waterproof rating, Gorilla Glass screen protection, and a built-in 4-channel amplifier, the MRX150 ensures durability, clear sound output, and seamless connectivity for demanding outdoor applications.

Specifications

Feature	Specification
SKU	MRX150
Operating Voltage	10.5 – 16 Volts
Current Drain	15 Ampere (Max)
Low Voltage Warning Alert	Yes (< 10.8V)
Waterproof Rating	IP65 / Silicone Cover Included
UV/Salt Protection	Yes
Buttons	Rubber + RGB Backlit (Blue Color)

Display

Feature	Specification
Screen Panel	Gorilla Glass with OCA Full Bonding
Type	TFT LCD with IPS

Audio

Feature	Specification
RMS Power	4 × 18W at 4 Ohm (14.4V)
RMS Power	4 × 25W at 2 Ohm (14.4V)
Max Power	4 × 50W at 2 Ohm (14.4V)
Minimum Load	2 Ohm Stable per Channel
Frequency Response	20Hz – 20kHz
RCA Pre-Out Voltage	4 Volts
Output Impedance	500 Ohm
Equalizer	2 Bands / Bass 100Hz ±10dB / Treble 10kHz ±10dB
Presets	Yes (S-Bass / Vocal / Powerful / Clarity)
Subwoofer Control	Level (-10 to +10)
Audio Zones	2 Zones (Zone 1: Front R+L, Rear R+L / Zone 2: R+L)
Independent Zone Control	Yes (Level / Tone)
Audio Input	L + R RCA (Aux Input)

Tuner

Feature	Specification
FM Frequency Range	87.5 – 107.9 MHz
AM Frequency Range	162.40 – 162.55 MHz
NOAA Weather Band	Yes
Tuner Presets	18 FM / 12 AM / 6 WB
Radio Data System	Yes (AF / TA / NEWS)
IF	10.7 MHz (FM), 450 kHz (AM)
Sensitivity	4 µV (FM), 36 dBuV (AM)
Signal to Noise Ratio	>30 dB (FM)
Stereo Separation	>25 dB

Connectivity

Feature	Specification
Bluetooth Version	5.0 + EDR
Audio Streaming	A2DP
USB Compatibility	v2.0
USB Capacity	Up to 64GB
USB Charge Capacity	2.1 Amp
Audio Files Compatibility	MP3, WMA
Remote Control	Wired 3.5mm Jack Input (Compatible with MXRC)

Measurements

Feature	Specification
Product Weight	2.3 lbs
Product Dimensions	6.25 × 6 × 8
Master Carton Weight	19.5 lbs
Master Carton Dimensions	13 × 13 × 17
Master Carton Quantity	8
Sold In	Piece

Product Overview

Marine and Powersports Head Unit

DS18’s MRX150 is made to handle rough rides and loud sound. It gives you full control of your music on the water and off-road.

Weather-Ready Performance You Can Trust
The MRX150 has an IP65 waterproof rating: that means it can handles splashes, rain, and spray from any angle. Its Gorilla Glass screen is strong and resists scratches and cracks. It’s also protected from rust and salt damage. This head unit is made for all marine and powersports applications.

Audio Control, Customized Your Way
You can stream music wirelessly with Bluetooth 5.0. The MRX150 also comes with AM, FM, and Weather Band radio. It saves up to 37 radio stations and allows for two audio zones with separate controls for bass, treble, and volume in each zone. There are eight channels of pre-amp outputs that send strong, clear sound to your amplifiers and speakers.

Built Tough, Plays Loud

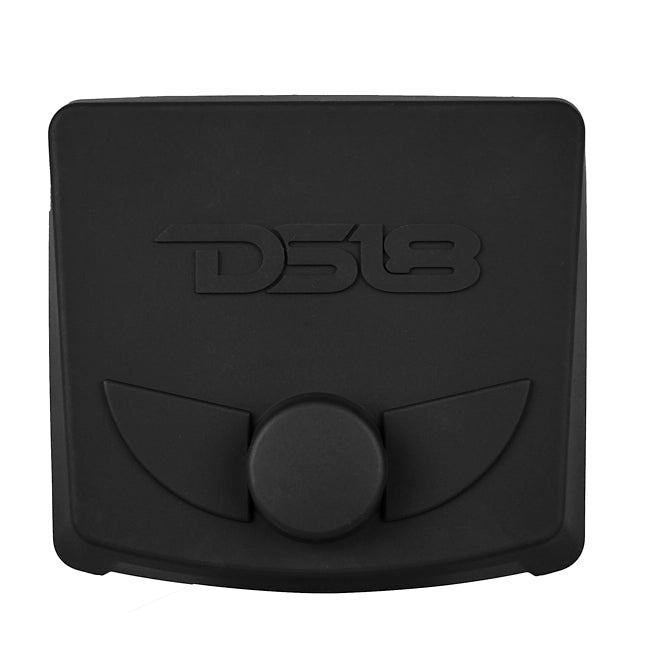

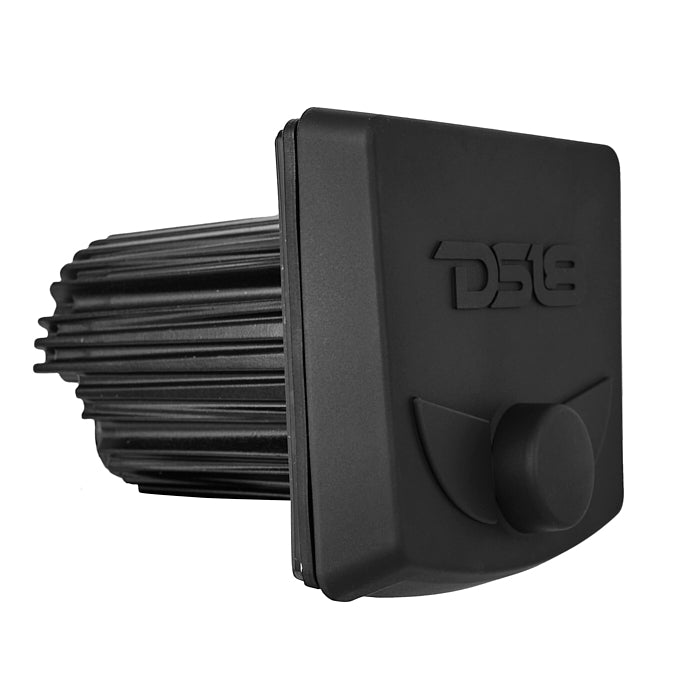

The MRX150 sends out four channels at 25W each to power marine and powersports speakers. It has a voltmeter built in, so you can check your battery’s power. When you’re done riding, a silicone cover protects the unit.
