Description
DS18 ION1600.4D
Power Specifications
| Specification | Value |
|---|---|
| SKU | ION1600.4D |
| Total Watts (Peak) | 4800W |
| RMS Power @ 4 Ohm | 4 × 240W |
| RMS Power @ 2 Ohm | 4 × 400W |
| RMS Power @ 1 Ohm | N/A |
| RMS Power @ 4 Ohm Bridge | 2 × 800W |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Stereo |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm (St) / 4 Ohm (Bridge) |
| Power Input Terminal Size | 4 AWG |
| Fuse Size | 140A (external) |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 10Hz – 20kHz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 Ohm | 88% |
| Damping Factor | 210 |
| Input Impedance | 27KΩ |
| Channel Separation | 59dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2 – 6V |
| High Level Input | Yes |
| Selectable X-Over | LPF / HPF / FULL |
| X-Over Filter Range | 40Hz – 2kHz |
| Bass Boost | No |
Features & Protection
| Feature | Included |
|---|---|
| LED Indicator | Power / Protect / Clipping |
| Cooling Fan | Yes |
| Remote Level Control | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Aluminum Black / Silver |
| Hi-Level Speaker Connector | Yes |
| Tiffany RCA Terminals | Yes |
| LED Clip Indicator | Yes |
| High-Efficiency Micro Digital Design | Yes |
Measurements
| Measurement | Value |
|---|---|
| Overall Length | 7.32″ / 186mm |
| Overall Width | 4.72″ / 120mm |
| Overall Height | 2″ / 52mm |
| Heatsink Length | 6″ / 153mm |
| Gross Weight | 1.3 kg |
Product Overview
Introducing DS18’s ION1600.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!

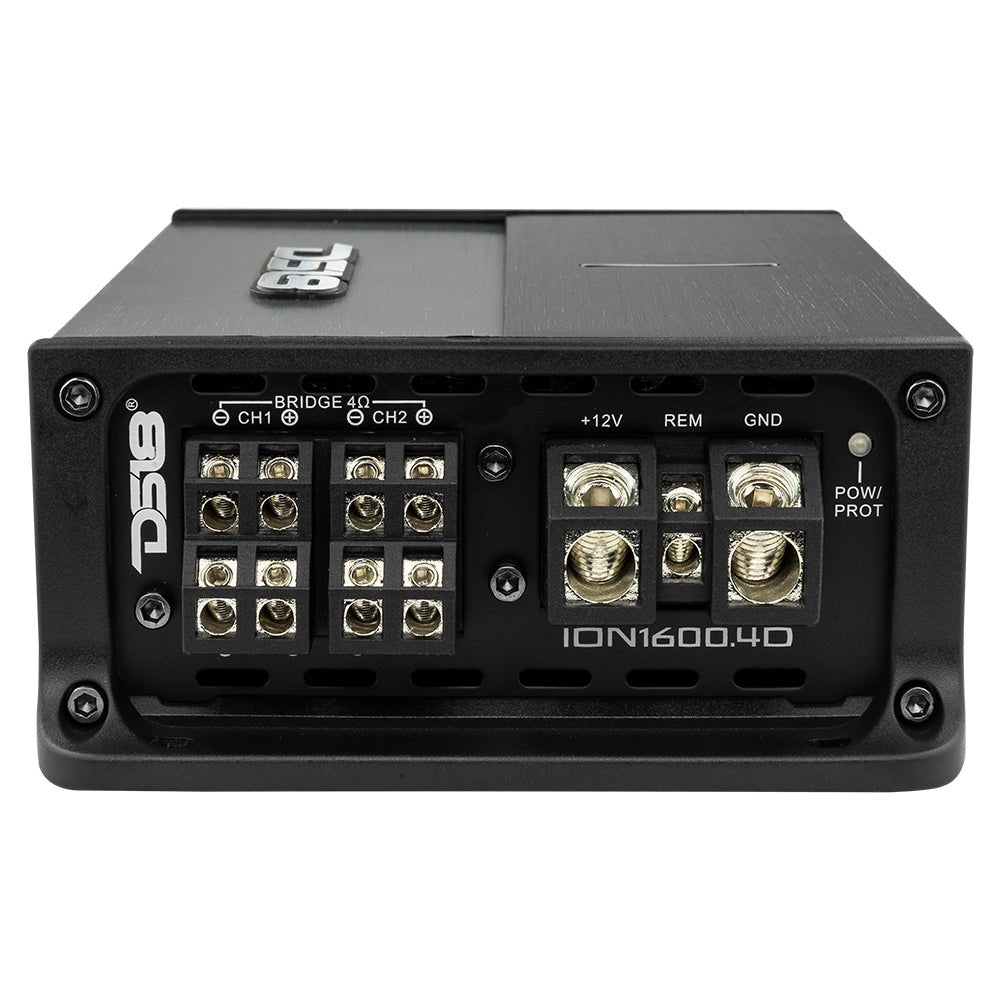

Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION1600.4D’s miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space.
The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies.

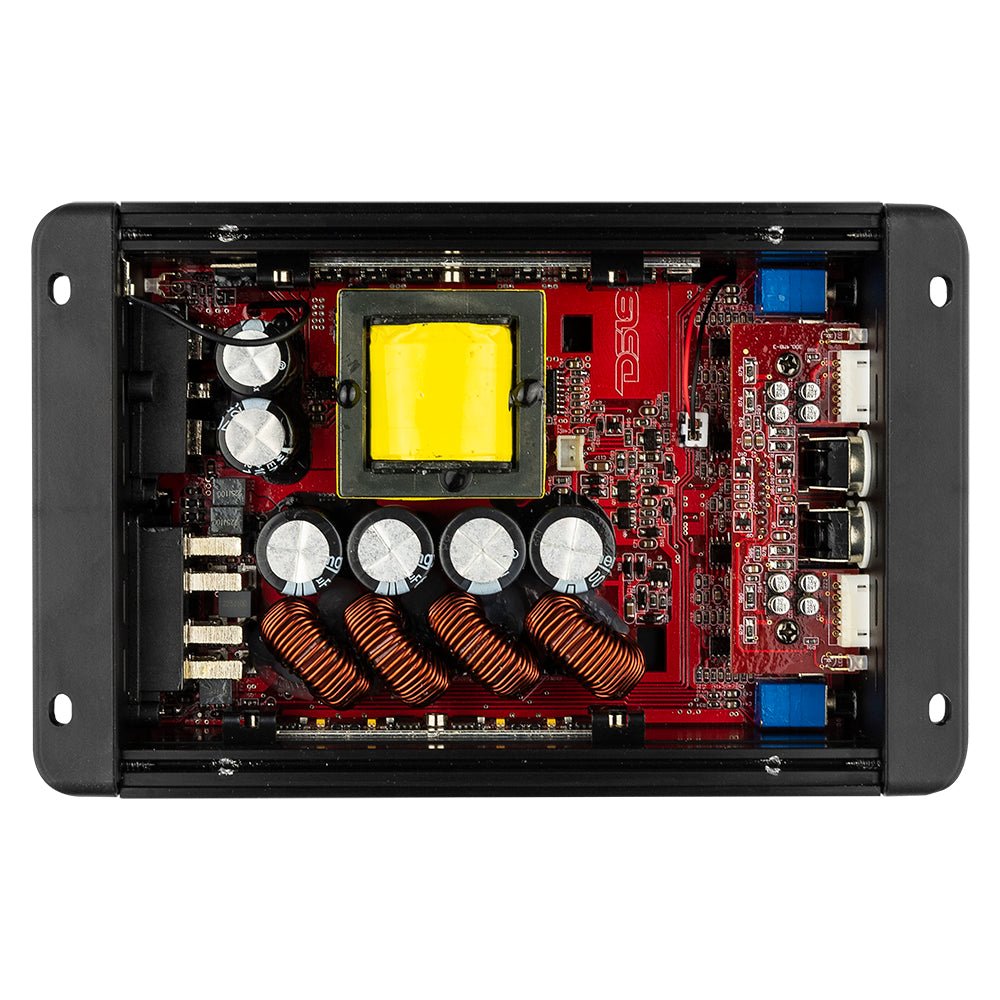

Surface mount component technology makes this amplifier highly resistant to vibrations, ensuring stable performance even on rough terrain. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability.
Safety was a top priority in the creation of DS18’s ION1600.4D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.
The ION1600.4D has power ratings of 2 X 800W at 4-ohm bridged, 4 x 400W at 2 ohms, and 4 x 240W at 4 ohms; perfect power ratings to turbocharge every component in your system!
Experience the power and precision of DS18’s ION1600.4D!
