Description
DS18 INF-C15A
The DS18 INF‑C15A is a 15 Amp portable automatic smart battery charger, maintainer, and booster engineered to efficiently charge and maintain a wide range of 6 V and 12 V batteries, including lead‑acid, wet, gel, AGM, calcium, and LiFePO₄ lithium types. Featuring an intelligent 8‑step charging process, an LED display for real‑time voltage and status readouts, and a boost mode capable of delivering up to 20 A for quick starting assistance, the INF‑C15A is versatile for automotive, powersport, marine, and audio system applications. Built‑in safety protections such as thermal, reverse‑polarity, overcurrent, and overcharge safeguards help protect both the charger and battery, while advanced battery repair/recovery modes help rejuvenate neglected or discharged batteries. It supports battery capacities from 2 Ah up to 350 Ah and includes both clamp and O‑ring terminal connectors for flexible installation.
Specifications
| Category | Specification |
|---|---|
| SKU | INF-C15A |
| Charger Type | 8 Steps Charging / Maintainer / Booster |
| Maximum Output Current (Charging) | 15 A |
| Maximum Input Current | Variable up to 350 W (3.1 A) |
| Battery Type Compatibility | Lead-Acid, Wet, Gel, AGM, Calcium, Lithium (LiFePO4) |
| Battery Voltage Compatibility | 6 / 12 V |
| Battery Capacity Compatibility | 2–350 Ah |
| AC Input | 110–120 VAC / 50–60 Hz |
| 6V DC Output Current | 5 A |
| 12V DC Output Current | 5 A / 10 A / 15 A or 20 A (Boost) 300s On/Off |
| 24V DC Output Current | N/A |
| Minimum Start Voltage | >3 V |
| Housing Protection Rate | IP33 |
| Operating Temperature | 0°C to +40°C |
| Efficiency | Approx. 85% |
Features
| Feature | Yes / No |
|---|---|

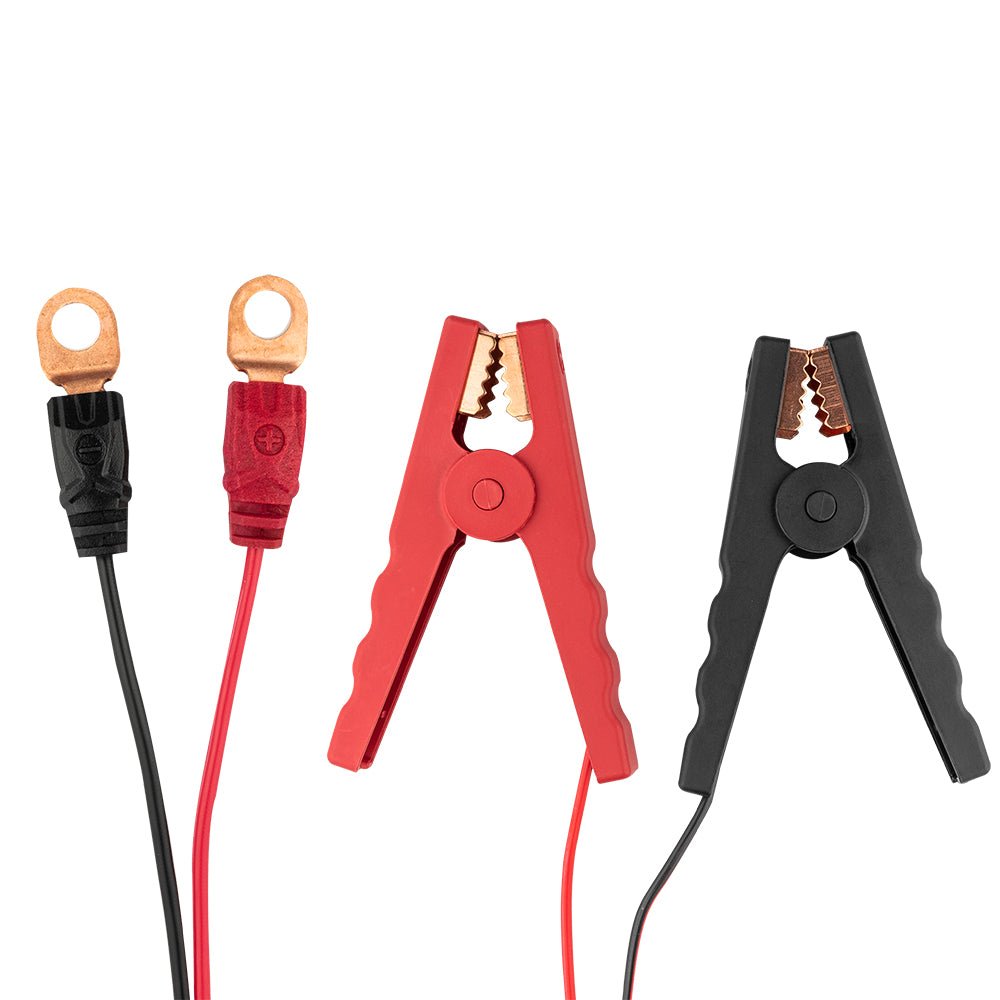

| Clamps Type | Battery Clamp / O-Ring Terminal |
| Quick Connector | Yes |
| Function Display Type | LCD |
| Voltmeter | Yes |
| Ammeter | Yes |
| Boost Mode | Yes |
| Power Supply Mode | No |
| Low Temperature Charging Mode | Yes |
| High Temperature Charging Mode | Yes |
| Battery Repair Mode | Yes |
| Thermal Protection | Yes |
| Reverse Connection Protection | Yes |
| Overcurrent / Overcharge Protection | Yes |
| Faulty Battery Indicator | Yes |
| Faulty Connection Indicator | Yes |
Product Overview
6V/12V Portable Automatic Smart Battery Charger & Maintainer with Boost
With DS18’s INF-C15A, it’s easy to maintain and charge your battery to ensure it will operate at its MAX, delivering uninterrupted power to your sound system and elevating your experience to new heights.
Equipped with advanced charging and maintaining capabilities, the INF-C15A is designed to power a wide range of battery types; including Lead-Acid, Wet, Gel, and AGM. No matter the size and type of your battery, the INF-C15A effortlessly delivers a maximum output current of 15A, ensuring an efficient charging process. When utilized in a 12V vehicles system the INF-C15A jump charges the battery with power as high as 20A in close to 300 seconds. The INF-C15A charger offers exceptional adaptability with compatibility for 6V, and 12V systems, along with a choice of Ring Terminal or Battery Clamp options, making it one of the most versatile chargers available today.
The INF-C15A is equipped with a range of essential safety features, including thermal protection to prevent overheating, reverse connection protection to safeguard against accidental mistakes, and overcurrent/overcharge protection to maintain a healthy battery life. The INF-C15A also has an impressive IP33 protection rating. This means it is protected from tools and wires greater than 2.5mm, ensuring the internal components are shielded from any potential damage. This charger is also temperature tested and operates flawlessly in temperatures ranging from 0°C to +40°C.
DS18’s INF-C15A goes beyond standard charging and maintenance capabilities with it’s innovative repair mode. This advanced battery recovery mode can bring back batteries that have been neglected or plagued by common issues such as sulfation, stratification, or long periods of inactivity.
Intelligently designed to handle battery capacities ranging from 2Ah to an impressive 350Ah. Your battery’s size won’t matter, the INF-C15A provides the perfect charging and maintaining solution for all setups. DS18’s INF-C15A is an essential companion for every audio enthusiast.
