Description
DS18 H-KO10
Power Specifications
| Specification | Value |
|---|---|
| SKU | H-KO10 |
| Class | Digital |
| Amplifier Type | Monoblock |
| Channels | 1 |
| RMS Power @ 4 Ohm / 14.4V | 3500W |
| RMS Power @ 2 Ohm / 14.4V | 5800W |
| RMS Power @ 1 Ohm / 14.4V | 10000W |
| RMS Power @ 0.67 Ohm / 14.4V | 18000W (Burst Only) |
| Minimum Impedance | 1–4Ω |
| Operation Voltage | 8.5–16V |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 13–250Hz |
| Signal/Noise Ratio | >88dB |
| Low Pass Filter | 35–250Hz |
| High Pass Filter | 35–250Hz |
| Subsonic | Yes |
| Subsonic Frequency | 10–50Hz |
| Efficiency @ 4 Ohm | 95% |
| Damping Factor | 400 |
| Total Harmonic Distortion (THD) | <0.2% |
| Input Sensitivity | 0.2–6V |
| Selectable X-Over | Fixed LPF |
| X-Over Filter Range | 35–250Hz |
| Bass Boost Range | 0–9dB |
| Bass Boost Frequency | 45Hz |
| Phase Selector | 0–180° |
| High Level Input | No |
Features & Protection
| Specification | Value |
|---|---|
| Speaker Output Size | 8GA |
| Power Input Size | 0GA × 3 |
| Fuse Rating | 830A |
| LED Indicator | Power / Protection / Clipping |
| Protection Circuit | Thermal, Over-Load, DC, Short Circuit, Voltage, Clipping |
| LED Digital Voltmeter | Yes |
| Tiffany RCA Connectors | Yes |
| Cooling Fan | Yes |

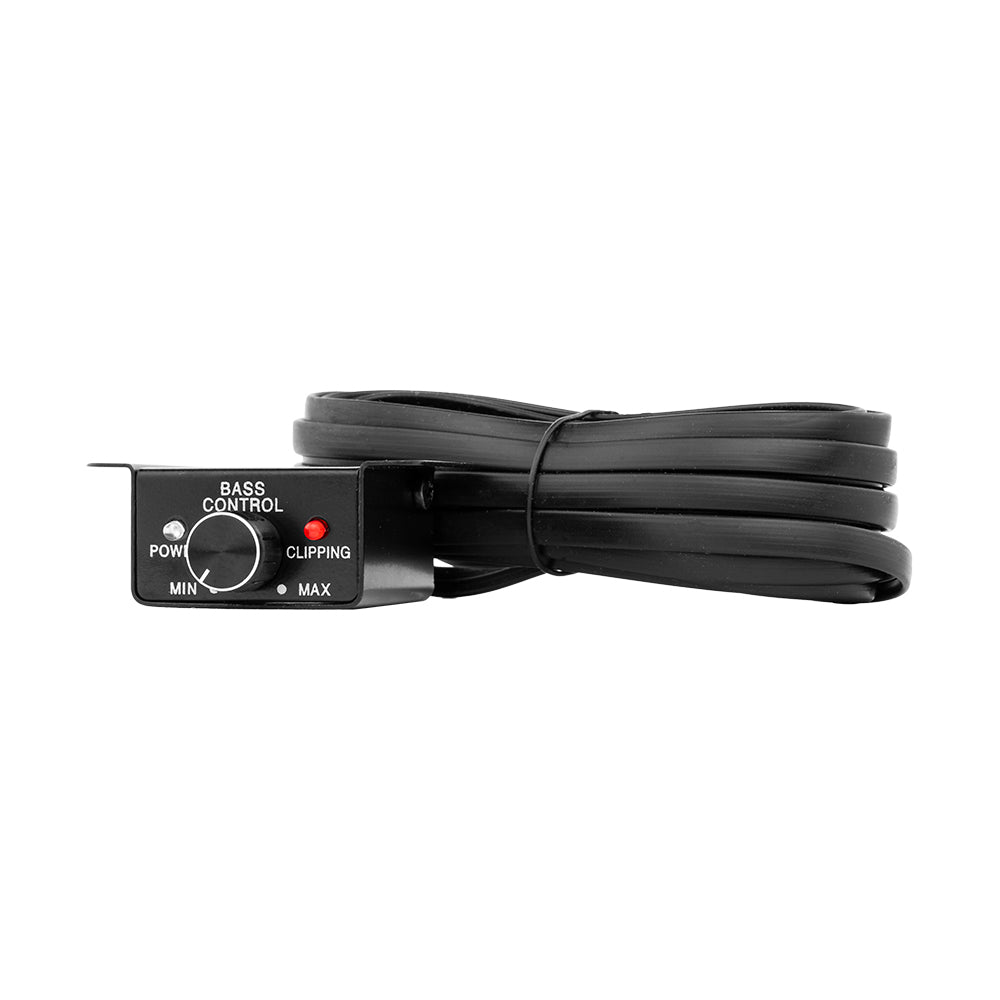

| Remote Bass Knob | Yes |
| Strap Mode Connection | Yes |
Measurements
| Measurement | Value |
|---|---|
| Product Weight | 30 lb |
| Product Dimensions L × W × H | 30 × 12 × 5 in |
| Master Carton Weight | 30 lb |
| Master Carton Dimensions L × W × H | 30 × 12 × 5 in |
| M/C Quantity | 1 |
| Sold In | Single |
Product Overview
HOOLIGAN SPL 1-Channel Monoblock Car Amplifier, Voltmeter, Clip Indicator 10,000 Watts Rms 1-Ohm Made In Korea
Experience unparalleled power and performance with the H-KO10 by DS18.
Designed and manufactured in Korea, this ultimate powerhouse delivers an impressive 10,000 watts RMS at 1 ohm, making it perfect for audiophiles who demand the most wattage for their window-breaking bass.

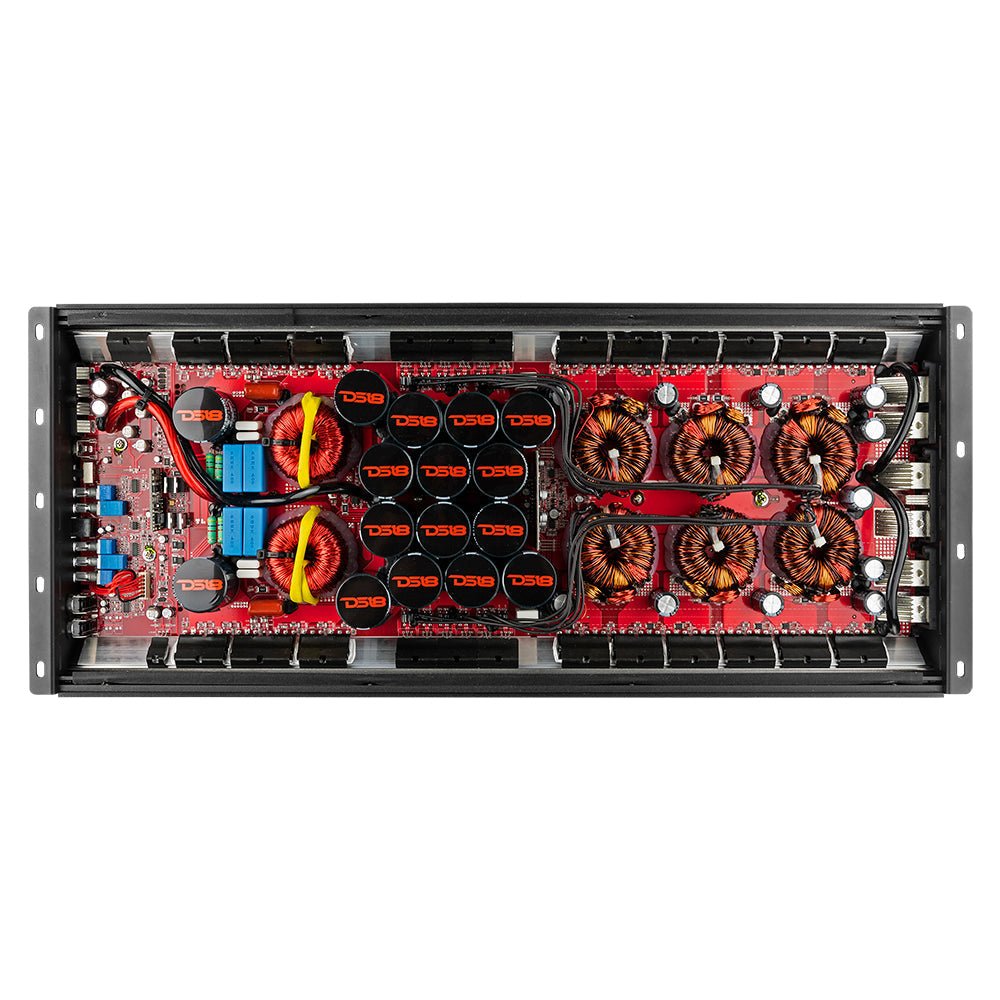

Crafted with the highest quality components, the HOOLIGAN SPL boasts a Korean half-bridge design, making it beefier and more robust compared to Brazilian full-bridge competitors.
The H-KO10 is built with the least signal-to-noise ratio of all amplifiers available, ensuring it delivers the highest quality sound and the least amount of noise.
The HOOLIGAN SPL also features a built-in voltmeter and clip indicator that allows you to monitor your system’s performance and ensure that you’re always getting the most out of your subwoofers. You can push your system to the max without worrying about damaging your equipment, and that means you can enjoy all the chest-thumping bass you were hoping for.
The H-KO10 is built to withstand the most rigorous use while delivering top-notch sound quality. Built to uphold the highest rate of efficiency while producing obscene amounts of pure power for your subs, the H-KO10 is guaranteed to withstand any punishment that comes from the longest and LOUDEST listening sessions possible.
The H-KO10 is the perfect choice for those who wants the most power and highest quality performance from their car audio system. Don’t settle for anything less than the H-KO10 – the ultimate amplifier for monstrous, hard-hitting bass that will leave you breathless.
