Description
DS18 G5.7Xi
The DS18 G5.7Xi is a 5×7-inch 2-way GEN-X coaxial car audio speaker pair engineered to deliver balanced, full-range sound with solid lows, clear mids, and extended highs for everyday listening or system upgrades. With a 4 Ω nominal impedance and 50 W RMS (150 W peak) power handling per speaker, these speakers are compatible with most head units and amplifiers, offering reliable output and efficiency. Their frequency response spans approximately 40 Hz to 20 kHz, providing deep bass and crisp highs ideal for door or rear deck installations. Built with a treated paper cone woofer and a Mylar balanced dome tweeter mounted in a rugged steel basket, the G5.7Xi is designed for durability and long-term performance in the demanding car environment. This coaxial pair doesn’t include grills and is suitable for users seeking an affordable way to upgrade factory speakers with enhanced clarity and volume.
Specifications
| Category | Specification |
|---|---|
| SKU | G5.7XI |
| Nominal Diameter | 5×7″ / 127 x 177 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50 W |
| Maximum Power Handling | 150 W |
| Sensitivity (1W/1m) | 85 dB |
| Frequency Response | 40 Hz – 20 kHz |
| Recommended Hi Pass Crossover | 70 Hz |
| Number of Ways | 2 |
| Pair or Single | Pair |
| Grill Included | No |
Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color / Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 7.8 oz / 221 g |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 6.2 L / 0.21 ft³ |
| Excursion (one way) Xmax | 2.7 mm |
| Free Air Resonance Fs | 82 Hz |
| Mechanical Factor Qms | 4.1 |
| Electrical Factor Qes | 2.2 |
| Total Factor Qts | 1.4 |
| Mechanical Mass Mms | 13.2 g |
| Mechanical Compliance Cms | 250 mm/N |
| BL Factor Bl | 3.4 |
| Voice Coil Inductance Le | 172 µH |
| Cone Area Sd | 134.7 cm² |
| DC Resistance Re | 3.7 Ohms |
| Mechanical Mass w/o air Mmd | 11.5 g |
Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 1″ / 25.5 mm |
| Voice Coil Diameter | 0.5″ / 13.25 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Mylar |
| Magnet Material | Neodymium |
| Magnet Weight | 1.8 g |

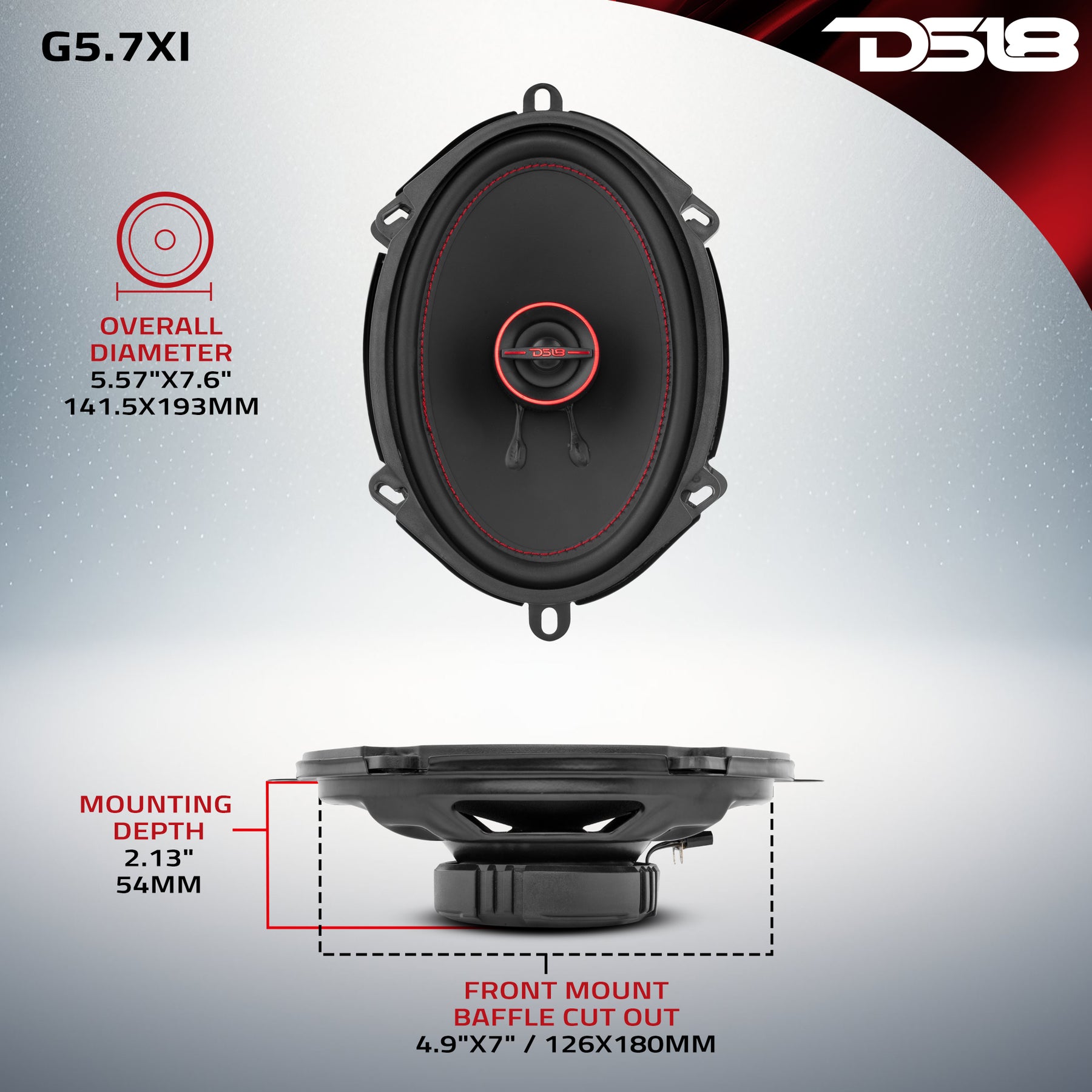

Speaker Measurement
| Parameter | Value |
|---|---|
| Overall Diameter | 5.57″ x 7.6″ / 141.5 x 193 mm |
| Overall Depth | 2.63″ / 66.8 mm |
| Front Mount Baffle Cutout | 4.9″ x 7″ / 126 x 180 mm |
| Mounting Depth | 2.13″ / 54 mm |
| Motor Diameter | 3.4″ / 86 mm |
| Tweeter Protrusion | 0.5″ / 12.8 mm |
| Gross Single Unit Weight | 0.68 kg |
| Single Unit Box Dimensions (W x L x H) | 235 x 85 x 310 mm |
| Quantity of Units in Master Carton | 10 PRS/CTN |
| Gross Master Carton Weight | 18 kg |
| Master Carton Dimensions (W x L x H) | 490 x 450 x 330 mm |
Product Overview
2-Way Coaxial Speakers 150 Watts 4-Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G5.7Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The G5.7Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.7Xi’s 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 40Hz.
These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.7Xi will deliver. Order yours today and take the first step towards audio perfection on the road.
