Description
DS18 G5.25Xi
The DS18 G5.25Xi is a 5.25‑inch 2‑way GEN‑X coaxial car audio speaker pair engineered to deliver balanced, full‑range sound with both solid bass and clear highs for everyday listening or system upgrades. With a 4 Ω nominal impedance and 45 W RMS (135 W peak) power handling, these speakers are easy to drive and compatible with most head units and amplifiers. Their frequency response spans approximately 50 Hz to 20 kHz, providing deep low end and crisp treble for enhanced audio clarity. Equipped with a treated paper woofer cone, rubber surround, and a 1″ Mylar balanced dome tweeter with neodymium magnet, the G5.25Xi offers reliable performance and extended high‑frequency detail. Designed with a rugged steel basket and protective grills included, this pair is ideal for upgrading factory speakers or enhancing sound quality in compact speaker locations.
Specification
| Category | Specification |
|---|---|
| SKU | G5.25XI |
| Nominal Diameter | 5.25″ / 133 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 45W |
| Maximum Power Handling | 135W |
| Sensitivity (1W/1m) | 84 dB |
| Frequency Response | 50Hz-20kHz |
| Recommended Hi Pass Crossover | 80Hz |
| Number of Ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 6.3 Oz / 180 g |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 3.66 L / 0.129 ft³ |
| Excursion (one way) Xmax | 2.2 mm |
| Free Air Resonance Fs | 86 Hz |
| Mechanical Factor Qms | 3.5 |
| Electrical Factor Qes | 1.63 |
| Total Factor Qts | 1.1 |
| Moving Mass Mms | 9.15 g |
| Compliance Cms | 330 mm/N |
| BL Factor Bl | 3.4 |
| Voice Coil Inductance Le | 151 µH |
| Cone Area Sd | 84.5 cm² |
| DC Resistance Re | 3.7 Ohms |
| Mechanical Mass w/o air Mmd | 8.3 g |
Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 1″ / 25.5 mm |
| Voice Coil Diameter | 0.5″ / 13.25 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Mylar |
| Magnet Material | Neodymium |
| Magnet Weight | 1.8 g |

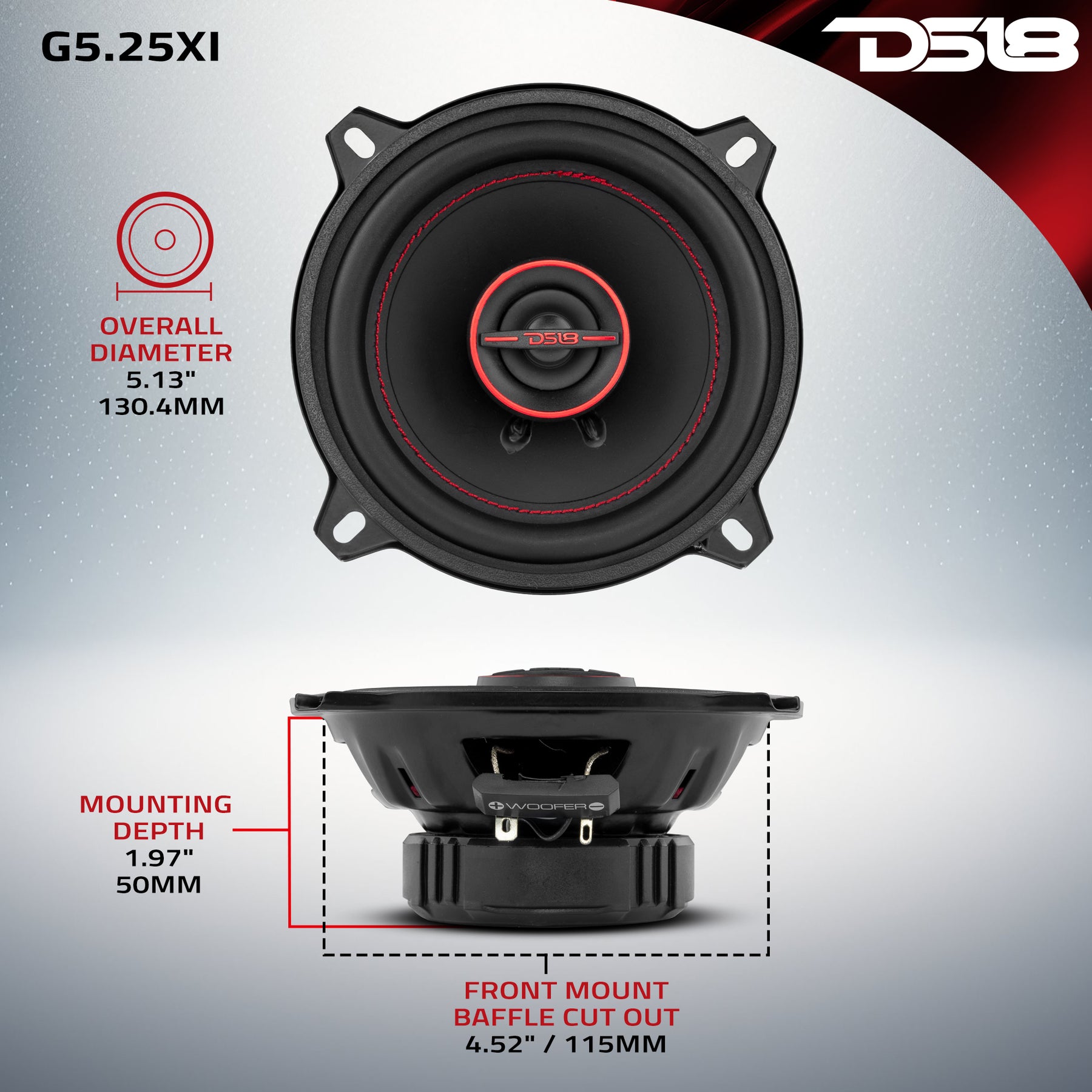

Speaker Measurement
| Parameter | Value |
|---|---|
| Overall Diameter | 5.13″ / 130.4 mm |
| Overall Depth | 2.47″ / 62.8 mm |
| Overall Diameter (With Grill) | 6.38″ / 162 mm |
| Overall Depth (With Grill) | 2.75″ / 69.8 mm |
| Front Mount Baffle Cutout | 4.52″ / 115 mm |
| Mounting Depth | 1.97″ / 50 mm |
| Motor Diameter | 3″ / 76 mm |
| Tweeter Protrusion | 0.5″ / 12.8 mm |
| Gross Single Unit Weight | 0.52 kg |
| Single Unit Box Dimensions (W x L x H) | 185 x 85 x 325 mm |
| Quantity of Units in Master Carton | 10 PRS/CTN |
| Gross Master Carton Weight | 14 kg |
| Master Carton Dimensions (W x L x H) | 450 x 340 x 390 mm |
Product Overview
2-Way Coaxial Speakers 135 Watts 4-Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G5.25Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The G5.25Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.25Xi’s 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 50Hz.
These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.25Xi will deliver. Order yours today and take the first step towards audio perfection on the road.
