Description
DS18 G4Xi

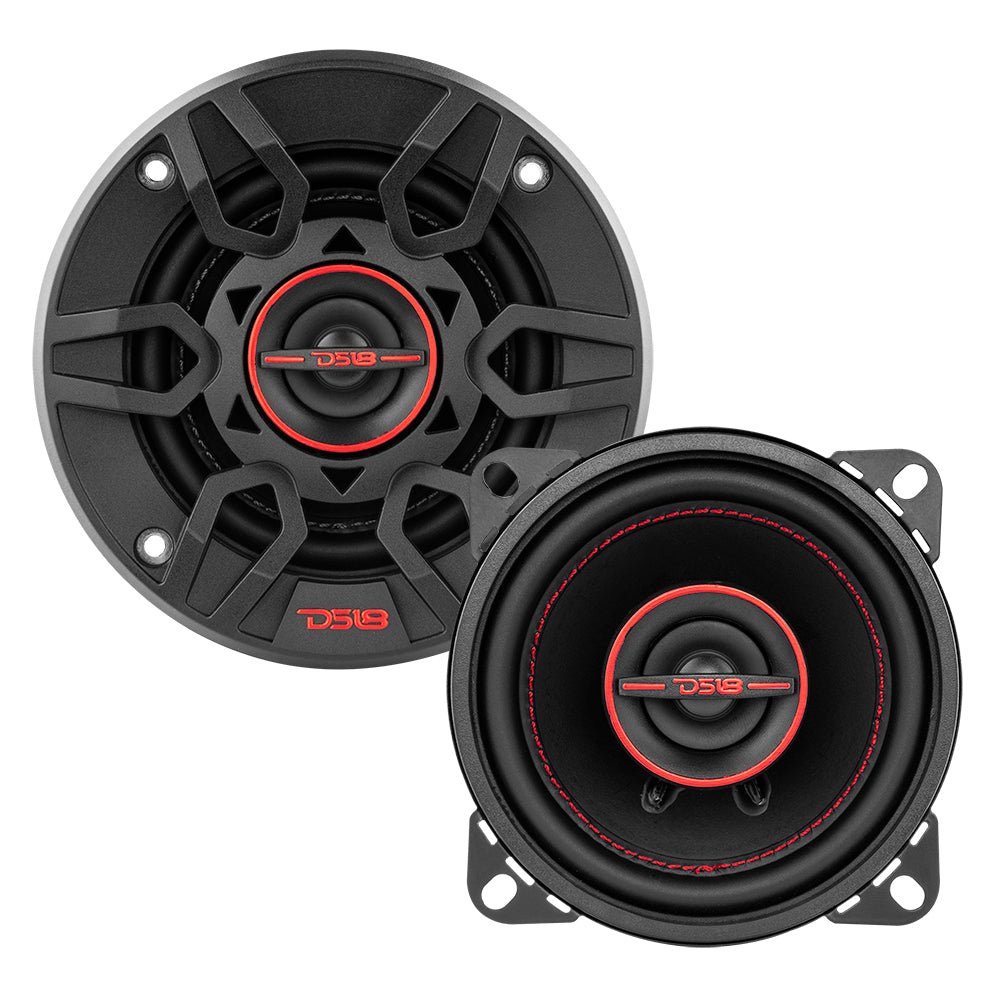

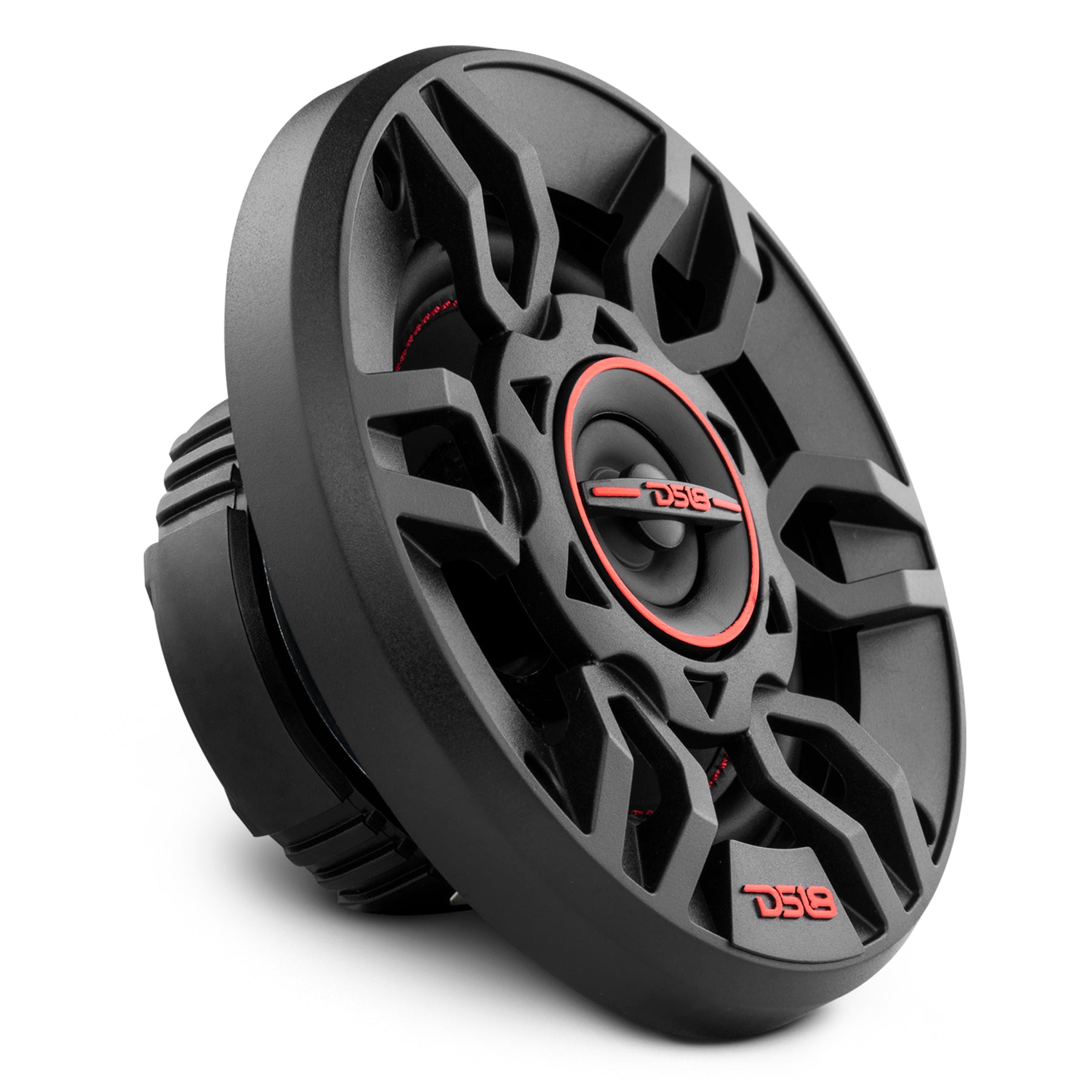

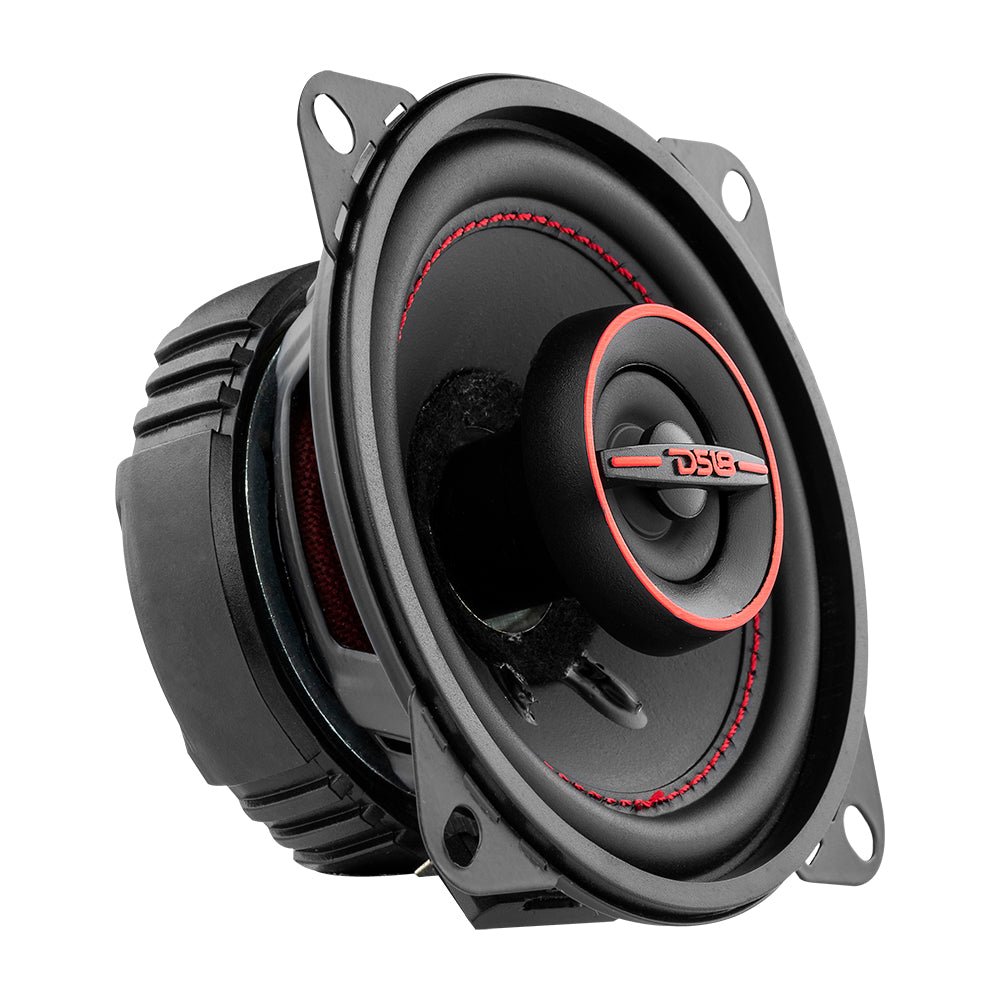

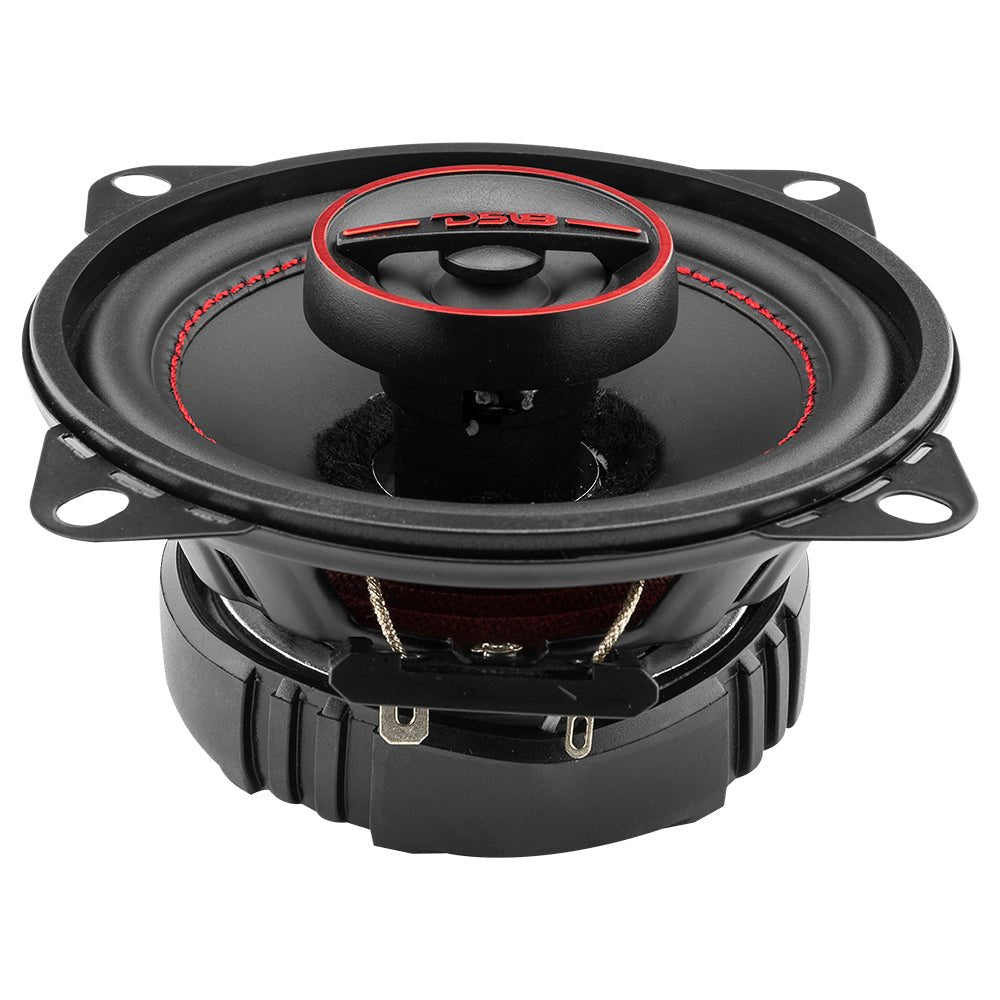

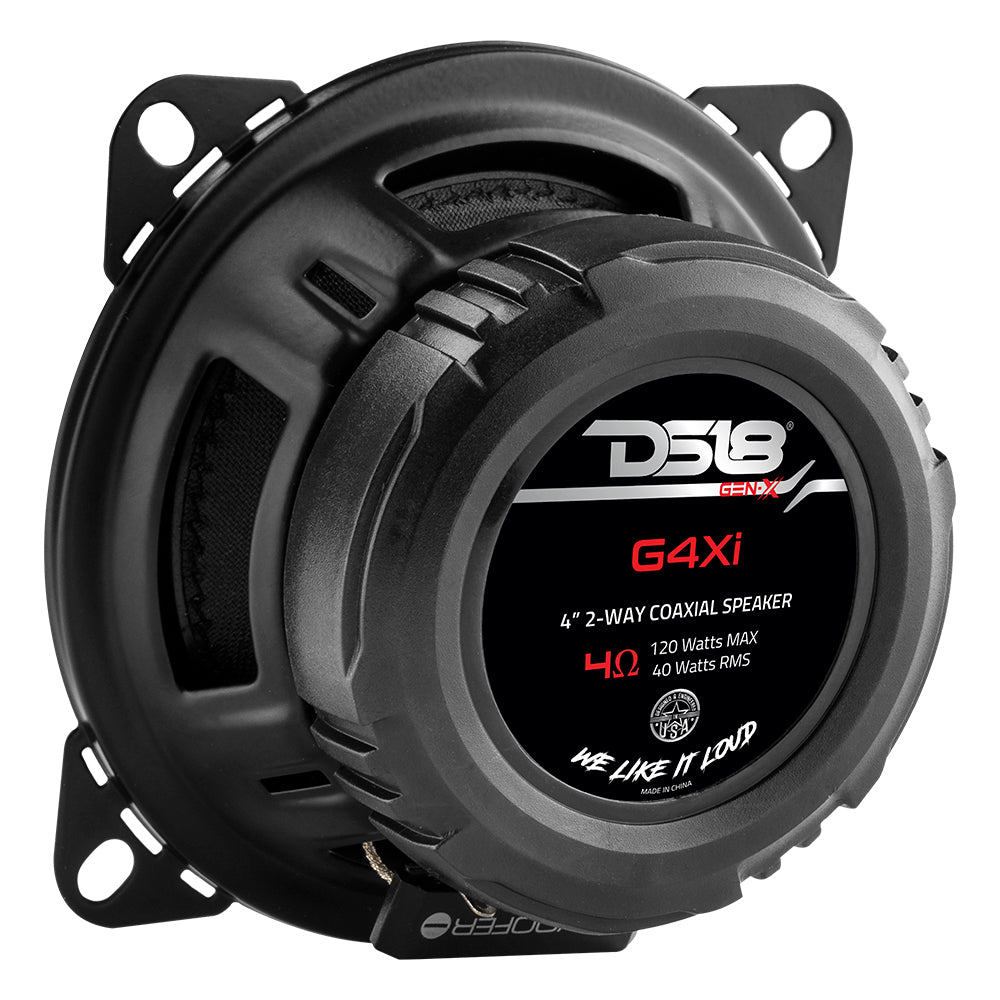

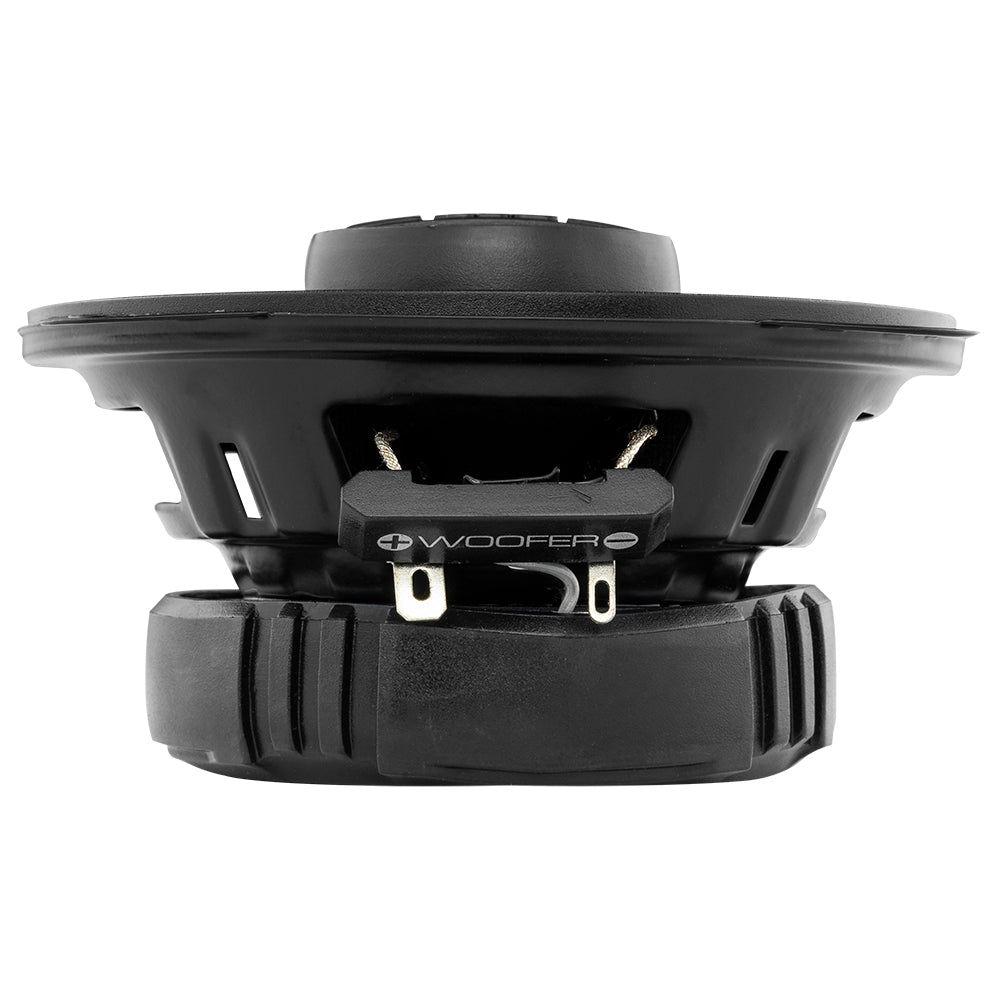

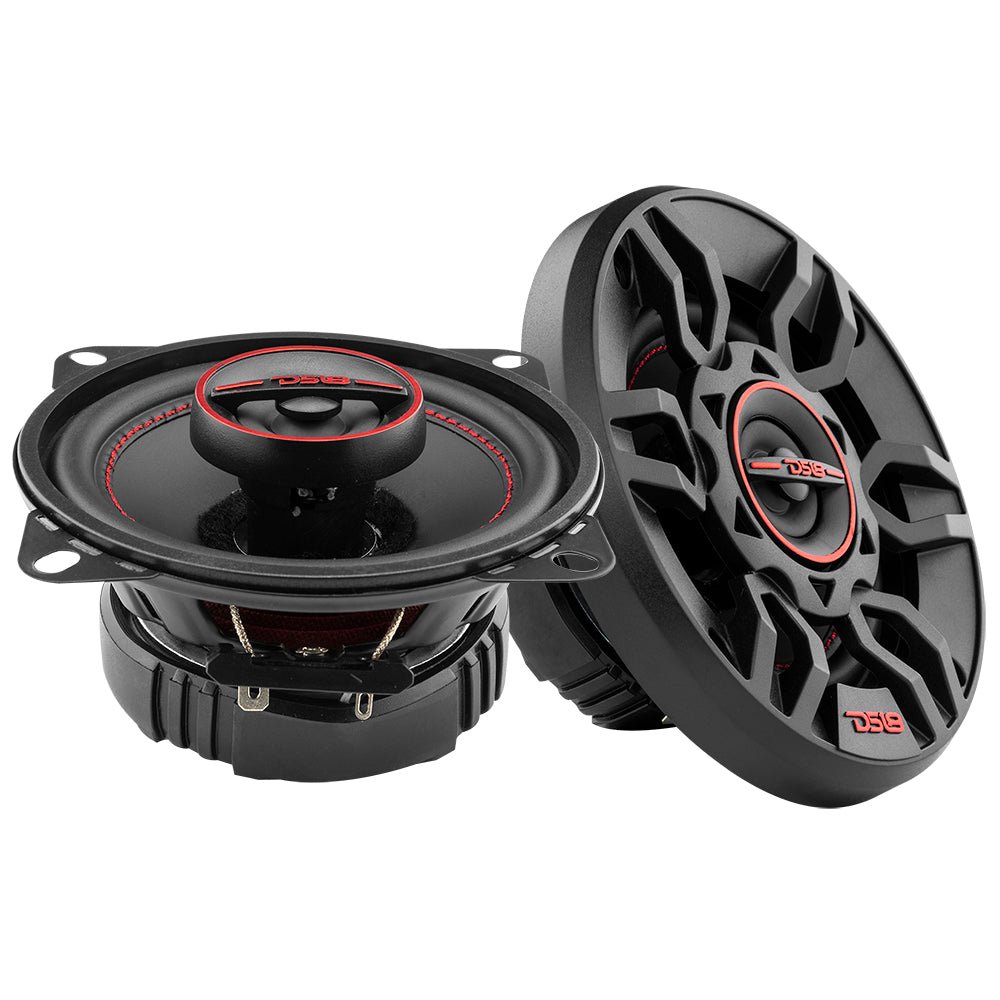

The DS18 G4Xi is a 4‑inch 2‑way coaxial car audio speaker pair from the GEN‑X series designed to deliver clear, full‑range sound in compact speaker locations like dash panels, doors, or rear decks. Featuring a robust 4 Ω impedance and 40 W RMS (120 W max) power handling, these speakers reproduce balanced audio with tight mids and crisp highs across a frequency response of approximately 80 Hz to 20 kHz, making them ideal for both factory system upgrades and amplified aftermarket setups. The G4Xi uses a treated paper woofer cone with rubber surround and a Mylar dome tweeter for extended high‑frequency detail, all housed in a rugged steel basket with included protective grills for durability and long‑term reliability. Whether you’re enhancing everyday listening or adding more clarity to your car audio system, this pair offers great performance and easy installation.
Specification
| Category | Specification |
|---|---|
| SKU | G4XI |
| Nominal Diameter | 4″ / 101 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 40W |
| Maximum Power Handling | 120W |
| Sensitivity (1W/1m) | 84 dB |
| Frequency Response | 80Hz-20kHz |
| Recommended Hi Pass Crossover | 90Hz |
| Number of Ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 5.3 Oz / 150 g |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 1.59 L / 0.018 ft³ |
| Excursion (one way) Xmax | 2.2 mm |
| Free Air Resonance Fs | 105 Hz |
| Mechanical Factor Qms | 3.2 |
| Electrical Factor Qes | 1.27 |
| Total Factor Qts | 1.03 |
| Moving Mass Mms | 6.5 g |
| Compliance Cms | 238 mm/N |
| BL Factor Bl | 3.2 |
| Voice Coil Inductance Le | 151 µH |
| Cone Area Sd | 55.4 cm² |
| DC Resistance Re | 3.7 Ohms |
| Mechanical Mass Mmd | 5.5 g |
Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 1″ / 25.5 mm |
| Voice Coil Diameter | 0.5″ / 13.25 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Mylar |
| Magnet Material | Neodymium |
| Magnet Weight | 1.8 g |

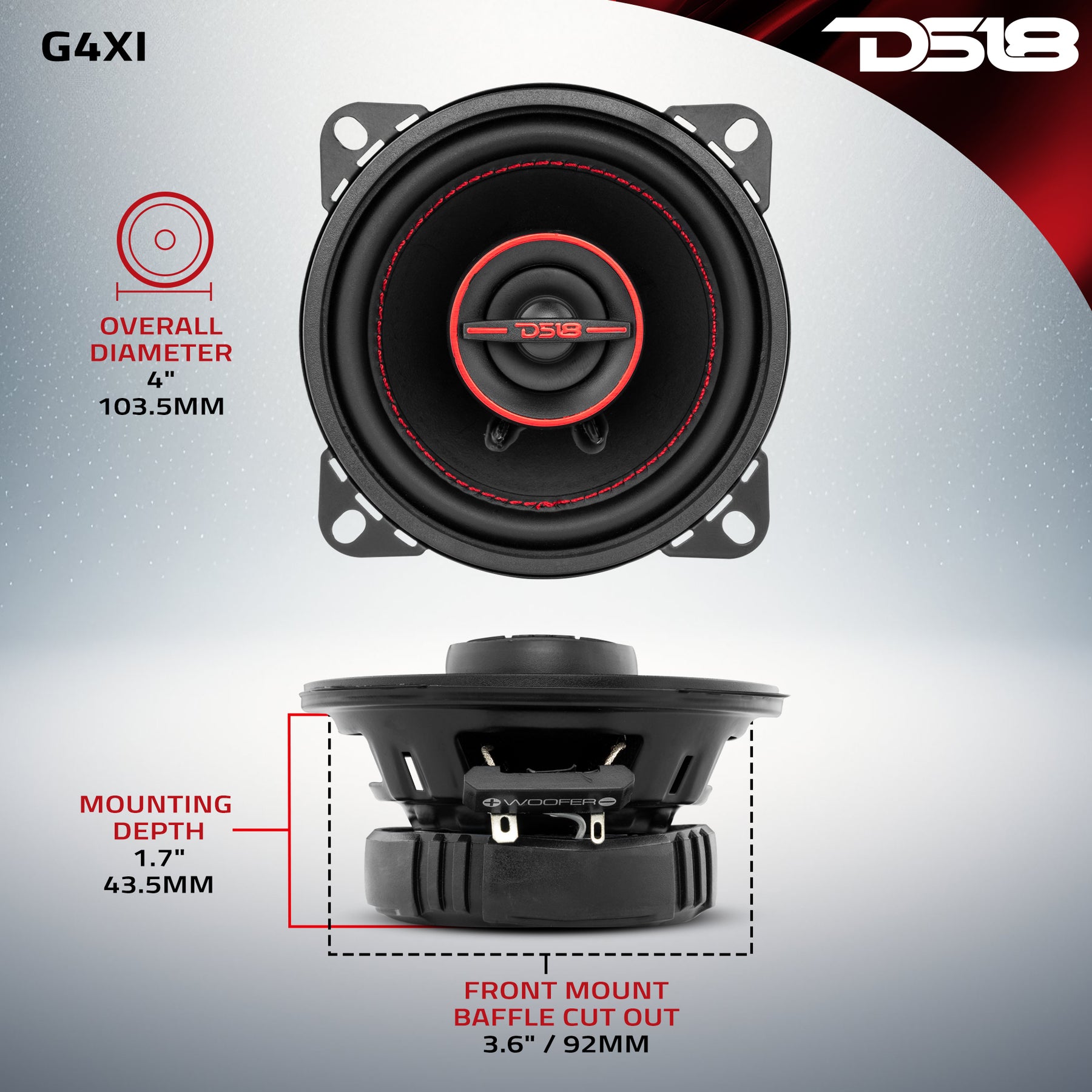

Speaker Measurement
| Parameter | Value |
|---|---|
| Overall Diameter | 4″ / 103.5 mm |
| Overall Depth | 2.4″ / 60.8 mm |
| Overall Diameter (With Grill) | 5.28″ / 134 mm |
| Overall Depth (With Grill) | 2.46″ / 62.6 mm |
| Front Mount Baffle Cutout | 3.6″ / 92 mm |
| Mounting Depth | 1.7″ / 43.5 mm |
| Motor Diameter | 3″ / 76 mm |
| Tweeter Protrusion | 0.68″ / 17.3 mm |
| Gross Single Unit Weight | 0.45 kg |
| Single Unit Box Dimensions (W x L x H) | 155 x 80 x 355 mm |
| Quantity of Units in Master Carton | 10 PRS/CTN |
| Gross Master Carton Weight | 12.5 kg |
| Master Carton Dimensions (W x L x H) | 431 x 330 x 330 mm |
Product Overview
2-Way Coaxial Speakers 120 Watts 4-Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G4Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The G4Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G4Xi’s 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 80Hz.
These speakers get loud extremely easily with a MAX Power Handling of 120W and RMS Power Handling of 40W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G4Xi will deliver. Order yours today and take the first step towards audio perfection on the road.
