Description
DS18 EBM-FFPUFCG-2X8.LDPKG

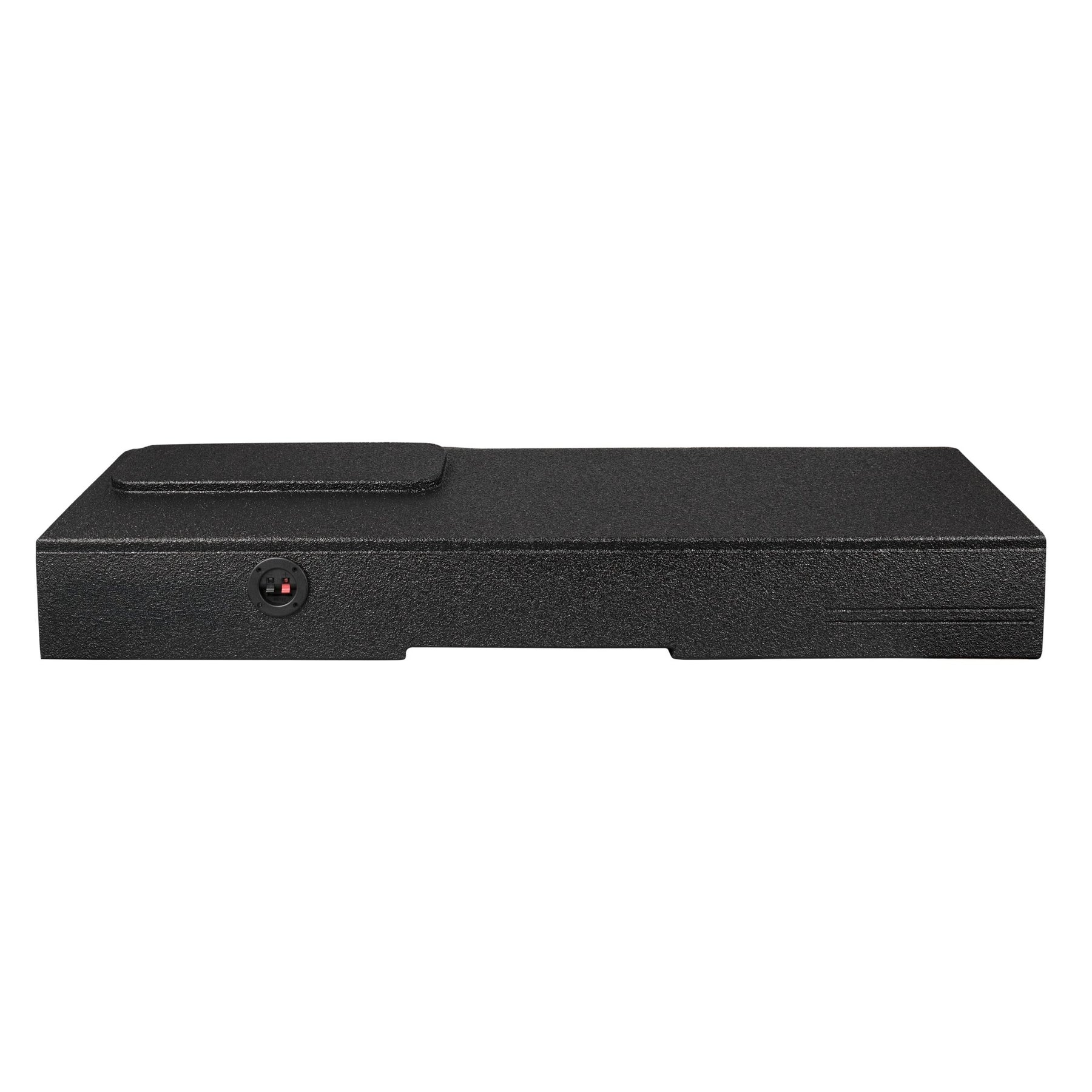

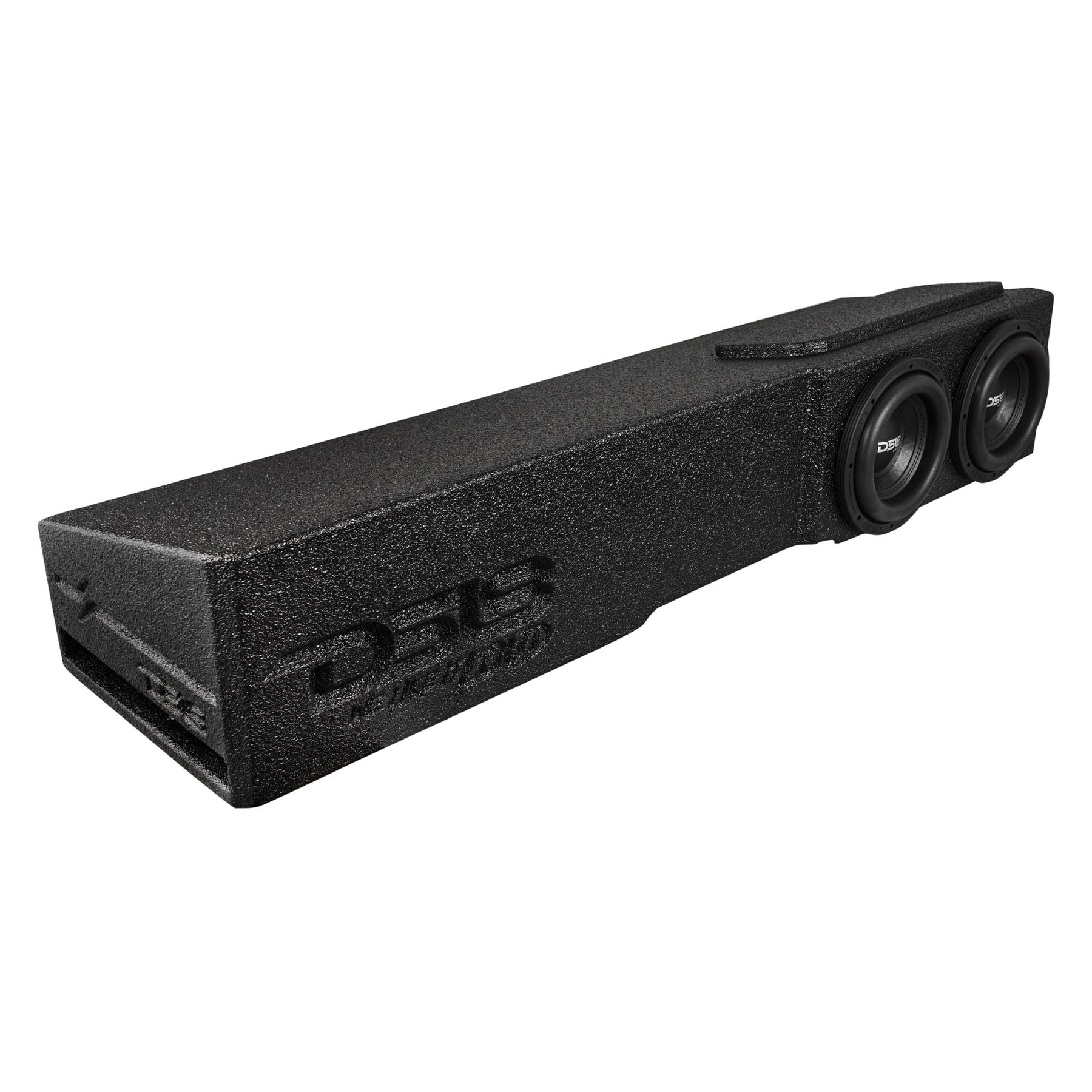

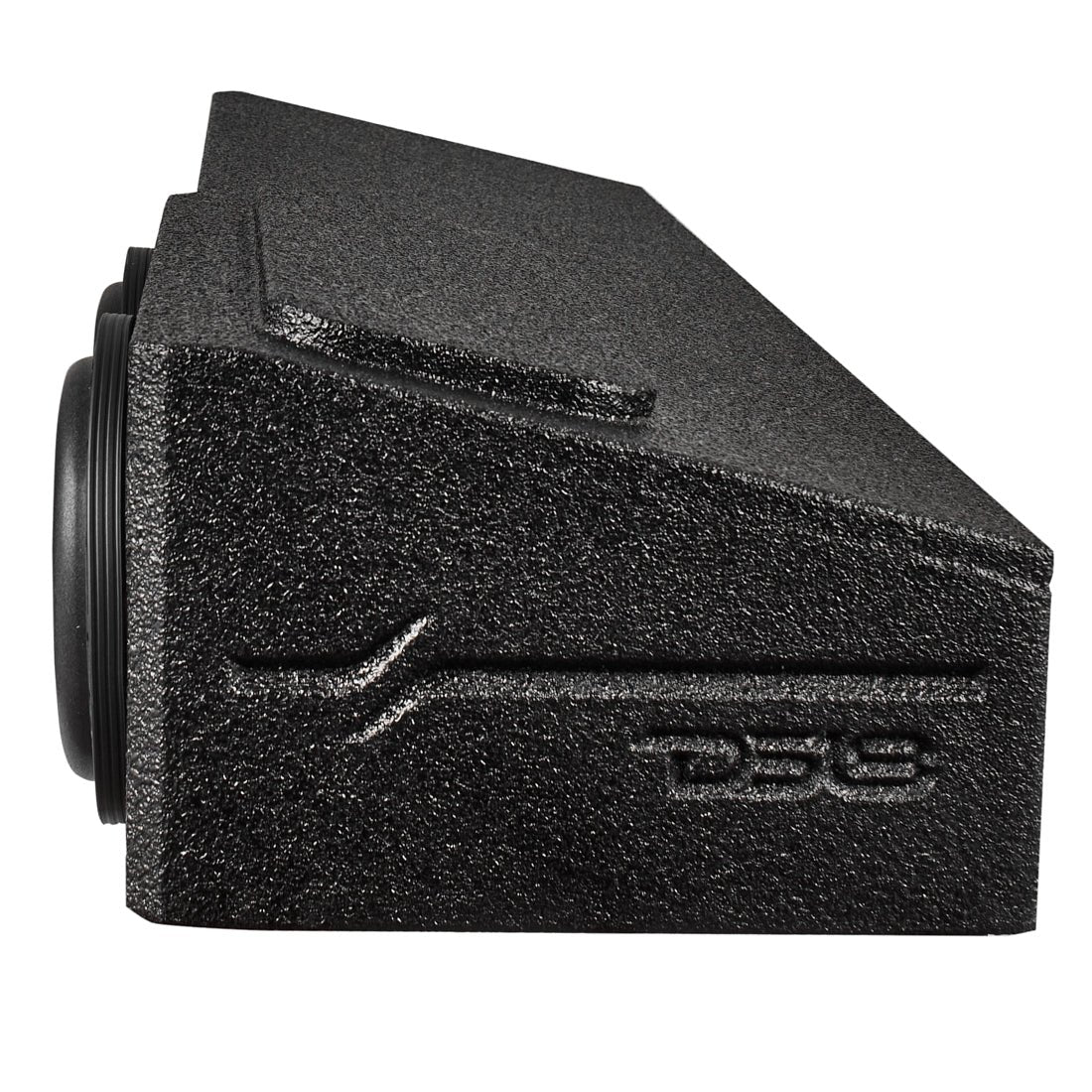

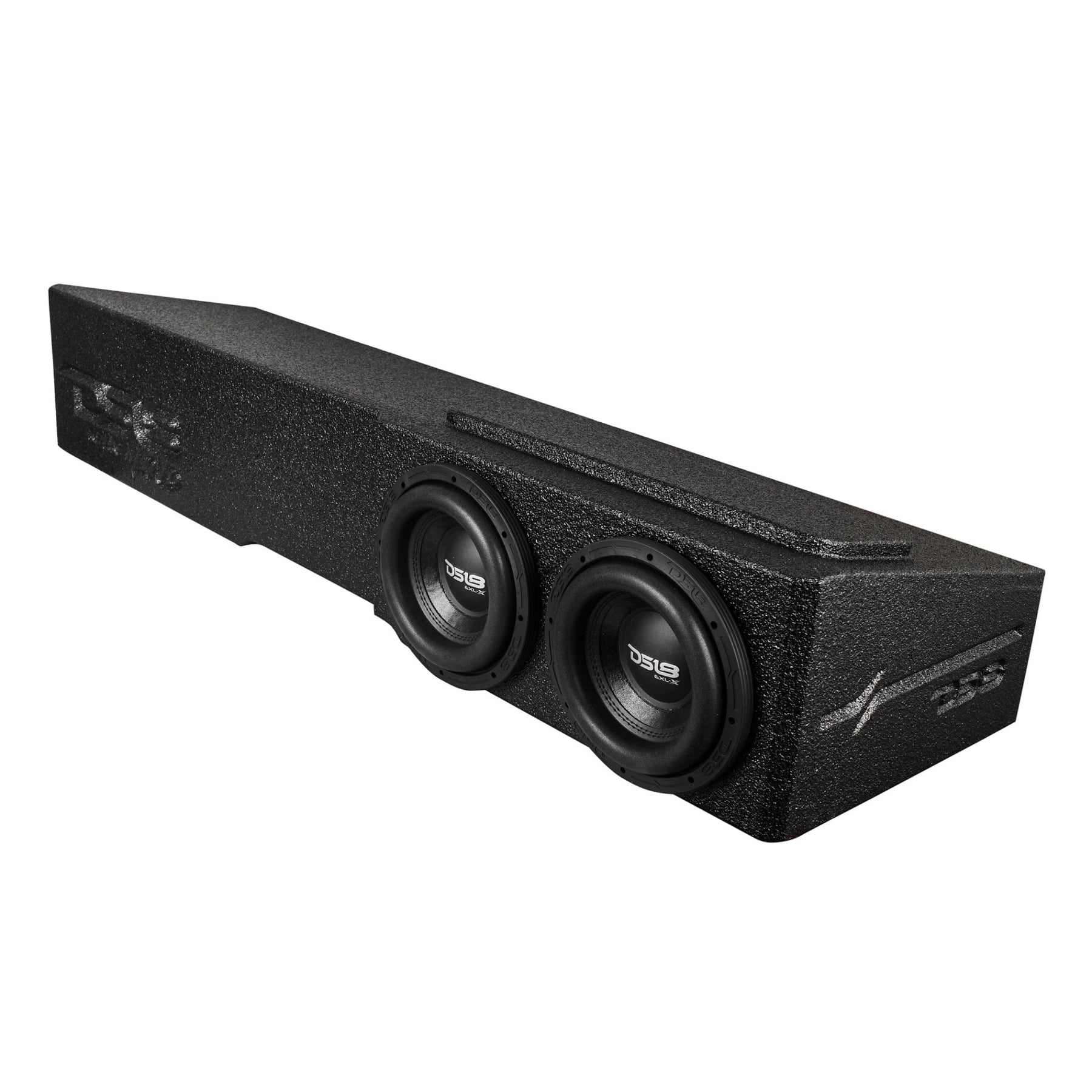

The DS18 EBM‑FFPUFCG‑2X8.LDPKG is a loaded dual 8″ ported subwoofer enclosure package from DS18 designed to deliver deep, powerful bass for car audio systems — especially for Chevy/GMC Crew Cabs (2007–2024) and Ford F‑150/Super Duty Crew Cabs (2009–2024). This front‑firing ported box is built from robust 3/4″ MDF with a sleek black liner finish to ensure durability and optimal acoustics. The package includes two EXL‑X8.4D high‑performance 8″ subwoofers capable of up to 1200 W RMS (2400 W peak) total, a G3600.1D Class D monoblock amplifier rated at up to 1200 W RMS @ 1 Ω, and a 4 GA ultra‑flex amplifier wiring kit for easy setup. With under‑seat placement design and powerful output, this system delivers strong, accurate low frequencies ideal for truck owners who want impactful bass with clean amplification and a complete installation solution.
Specifications

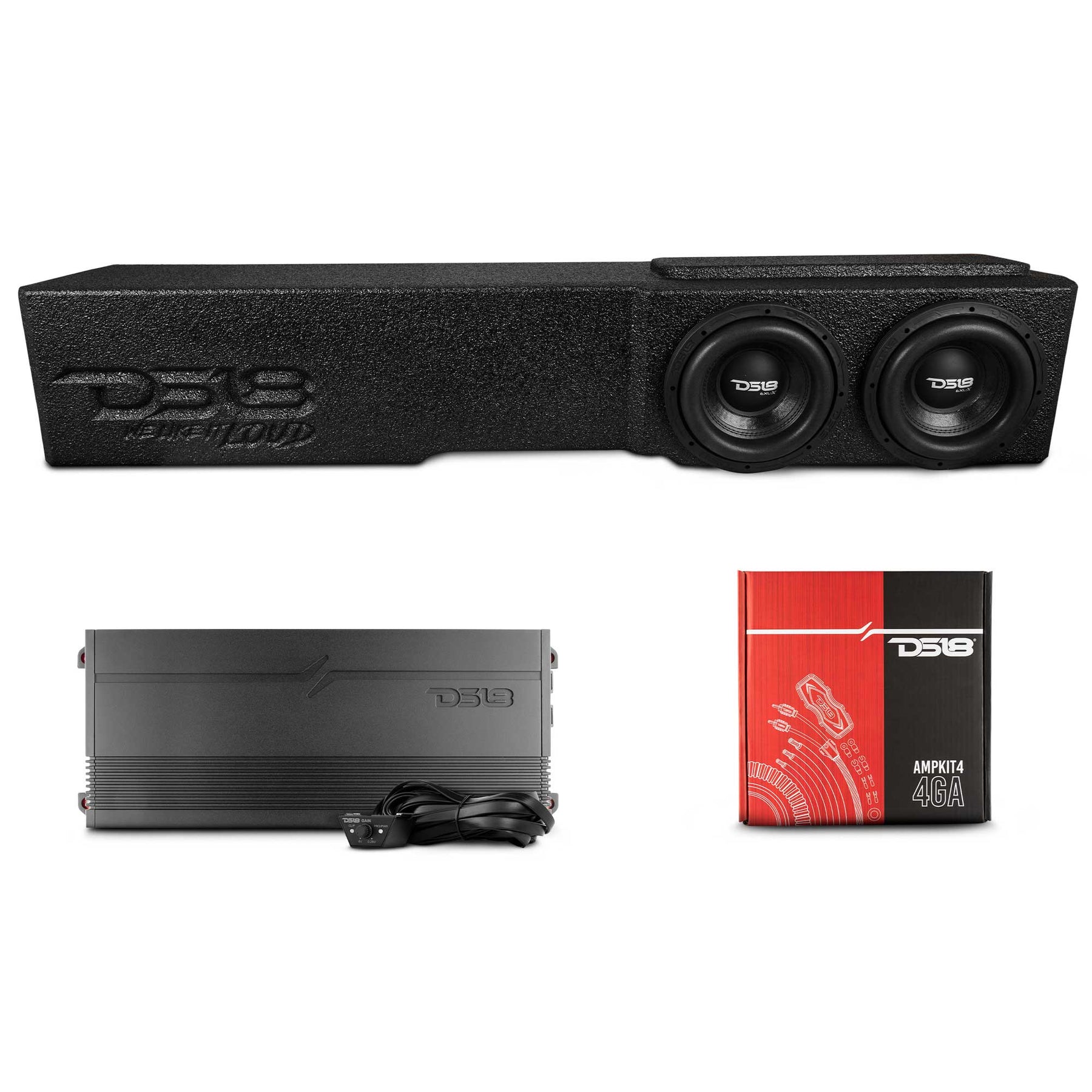

PACKAGE CONTENTS
| Item | Model | Quantity |
|---|---|---|
| Subwoofer Enclosure System | EBM-FFPUFCG-2X8.LD | 1 |
| 8″ Subwoofer | EXL-X8.4D | 2 |
| 1-Channel Amplifier | G3600.1D | 1 |
| Amplifier Wiring Installation Kit | AMPKIT4 | 1 |
GENERAL SPECIFICATIONS
| Specification | Value |
|---|---|
| Speaker Quantity / Size | 2 × 8″ subwoofers |

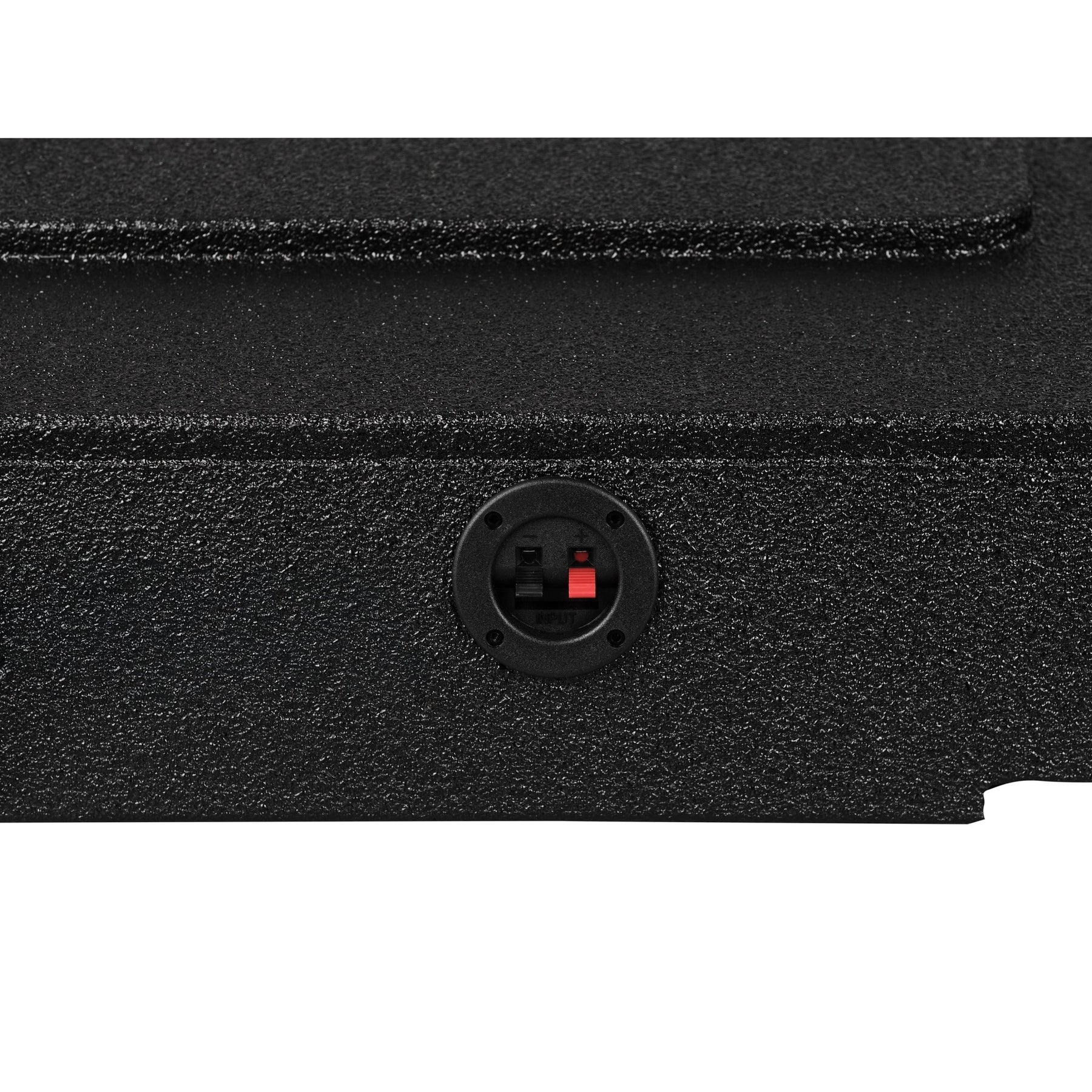

| Speaker Connector Included | Yes |
| Compatible Models | Universal Fit: FORD, CHEVY, GMC (2007–2024) |

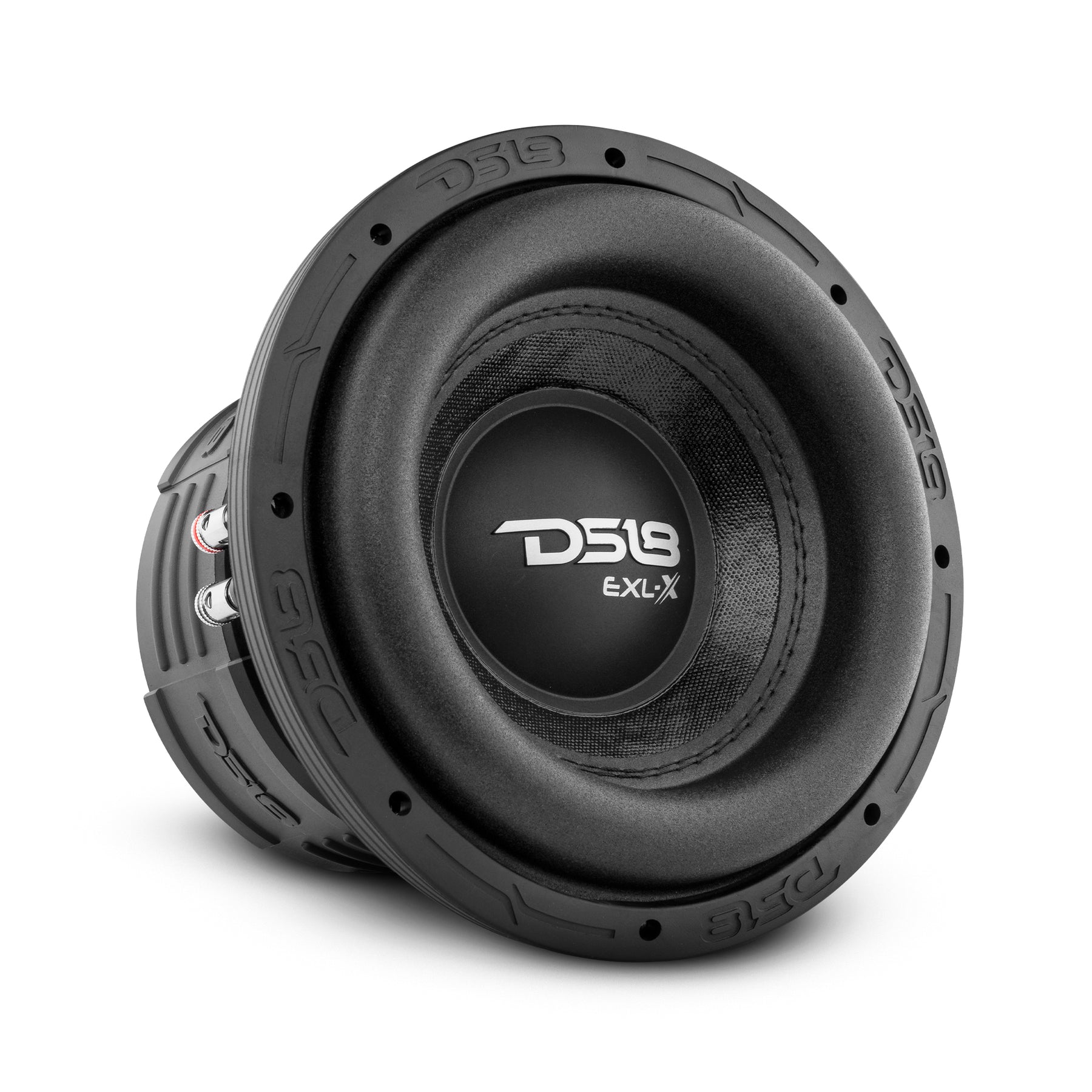

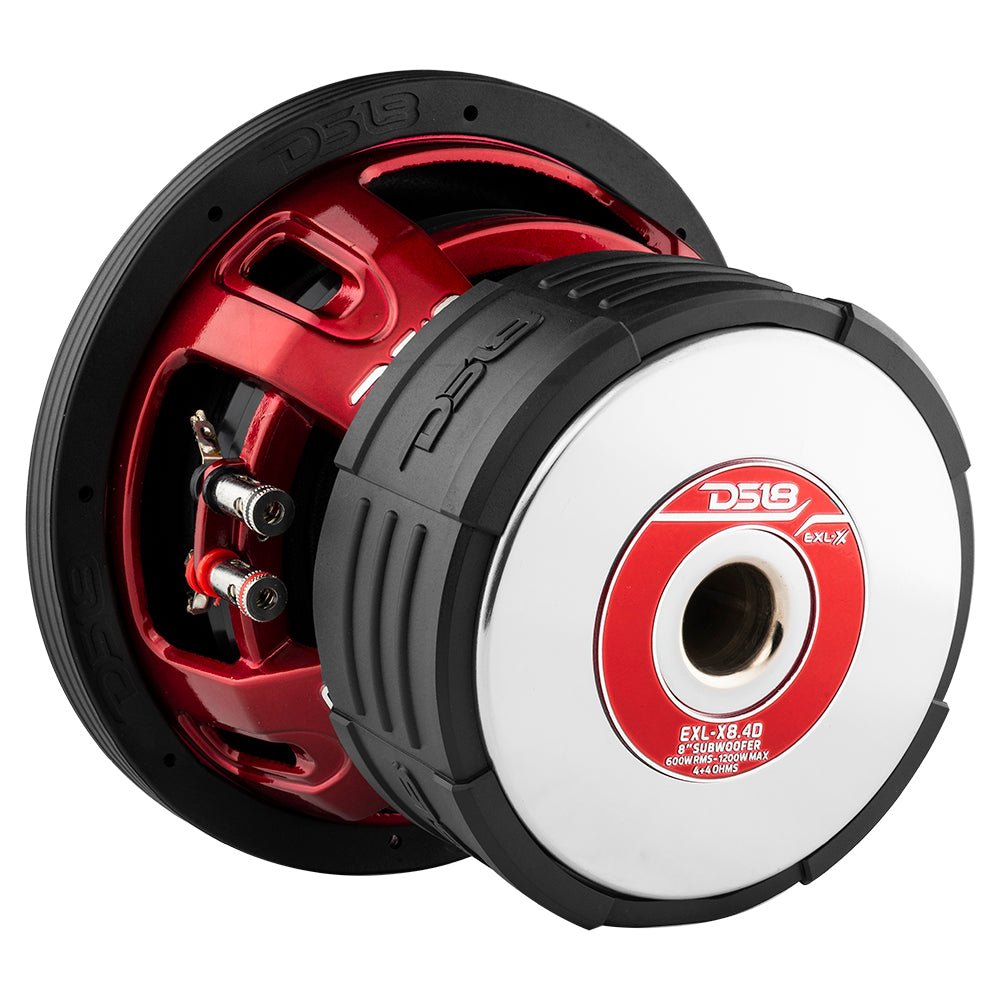

SUBWOOFER SPECIFICATIONS (EXL-X8.4D)
| Specification | Value |
|---|---|
| SKU | EXL-X8.4D |
| Size | 8″ |
| RMS Power Handling | 600 W |
| Max Power Handling | 1200 W |
| Impedance | 4 Ohm (2.5″ DVC) |
| Magnet Material | Ferrite |
| Sensitivity | 89 dB |

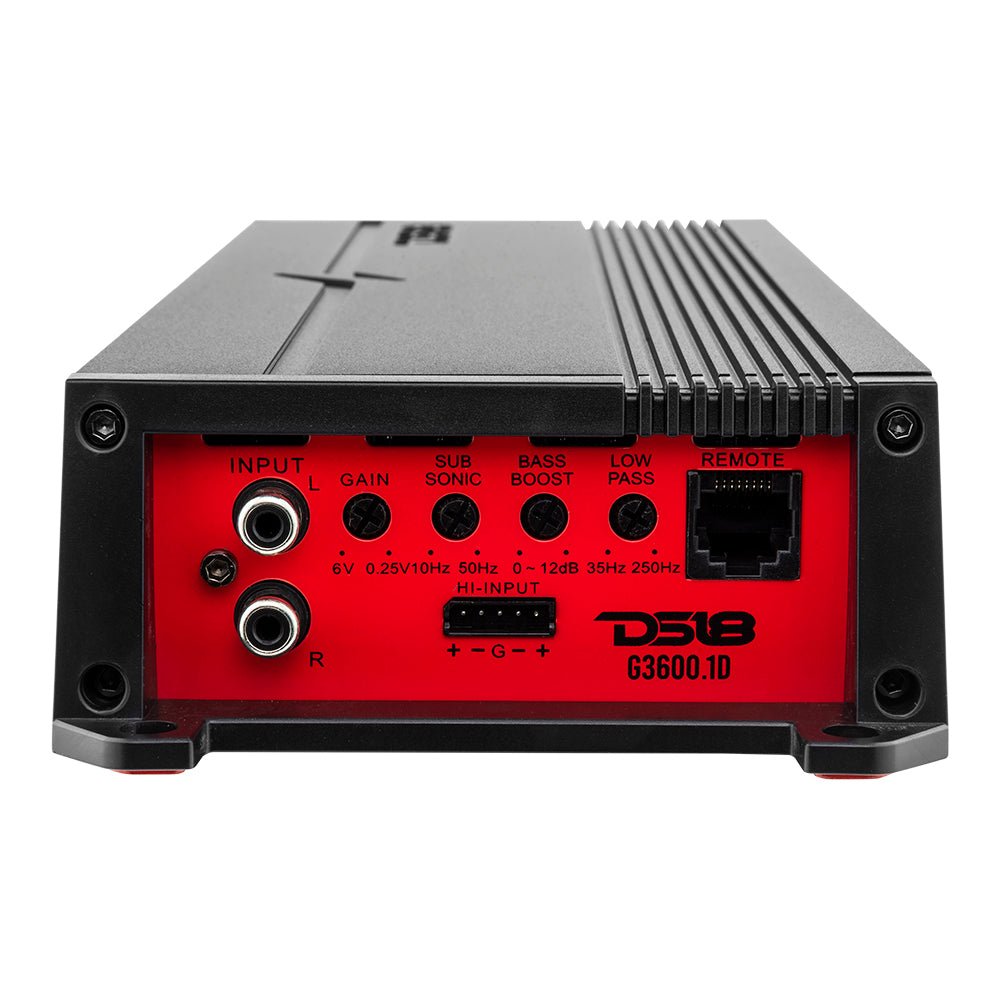

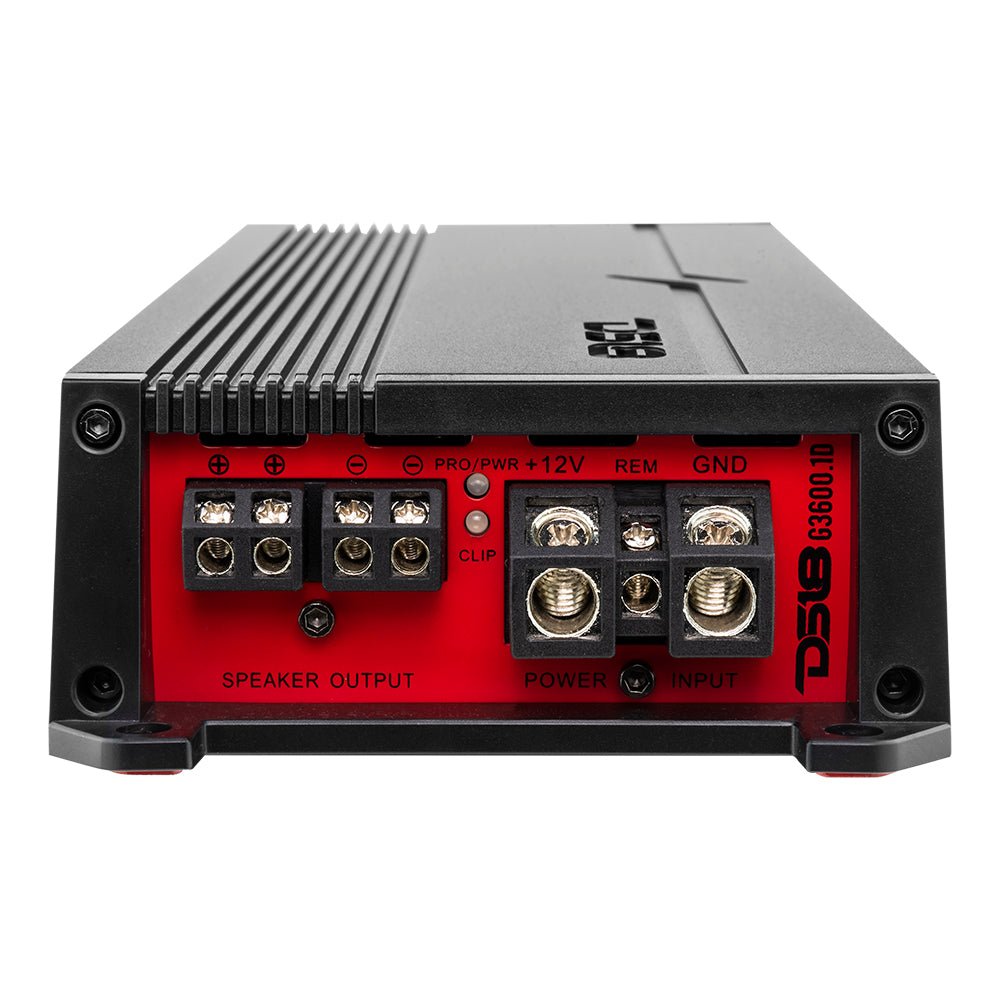

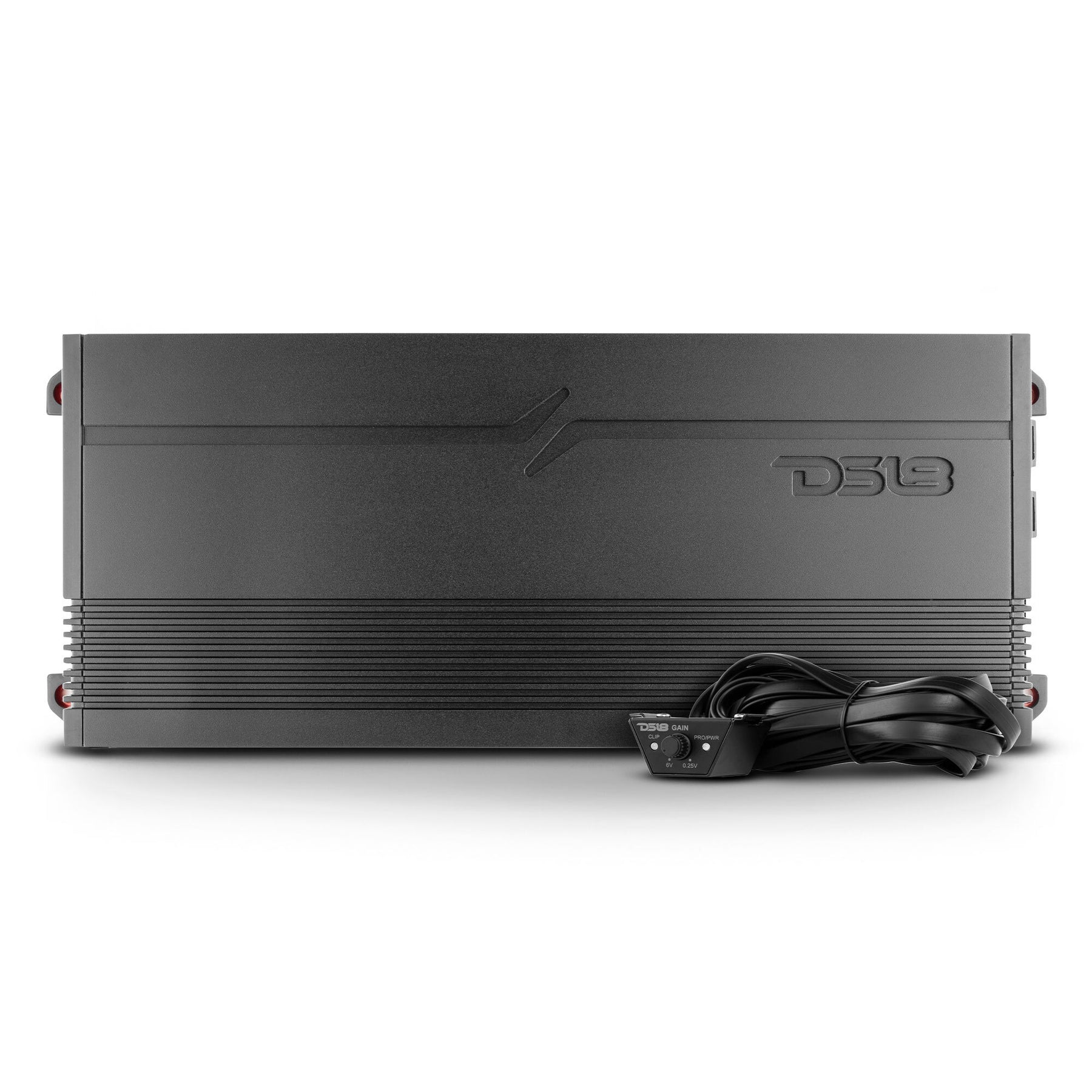

AMPLIFIER SPECIFICATIONS (G3600.1D)
| Specification | Value |
|---|---|
| SKU | G3600.1D |
| Channels | 1 (Monoblock) |
| Amplifier Class | Class D |
| Impedance Stability | 1 – 4 Ohm |
| Power Output | 1200 W @ 1 Ohm |
| Features | Power/Protection/Clip Indicator, Bass Control Knob |
AMPLIFIER INSTALLATION KIT (AMPKIT4)
| Specification | Value |
|---|---|
| Wire Gauge | 4 GA CCA Ultra Flex |
| Max Power Supported | Up to 1680 W RMS |
| Fuse | Mini-ANL Fuse Holder, 120 A |
| Included Cables | Power & Remote, Speaker & RCA |
| Accessories | Installation Accessories, RED |
Product Overview
Loaded 2x 8″ Subwoofer Enclosure for Chevy/GMC Crew Cabs (2007-2024) and Ford F-150/Super Duty Crew Cabs (2009-2024)
DS18’s EBM-FFPUFCG-2X8.LDPKG is your ultimate solution for ground-pounding audio on the go!

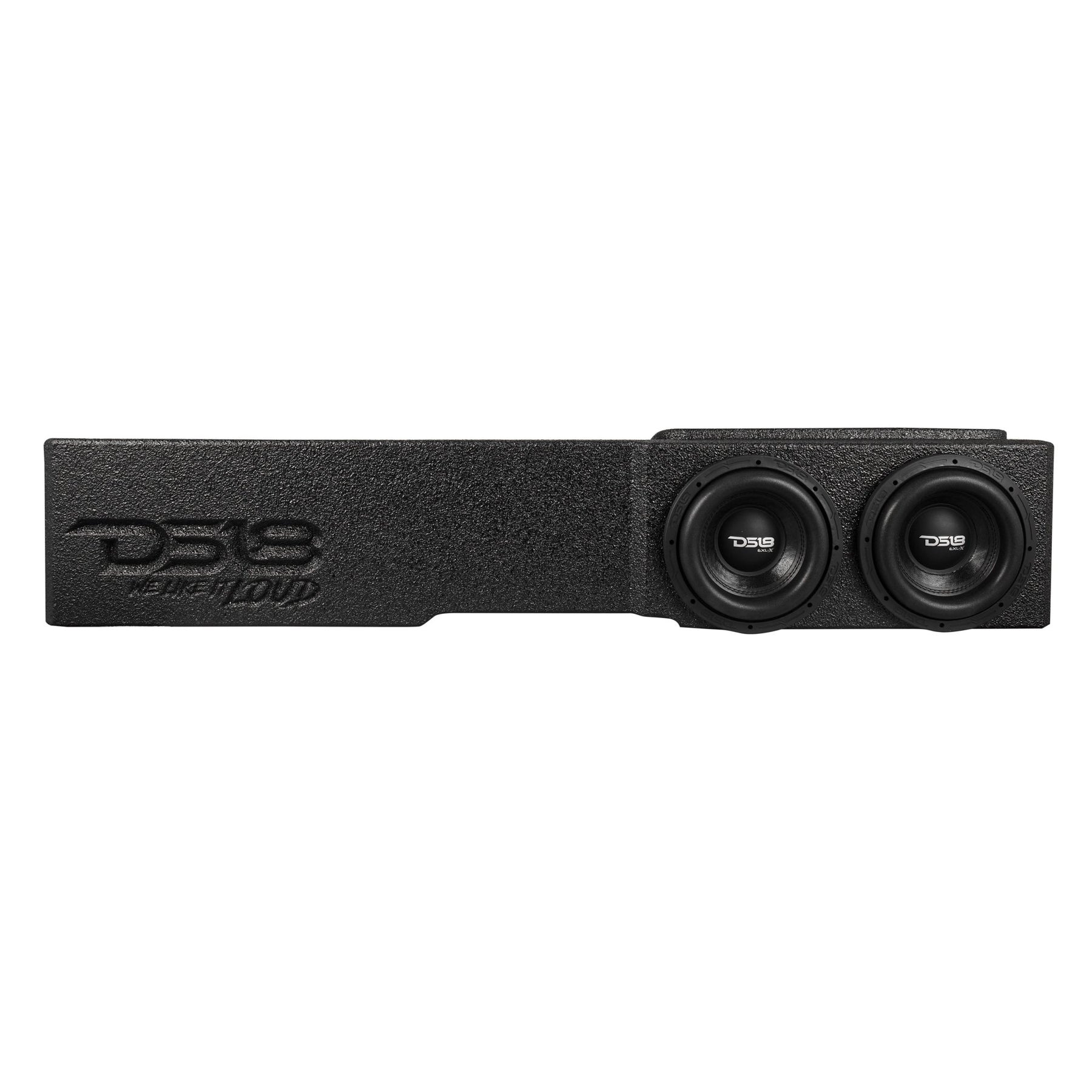

This ported front-firing universal-fit subwoofer enclosure is built for Chevy/GMC Crew Cabs (2007–2024) and Ford F-150/Super Duty Crew Cabs (2009–2024). Constructed from robust 3/4″ MDF and adorned with a sleek black liner, this enclosure is as durable as it is stylish. The double baffle construction adds an extra layer of toughness, making it perfect for the enthusiasts who like it LOUD!

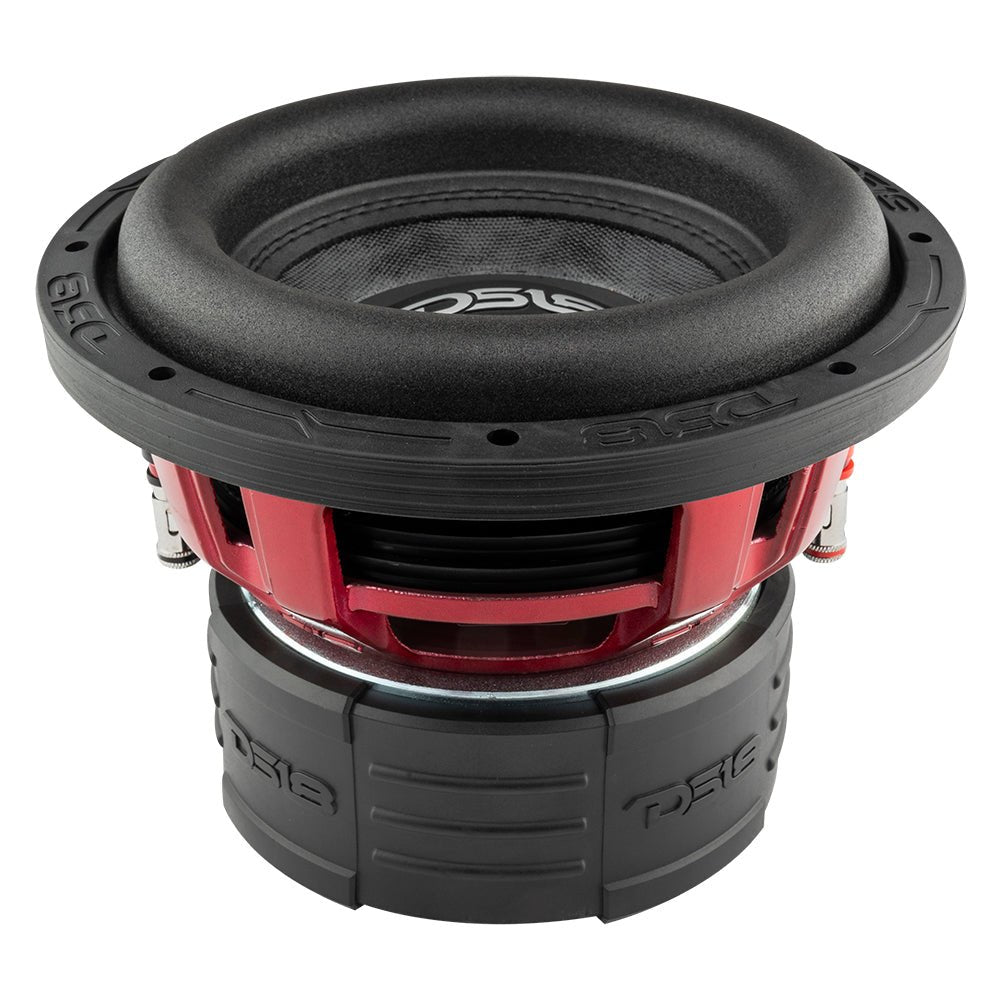

Equipped with two EXL-X8.4D Subwoofers, renowned for their competition-grade performance, this system delivers output up to 1200W RMS/2400W MAX. The high-strength foam surround and pressed fiberglass cone ensure precise bass delivery in ported environments.
