Description
DS18 EBM-FFPCHEVY19-2X10.LDPKG

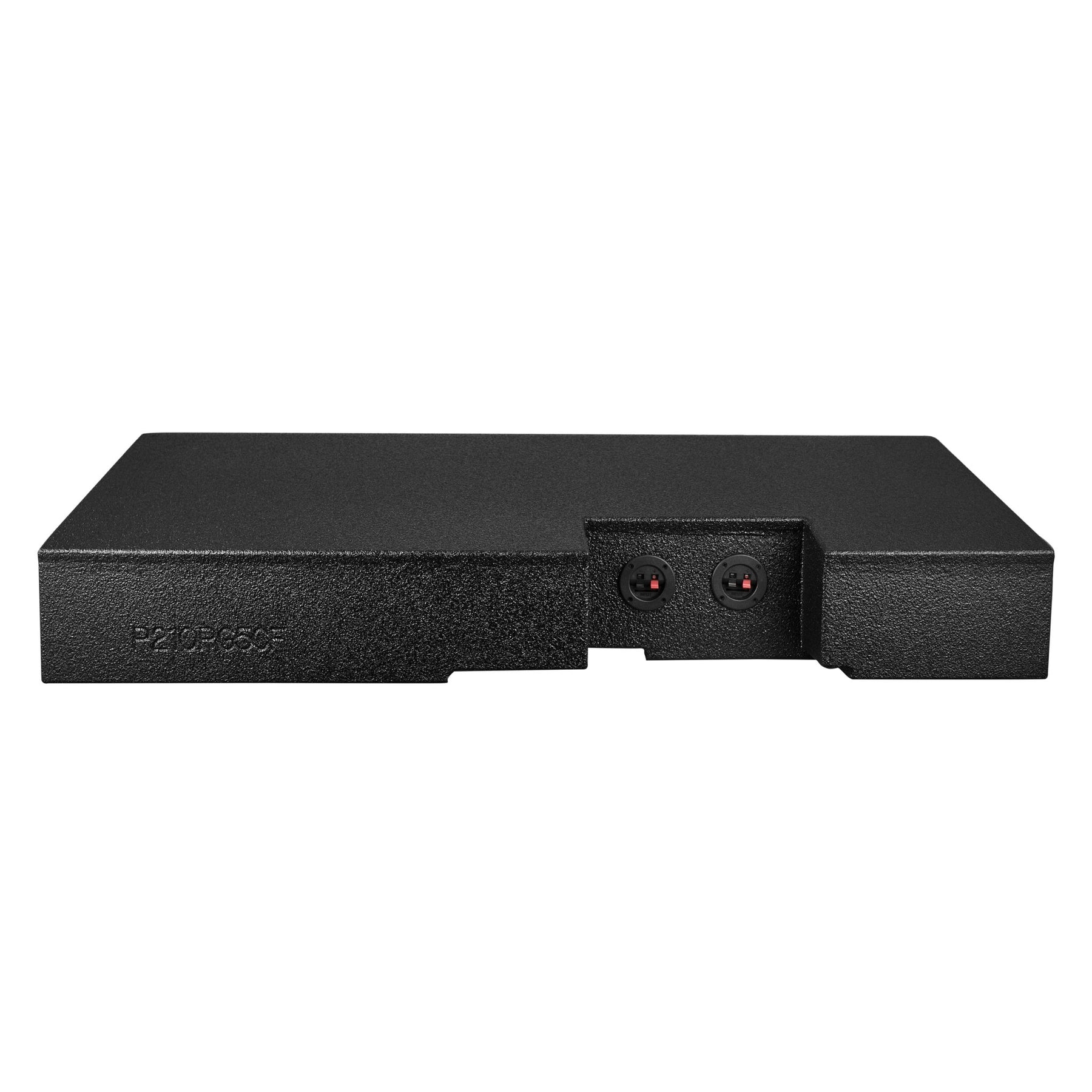

The DS18 EBM‑FFPCHEVY19‑2X10.LDPKG is a loaded dual 10″ ported subwoofer enclosure package specifically engineered to fit 2019–2024 Chevy Silverado and GMC Sierra Crew Cab (4‑door) models. This under‑seat bass system includes a durable, precision‑tuned ported subwoofer enclosure built from 3/4″ MDF with a black liner finish, two ZR10.4D 10″ subwoofers and a high‑output ZR1500.1D Class‑D monoblock amplifier for powerful, deep bass performance. The included AMPKIT4 amplifier wiring kit ensures a complete setup with power, remote, RCA, and speaker cables for easy installation. With a combined power handling of 1400 W RMS (700 W per sub) and a wide frequency response, this package delivers rich, impactful low frequencies while integrating seamlessly into your truck’s interior. The system arrives unassembled (subwoofers and amp must be mounted in the enclosure).
Specifications

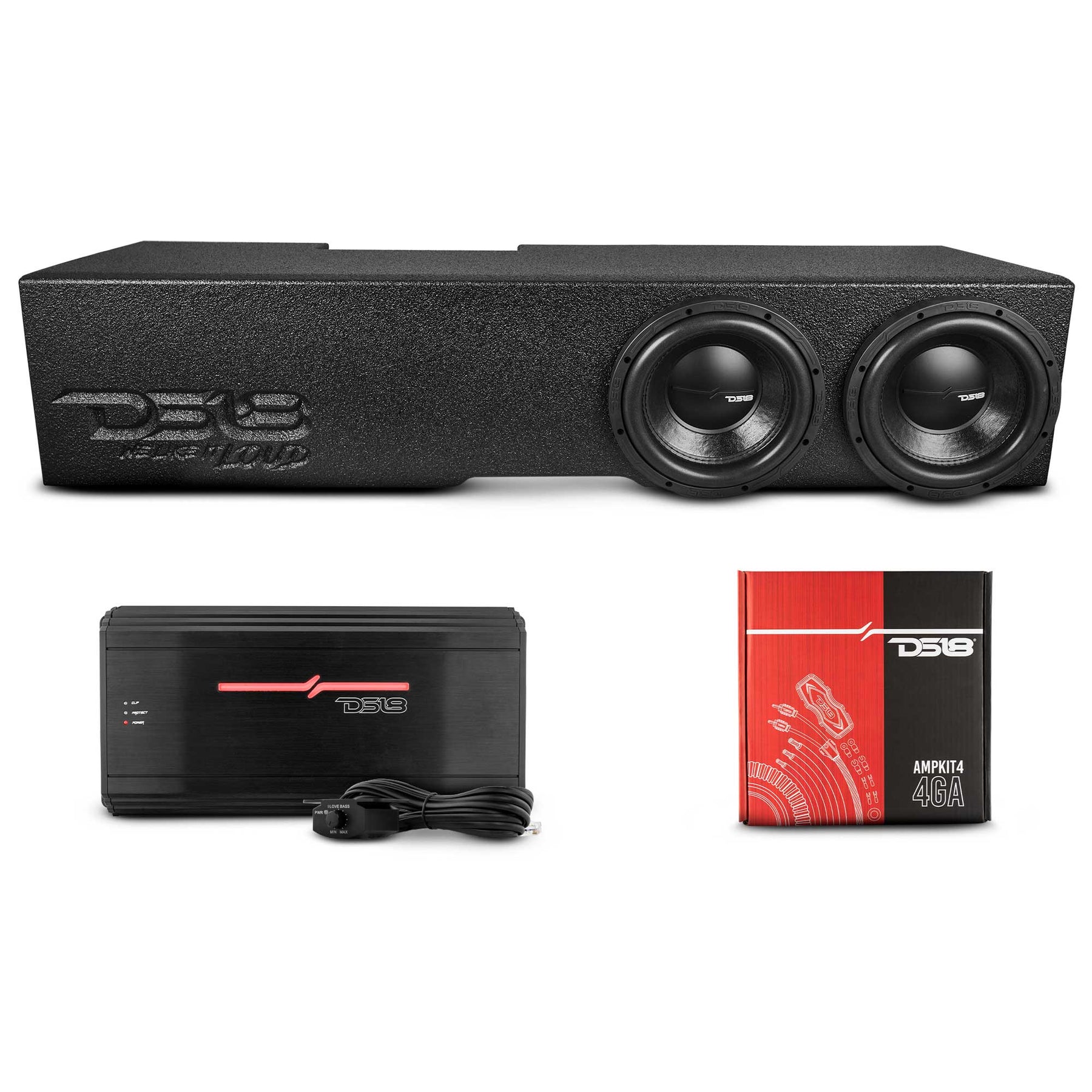

PACKAGE CONTENTS
| Item | Model | Quantity |
|---|---|---|

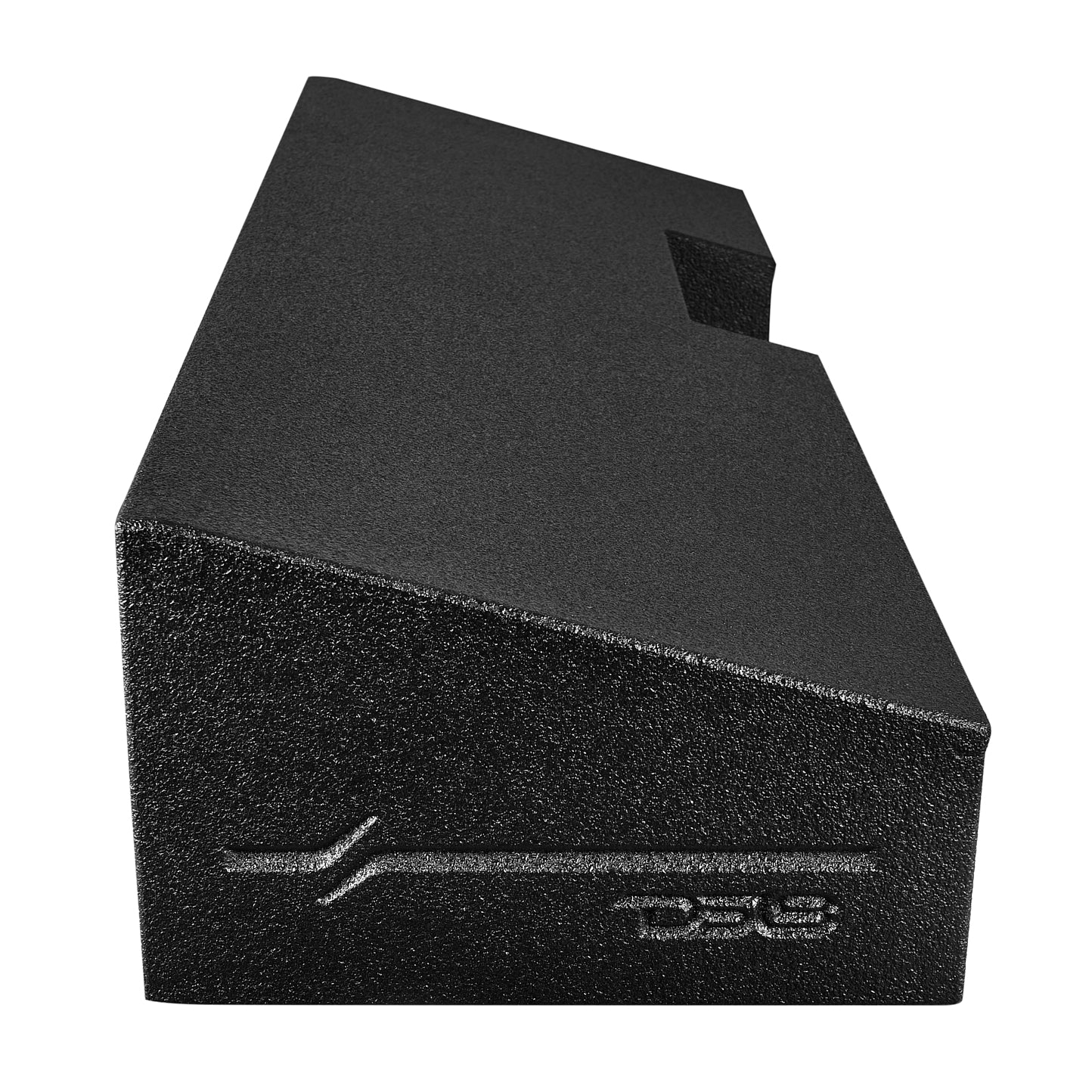

| Subwoofer Enclosure System | EBM-FFPCHEVY19-2X10.LD | 1 |
| 10″ Subwoofer | ZR10.4D | 2 |
| 1-Channel Amplifier | ZR1500.1D | 1 |
| Amplifier Wiring Installation Kit | AMPKIT4 | 1 |
GENERAL SPECIFICATIONS
| Specification | Value |
|---|---|
| Speaker Quantity / Size | 2 × 10″ subwoofers |

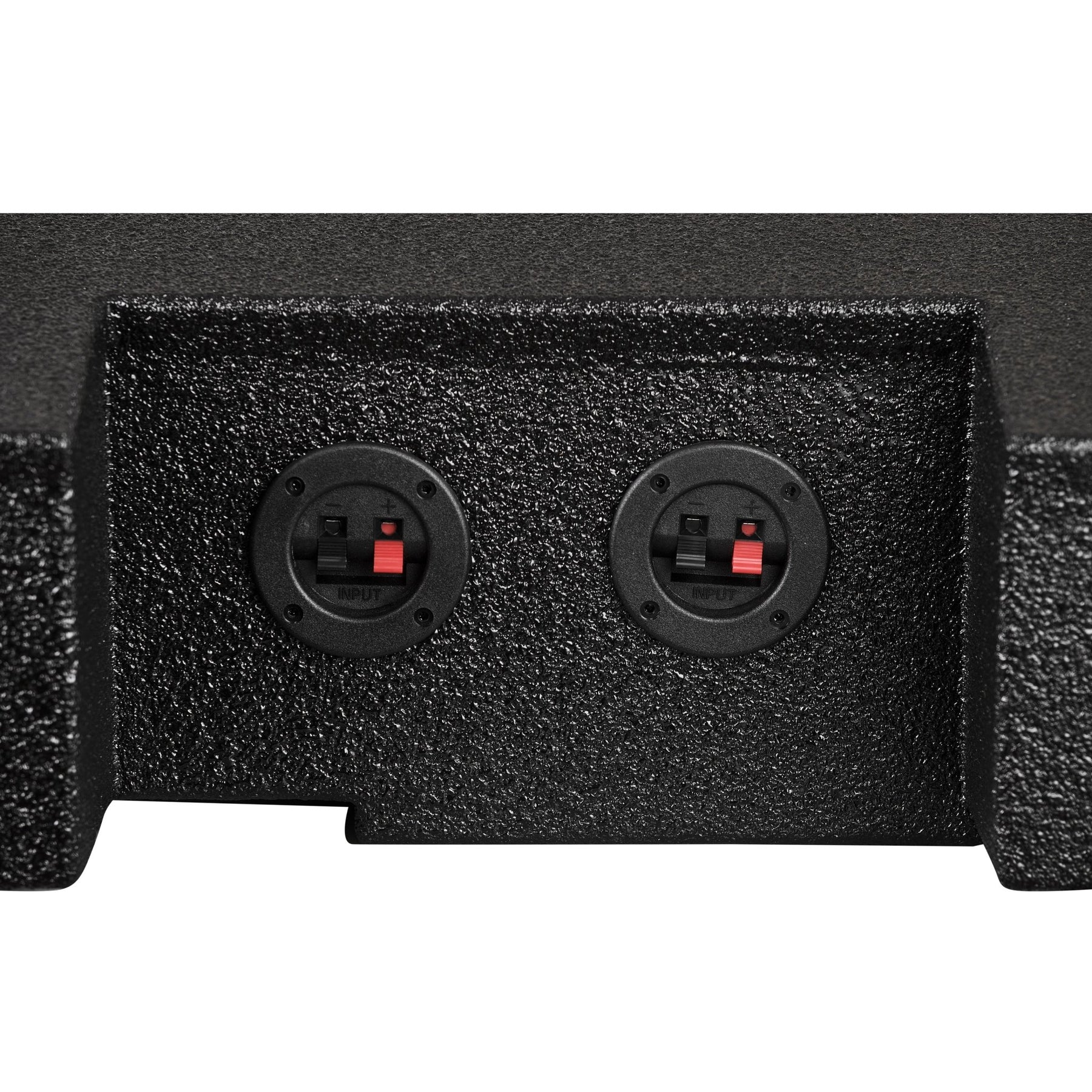

| Speaker Connector Included | Yes |
| Compatible Models | 2019–2024 Chevy Silverado and GMC Sierra |

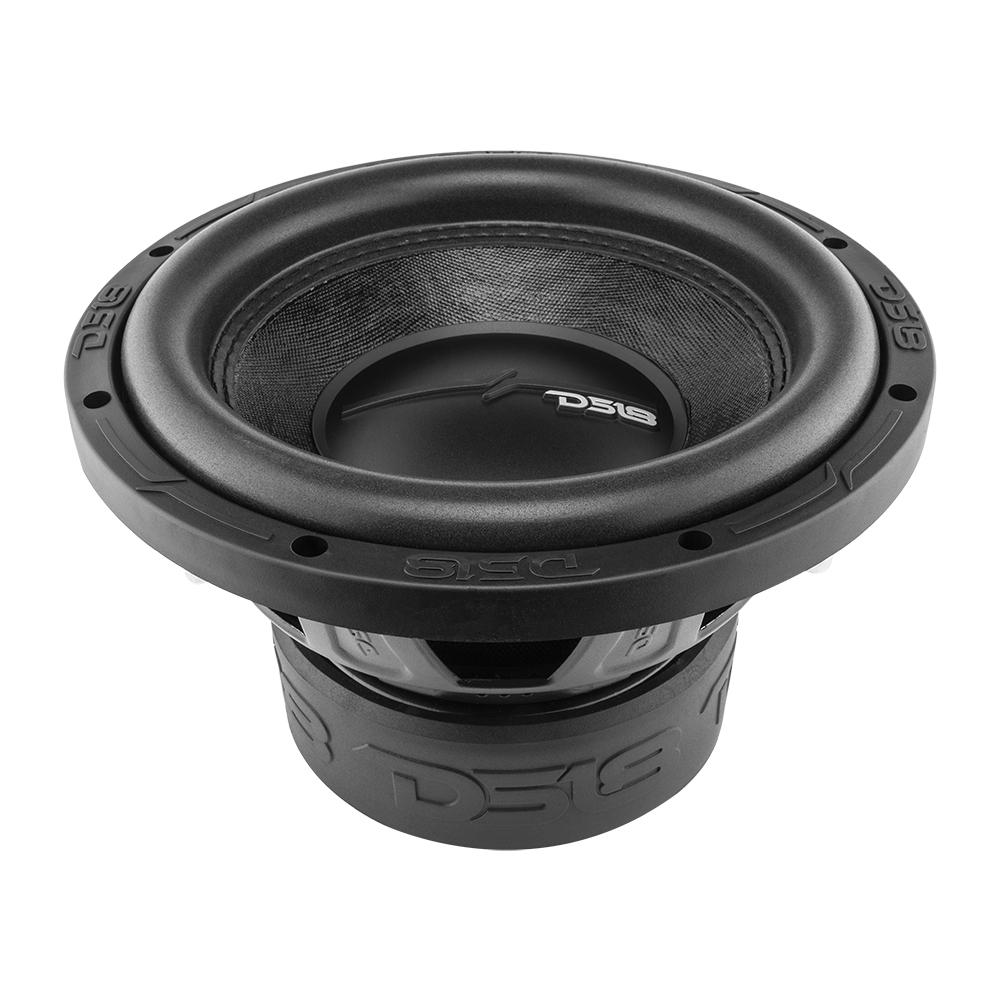

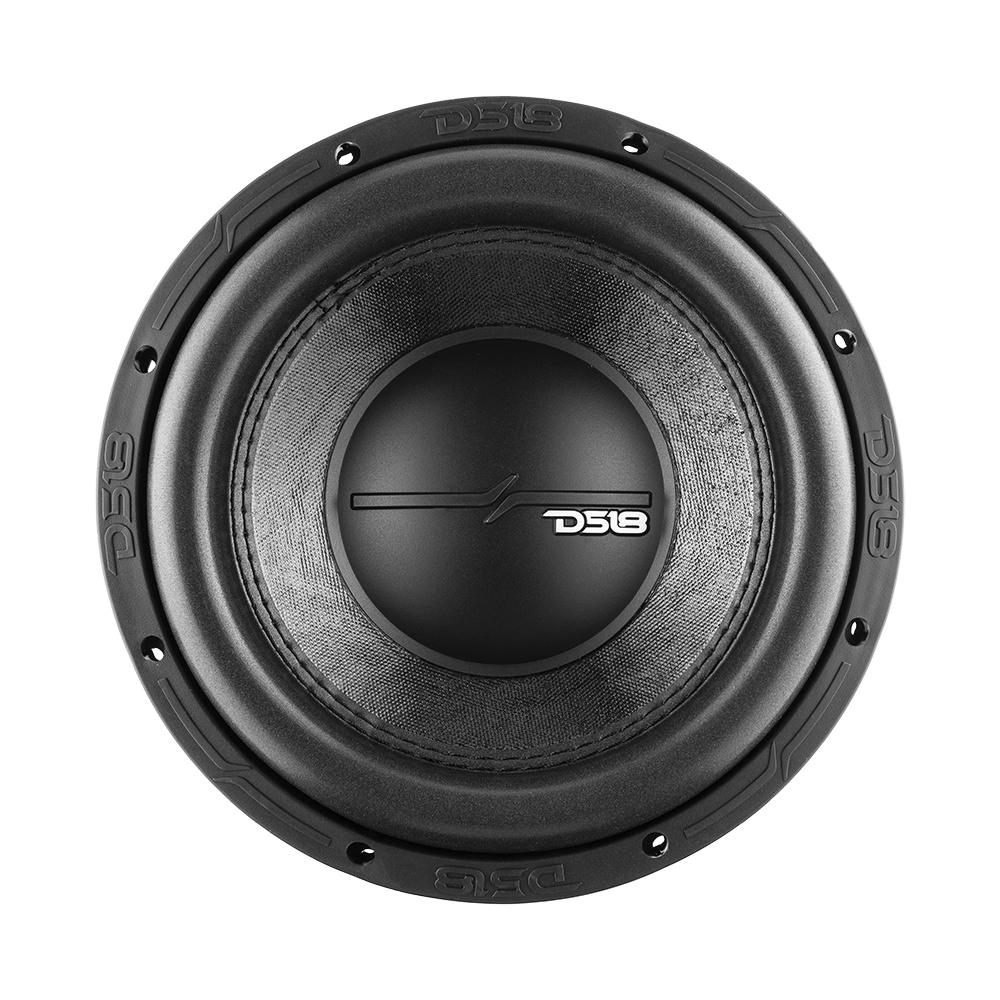

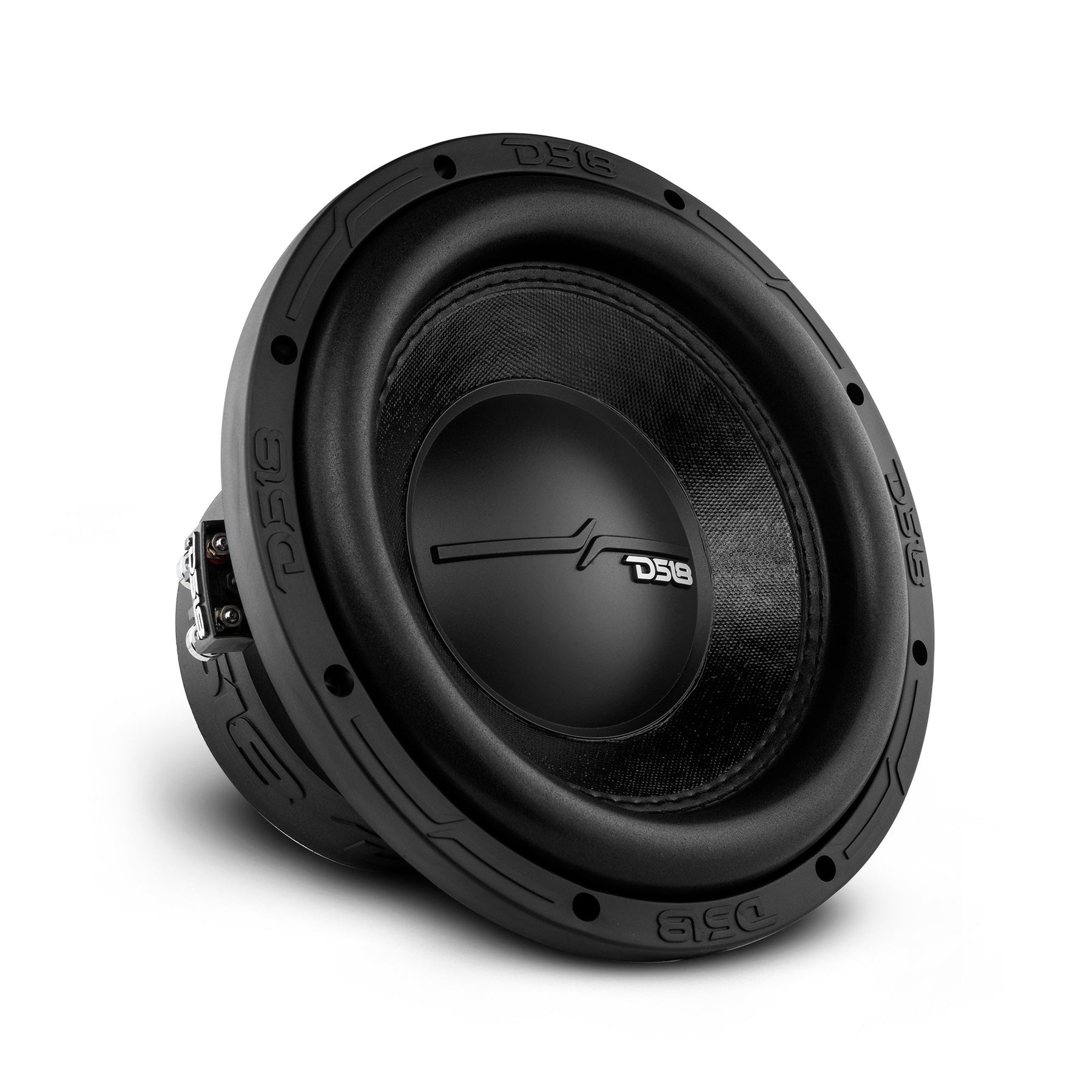

SUBWOOFER SPECIFICATIONS (ZR10.4D)
| Specification | Value |
|---|---|
| SKU | ZR10.4D |
| Size | 10″ |
| RMS Power Handling | 700 W |
| Max Power Handling | 1400 W |
| Impedance | 4 Ohm (2.5″ DVC) |
| Magnet Material | Ferrite |
| Sensitivity | 81 dB |

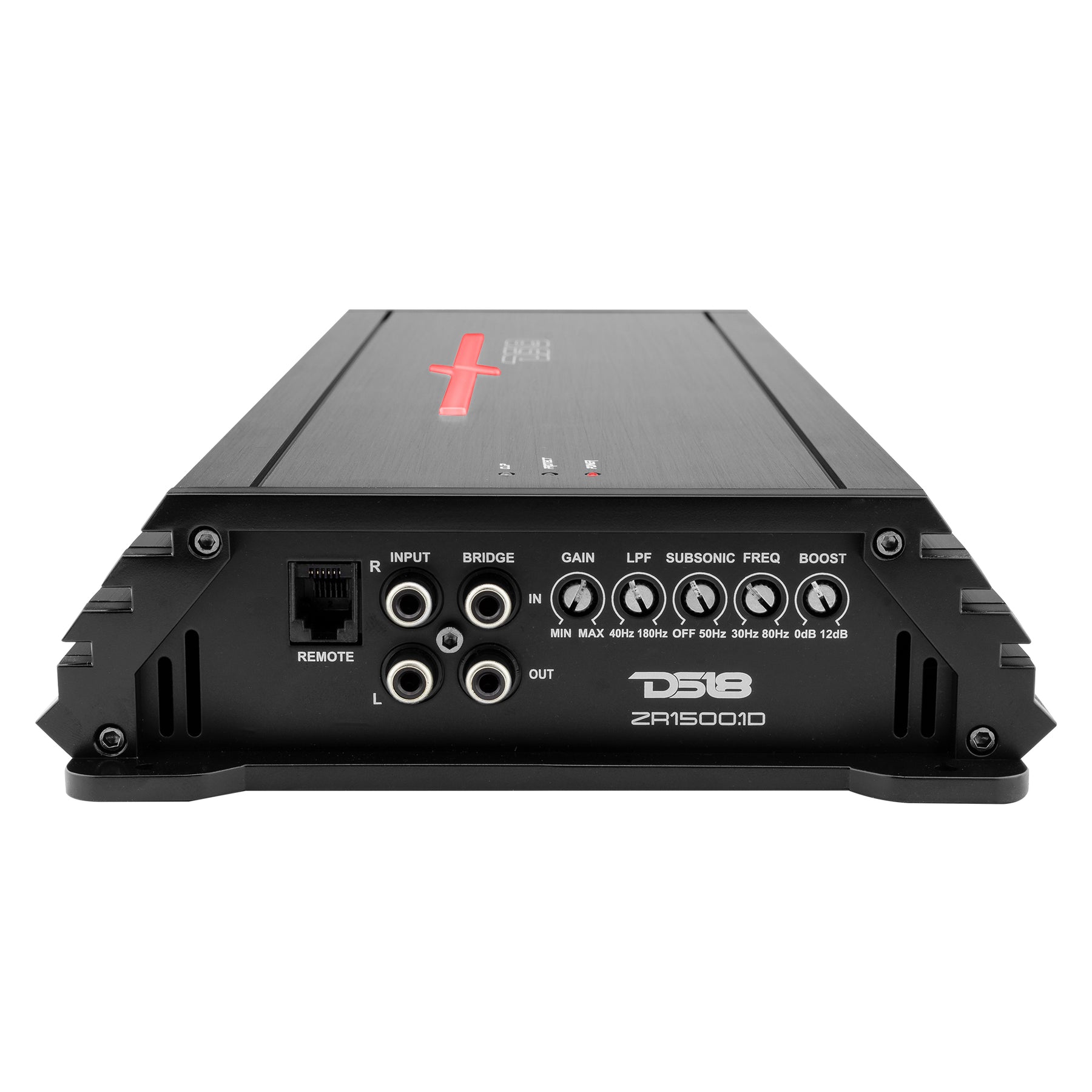

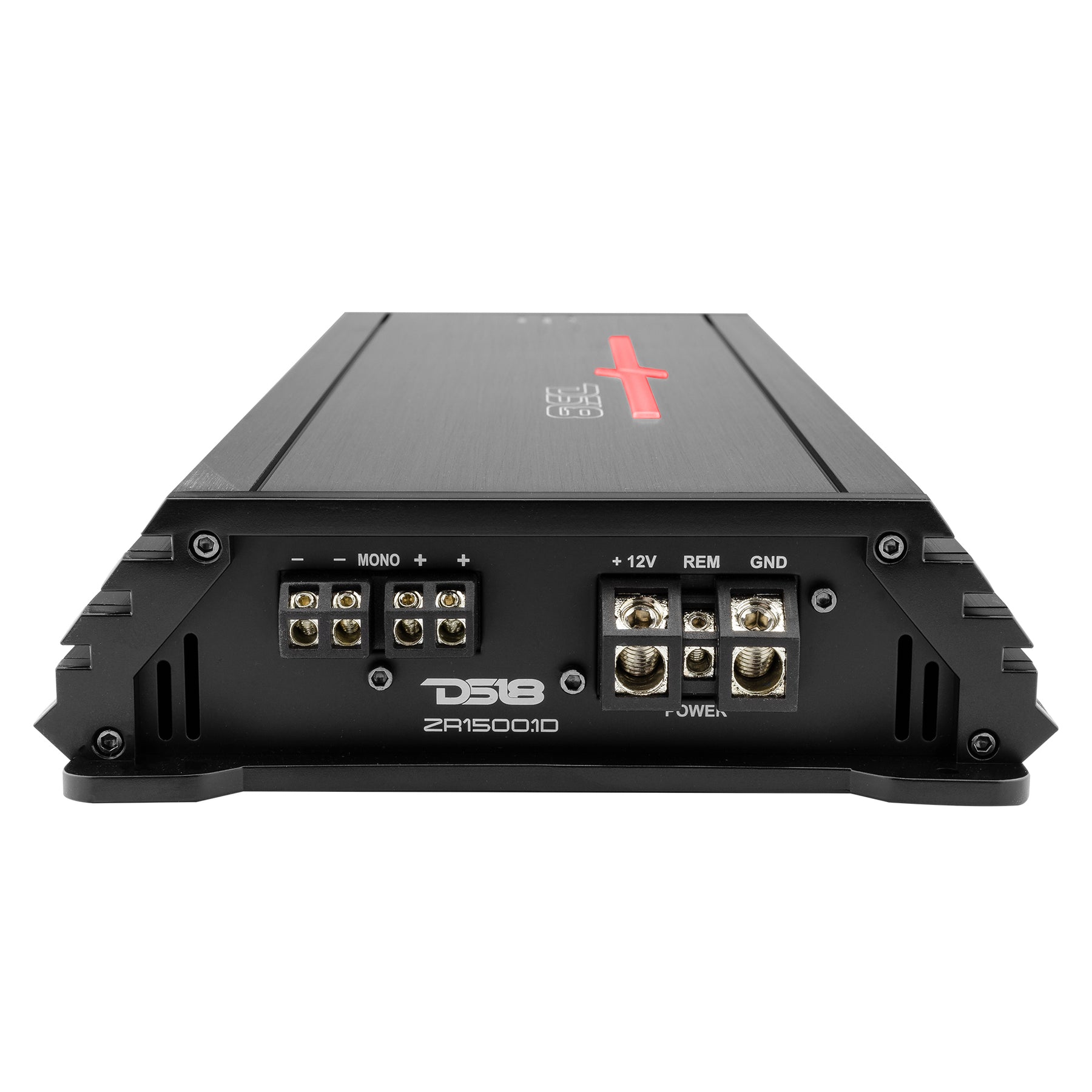

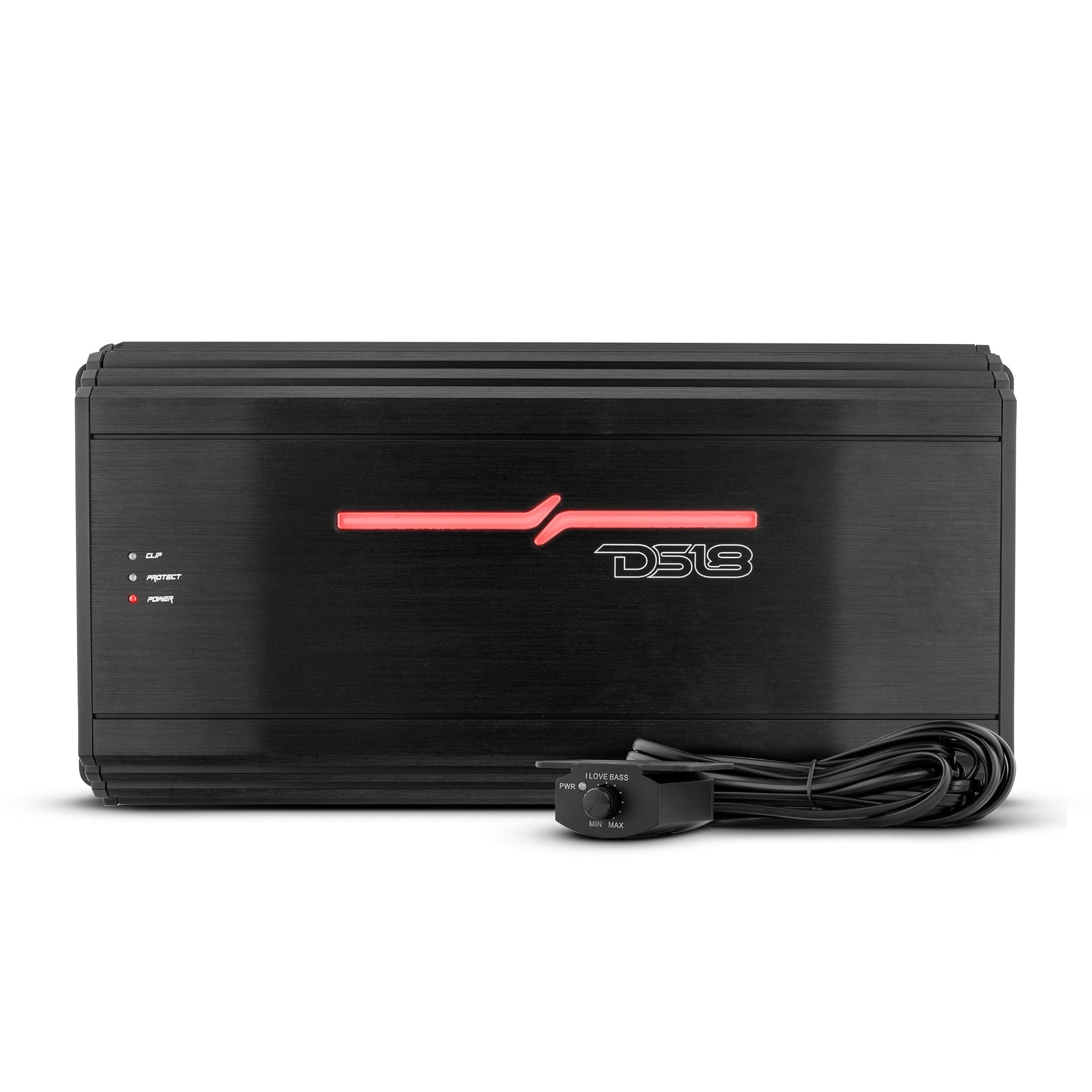

AMPLIFIER SPECIFICATIONS (ZR1500.1D)
| Specification | Value |
|---|---|
| SKU | ZR1500.1D |
| Channels | 1 (Subwoofer Monoblock) |
| Amplifier Class | Class D |
| Impedance Stability | 1 – 4 Ohm |
| Power Output | 1500 W @ 1 Ohm |
| Features | Clip/Protection Indicator, Bass Control Knob |

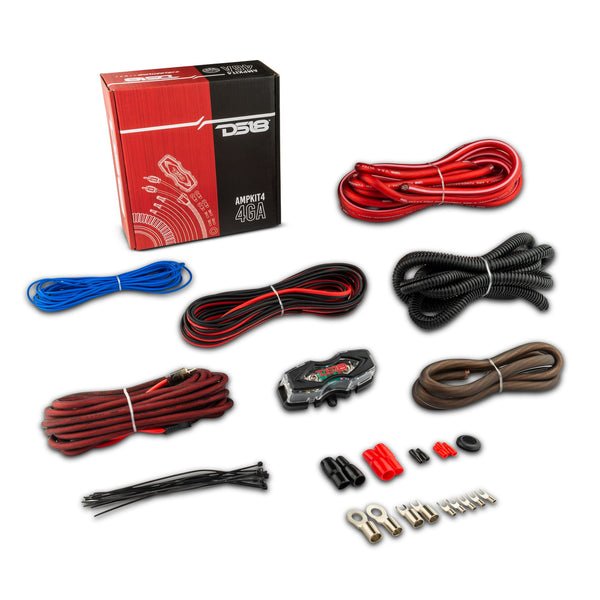

AMPLIFIER INSTALLATION KIT (AMPKIT4)
| Specification | Value |
|---|---|
| Wire Gauge | 4 GA CCA Ultra Flex |
| Max Power Supported | Up to 1680 W RMS |
| Fuse | Mini-ANL Fuse Holder, 120 A |
| Included Cables | Power & Remote, Speaker & RCA |
| Accessories | Installation Accessories, RED |
Product Overview
Subwoofer Enclosure System For 2019 – 2024 Chevy Silverado and GMC Sierra (2x ZR10.4D)

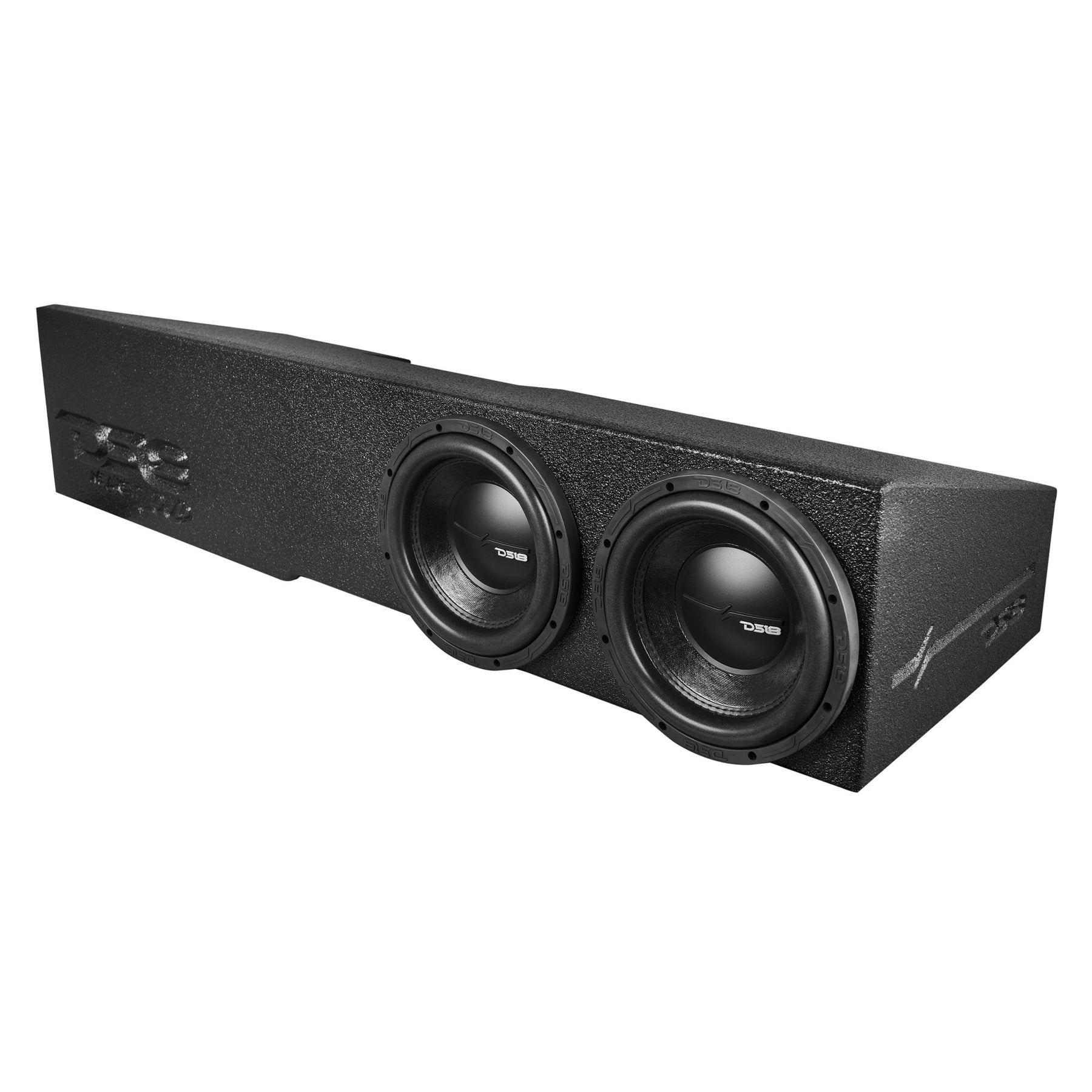

Crank up your 2019-2024 Silverado or Sierra with DS18’s EBM-FFPCHEVY19-2X10.LD!
Built exclusively for your rig, this powerhouse setup includes two of our ZR10.4D subwoofers packing 700W RMS each. These subs unleash dynamic bass using their dual 2.5-inch aluminum voice coils (4+4 ohms) for precise impedance tuning and optimal amplifier performance. With a wide frequency range of 27Hz-200Hz, your music’s low-end roars to life.

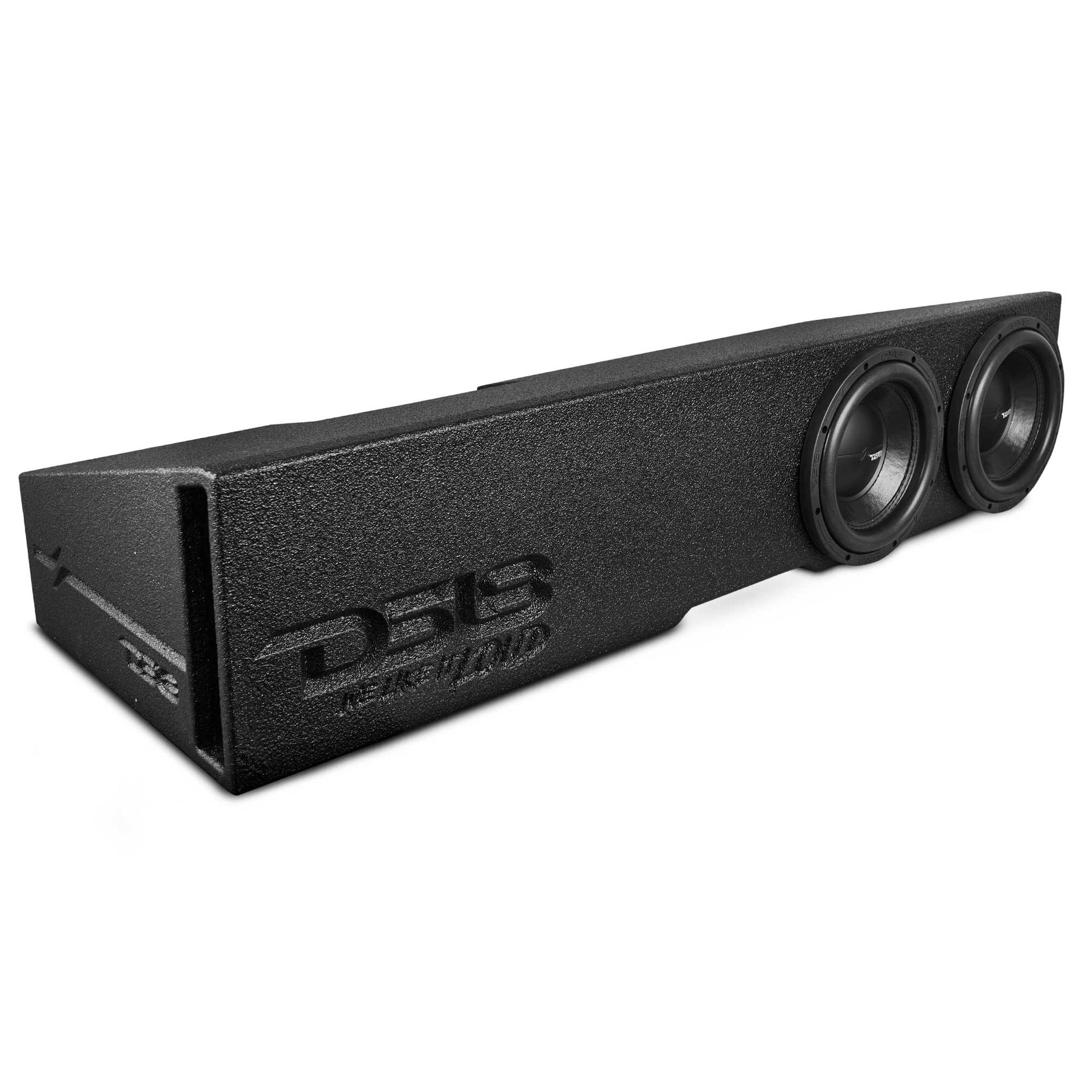

The custom enclosure is the icing on the cake. Built tough with weather-resistant materials, it withstands rugged journeys while optimizing acoustics for deeper, richer bass. Precision-tuned for seamless integration, this enclosure complements your vehicle’s interior without compromise.
