Description
DS18 DDX6.9CP
The DDX6.9CP is a 6.9″ touchscreen mechless double-DIN digital media receiver designed to replace your vehicle’s stock head unit with a modern, feature-rich multimedia system. It integrates Apple CarPlay, Android Mirror Link, Bluetooth 5.0, USB, SD, AUX, AM/FM radio, and steering wheel control compatibility — giving you seamless access to music, navigation, calls, and apps directly from your dash. The wide 6.9″ capacitive touchscreen delivers crisp visuals and intuitive control, while built-in audio features like a 10-band equalizer and 4.5 V preamp outputs let you customize sound and connect external amplifiers for expanded audio performance. It’s a universal fit for most double-DIN dashboards and perfect for upgrading factory infotainment in cars, trucks, UTVs, or powersports vehicles.
Specifications
| Specification | Value |
|---|---|
| SKU | DDX6.9CP |
| Rated Power Source | 14.4V DC (10.8V – 15V operation) |
| Maximum Current Consumption | 15 Amp |
| Dimensions (W × H × D) | Chassis: 178 × 100 × 135 mm Bezel Frame: 170 × 96 × 5 mm |
| Weight | 1.8 lb (820 grams) |
Display
| Specification | Value |
|---|---|
| Screen Size / Aspect Ratio | 6.9″ / Wide 16:9 |
| Pixels | 1024 × 600 |
| Display Type | TFT / WSVGA / Capacitive Touch Screen |
| Operating Temperature | -20°C to +60°C (14°F to 140°F) |
Audio
| Specification | Value |
|---|---|
| Maximum Power Output | 45W × 4 Ch / 4 ohm |
| Continuous Power Output | 15W × 4 Ch / 4 ohm |
| Pre-Output Level | 4 Volts (Front, Rear, Subwoofer) |

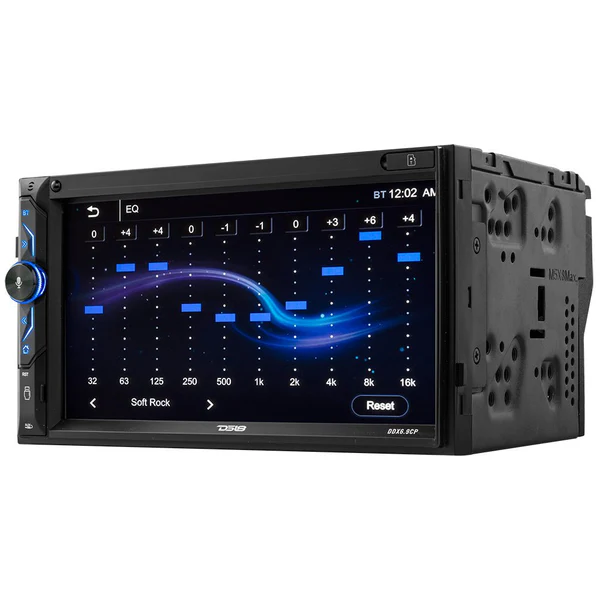

| Equalizer | 10 Bands (32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz) |
| Gain | ±6 dB |
| Audio Control | Volume / Balance / Fader / Loudness |
Tuner
| Specification | Value |
|---|---|
| Frequency Range | FM: 87.5 – 107.9 MHz AM: 530 – 1710 kHz |
| Presets Memory | 30 Stations (18 FM / 12 AM) |
| Region | USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East (Selectable) |
| Sensitivity Adjustment | LOC (On/Off) / ST (On/Off) |
| RDS | Yes (Radio Data System) |
USB / SD Player
| Specification | Value |
|---|---|
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Supported File Formats | AVI, MP4, MP3, WMA, BMP, JPEG |
| Supported Resolution | 1080P Video |
| Memory Size Support | Up to 64 GB |
| Max Current Supply | 1.5 Amp (USB) |
| USB Ports | 2 (1 Front, 1 Rear) |
Connectivity
| Specification | Value |
|---|---|
| Bluetooth Version / Services | V5.0 / Audio Streaming / Hands-Free Calls |
| Camera Input | RCA Analog Video up to HD 720p (Front/Rear) |
| Video Output | Dual RCA (1 Volt / 75 ohm) |
| A/V Aux Input | Rear RCA Audio & Video / Front 3.5mm Stereo Jack |
| Microphone | Built-in (Front Panel) / 3.5mm Jack External MIC Input |
| Remote Control | Front IR Receptor / Wired Input (3.5mm Jack) |
Product Overview
6.9” Mechless Double Din Digital Media Receiver | Touchscreen | Apple CarPlay | Bluetooth | USB | Mirror Link
The DDX6.9CP brings together Apple CarPlay, Mirror Link, Bluetooth, Wi-Fi, USB, SD, and AUX — all on a sleek mechless double DIN receiver with a 6.9” touchscreen. It’s your smartphone, playlist, GPS, and sound system rolled into one.
Designed for Seamless Streaming

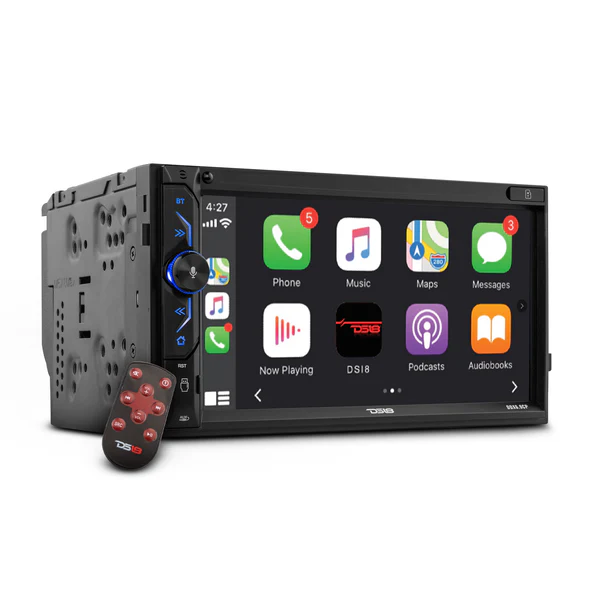

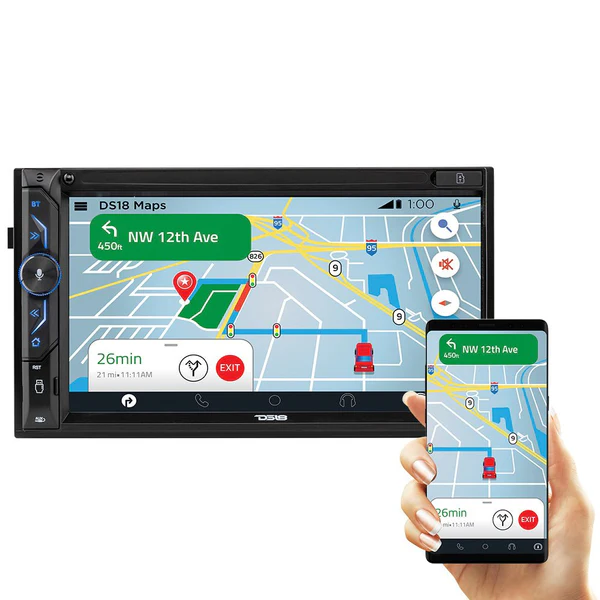

Connect wirelessly to Apple CarPlay or Android Mirror Link and enjoy instant access to your favorite apps, music, maps, and messages — right from your dash. Bluetooth 5.0 ensures smooth hands-free calls and audio streaming every time.
Built to Power Your Sound
Push your system with 40W x 4 MAX and 15W x 4 RMS @ 4Ω, enough to drive factory or entry-level aftermarket speakers. For big systems, the 4.5V pre-amp outputs give your amplifiers clean, distortion-free signal for pro-grade performance.
Expand Your Setup
With dual camera inputs, steering wheel control compatibility, and support for 64GB SD cards, this head unit is made to grow with your system. The DDXRC EQ app lets you fine-tune your sound on the fly — right from your phone.
Smart Install. Sharp Display.
A crisp 1024×600 capacitive touchscreen, easy UI, and intuitive menu layout make the DDX6.9CP simple to use and great to look at. Its slim mechless design installs clean in any compatible double DIN dash.
