Name: DS18 DDX6.9
SKU: DDX6.9
Availability: InStock

Description

DS18 DDX6.9

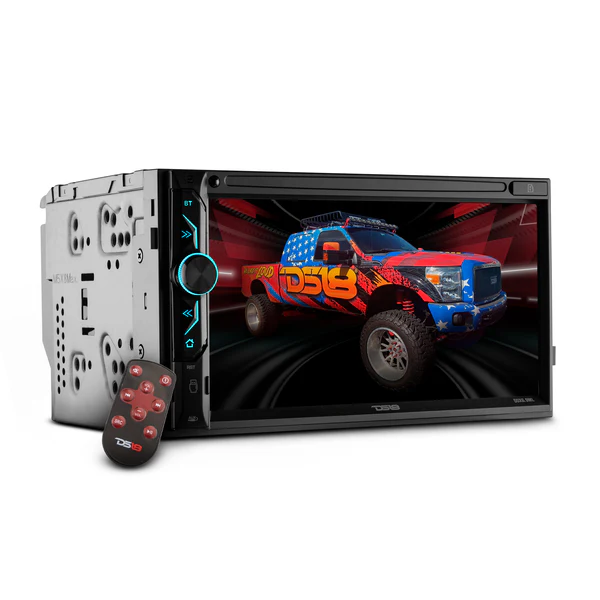

The DDX6.9 is a 6.9-inch touchscreen double-DIN multimedia car audio receiver by DS18 that upgrades your vehicle’s dash to a modern entertainment and connectivity hub. It features a bright capacitive touchscreen with DVD/CD playback, Bluetooth audio streaming and hands-free calling, USB/SD/AUX inputs, AM/FM radio, and smartphone screen mirroring (Mirror Link) for both iOS and Android devices — allowing you to view and control apps, navigation, and media from your phone on the receiver’s display. The built-in audio controls include a multi-band equalizer and high-voltage preamp outputs, making it easy to tune sound or connect external amplifiers for expanded audio performance. It also supports camera inputs and steering wheel control interfaces for a complete dash upgrade solution.

Specifications

Specification	Value
SKU	DDX6.9
Rated Power Source	14.4V DC (10.8V – 15V operation)
Maximum Current Consumption	10 Amp
Dimensions (W × H × D)	Chassis: 178 × 100 × 135 mm Bezel Frame: 170 × 96 × 5 mm
Weight	1.52 Kg

Display

Specification	Value
Screen Size / Aspect Ratio	6.9″ / Wide 16:9
Resolution	1024 × 600
Display Type	TFT / WSVGA / Capacitive Touch Screen
Operating Temperature	-20°C to +60°C (14°F to 140°F)

Audio

Specification	Value
Maximum Power Output	40W × 4 Ch / 4 ohm
Continuous Power Output	15W × 4 Ch / 4 ohm
Pre-Output Level	4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer	16 Bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1kHz, 3kHz, 5kHz, 8kHz, 12.5kHz, 16kHz)
Gain	±12 dB
Audio Control	Volume / Balance / Fader / Loudness

Tuner

Specification	Value
Frequency Range	FM: 87.5 – 107.9 MHz AM: 530 – 1710 kHz
Presets Memory	30 Stations (18 FM / 12 AM)
Region	USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East (Selectable)
Sensitivity Adjustment	LOC (On/Off) / ST (On/Off)

USB / SD Player

Specification	Value
Type / Class	V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Supported File Formats	RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Supported Resolution	1080P Video
Memory Size Support	Up to 64 GB
Max Current Supply	1.5 Amp (USB)
USB Ports	2 (1 Front, 1 Rear)

Connectivity

Specification	Value
Bluetooth Version / Services	V4.1 / Audio Streaming / Hands-Free Calls
Camera Input	RCA Analog Video up to HD 720p (Front/Rear)
Video Output	Dual RCA (1 Volt / 75 ohm)
A/V Aux Input	Rear RCA Audio & Video / Front 3.5mm Stereo Jack
Microphone	3.5mm Jack External MIC Input
Remote Control	Front IR Receptor / Wired Input (3.5mm Jack)

Product Overview

Take full control of your entertainment with DS18’s DDX6.9, the ultimate multimedia receiver for today’s connected driver. Featuring a vibrant 6.9” capacitive touchscreen and full DVD/CD playback, this double-DIN turns your dash into a digital command center.

MIRROR LINK & BLUETOOTH CONNECTIVITY

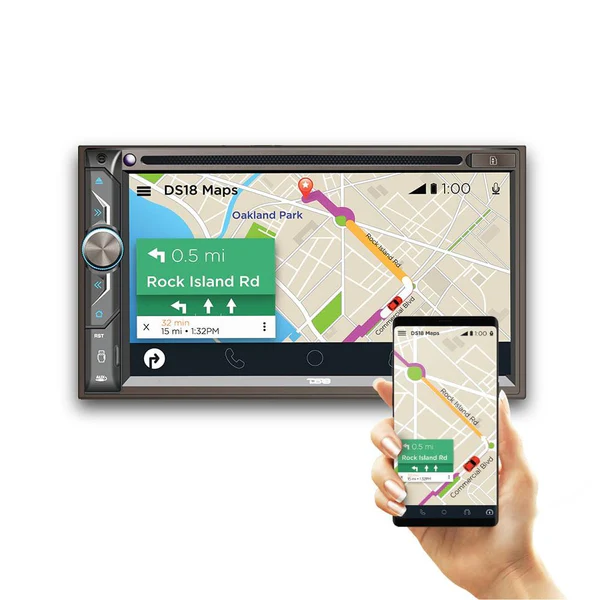

The DDX6.9 supports Mirror Link for both iOS (iPhone 5 to XS) and Android (5.0+), letting you mirror your smartphone directly onto the screen. With Bluetooth v4.1, enjoy seamless audio streaming and hands-free calling for safer, smarter driving.

MULTIMEDIA VERSATILITY
Play your favorite media through USB, SD card (up to 64GB), DVD/CD, or AUX input. Supports a wide range of file formats including MP4, AVI, MP3, WMA, and even 1080p video playback. Dual RCA pre-outs with 4.5V output and subwoofer channel make system expansion easy.

BUILT-IN POWER, EXPANDABLE CONTROL
This receiver offers 40W x 4 MAX and 15W x 4 RMS @ 4Ω, perfect for powering your factory or entry-level speakers. For system builders, 4.5V pre-outs ensure clean signal to your amps, and the DDXRC App gives you advanced EQ control straight from your phone.

EVERYTHING YOU NEED, READY TO INSTALL
From AM/FM radio to a responsive 16:9 TFT touchscreen (1024×600), this unit is built for convenience and performance. Camera inputs (front/rear), steering wheel control, and a customizable 16-band EQ bring pro-level customization to your dash.
