Description
DS18 DBPM100.MX

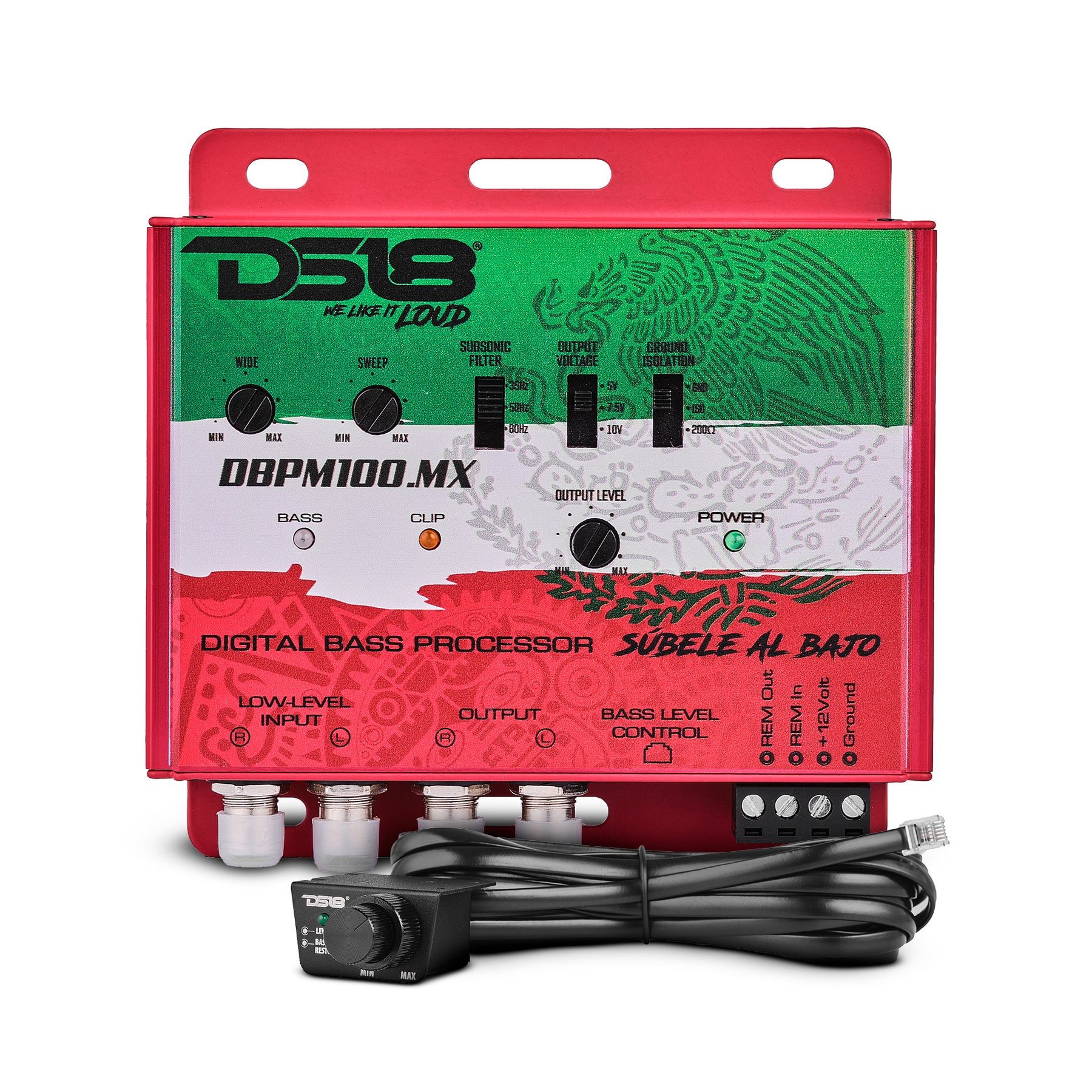

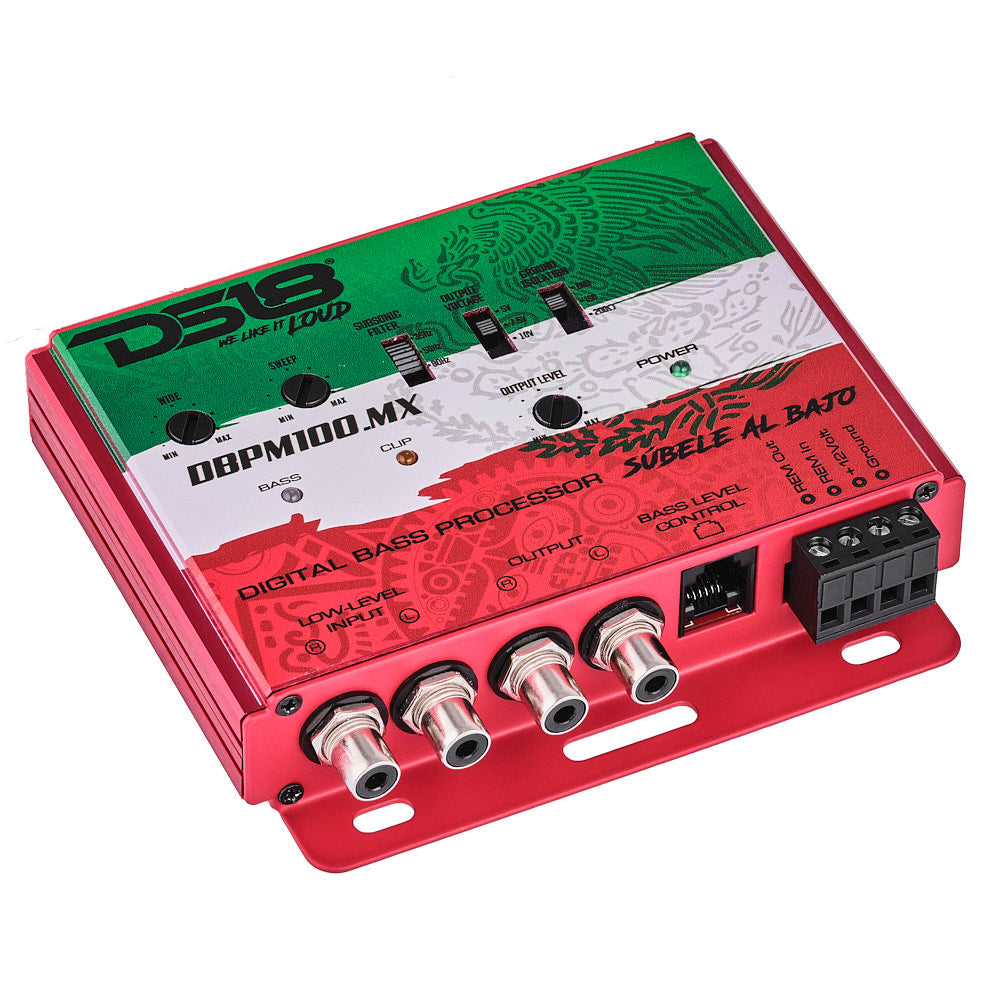

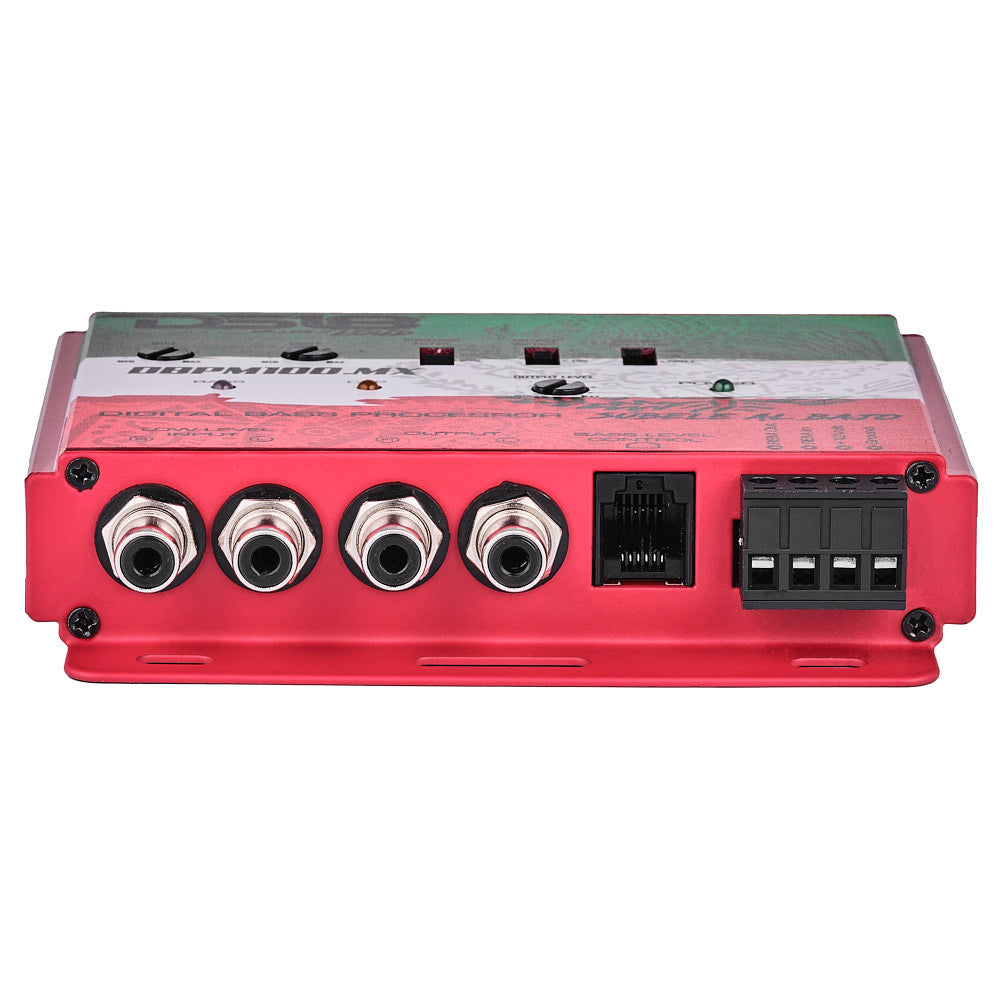

The DS18 DBPM100.MX is a high‑quality 2‑channel digital bass processor designed to restore and enhance low‑frequency performance in car audio systems. It features fully adjustable sweep and width controls that let you fine‑tune the bass response, along with a selectable subsonic filter at 35 Hz, 50 Hz, or 80 Hz to remove unwanted low‑end rumble and distortion. With selectable output voltages (5 V / 7.5 V / 10 V) and balanced line‑level inputs/outputs, this processor integrates seamlessly with aftermarket or OEM head units without needing a replacement. It includes a dual‑knob dash‑mount remote control with LED indicators for power, bass enhancement, and clipping, and is housed in a compact, anti‑corrosion aluminum chassis with noise rejection for clean signal delivery. The DBPM100.MX is ideal for users looking to bring out fuller, deeper bass and improved low‑end clarity in their car audio setup.
Specifications
| Feature | Specification |
|---|---|
| SKU | DBPM100.MX |
| Operating Voltage | 8 – 17 V |
| Power Consumption | 0.24 A |
| Recommended Fuse Rating | 1 A |
| Power Input Terminal Size | 16 Ga |
| LED Indicator | Power / Bass Enhancer / Clip |
| Ground Isolation Switch | Yes (GND / ISO / 200 Ω) |
| Hi-Level Speaker Input | No |
| Auto Turn-On Function | No |
| Remote Turn-On (Input / Output) | Yes |
| Remote Level Control | Yes (Bass Enhancer) |
| RCA Connector Type | Tiffany (Silver) |
| Housing Material | Aluminum |
| Body Color / Finish | Red / Green / White (Mexico Theme) |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 10 Hz – 20 kHz |
| Signal-to-Noise Ratio (S/N) | 120 dB |
| Total Harmonic Distortion (THD) | 0.0022% |
| Input Sensitivity (Low-Level) | <10 V |
| Input Sensitivity (Hi-Level) | N/A |
| Input Impedance | 20 kΩ |
| Output Voltage | Selectable (5 V / 7.5 V / 10 V) |
| Output Impedance | 100 Ω |
| Balanced Input Noise Rejection | >60 dB |
| Stereo Separation | >80 dB |
Crossover Section & Bass Processor
| Parameter | Value |
|---|---|
| Subwoofer LPF Frequency Cut-off | No (Full Range Signal) |
| Subwoofer Infrasonic Frequency Cut-off | Selectable (35 / 50 / 80 Hz) |
| Gain | 0 – 8.8 V |
| Center Frequency (Sweep) | 75 – 120 Hz |
| Q Factor (Wide) | 1 – 3 |
Extra Features
| Feature | Description |
|---|---|
| Compact Size | Easy installation for any application |
| Surface Mount Component Technology | Yes |
| Quality Control Verification | Using Audio Precision Instruments |
| Remote Level Control | Yes, with clip indicator |
Measurements
| Measurement | Value |
|---|---|
| Overall Length | 4.72 in (120 mm) |
| Overall Width | 4.4 in (113 mm) |
| Overall Height | 1 in (26 mm) |
Product Overview
Digital Bass Processor with Hi-to-Low Signal Converter | México Edition
DS18’s DBPM100.MX is a high-quality bass processor designed to unlock your sound system’s full low-end potential.
The DBPM100 analyzes your input signal, restores the low frequencies commonly stripped away by factory audio systems, and lets you tailor them to your preferences with sweep and width adjustments. An onboard subsonic filter with 35Hz, 50Hz, and 80Hz settings helps remove unwanted rumble and distortion even at high volumes. Combined with full control over your output voltage (5V / 7.5V / 10V), the DBPM100 helps you fine-tune every element of your low-frequency performance.
OEM Friendly & Feature Packed
The built-in high-level speaker inputs let you connect directly to your OEM system—meaning, there’s no need for a head unit swap. Balanced RCA outputs makes it easy to dial in your system for peak performance and safe power delivery. An included dual-knob bass remote lets you refine your low frequencies directly from your dash, with onboard Power, Bass Enhancement, and Clip indicator LEDs.
Vive la vida en voz alta con DS18’s DBPM100.MX!
