Description
DS18 carpk-4
The DS18 CARPK-4 is a premium 4-channel car amplifier wiring kit designed to simplify installation and ensure reliable, high-quality performance for any car audio system. This all-in-one kit includes heavy-gauge power and ground cables, RCA cables, speaker wire, inline fuse holders, and all essential hardware to connect and protect your amplifier setup. Perfect for both beginners and experienced installers, the CARPK-4 ensures clean signal transfer, reduces power loss, and supports high-current applications for multi-channel amplifiers. Ideal for SPL systems, daily drivers, or upgraded audio setups, it provides secure, efficient, and professional-grade connections throughout your vehicle.
General Specifications
| Included Components |
Model |
| 2 x 6×9 Inch 2-Way Coaxial Speakers |
ZXI-694 |
| 2 x 6.5 Inch 2-Way Coaxial Speakers |
ZXI-654 |
| 1 x 10 Inch Loaded Amplified Shallow Subwoofer |
SB10A |
| 1 x 4-Channel Amplifier |
G1800.4D |

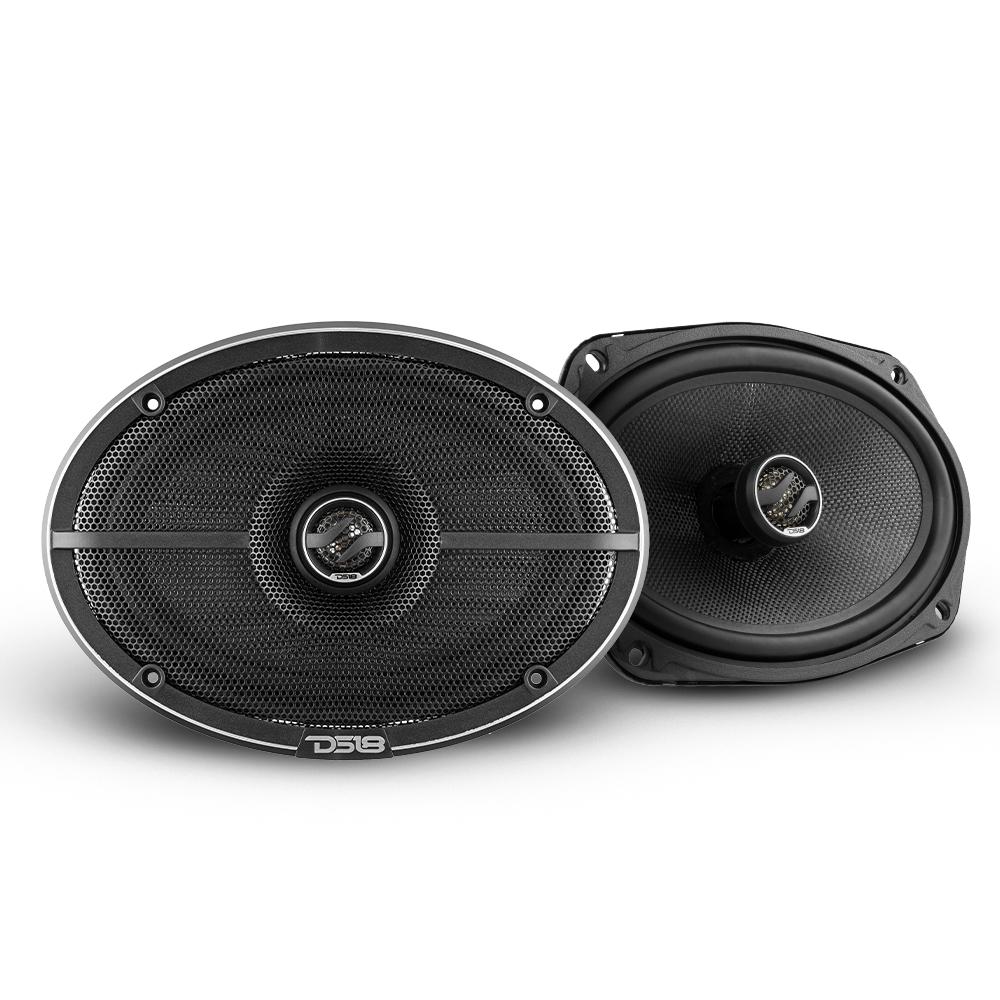

6×9 INCH 2-WAY COAXIAL SPEAKERS – ZXI-694
| Specification |
Value |
| Nominal Diameter |
6×9 Inch |
| Nominal Impedance |
4 Ohm |
| RMS Power Handling |
120 W |
| Max Power Handling |
360 W |
| Frequency Response |
31.5 Hz to 20 kHz |
| Sensitivity |
92 dB |
| Recommended Hi-Pass Crossover |
50 Hz |
| Number of Ways |
2-Way |

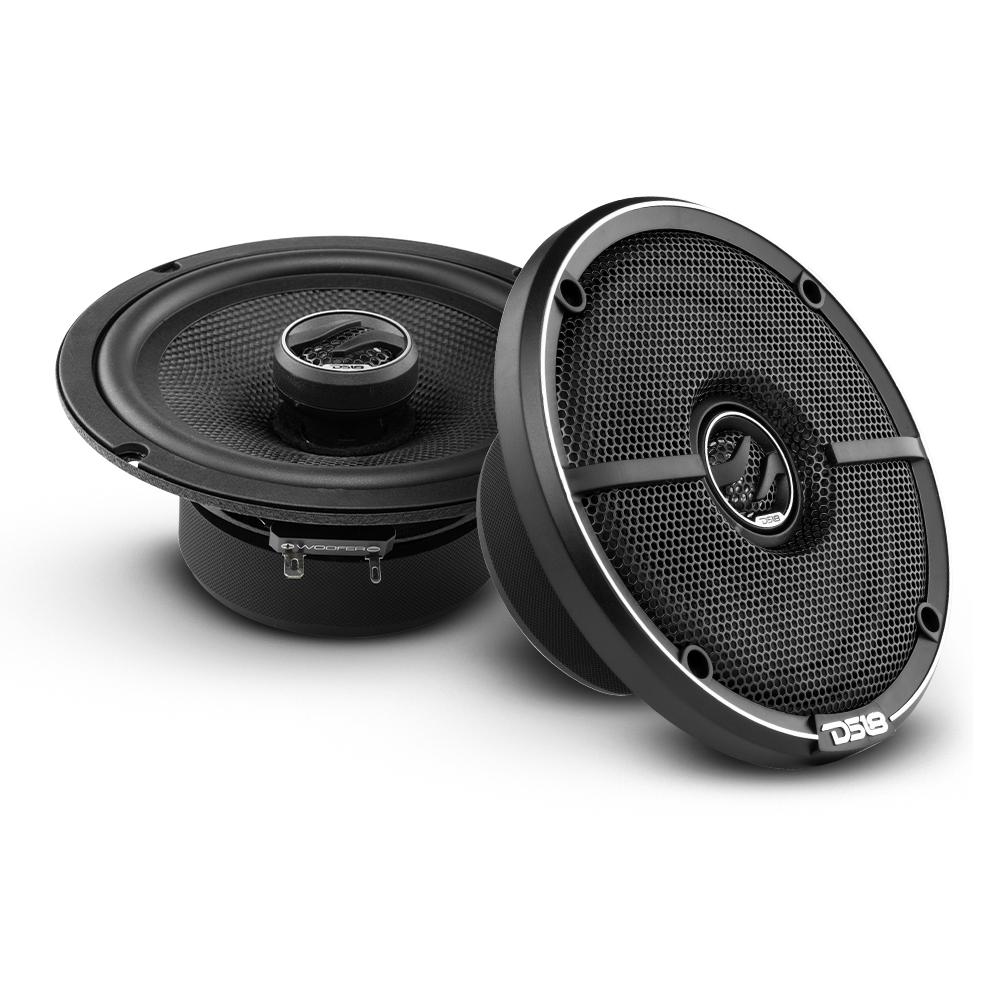

6.5 INCH 2-WAY COAXIAL SPEAKERS – ZXI-654
| Specification |
Value |
| Total Peak Power |
240 W |
| RMS Power |
80 W |
| Frequency Response |
40 Hz to 20 kHz |
| Sensitivity |
89 dB |
| Impedance |
4 Ohm |
| Recommended Hi-Pass Crossover |
60 Hz |
| Speaker Type |
2-Way |

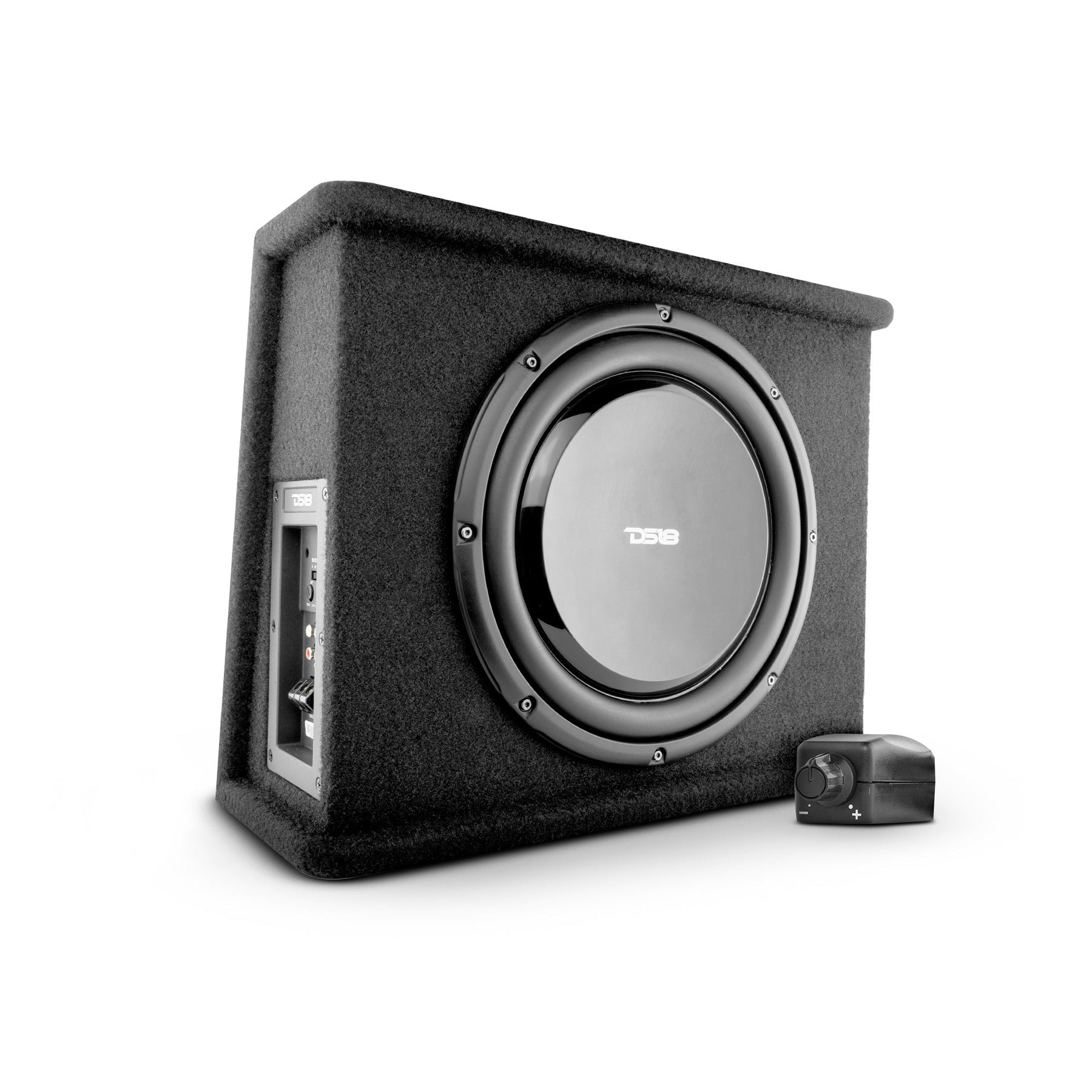

10 INCH AMPLIFIED SUBWOOFER WITH ENCLOSURE – SB10A
| Specification |
Value |
| Frequency Response |
38 Hz to 250 Hz |
| Max Power |
700 W |
| RMS Power Handling |
350 W |
| Sensitivity (1W/1M) |
83 dB |
| Total Impedance |
2 Ohm |
| Box Type |
Sealed |
| Box Material |
0.59 Inch MDF |
| Finish Material |
Non-Woven Fabric |
| -3dB Dropping Point |
48 Hz |
4-CHANNEL AMPLIFIER – G1800.4D
| Specification |
Value |
| Frequency Response |
20 Hz to 20 kHz |
| Max Power |
1800 W |
| RMS Power at 2 Ohm |
4 x 230 W |
| RMS Power at 4 Ohm |
4 x 150 W |
| 4 Ohm RMS Power Bridge |
2 x 430 W |
| Speaker Impedance Range |
2 to 4 Ohm |
| Signal-to-Noise Ratio |
>90 dB |
| Efficiency at 4 Ohm |
81 % |
| Total Harmonic Distortion (THD) |
0.01 % |
Product Overview

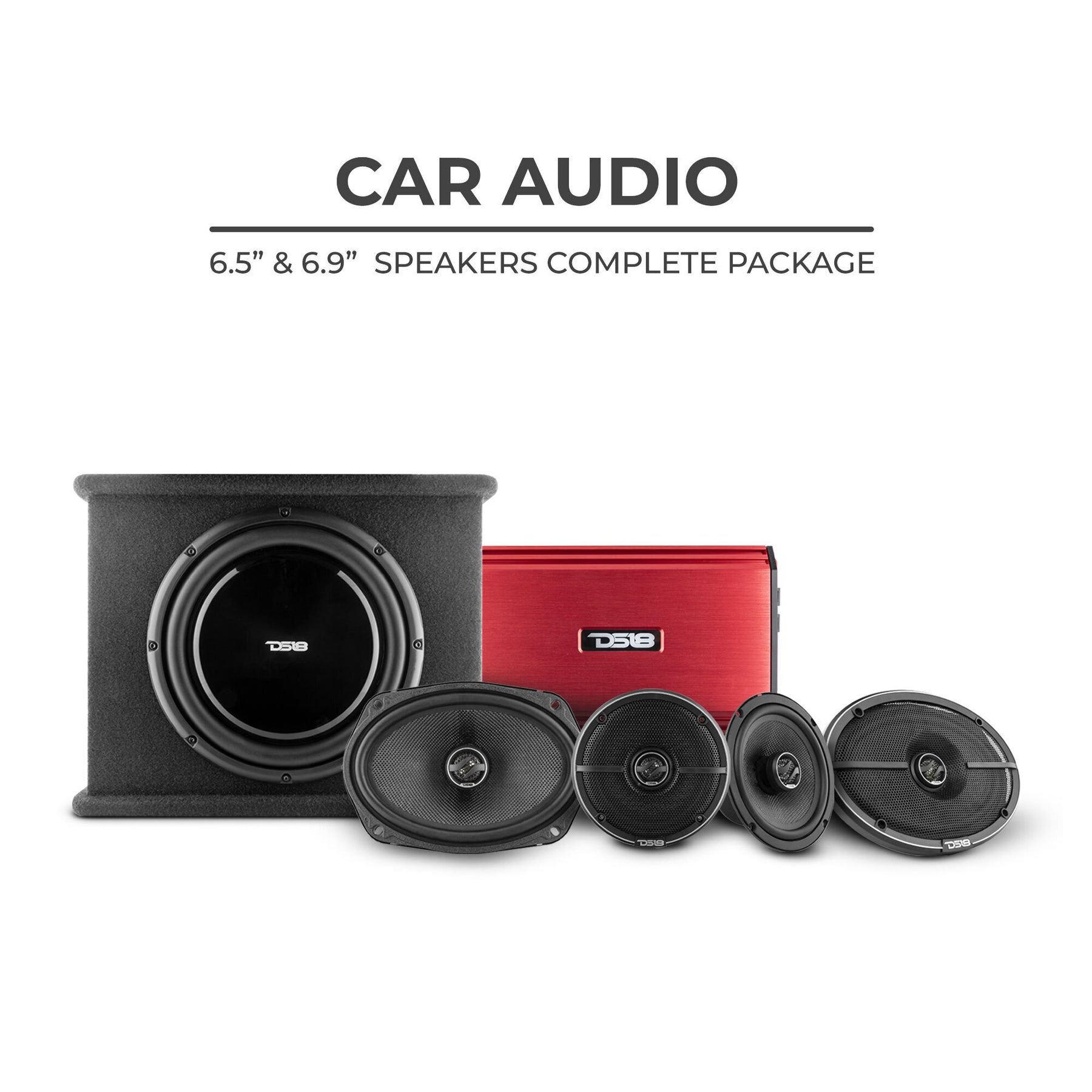

Complete High Volume System With Powered 10” Subwoofer Package
Crafted for the audio enthusiast who wants their system to get LOUD instantly, DS18’s CARPK-4 is the ultimate solution for car audio enthusiasts who want to reach insanely high volumes instantly.
This package includes: one pair of our ZXi654 and ZXI694, our powerful 2-way coaxials; the SB10A, our shallow amplified subwoofer; skillfully matched with our SELECT Series S1200.4, a high-powered amplifier guaranteed to deliver crystal-clear sound on demand.
DS18’s ZXI series is engineered for perfection. We’ve included a pair of 6.5″ woofers, the ZXI654; and a pair of 6 x 9 coaxials, the ZXI694; each with a nominal impedance of 4-Ohm and a combined MAX power handling of 600W, these speakers have all the power they need to get LOUD! Crafted with a glass fiber cone, guaranteeing high-quality performance that lasts. These speakers are an amazing choice for the audio enthusiast who likes it LOUD!
