Description
DS18 BTRCRMIC
The BTRCRMIC is a rugged, waterproof Bluetooth® audio receiver and controller with handheld microphone, designed for marine, powersports, motorcycle, ATV/UTV, off‑road, and outdoor audio systems. It combines a Bluetooth 5.0 wireless receiver with integrated controls and a CB‑style microphone so you can stream music and control audio while communicating through your sound system. With USB, AUX, RCA pre‑outs, and amplifier remote turn‑on, it can act as a stand‑alone source unit or integrate into larger audio builds with ease. Its durable, IP65 water‑resistant design and simple round mounting make it suitable for harsh environments.
Specifications
| Feature | Specification |
|---|---|
| SKU | BTRCRMIC |
| Frequency Response | 20 Hz – 20 kHz |
| Signal-to-Noise Ratio | >80 dB |
| T.H.D | <0.1% |
| Channel Separation | >60 dB |
| Voltage Operation | DC 10–15V |
| Fuse Size | 5 Amp |
| Bluetooth Version | 5.0 |
| Wireless Range | >130 ft (conditions may vary) |
| USB Charging Capacity | 1 Amp with 4 ft extension cord |
| USB File Format Compatibility | MP3 / WMA |
| USB Player Capacity | <32GB |
| Remote Out | <200 mA |
| RCA Line Out (Pre-Amp) | 1 pair (Left & Right) 2.5V |
Features
| Feature | Specification |
|---|---|
| Aux Line Input | 3.5mm Plug |
| Buttons / Controls (Unit) | Power / Source / Play / Pause / Next / Prev / Vol+ / Vol- / BT Pairing |
| Buttons / Controls (Microphone) | CB-style Talk On/Off / Mic Vol+ / Vol- |
| Illumination (Unit) | Blue Backlit |
| Body Material / Color / Finish (Unit) | ABS Black Housing / Rubber Buttons |
| Body Material / Color / Finish (Microphone) | ABS Black Housing / Rubber Buttons |
| Waterproof Rating | IP65 |
Measurements – Unit
| Feature | Specification |
|---|---|
| Overall Diameter | 3.7″ / 96 mm |
| Overall Depth | 2.44″ / 62 mm |
| Mounting Depth | 1.85″ / 47 mm |
| Mounting Hole Size | 2.87″ / 73 mm |
Measurements – Microphone
| Feature | Specification |
|---|---|
| Overall Width | 2.6″ / 66.6 mm |
| Overall Height | 4.3″ / 110 mm |
| Overall Depth | 1.2″ / 31.3 mm |
| Overall Depth (with Clamp) | 1.5″ / 40.5 mm |
Shipping Info
| Feature | Specification |
|---|---|
| Gross Single Unit Weight | 1.5 lbs |
| Single Unit Box Dimensions (W × L × H) | 6.75 × 6.75 × 5.25 in |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight | 19.5 lbs |
| Master Carton Dimensions (W × L × H) | 14.25 × 14.25 × 16.5 in |
Product Overview

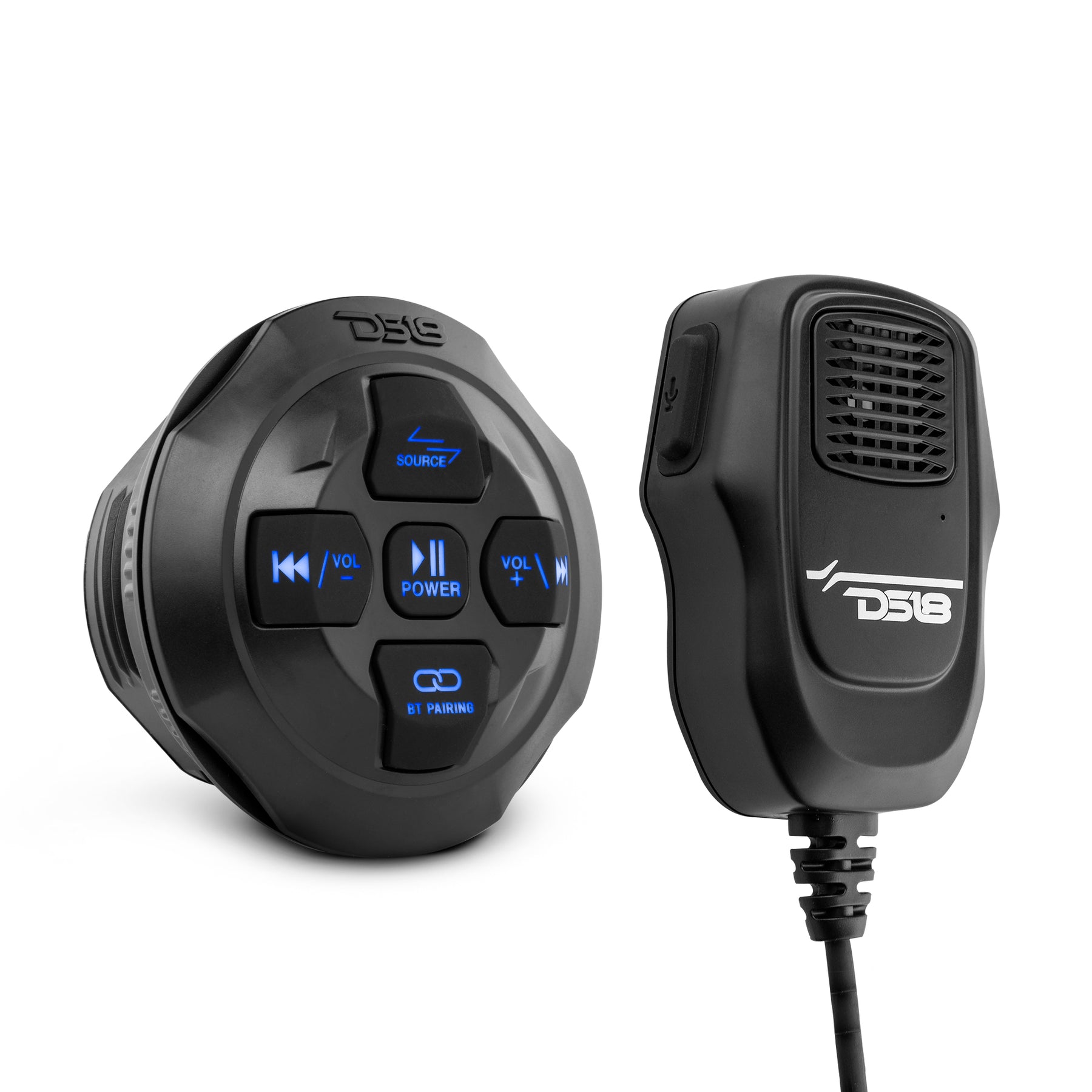

Waterproof Bluetooth Audio Streamer With Controls and Handheld Microphone
Take your marine audio experience to the next level with DS18’s BTRCRMIC – an audio streamer designed to provide crystal-clear sound, no matter what the weather conditions may be!

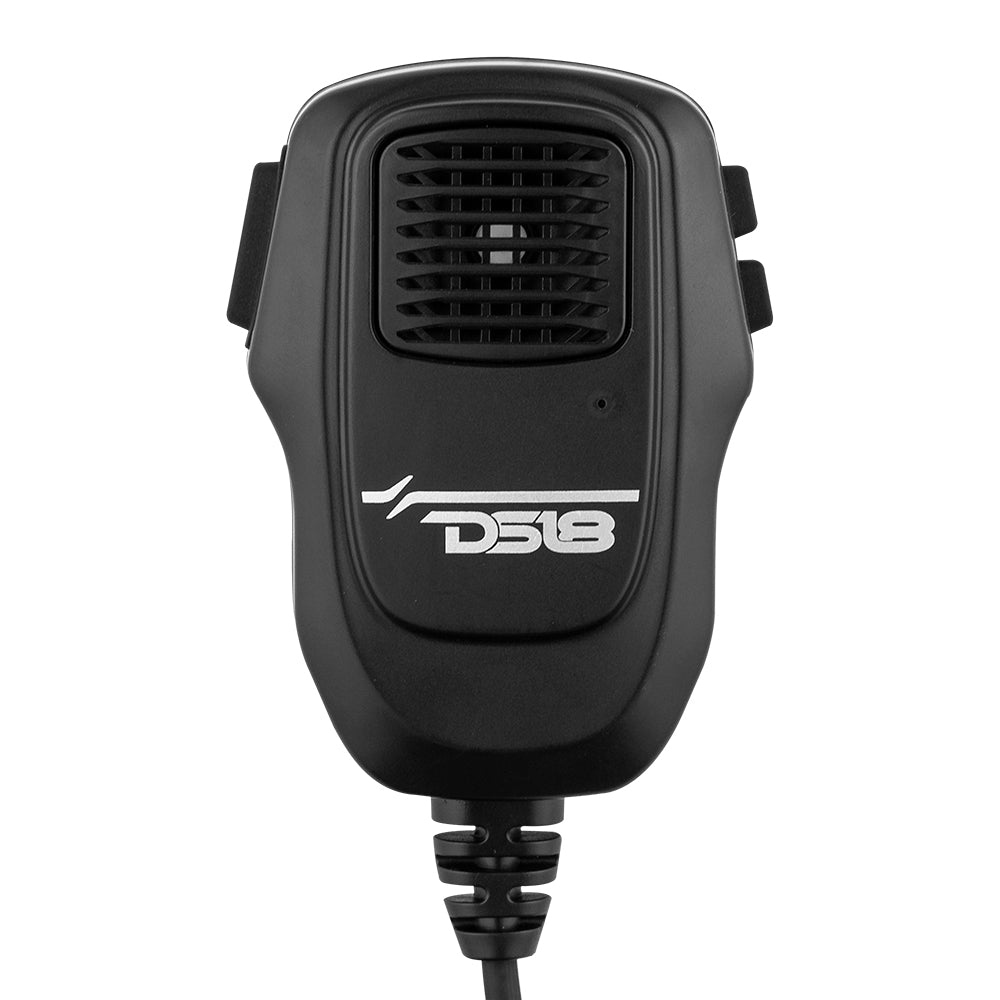

Featuring a CB radio style microphone with controls, the BTRCRMIC allows you to communicate through your audio system. The CB Radio Style Mic is plugged in via the included quick-detach cable. While using the mix, you can control your background audio’s volume with a few easy clicks. The red LED on the microphone also aids in understanding the available functions.

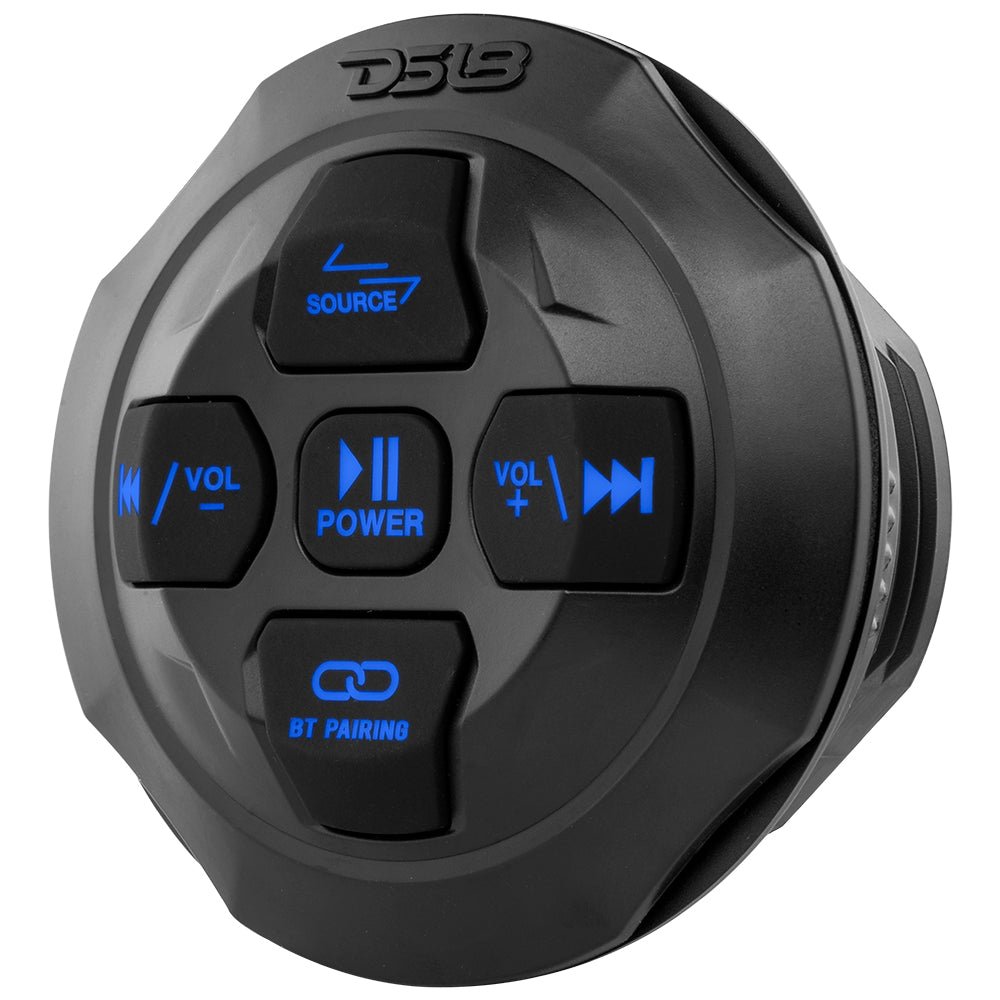

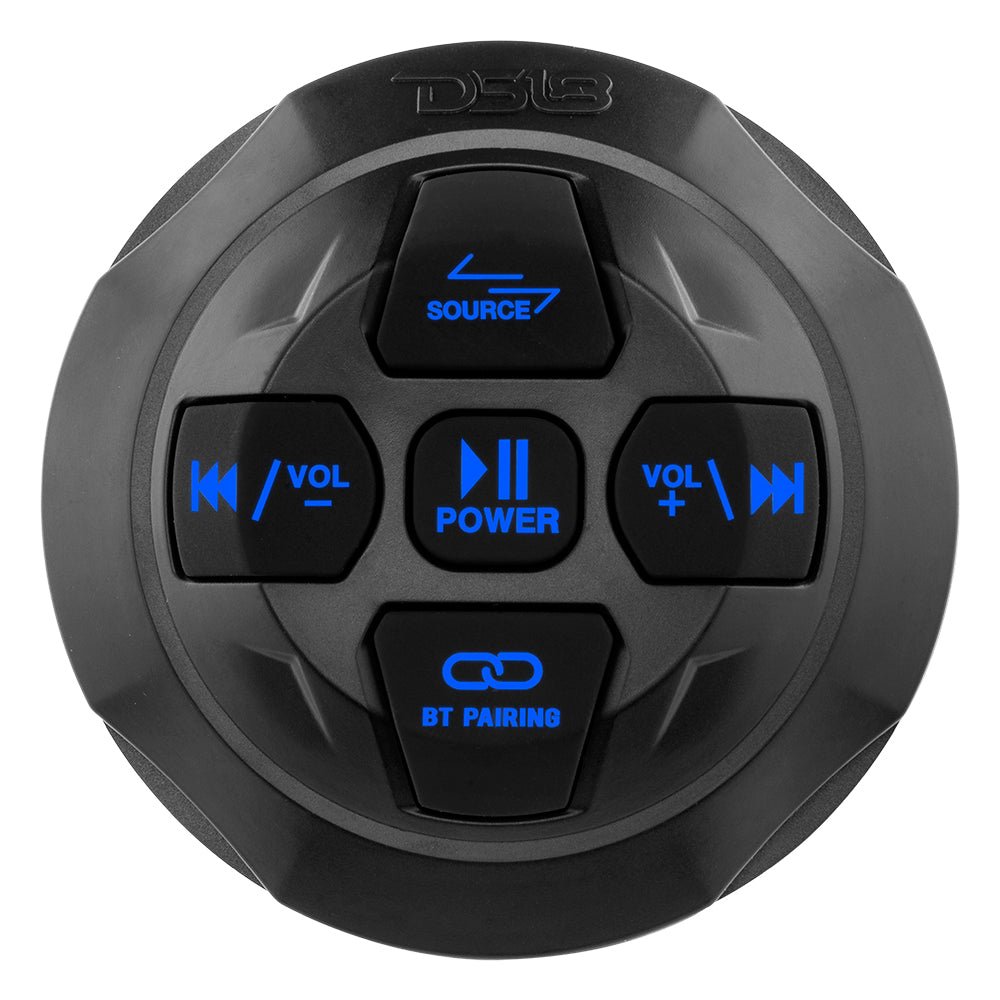

The BTRCRMIC’s easy-to-use blue back-lit silicon buttons make it effortless to operate. It’s also built with a wireless BT audio receiver with BT 5.0v for long-range streaming up to 130ft*, allowing you to listen to your favorite tunes with ease. DS18’s BTRCRMIC also comes with a stereo 2.5v pre-out RCA, remote output to control external amplifier, and can be used as a stand-alone source unit/receiver.

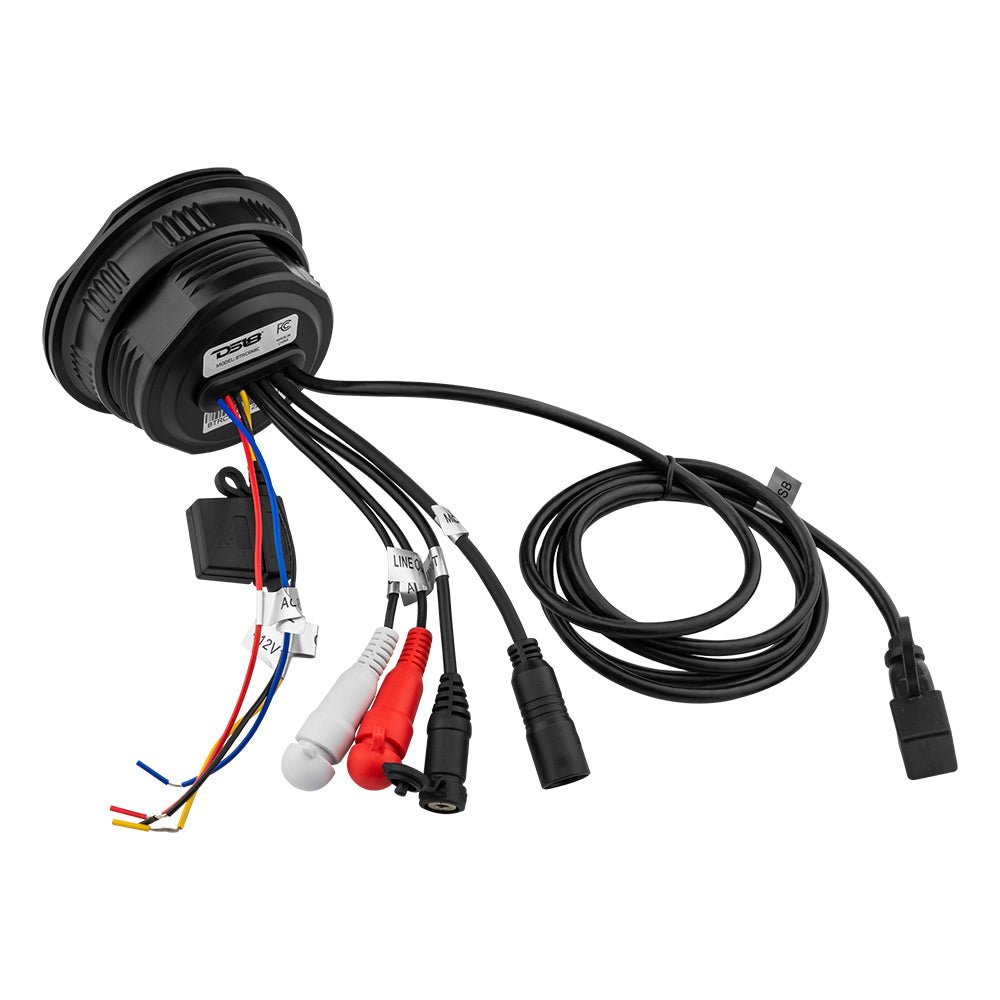

Its USB port for music and charging (1A), an aux audio input using a 3.5mm jack, mic/handset controller input, RCA line output for external amplifier, and remote output for external amplifier, makes this product applicable in any build.
The integrated power wiring harness ensures that your device is always protected with overload and power protection circuitry, while the IP65 water resistance rating ensures that your device is protected from water damage, making it perfect for all elements.
Whether you’re cruising on the open road or exploring the open sea, DS18’s BTRCRMIC has got you covered!
