Description
DS18 8XL800-4RCK
The DS18 8XL800‑4RCK is an 8″ mid‑range loudspeaker from DS18’s XL Series, engineered to deliver powerful, clear sound for car audio and professional sound systems. It handles up to 400 W RMS and 800 W maximum power, allowing it to play louder with minimal distortion, while its 96 dB sensitivity ensures efficient performance even at lower power levels. With a 4 ohm impedance and a frequency response range of approximately 55 Hz to 12 kHz, the 8XL800‑4RCK covers a wide audio spectrum from low mids to highs. Constructed with a 2″ voice coil, aluminum basket, and ferrite magnet, this speaker is designed for durability, stable performance, and effective heat dissipation during long listening sessions. Ideal for mid‑range upgrades in car audio setups, it enhances clarity and depth in vocals and instruments.
Specifications
| Specification | Details |
|---|---|
| SKU | 8XL800-4RCK |
| Compatibility | DS18 8XL800-4; also fits 8” Mid-Range baskets |
| Voice Coil Diameter | 2″ / 50.8 mm |
| Impedance | 4 Ohms |
| Installation | Easy drop-in design; requires CA Glue and E6000 glue for secure attachment |
| Construction | Heat-treated high-temperature coil for enhanced durability and performance |
Product Overview

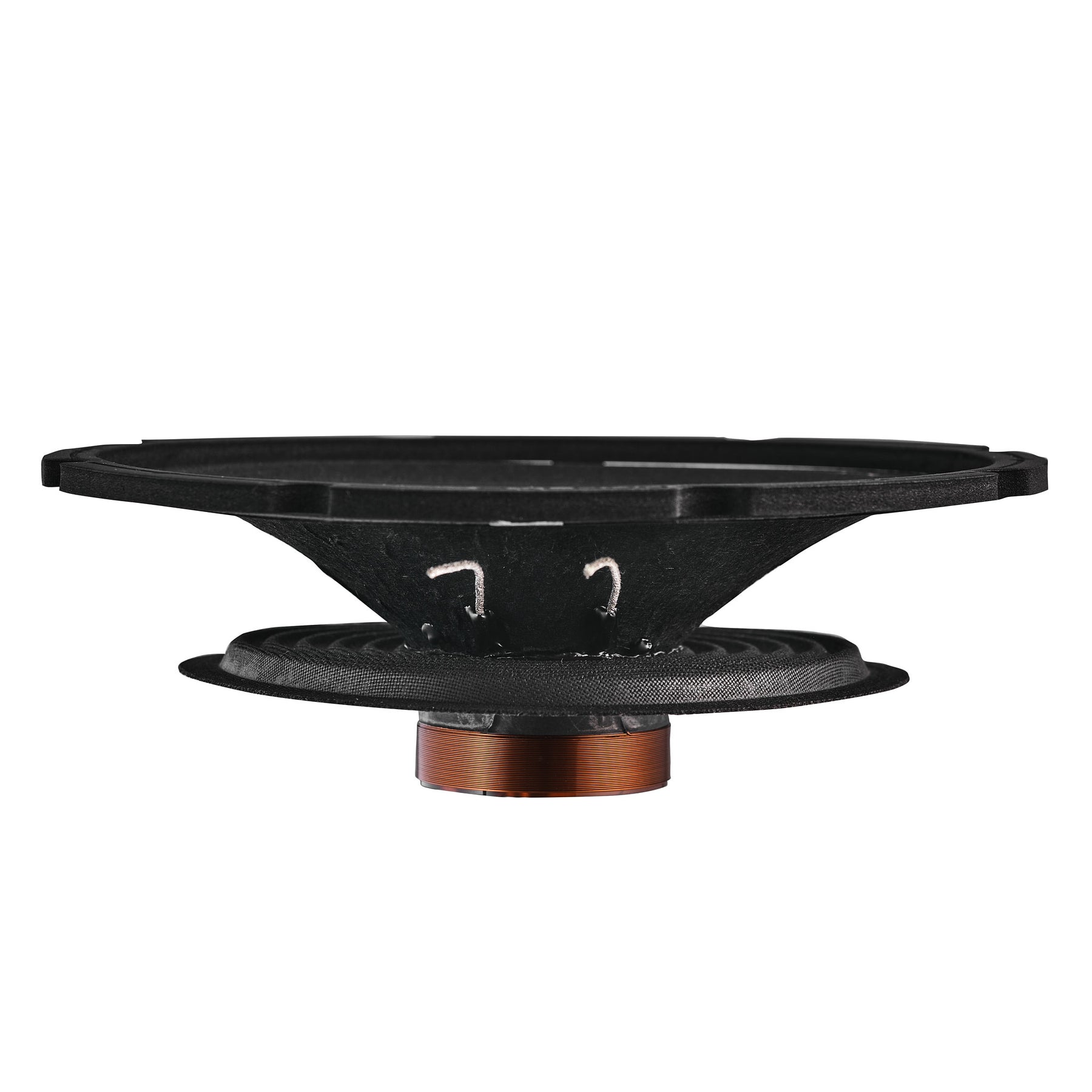

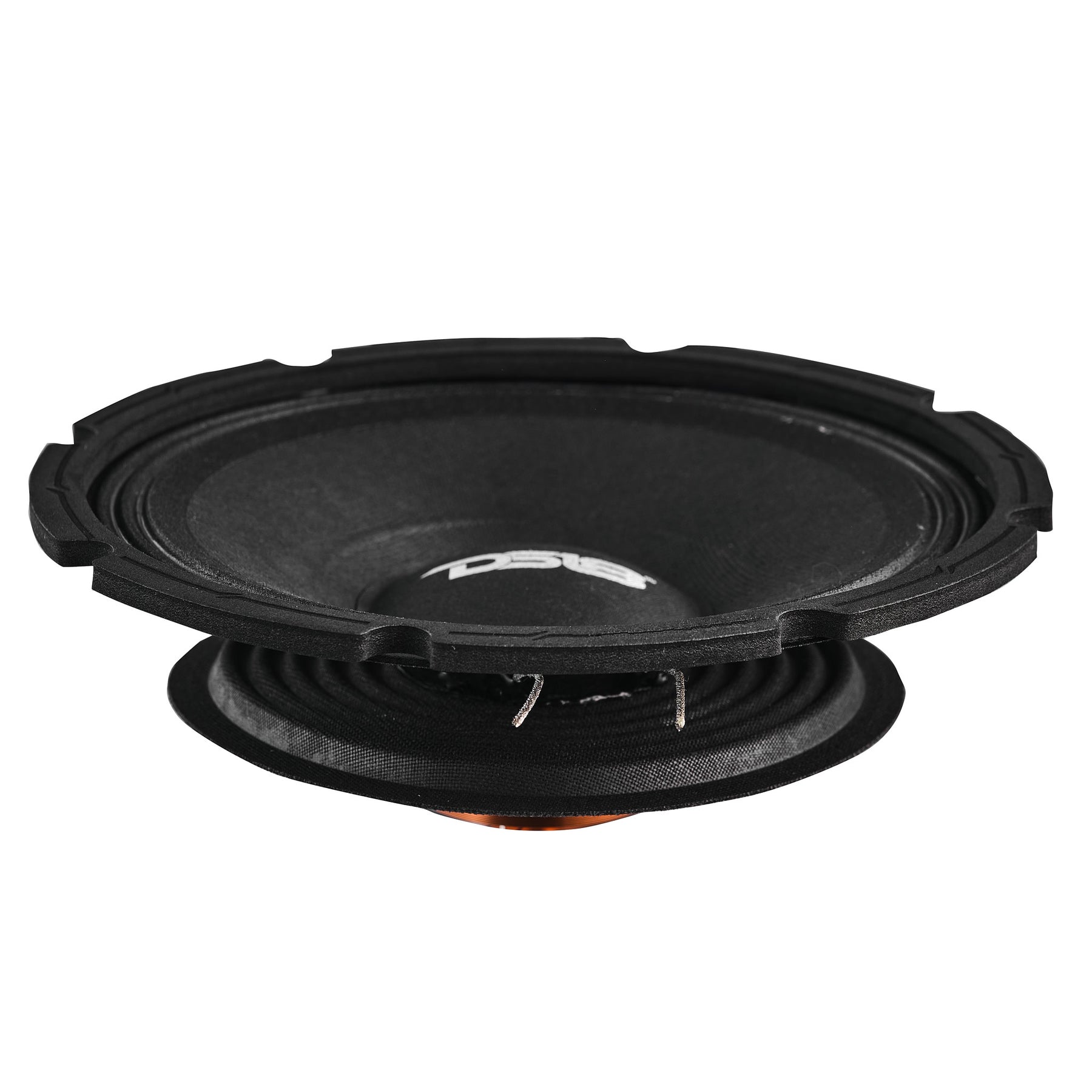

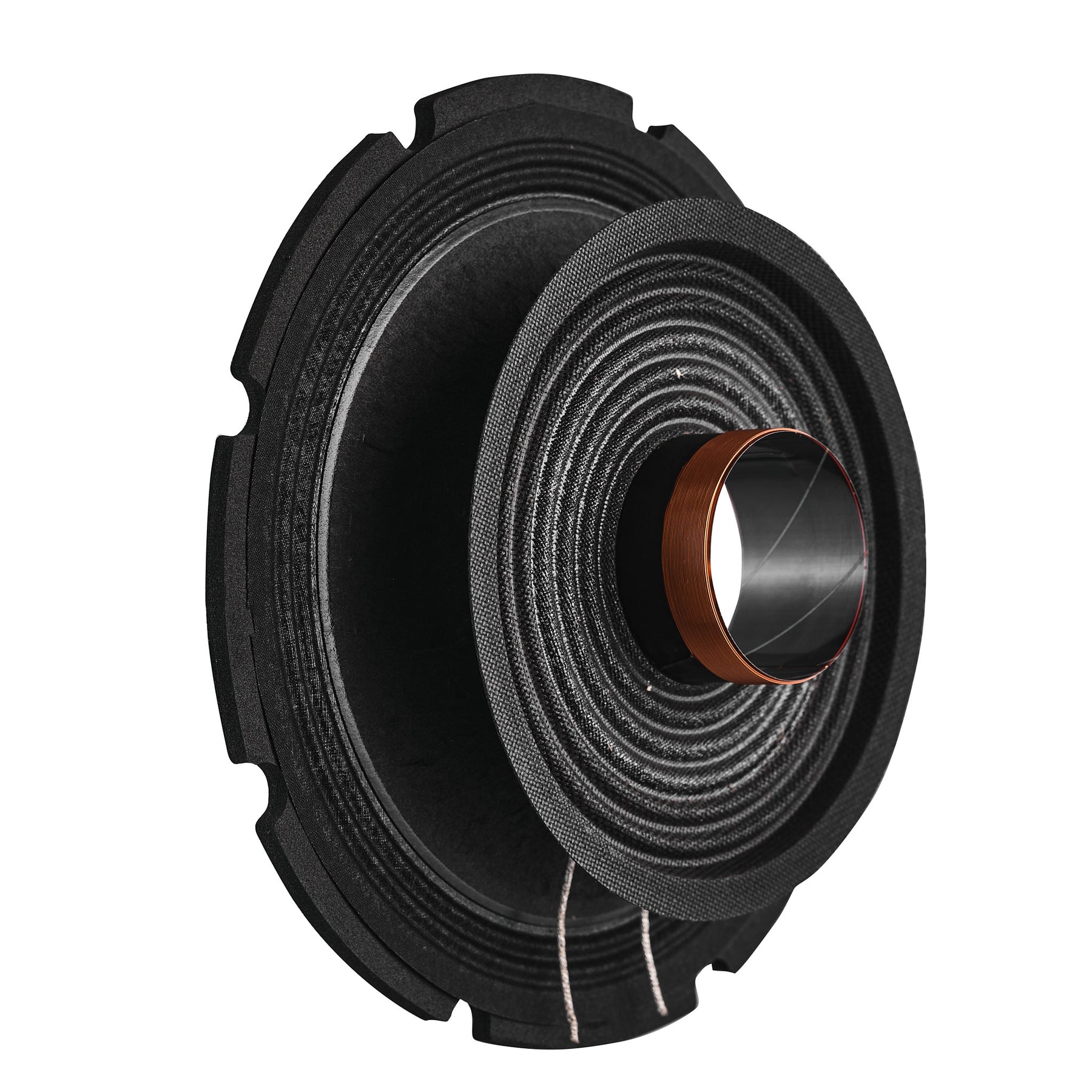

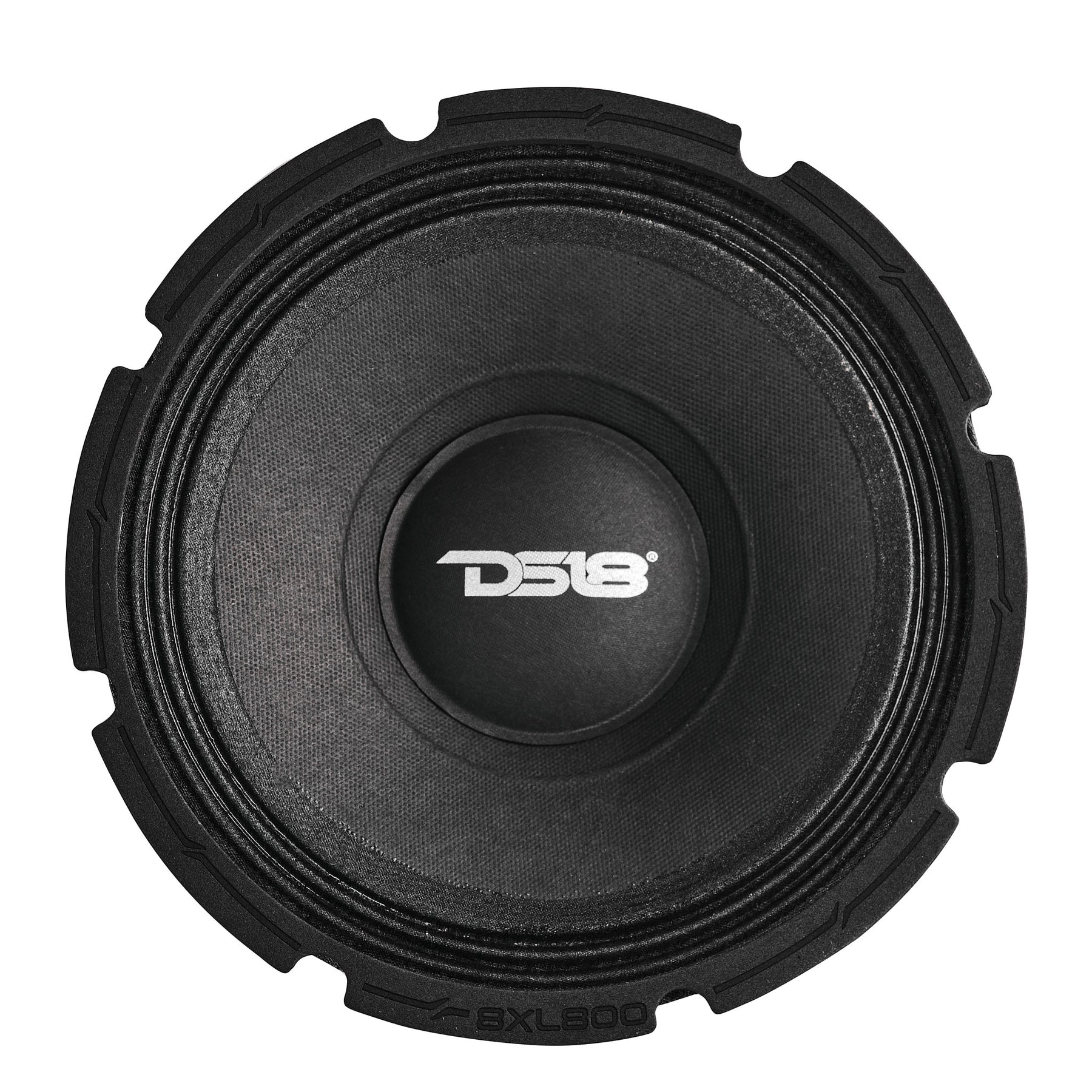

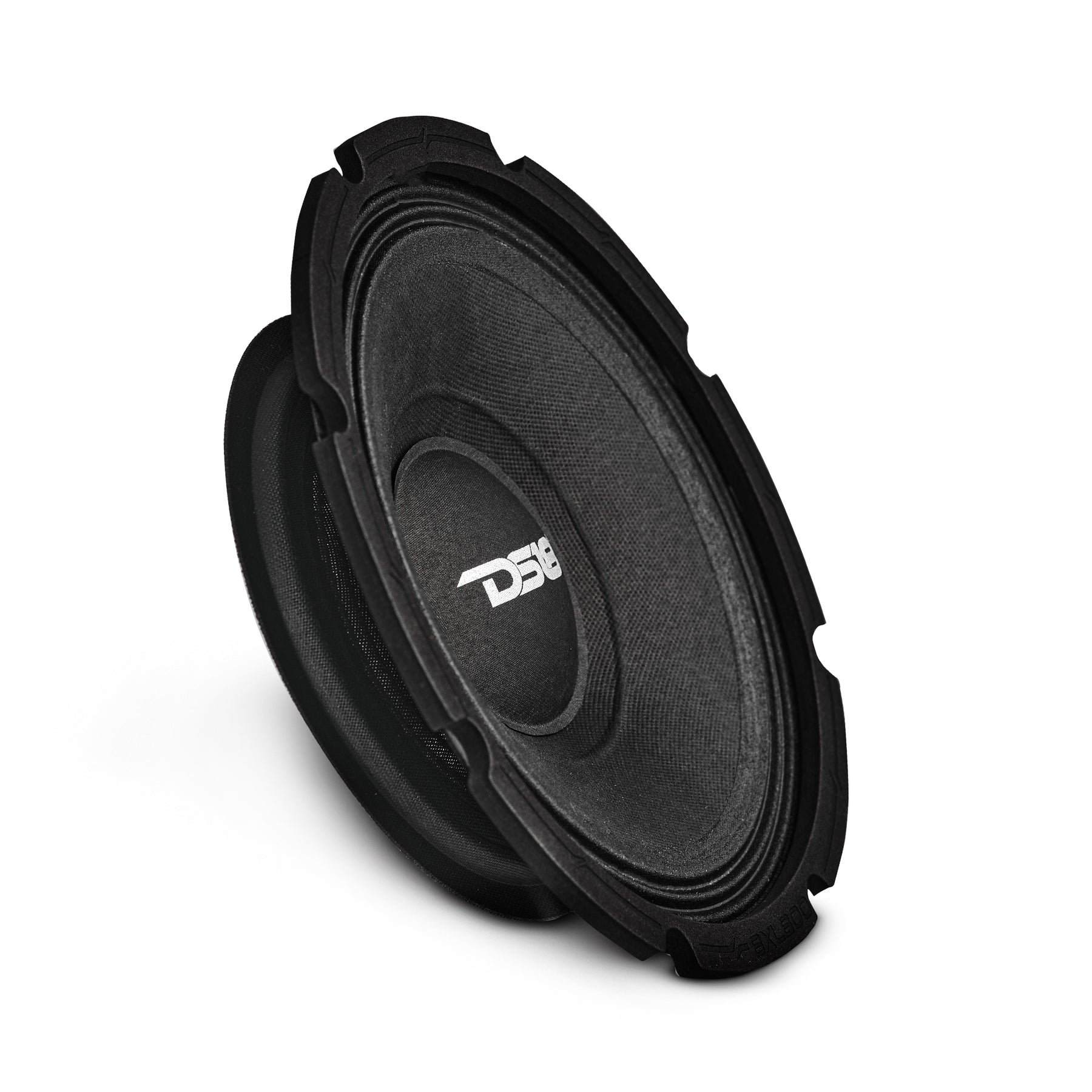

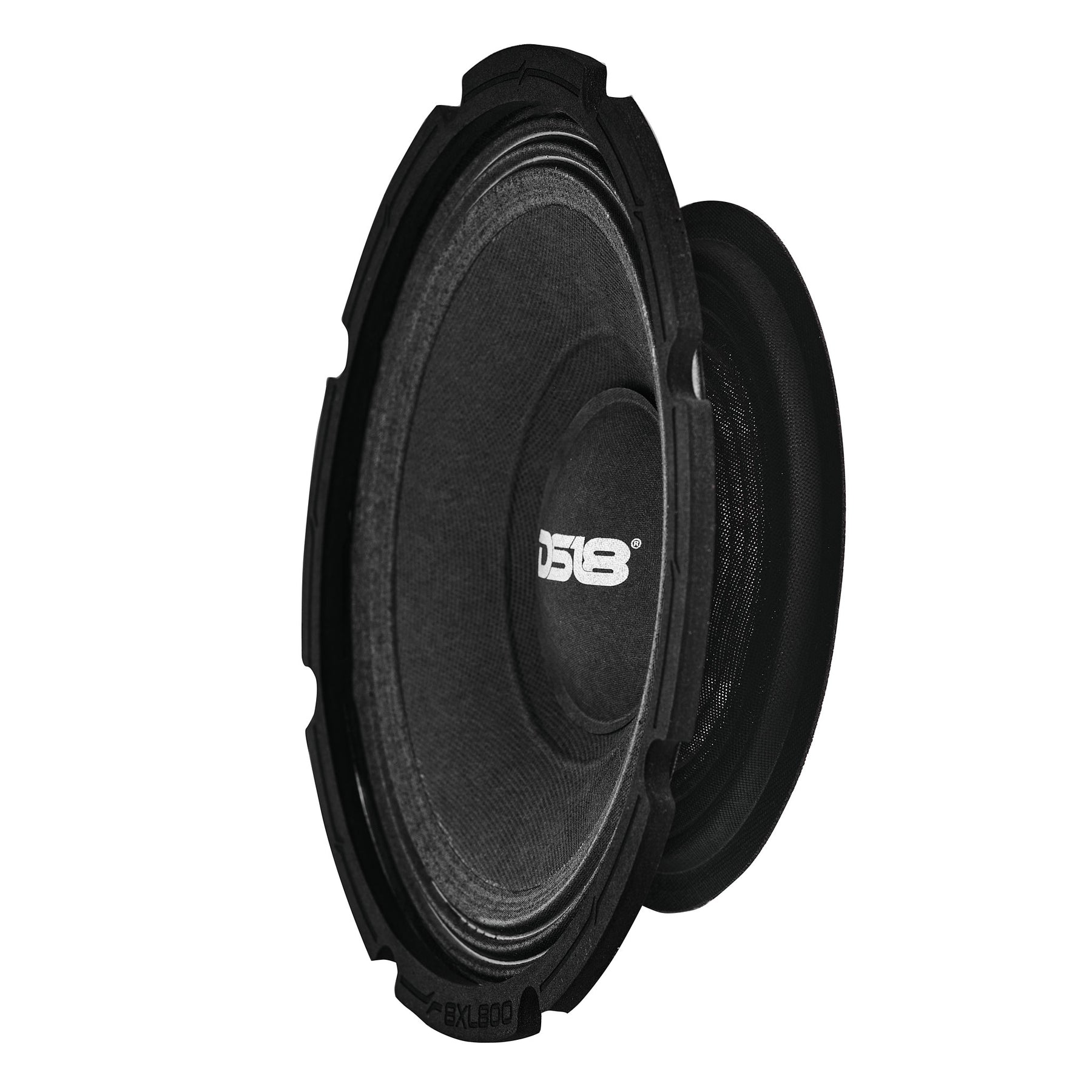

DS18 8XL800-4RCK
Bring some accuracy back to your mid-range with the 8XL800-4RCK.
This 4-ohm drop-in recone kit is designed for easy installation. With a heat-treated high temperature coil, it perfectly fits into your 8” Mid-Range’s basket and motor.
Simply use CA Glue and E6000 glue to firmly attach the replacement parts to the old baskets and magnets.
