Pioneer DMH‑WT86NEX/B

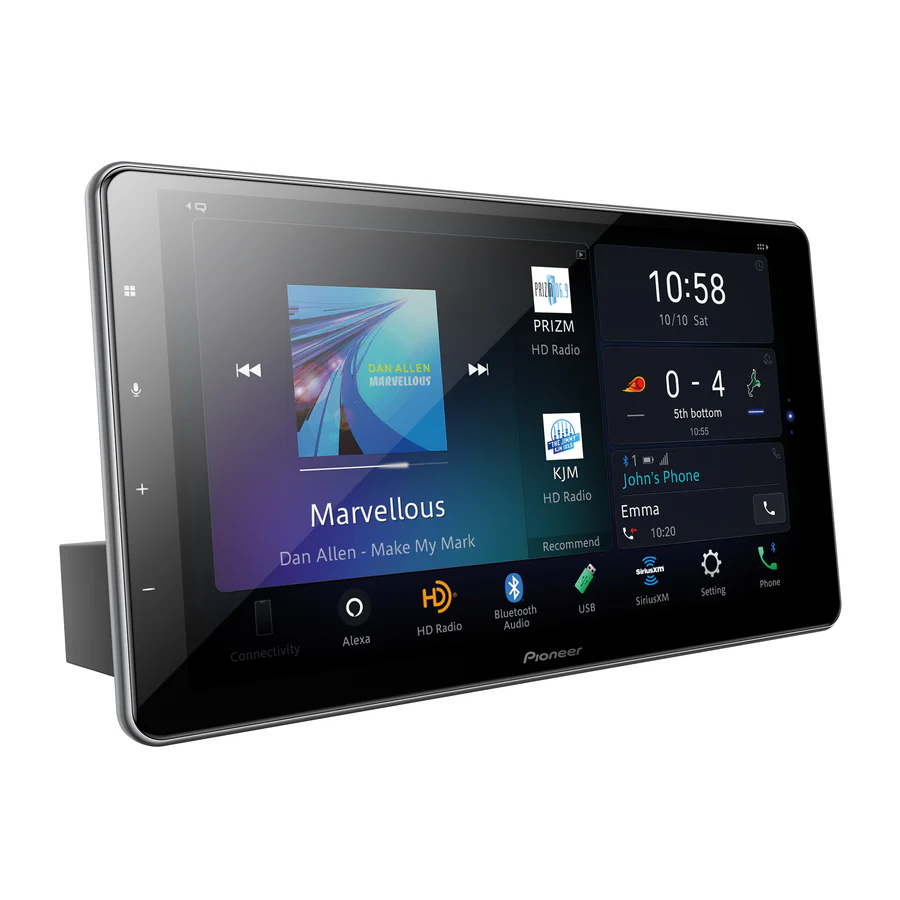

The Pioneer DMH‑WT86NEX/B is a high‑end digital multimedia receiver featuring a 10.1″ adjustable floating capacitive HD display mounted on a standard single‑DIN chassis. It supports both wireless and wired Apple CarPlay® and Android Auto™ integration, built‑in WiFi® and Bluetooth® for connectivity including hands‑free calling and music streaming. On the audio side it supports high‑resolution formats (FLAC/DSD), has multiple RCA pre‑outs for system expansion, a built‑in MOSFET amplifier, and various camera and HDMI inputs for full vehicle‑AV configuration.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 4V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Specification | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Optional |
| Steering Wheel Control Ready (Adapter Sold Separately) | Yes |
DISPLAY
| Specification | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 display colors, 112 key colors |
| Device (Non-DIN/Modular Unit) | 1-DIN, Floating |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Adjustable, Floating |
| Resolution | HD (1280 x 720) |
| Screen Size/Aspect Ratio | 10.1″/16:9 |
| Touch Screen | Capacitive |
BLUETOOTH
| Specification | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | True |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
TUNER
| Specification | Details |
|---|---|
| Best Station Memory | Yes |
| HD Radio™ | Built In, Artist Experience, Multicasting |
| Hybrid Radio | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) | Yes |
INTEGRATION
| Specification | Details |
|---|---|
| Amazon Alexa | Built In |
| Android Auto™ | Wireless or Wired USB Connection |
| Apple® CarPlay | Wireless or Wired USB Connection |
| CarAVassist | Yes |
| Mobile Operating System | Android, Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | With Apple CarPlay or Android Auto |
| Pioneer App Compatibility | CarAVAssist Android, CarAVAssist iPhone |
| Siri® Eyes Free (VR) (Internet Required) | iPhone Only |
| Spotify | With Apple CarPlay or Android Auto |
| WiFi | Tethering, WiFi Hotspot |
DIGITAL MEDIA PLAYBACK
| Specification | Details |
|---|---|
| Audio Playback via USB | MP3, WMA, WAV (Hi-Res), AAC, FLAC (Hi-Res), DSD (Hi-Res) |
| Audio Video Playback via USB | .avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Specification | Details |
|---|---|
| Advanced Sound Retriever | Mode-1 / Mode-2 / Off |
| Audio Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF / Band Pass / LPF |
| Crossover Standard Mode | HPF / LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High / Mid / Low / Off |
| Speaker Output | 4-ch |
| Spectrum Analyzer | True |
| Subwoofer Control | Yes |
| Time Alignment | Manual |

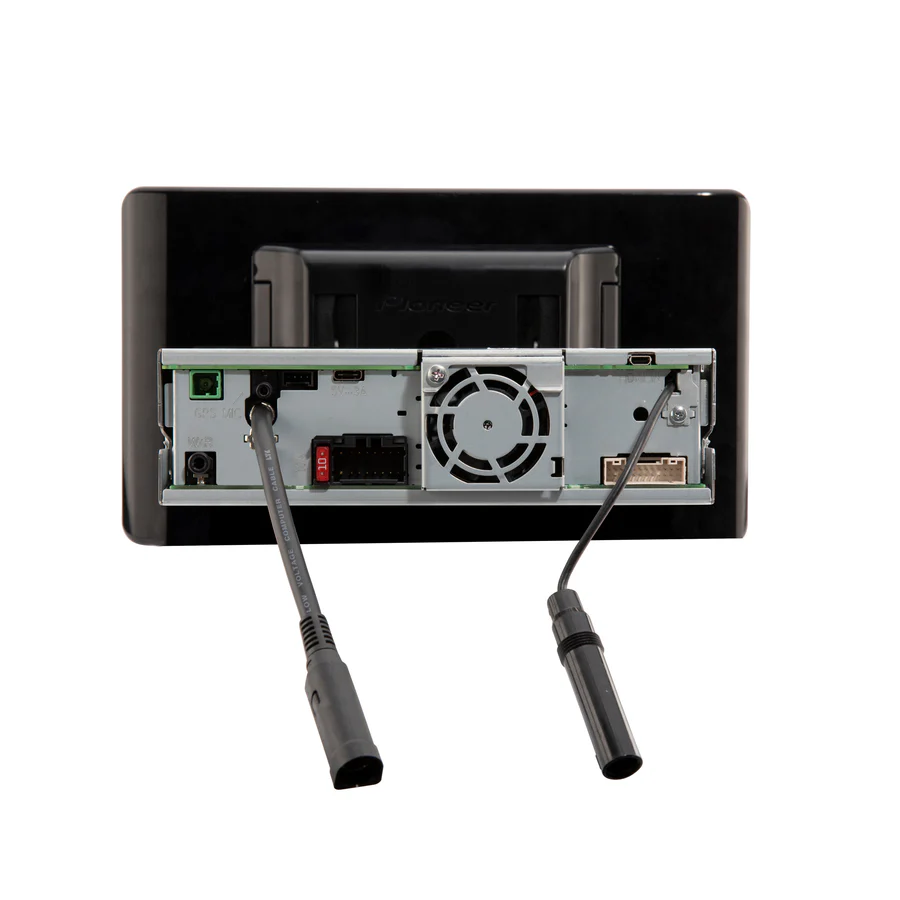

EXPANDABILITY
| Specification | Details |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack), Input 3 – A/V or 2nd Camera, Input 4 – HDMI Micro (Type D) |
| OEM Integration | iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess |
| OTA Update Compatible | Yes |
| Parking Assist Lines | Yes |
| RCA-Video Output | Yes |
| USB | Rear, Type-C (5 V, 3.0 Amp) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
This is a Pioneer Reconditioned product, including a 90-day limited warranty.
If you are looking for a large display for your vehicle’s dash, look no further. The DMH-WT8600NEX 10.1-inch display has the latest connectivity solutions designed especially for today’s smartphone-driven lifestyle. This receiver highlights a High Definition Capacitive floating touchscreen display attached to a 1-DIN Chassis, allowing installation flexibility to ensure the best fit and usability for your vehicle’s dash. Use your smartphone and the Pioneer CarAVAssist App to customize your receiver’s home screen, register your favorite sports teams to receive real-time game updates, and easily perform OTA Firmware updates. Features include built-in Bluetooth®, Amazon Alexa Built-in, Android™ Auto, Apple CarPlay®, Satellite Radio (SiriusXM-Ready™), and much more. The DMH-WT8600NEX has a built-in HD Radio™ for broadcasting in clear digital quality in addition to its 13-band graphic equalizer, rear “Micro USB” Type-C (5V 3.0A) input, and is equipped with two assignable camera inputs for your preferred camera views.
Apple CarPlay split-screen support
Control two apps simultaneously while using Apple CarPlay®, available on select large-screen receivers, including this NEX receiver.

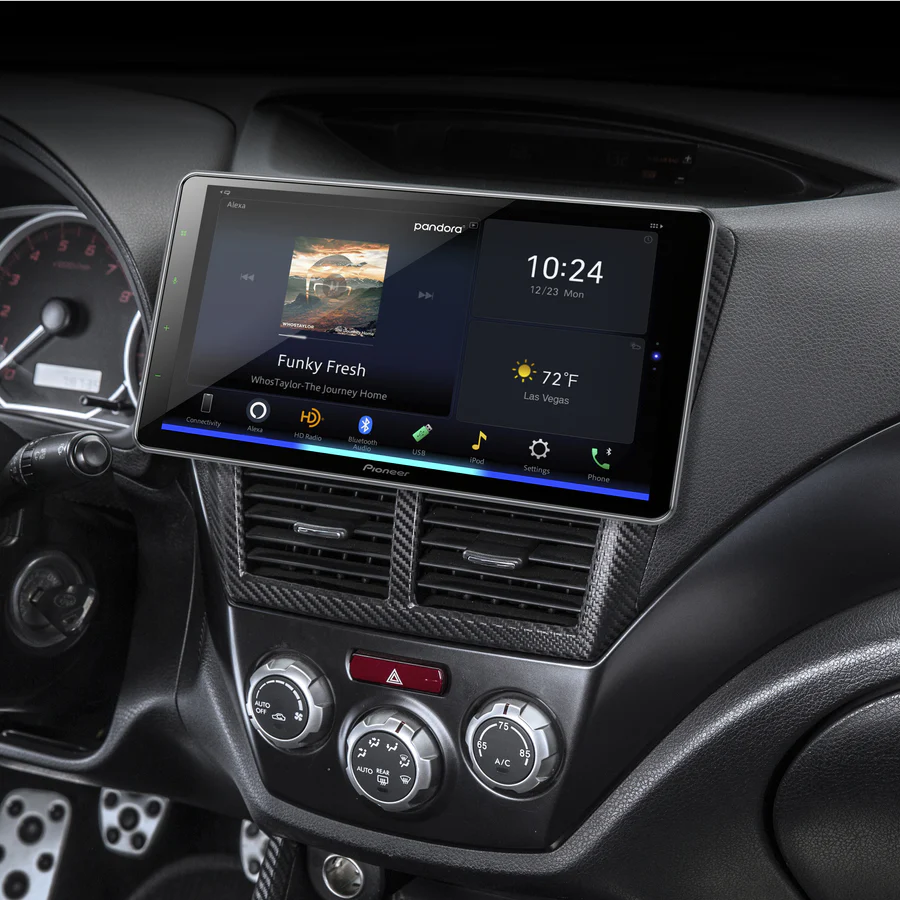

Floating display
The floating display configuration allows a large display to be installed using a universal 1-DIN chassis. The floating screen offers horizontal, vertical, and tilt adjustability to ensure the best fit and usability in the vehicle’s dash.
Wireless connectivity
This Pioneer receiver supports a cable-free connection between your smartphone using built-in WiFi® and built-in Bluetooth® for wireless connectivity. It is compatible with both Android Auto and Apple CarPlay. You have the choice of using it wirelessly or with a wired connection.

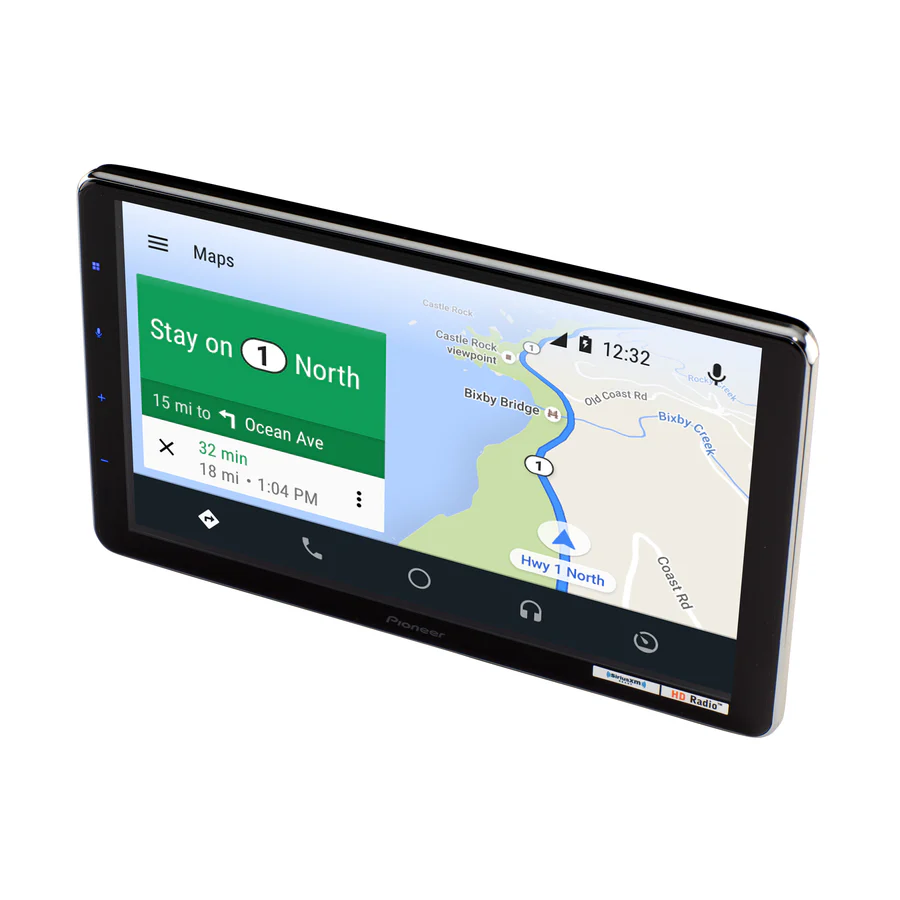

Android Auto
Extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. Designed to minimize distraction. Compatible with Android phones running Android 5.0 (Lollipop) or later. May not be available on all devices.
CarAV Assist
Compatible with the CarAVAssist App for home screen customization, bookmarking websites, registering sports teams for live updates, managing smartphone notifications, and performing OTA Firmware Updates.

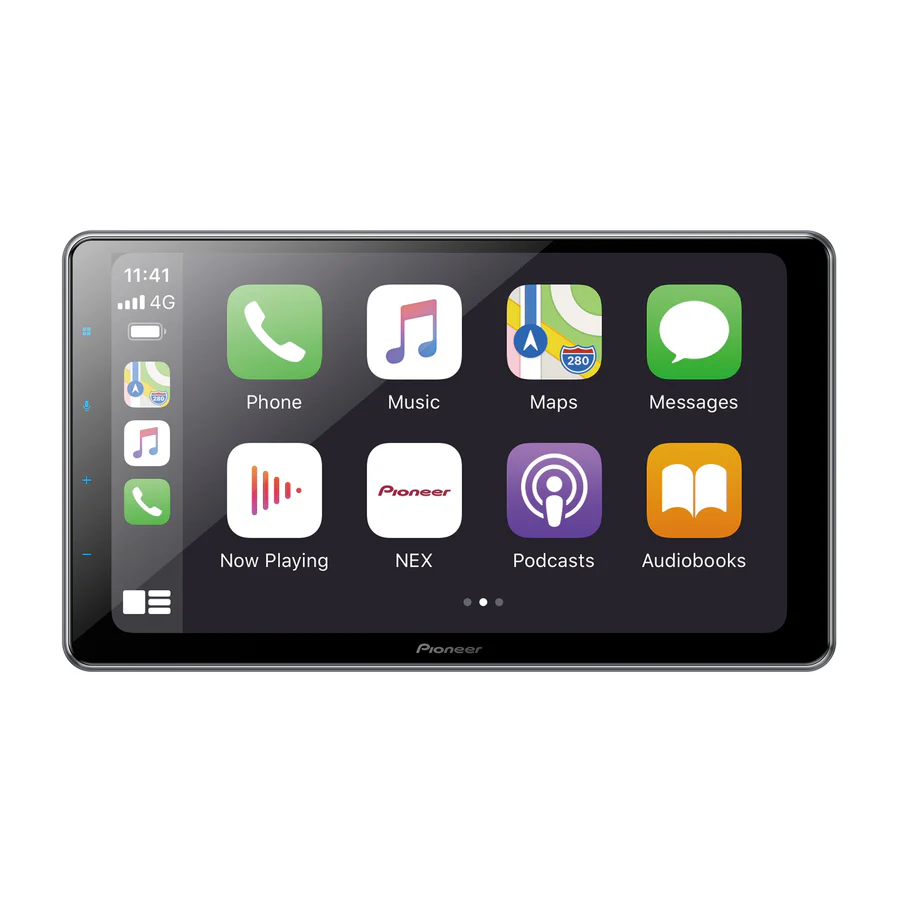

Apple CarPlay
An intuitive way to make calls, use Maps, listen to music, and verbally send and receive messages. Requires iPhone 5 or newer with the latest iOS.
HD Radio
Built-in HD Radio™ tuner provides clear digital-quality broadcasts. Includes extra local FM channels, stereo AM stations, song titles, album art, station info, and tagging new discoveries.
SiriusXM Ready
Over 140 channels including commercial-free music, sports, news, and entertainment. Requires SiriusXM SXV300 Tuner (sold separately) and subscription.
iDataLink Maestro (RR)
Maintains factory features and expands in-vehicle connectivity. Supports Steering Wheel Controls, Media Player (factory AUX/USB), Hands-Free Telephone, Voice Commands, Satellite Radio, and Secondary Display Support. Interface sold separately.
Alexa Built-in
Talk to Amazon Alexa directly through the receiver. Play music, hear news, check weather, control smart home devices, and more. Alexa updates automatically with new features.
Hi-res audio file playback via USB
Supports up to 5.6 MHz DSD files, and up to 192 kHz/24-bit WAV and FLAC files from an MSC-formatted USB device for true high-resolution audio playback.
Sound quality for all
Includes built-in EQ, Time Alignment, 13-Band Graphic Equalizer with swipe settings, and high/low pass crossover with adjustable points and slopes to tailor sound to your vehicle and listening preferences.
Back up camera input (2-camera)
Supports a rear-view camera, automatically switching to full-screen view when in reverse. Returns to last used source screen when out of reverse. Rear visibility systems required under federal regulations in certain vehicles.
Bluetooth
Hands-free phone calls and wireless music streaming. Includes an external microphone for crystal-clear sound.
