Description
Pioneer DMH‑WT7600NEX/B
The Pioneer DMH‑WT7600NEX/B is a high‑end floating‑screen digital multimedia receiver featuring a 9″ capacitive HD (1280×720) touchscreen while mounting on a single‑DIN chassis, offering expansive display real estate with flexible installation. It supports wireless and wired Apple CarPlay® and Android Auto™, built‑in WiFi and Bluetooth®, and voice‑control via Amazon Alexa® built‑in. On the audio side it offers high‑resolution audio playback (FLAC, WAV, DSD), six‑channel 4‑volt pre‑out expansion, dual camera inputs, micro‑HDMI and AV inputs, and advanced audio processing for premium car infotainment setups.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm 50 W x 2-ch 4 ohm 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 4V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Specification | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Included |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Specification | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 display colors, 112 key colors |
| Device (Non-DIN/Modular Unit) | 1-DIN, Floating |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Adjustable, Floating |
| Resolution | HD (1280 x 720) |
| Screen Size/Aspect Ratio | 9″ / 16:9 |
| Touch Screen | Capacitive |
BLUETOOTH
| Specification | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Specification | Details |
|---|---|
| Best Station Memory | Yes |
| HD Radio™ | Built In, Artist Experience, Multicasting |
| Hybrid Radio | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
| SiriusXM-Ready™ | Yes (Tuner Sold Separately) |
INTEGRATION
| Specification | Details |
|---|---|
| Amazon Alexa | Built In |
| Android Auto™ | Wireless or Wired USB Connection |
| Apple® CarPlay | Wireless or Wired USB Connection |
| CarAVassist | Yes |
| Mobile Operating System | Android, Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | With Apple CarPlay or Android Auto |
| Pioneer App Compatibility | CarAVAssist Android, CarAVAssist iPhone |
| Siri® Eyes Free (VR) | iPhone Only (Internet Required) |
| Spotify | With Apple CarPlay or Android Auto |
| Voice Control | Yes |
| Wifi | Tethering, WiFi Hotspot |
DIGITAL MEDIA PLAYBACK
| Specification | Details |
|---|---|
| Audio Playback via USB | MP3, WMA, WAV (Hi-Res), AAC, FLAC (Hi-Res), DSD (Hi-Res) |
| Audio Video Playback via USB | .avi, .mpg/.mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Specification | Details |
|---|---|
| Advanced Sound Retriever | Mode-1 / Mode-2 / Off |
| Audio Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF / Band Pass / LPF |
| Crossover Standard Mode | HPF / LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Dynamic Bass Enhancer | Off / Low / High |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High / Mid / Low / Off |
| Speaker Output | 4-ch |
| Spectrum Analyzer | True |
| Subwoofer Control | Yes |
| Time Alignment | Manual |
EXPANDABILITY
| Specification | Details |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack), Input 3 – A/V or 2nd Camera, Input 4 – HDMI Micro (Type D) |
| Firmware Upgradability | Yes |
| OEM Integration | iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess |
| OTA Update Compatible | Yes |
| Parking Assist Lines | Yes |
| RCA-Video-Output | Yes |
| USB | Rear, Type-C (5 V, 3.0 Amp) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
This is a Pioneer Reconditioned product, including a 90-day limited warranty. The Pioneer DMH-WT7600NEX digital multimedia receiver offers installation flexibility with its floating 9.0″ capacitive touchscreen HD display. It features the latest wireless connectivity solutions designed for today’s smartphone-driven lifestyle. Use your smartphone and the Pioneer CarAVAssist App to customize your receiver’s home screen, register your favorite sports teams to receive real-time game updates, and easily perform OTA firmware updates. Features include built-in Bluetooth®, Amazon Alexa, Android Auto™, Apple CarPlay®, SiriusXM-Ready™, and built-in HD Radio™.

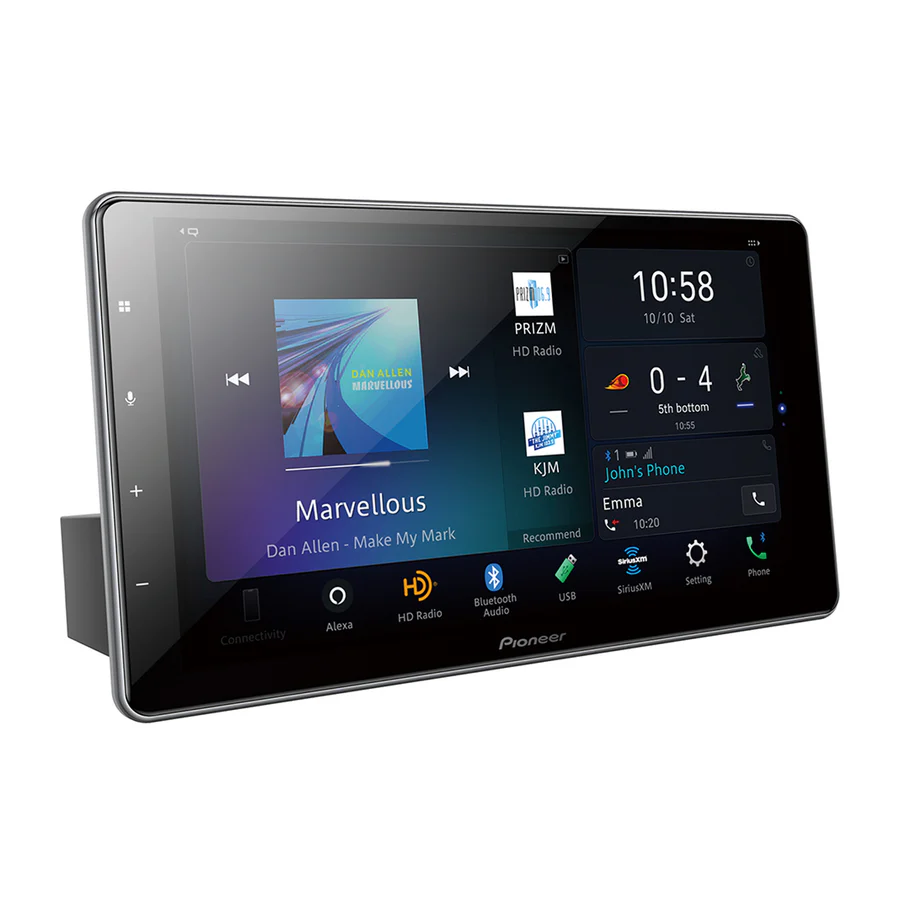

Floating Display
The floating display configuration allows a large display to be installed using a universal 1-DIN chassis. The floating screen offers horizontal, vertical, and tilt adjustability to ensure the best fit and usability in the vehicle’s dash.
HD Touchscreen
The large HD screen provides an expansive viewing experience, making map reading safer and easier. Using the highly responsive capacitive touch panel enables smoother and easier operation.
CarAVAssist
This in-dash receiver is compatible with the CarAVAssist App, which supports home screen customization and other functions. You can bookmark websites, register your favorite sports teams to receive real-time game updates, adjust notifications, customize your receiver’s home screen with your own background, and perform OTA firmware updates.
Wireless Connectivity
This Pioneer receiver supports cable-free connections between your smartphone using built-in WiFi® and Bluetooth®. It is compatible with both Android Auto and Apple CarPlay®, offering wireless or wired connection options.

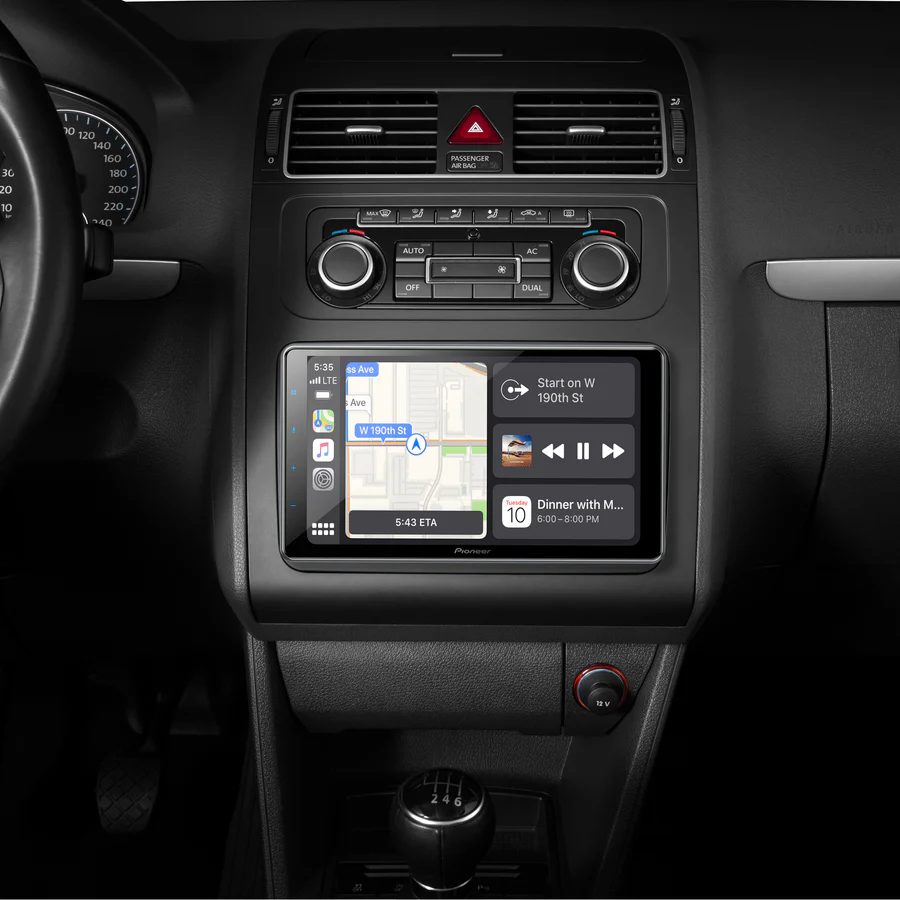

Apple CarPlay® (Wired & Wireless)
Apple CarPlay provides an intuitive way to make calls, use Maps, listen to music, and send messages via iPhone® (iPhone 5 or newer with latest iOS).
Apple CarPlay Split-Screen Support
Control two apps simultaneously while using Apple CarPlay® on select large-screen Pioneer receivers, including the NEX series.

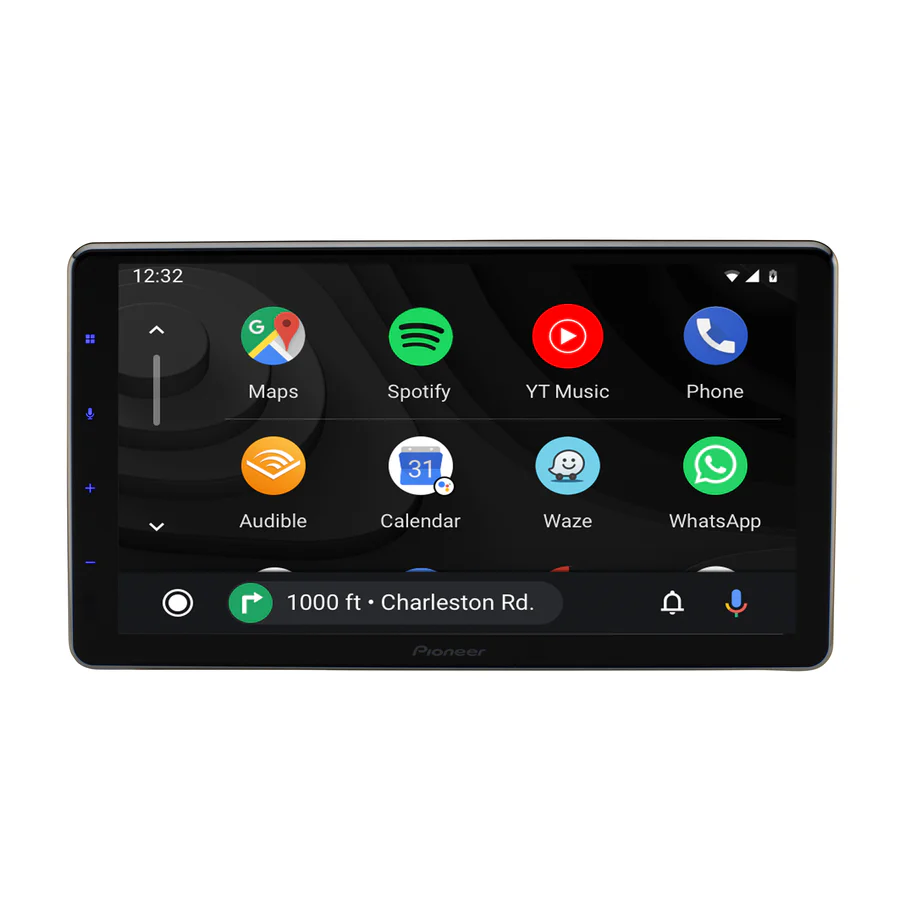

Android Auto™ (Wired & Wireless)
Android Auto extends Android into the car with useful information presented in simple cards, minimizing distractions. Compatible with Android 5.0 (Lollipop) or later.
Alexa Built-in
Talk to Amazon Alexa directly through the receiver. Ask to play music, check news, weather, control smart devices, and more. Alexa is cloud-based and continually updates with new capabilities.
Bluetooth
Hands-free phone calls are simple with the included external microphone. Stream music, podcasts, audiobooks, and more from Bluetooth®-enabled devices.
Siri® Eyes Free – Touchscreen
Touch the NEX touchscreen and Siri listens through the external microphone, responding over vehicle speakers to keep your eyes on the road.
HD Radio™
Enjoy digital-quality radio with extra FM channels, CD-quality sound, and information like song titles and album art, all subscription-free.
SiriusXM Ready
Access over 140 channels of music, sports, news, and entertainment via SiriusXM Connect Vehicle Tuner (sold separately, subscription required).
Backup Camera Input (2-Camera)
Install a rear-view camera to use the receiver’s parking guides, adjustable lines, and full-screen view for safer backing.
Wired Remote Input
Connect third-party interfaces (optional) to retain steering wheel control functionality.
iDataLink Maestro (RR & RR2)
Enhances the multimedia experience with gauges, vehicle info, parking assistance, climate control, and radar detection (sold separately).
Metra Axxess™ Compatible
AXPIO interface retains factory infotainment features such as steering wheel controls, R.A.P., and NAV outputs after head unit replacement (sold separately).
Hi-Res Audio Playback via USB
Supports DSD up to 5.6 MHz, and WAV/FLAC up to 192 kHz/24-bit for high-quality playback from USB devices.
FLAC Playback
Enjoy high-resolution FLAC files in your vehicle without conversion. Playback is delivered at CD quality.
Pioneer Advanced Sound Retriever (ASR)
Enhances playback of compressed audio files (MP3, streaming) by restoring lost detail, warmth, and clarity.
Flexible Audio Output Management
Standard (2-Way) or Network (3-Way) audio routing allows adjustments with low-pass, high-pass, and band-pass filters for precise sound control.
Audio Equalizer
The 13-band EQ allows detailed tuning for your car’s acoustics and speakers, with multiple presets for ease of use.
Time Alignment
Adjust speaker delay to correct phase mismatches from your listening position for an optimized audio experience.
