Description
Pioneer DMH‑160BT‑II

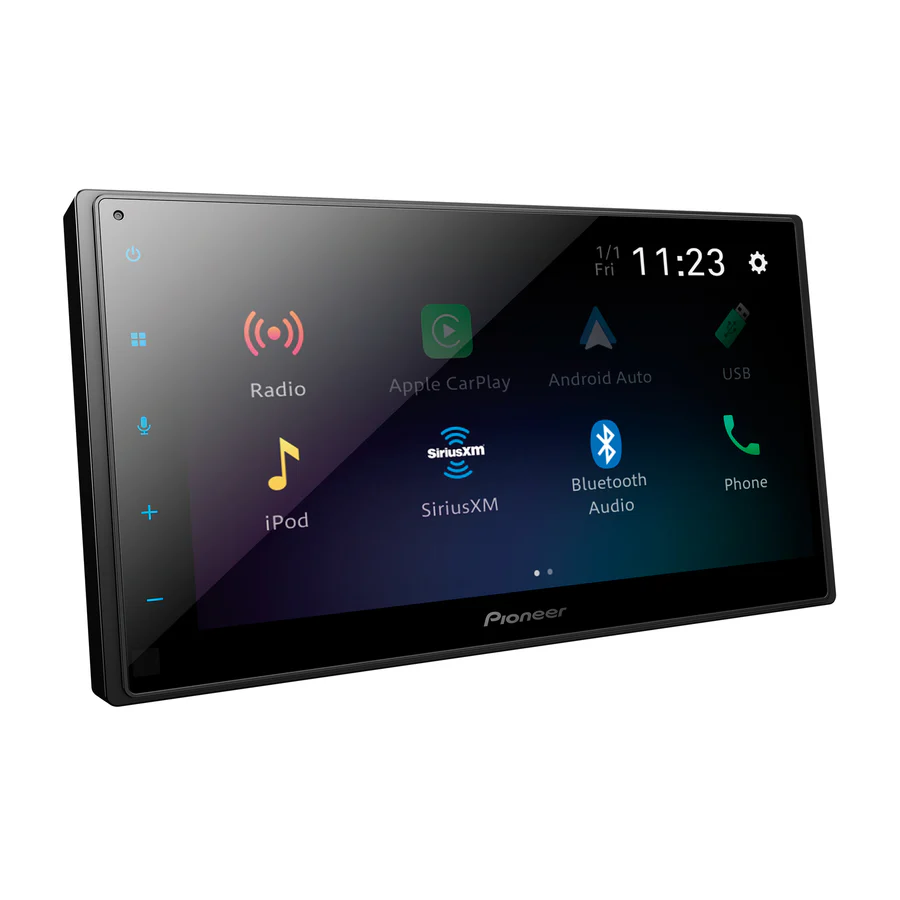

The Pioneer DMH‑160BT‑II is a 6.8″ digital‑media receiver in a double‑DIN chassis, delivering modern connectivity with built‑in Bluetooth for hands‑free calling and wireless music streaming. It supports both wired and wireless Apple CarPlay® and Android Auto™, USB input, rear‑view camera input, and is SiriusXM‑ready — making it a versatile upgrade for vehicle dashboards.
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 2V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Feature | Specification |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Optional |
| Steering Wheel Control Ready | Yes |
DISPLAY
| Feature | Specification |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 key colors |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.8″/16:9 |
| Touch Screen | Capacitive |
BLUETOOTH
| Feature | Specification |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | True |
| Microphone Included | Included |
| Phone Registration | 1-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Feature | Specification |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 12 AM |
| RDS | Yes |
| SiriusXM-Ready™ | Yes (Tuner Sold Separately) |
INTEGRATION
| Feature | Specification |
|---|---|
| Android Auto™ | Wired USB Connection |
| Apple® CarPlay | Wired USB Connection |
| Mirroring | USB – Android Phone Only |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | With Apple CarPlay or Android Auto |
| Siri® Eyes Free (VR) | iPhone Only |
| Spotify | With Apple CarPlay or Android Auto |
| Voice Control | Yes |
DIGITAL MEDIA PLAYBACK
| Feature | Specification |
|---|---|
| Audio Playback via USB | MP3, WMA, AAC, WAV (Hi-Res), FLAC (Hi-Res) |
| Audio Video Playback via USB | .avi, .mpg/.mpeg, .mp4, .3gp, .mkv, .mov, .flv, .wmv/.asf, .m4v, .ts, .m2ts, .mts |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Feature | Specification |
|---|---|
| Audio Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Feature | Specification |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| Firmware Upgradability | Yes |
| Parking Assist Lines | Yes |
| RCA Video Output | Yes |

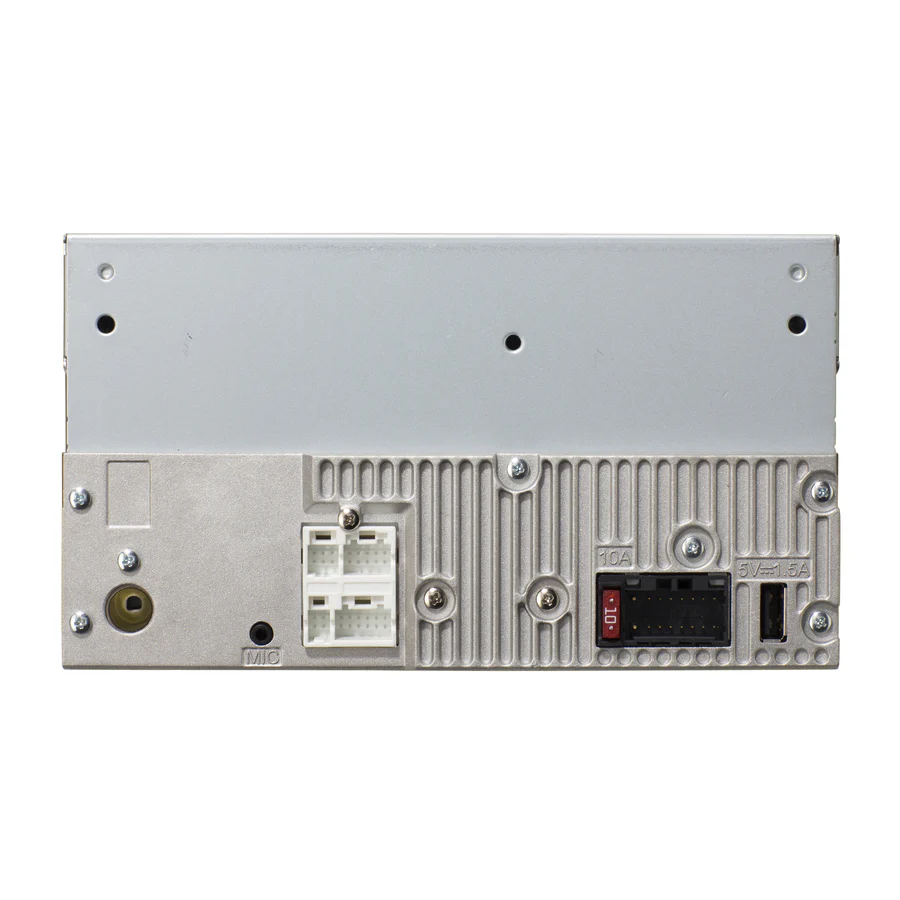

| USB | Single Rear Type-A (5 V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
The DMH-160BT-II is a 6.8″ digital media receiver designed for a connected and safe in-car experience. It supports Android Auto, Apple CarPlay, SiriusXM, and is back-up camera ready. Optional wireless remote control is available, and the receiver features built-in Bluetooth® for hands-free calling and audio streaming.
Android Auto

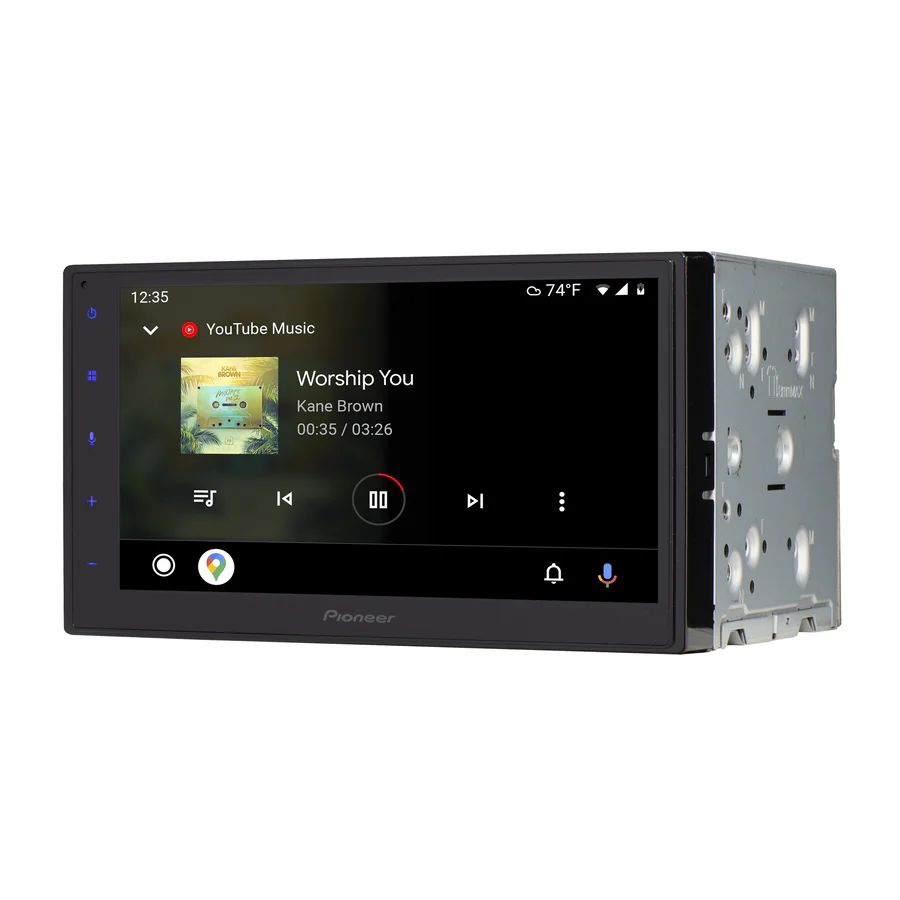

Android Auto brings the Android platform into your car in a way that minimizes distraction. It organizes information into simple cards, showing what’s needed when it’s needed. Compatible with Android 5.0 (Lollipop) or later.
Apple CarPlay

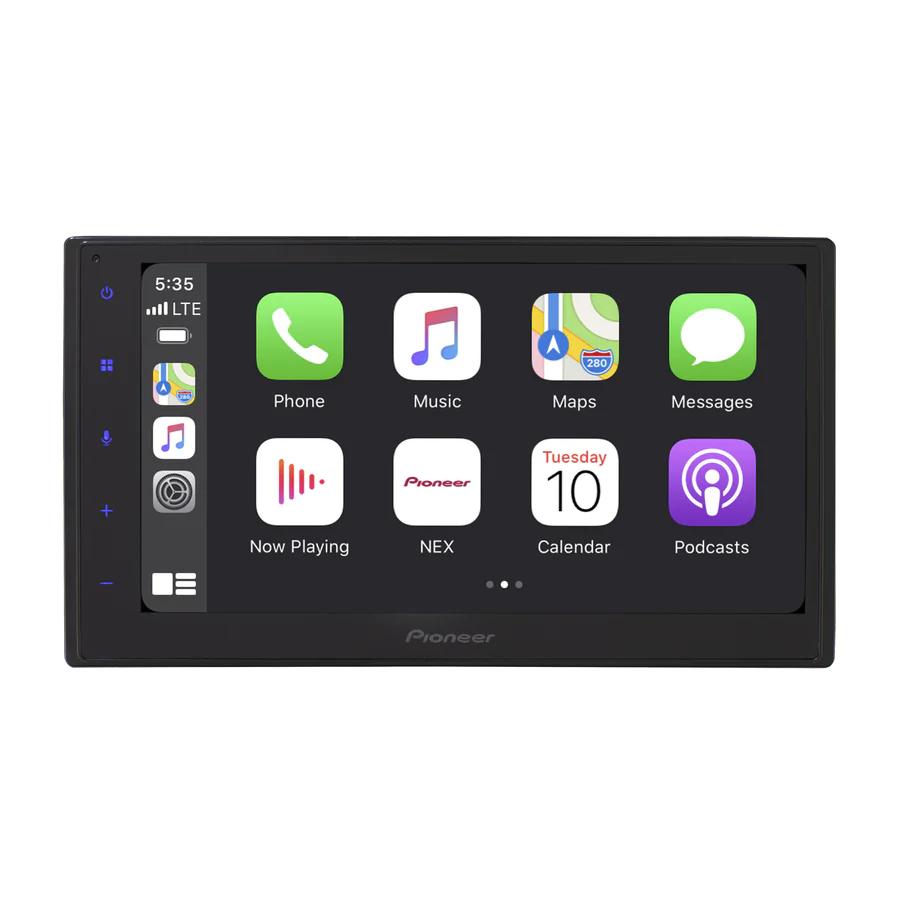

Apple CarPlay allows iPhone users to make calls, use Maps, listen to music, and send/receive messages safely via voice or touch. Requires iPhone 5 or newer with the latest iOS version.
Back-Up Camera Ready
Supports a single rear-view camera with adjustable parking lines and full-screen display, making parking easier and safer.
NEX Stay Connected
Connect your compatible iOS or Android smartphone to integrate apps, communicate via high-quality Bluetooth, and browse music on your device. Features include Wideband Speech support and AVRCP for smooth media control.
Sound Quality Features
Built-in 13-band graphic equalizer with touch panel swipe settings.
Time alignment for phase correction.
Built-in high/low pass crossovers with adjustable points and slopes.
Bluetooth
Hands-free calling with an included external microphone for clear sound. Stream music, podcasts, audiobooks, and more from compatible devices.
