Description

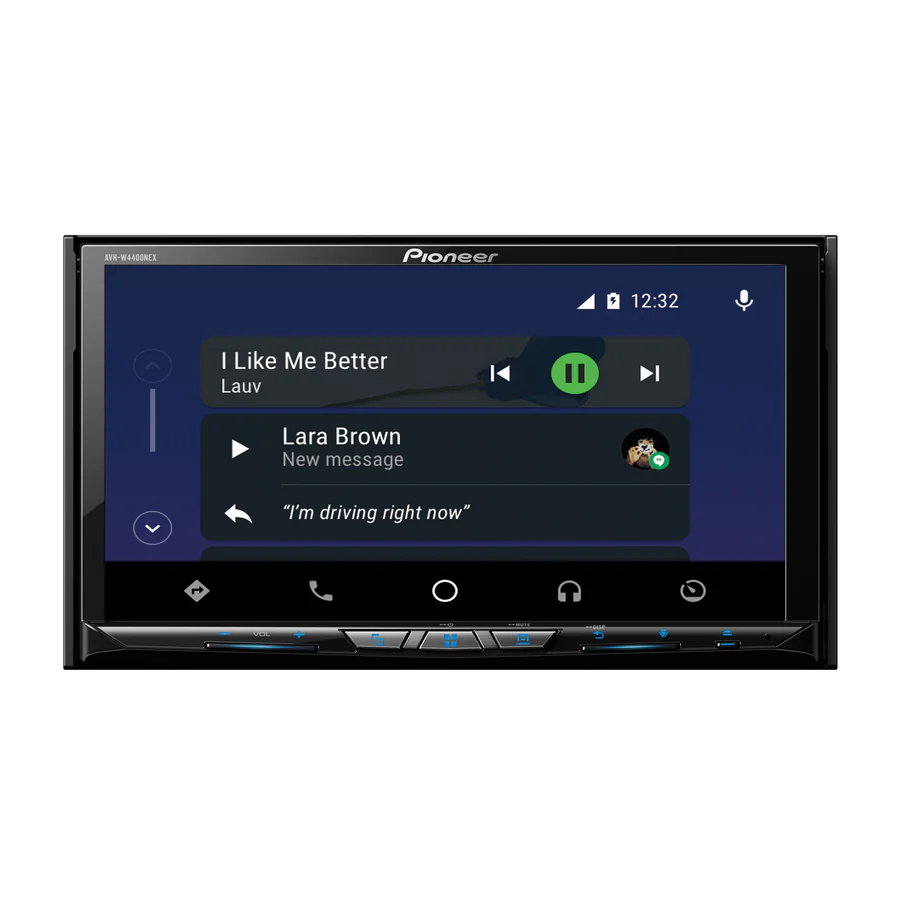

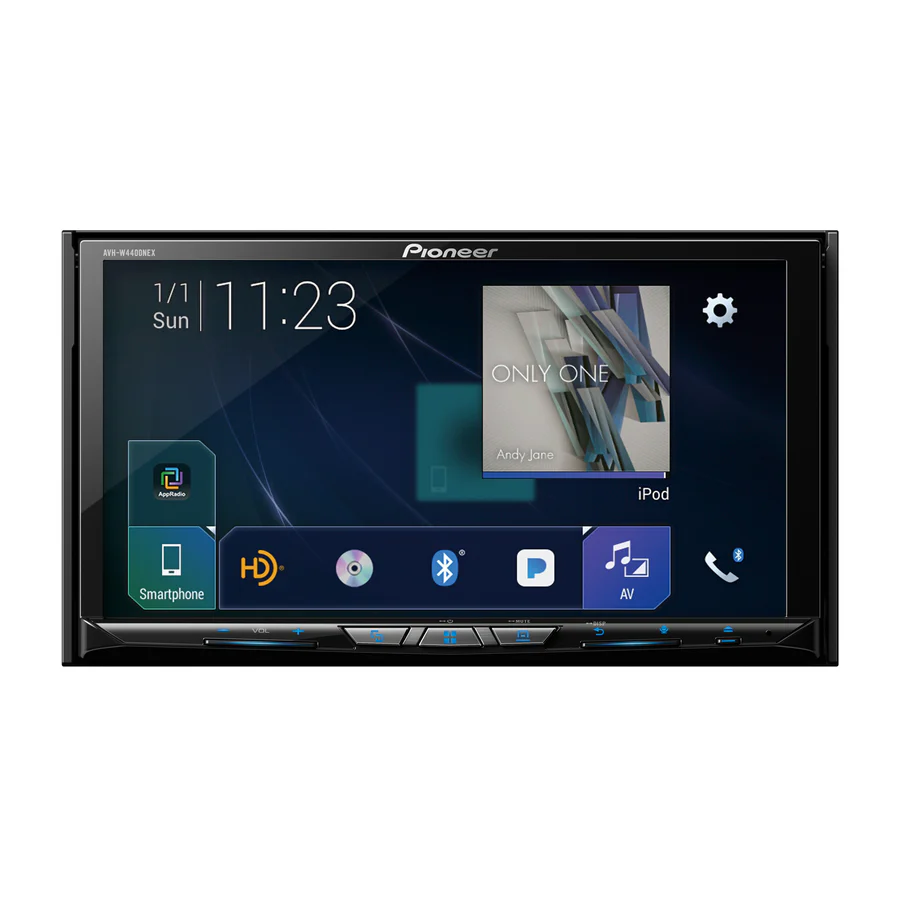

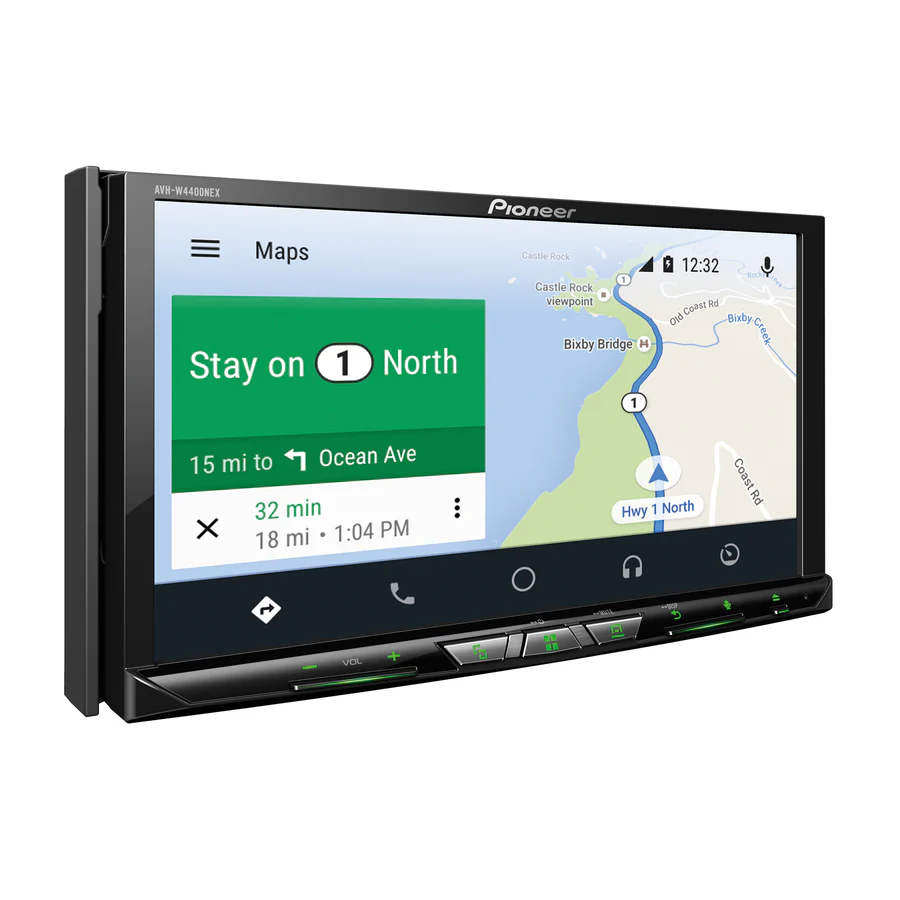

Pioneer AVH‑W4400NEX/B
The Pioneer AVH‑W4400NEX/B is a high‑feature double‑DIN motorised multimedia receiver featuring a 7″ WVGA (800×480) clear resistive touchscreen display, built‑in WiFi for wireless integration, and support for both wireless and wired Apple CarPlay and wireless and wired Android Auto. It also offers built‑in Bluetooth for hands‑free calls and audio streaming, a built‑in HD Radio™ tuner, DVD/CD/SD/USB media playback (including FLAC high‑resolution audio), dual‑camera inputs, HDMI input, and 6‑channel (4 V) pre‑outs for expansive audio system integration.
Specifications
PRODUCT PERFORMANCE
| Feature | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 4V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Feature | Details |
|---|---|
| Detachable Face Security | Detachable |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | SD Card, USB1, USB2 |
| Remote Control | Included |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Feature | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 display colors, 112 key colors |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Motorized |
| Resolution | WVGA (800 x 480) |
| Screen Size / Aspect Ratio | 7″ / 16:9 |
| Touch Screen | Resistive |
BLUETOOTH
| Feature | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | True |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Sound Retriever Air | Mode 1 / Mode 2 / Off |
TUNER
| Feature | Details |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) | Yes |
INTEGRATION
| Feature | Details |
|---|---|
| Android Auto™ | Wireless or Wired USB Connection |
| Apple® CarPlay | Wireless or Wired USB Connection |
| Mirroring | Miracast – Android Phones Only |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | Source through iPhone/Android |
| Siri® Eyes Free (VR) | iPhone Only |
| Spotify | With Apple CarPlay or Android Auto |
| Voice Control | Yes |
DIGITAL MEDIA PLAYBACK
| Feature | Details |
|---|---|
| Audio Playback via CD | MP3, WMA, AAC, CD Audio |
| Audio Playback via DVD | MP3, WMA, AAC |
| Audio Playback via SD | AAC, FLAC, MP3, WMA, WAV |
| Audio Playback via USB | AAC, FLAC (Hi-Res), MP3, WAV (Hi-Res), WMA |
| Audio Video Playback via CD-R/CD-RW | AVI, DivX, DVD |
| Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW | AVI, DivX, DVD |
| Audio Video Playback via SD | .f4V, .3gp, .avi, .flv, .mkv, .mov, .mp4, .mpg/.mpeg, .vob, .wmv/.asf, H.263, H.264 |
| Audio Video Playback via USB | .f4V, .3gp, .avi, .flv, .mkv, .mov, .mp4, .mpg/.mpeg, .vob, .wmv/.asf, H.263, H.264 |
| Image Display via SD | JPEG |
| Image Display via USB | JPEG |
AUDIO
| Feature | Details |
|---|---|
| Advanced Sound Retriever | Mode-1 / Mode-2 / Off |
| Audio Bass Boost | Yes |
| Auto EQ | Yes (CD-MC20 Microphone sold separately) |
| Automatic Level Control | Mode-1 / Mode-2 / Off |
| Auto Sound Levelizer (ASL) | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF / Band Pass / LPF |
| Crossover Standard Mode | HPF / LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built-In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High / Mid / Low / Off |
| Speaker Output | 4-ch |
| Spectrum Analyzer | Yes |
| Subwoofer Control | Yes |
| Time Alignment | Auto / Manual |
EXPANDABILITY
| Feature | Details |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera, Input 2 – AUX (Minijack), Input 3 – A/V or 2nd Camera, Input 4 – HDMI Standard (Type A) |
| Dual Zone Rear-Seat Entertainment | Yes |
| OEM Integration | iDatalink Maestro RR |
| RCA Video Output | Yes |
| SD/SDHC Memory Card Slot | SDXC |
| USB | Dual Rear Type-A (5 V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
This is a Pioneer Reconditioned product, including a 90-day limited warranty.
AVH-W4400NEX is a wireless, detachable 7” motorized clear resistive DVD Receiver. Your smartphone devices are automatically paired on car start-up to utilize Android™ Auto and Apple CarPlay® applications wirelessly. The touchscreen is customizable by moving icons around to create shortcuts for favorite sources and applications. Video content plays when the car in “park”. However, then on the road, you can entertain your passengers by sending a movie from the receiver to a rear-seat screen. This receiver also has a designated rear-view camera plug-in and a second camera plug-in for their back-up camera. The AVH-W4400NEX DVD Receiver supports FLAC file playback, for compression-free CD-quality sound. You can also enjoy their CDs, DVDs, discs full of MP3 or WMA music, SD cards, or USB storage devices loaded with files. iPod or iPhone® users can connect to one of the two rear USB inputs of the receiver to utilize controls to access playlists. Android™ users can browse and play back music stored on compatible Android™ smartphone devices. The built-in HD Radio™ tuner delivers crystal-clear FM and AM reception from participating stations. You can take charge of your Pandora® account from the touchscreen, complete with thumbs-up and thumbs-down controls. For an outstanding variety of music, news, sports, and talk programming, you can also connect an optional SiriusXM satellite radio tuner. This NEX receiver will even display album art from the satellite feed. This receiver has a 13-band EQ. Swipe your finger on the touchscreen to dial in the curve which brings out tones you are looking for. You will also find digital time alignment, Auto-EQ, and other powerful tools to enhance your vehicle’s acoustics.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
WVGA Touchscreen (Clear Resistive)
With this clear resistive WVGA touchscreen display, upgrade your ride and enjoy all the features this head unit has to offer.
