Description
Autotek TA-1255.4
Details & Specs
| Category | Specification |
|---|---|
| Type | Amplifier |
| Brand | Autotek |
| Series | TA |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Model Replaced | TA-1050.4 |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Class A/B |
| Total Channels | 4 |
| Max Power | 1200 Watts |
| Power @ 2 Ohms | 4 × 300 Watts |
| Power @ 4 Ohms | 4 × 150 Watts |
| Mono Bridged @ 4 Ohms | 2 × 600 Watts |
| Crossover | Variable Electronic 12dB/Octave |
| Tone Control / EQ | Built-in Bass Control |
| Bass Boost | Switchable 0 / +6 / +12 dB |
| Variable Voltage | 0.2 – 9V |
| Frequency Response | 10Hz – 22kHz |
| Speaker Level Inputs | Yes |
| Power Terminal | 4 AWG (12V/GND) |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | 30A × 2 |
Features & Benefits
| Feature | Description |
|---|---|
| Low Noise Preamplifier Circuit | Processes low-voltage input signal with minimal distortion during amplification |
| RCA Inputs | High-quality RCA connections for clear signal transfer and reduced interference |
| High Level Inputs | Allows connection to OEM systems without RCA outputs |
| Operation Mode | Four-channel stereo, dual stereo bridged, stereo + bridged mono, dual bridged mono |
| Crossover Type | Variable electronic 12dB per octave |
| Electronic Equalizer | Fully adjustable onboard crossover for frequency tuning |
| Class / Topology | Class A/B design for high sound quality and efficient power delivery |
| Output Device Technology | PRO-FI™ high-speed MOSFETs for strong power output and low distortion |
| Heat Sink | Sound Shield™ aluminum heatsink with added mass for cooling and distortion reduction |
| Power Supply | High-energy PWM (Pulse Width Modulated) power supply for efficient performance |
| Output Connections | Nickel-plated brass terminals for secure and corrosion-resistant connections |
| Connection Type | Screw-down connectors for quick and secure installation |
| LED Protection System | Illuminated indicators for overload and speaker short-circuit protection |
| Bass Remote Included | Wired remote control for adjusting bass levels from inside the vehicle |
Overview

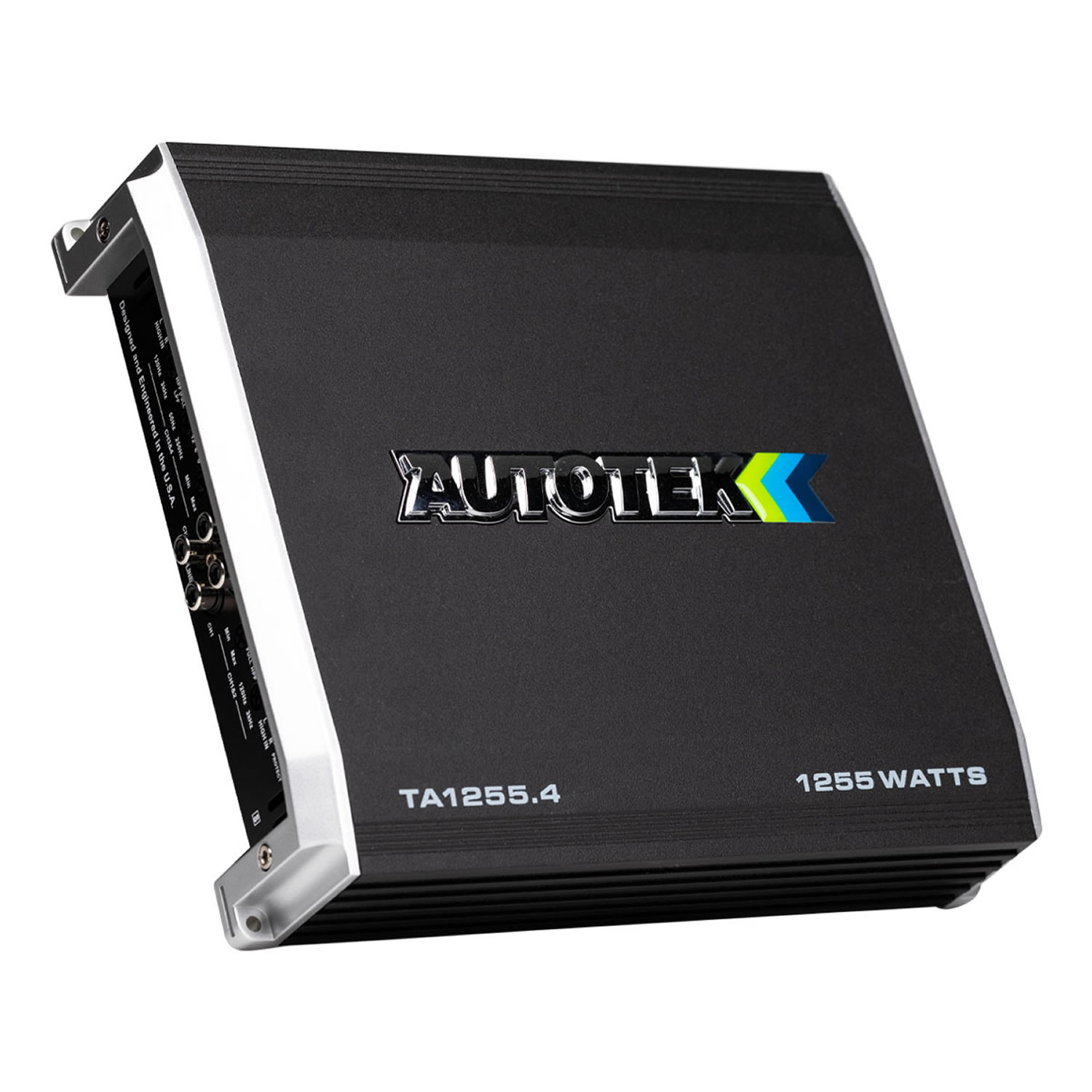

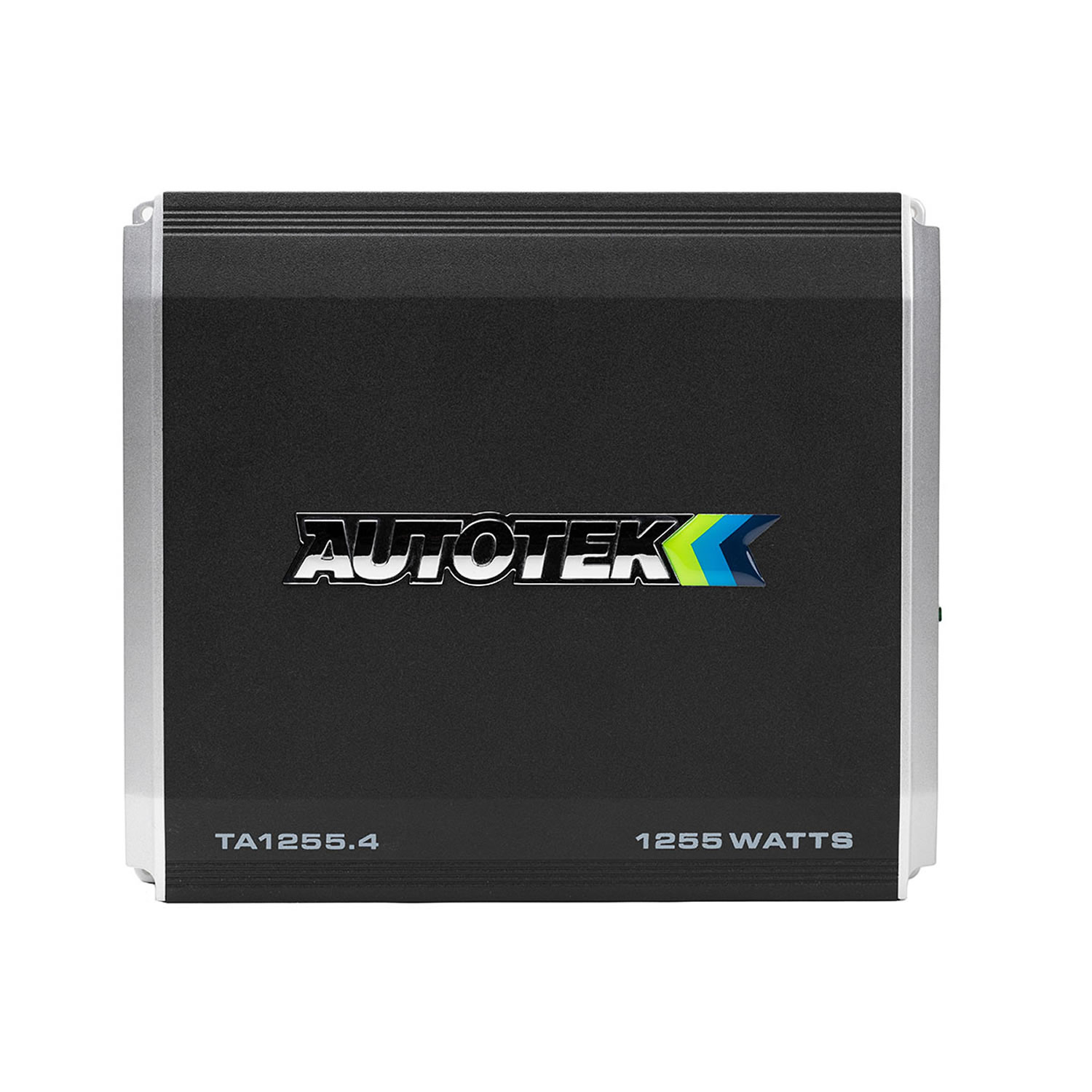

Autotek 1200 Watts TA Four Channel Car Audio Amplifier.
