Description

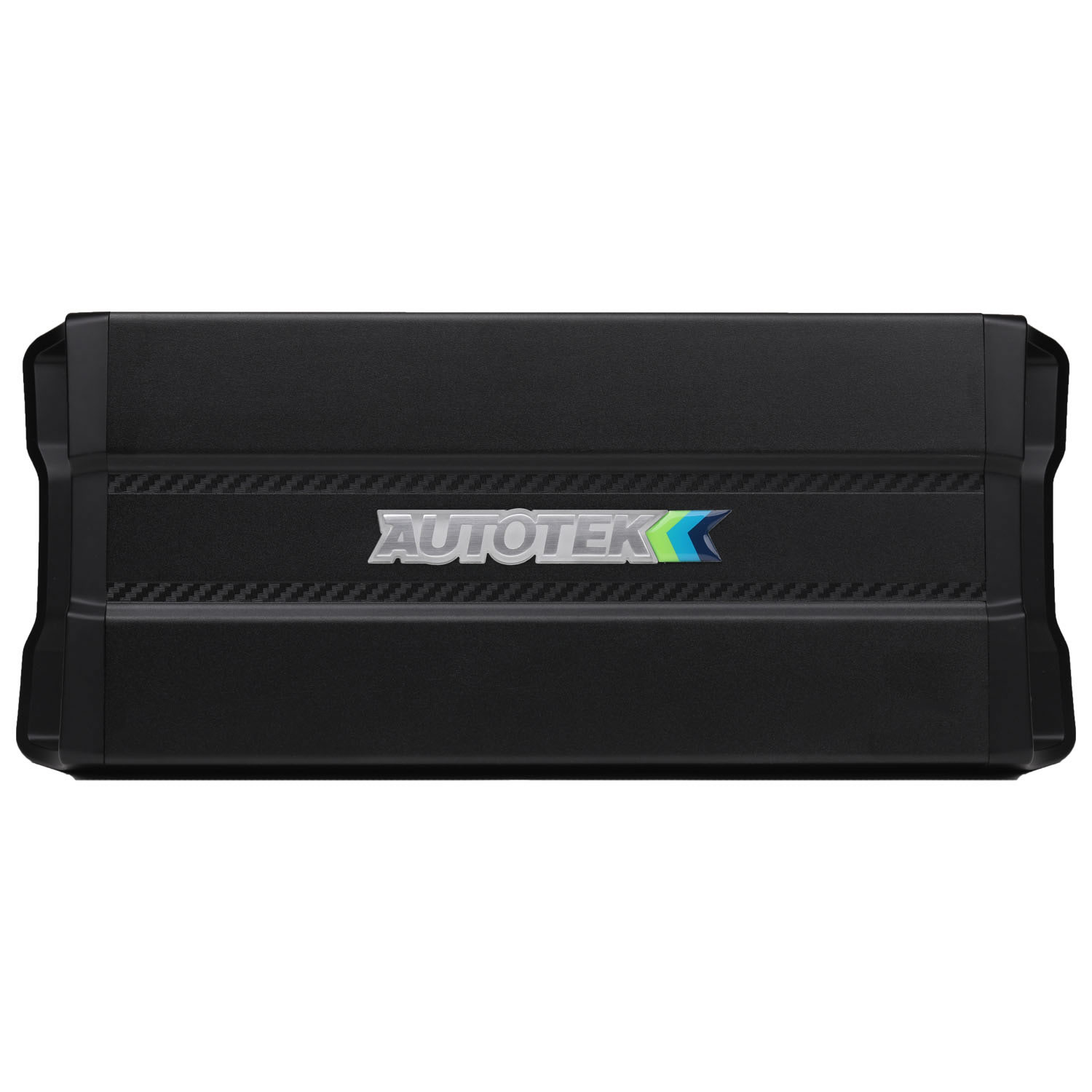

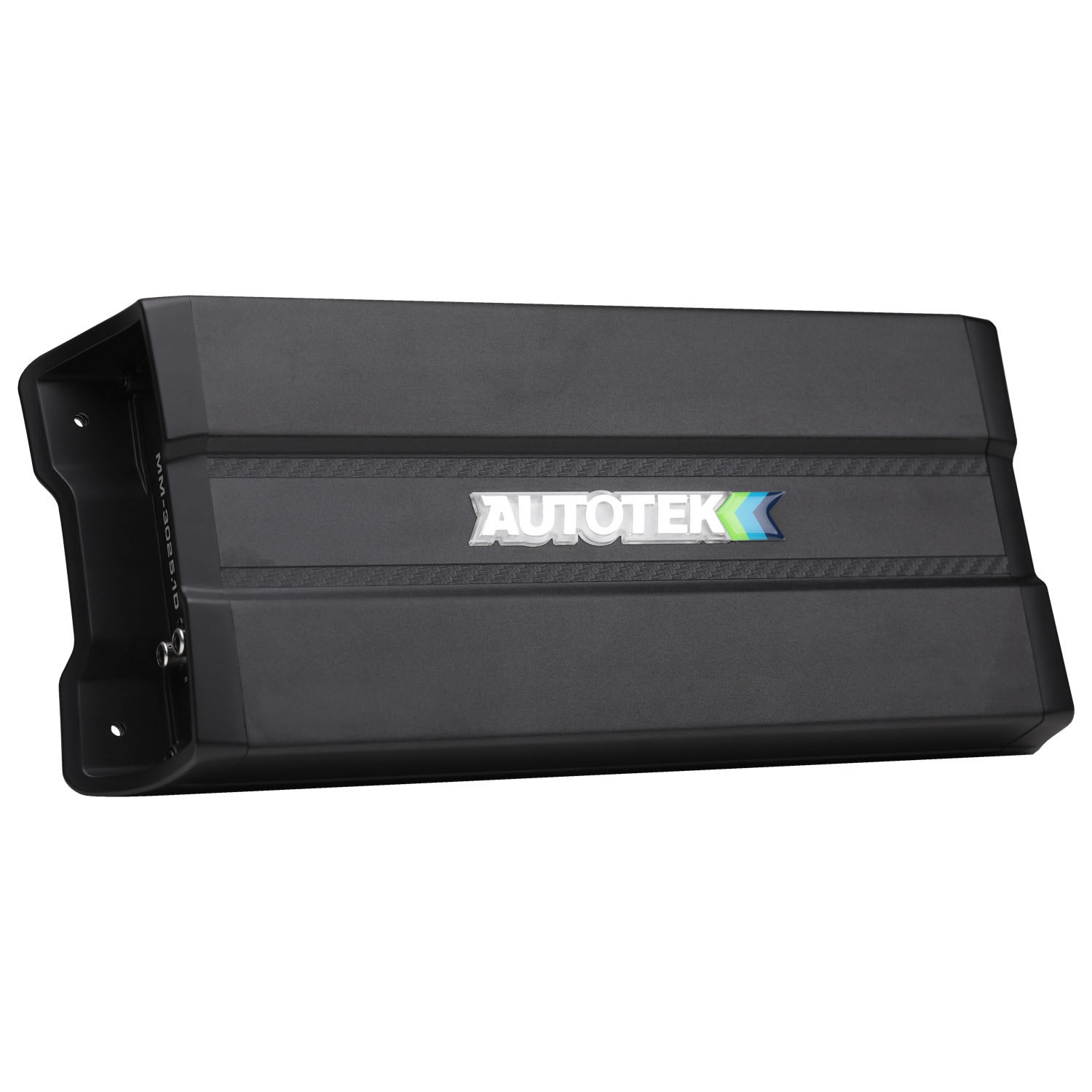

Autotek MM-3025.1D
The Autotek MM‑3025.1D is a powerful monoblock Class D amplifier from the Mean Machine series designed specifically to drive subwoofers with strong and efficient bass output. With compact size and high power handling, it’s ideal for dedicated bass systems in cars and trucks.
Details & Specs
| Feature | Description |
|---|---|
| Type | Amplifier |
| Brand | Autotek |
| Series | Compact MEAN MACHINE |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Class D |
| Total Channels | 1 |
| Max Power | 3000 watts |
| Power @ 1 Ohm | 1 x 3000 W |
| Power @ 2 Ohms | 1 x 1500 W |
| Power @ 4 Ohms | 1 x 750 W |

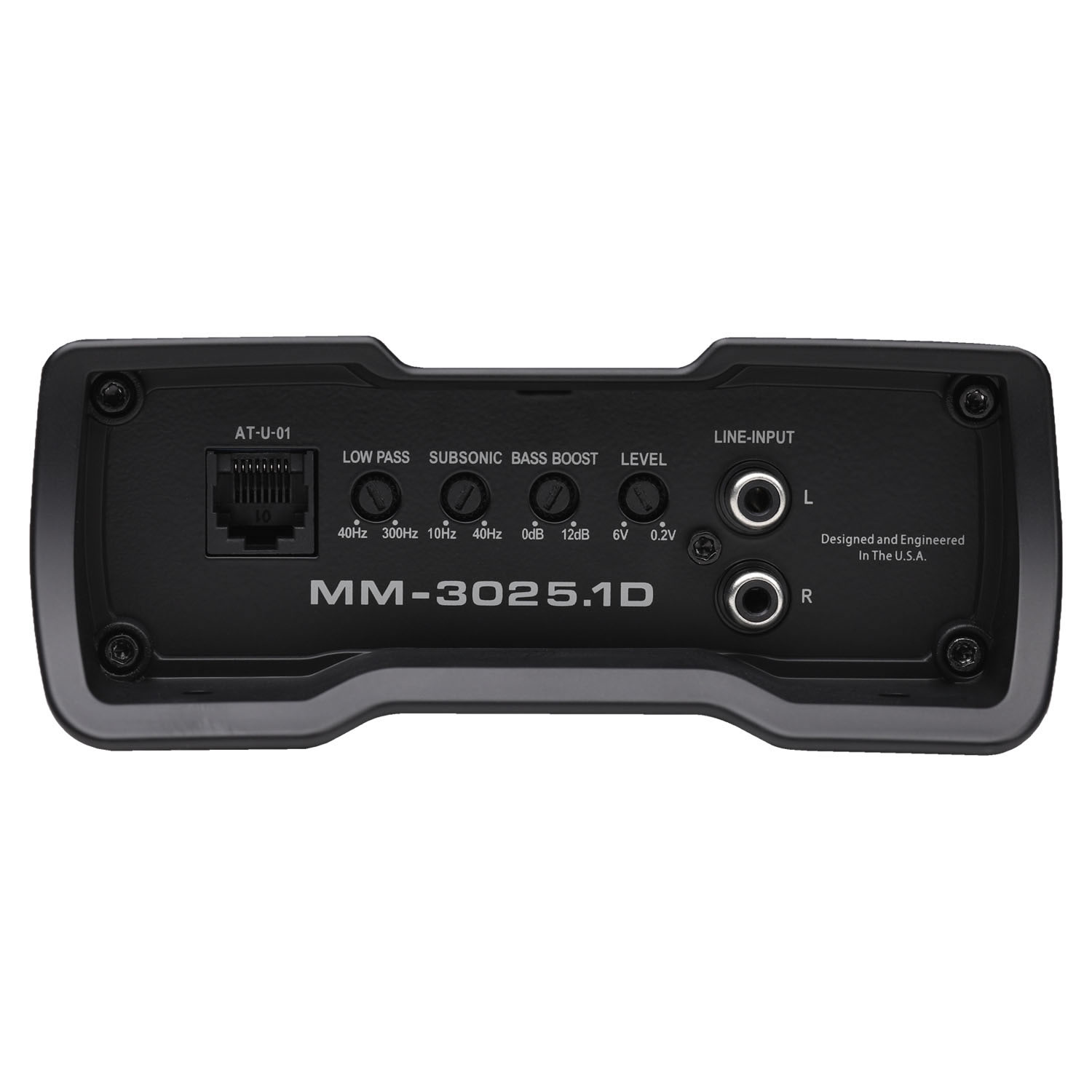

| Crossover | Variable Electronic 12dB per Octave |
| Low Pass Crossover | 40Hz – 300Hz |
| Tone Control / EQ | Built-in Bass Control |
| Bass Boost | 0 – 12 dB |
| Subsonic Filter | 10Hz – 40Hz |
| Variable Voltage | 0.2 – 6V |
| Frequency Response | 10Hz – 500Hz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Speaker Level Inputs | Yes |
| Pre-amp Outputs | RCA |
| Power Terminal | 4 AWG |
| Speaker Terminal | 12 AWG |
| Fusing | External 125A |
Features & Benefits
| Feature | Description |
|---|---|
| Low Noise Preamplifier Circuit | Ensures maximum low-voltage signal input with minimal distortion during amplification |
| RCA Inputs | Provides high-quality audio connection via RCA inputs and outputs |
| Operation Mode | Mono only |
| Crossover Type | Onboard electronic crossover |
| Electronic Equalizer | Allows control of amplifier output and frequency tuning for speakers and subwoofers |
| Class / Topology | Efficient Class D design with compact size |
| Output Device Technology | TCID (Twin Coil Isolation Design) and PRO-FI High Speed MOSFETs for high power and low distortion |
| Heat Sink | Heavy-duty aluminum alloy heatsink with illuminated logo |
| Power Supply | High-energy PWM (Pulse Width Modulated) power supply for efficient performance |

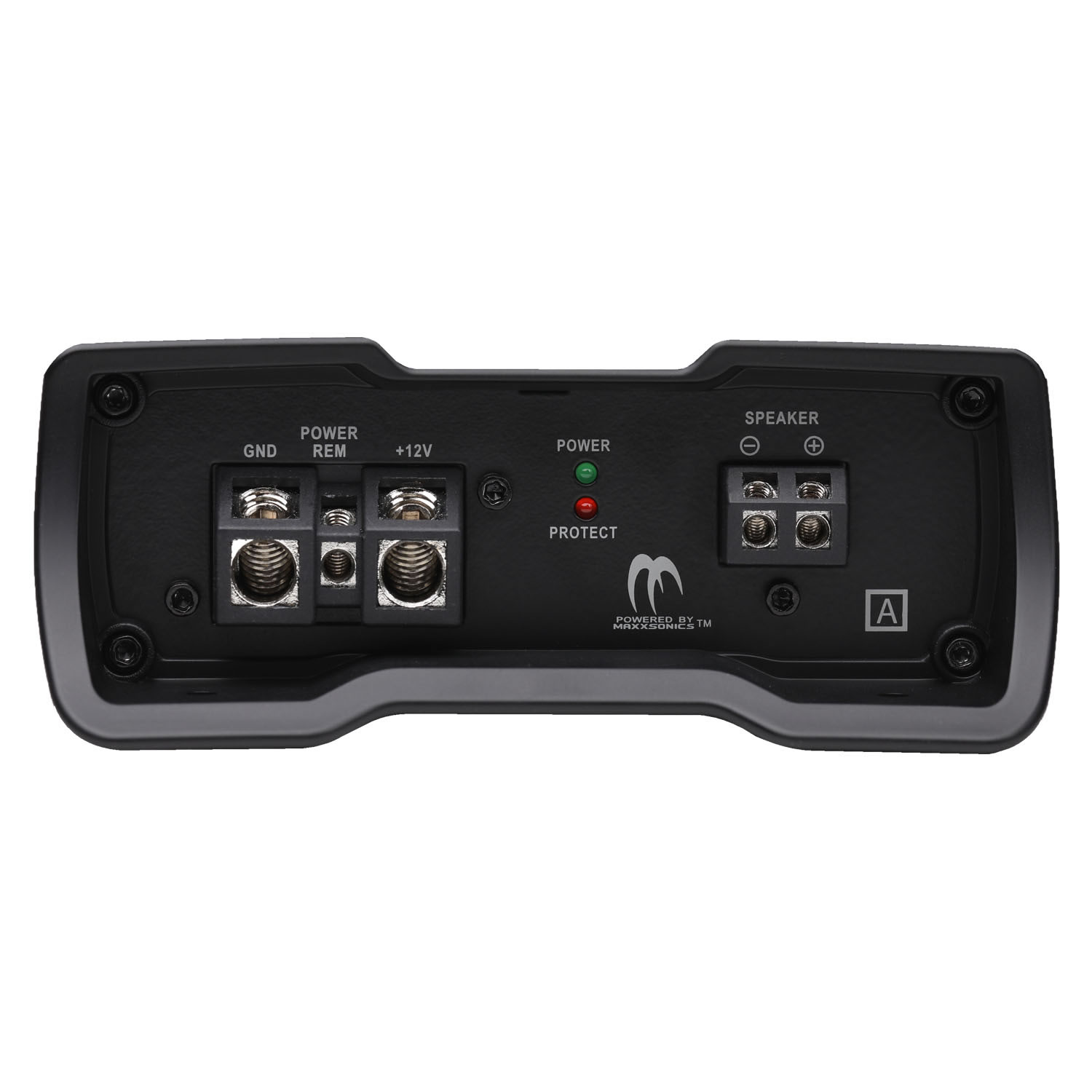

| Output Connections | Nickel-plated brass terminals with hex set screws for secure and corrosion-resistant connections |
| Connection Type | Angled Allen key connectors for easy installation |
| Full-Range RCA Outputs | Signal pass-through for adding more amplifiers while reducing noise and extra wiring |
| LED Protection System | Indicates overload and short circuit protection via illuminated indicators |

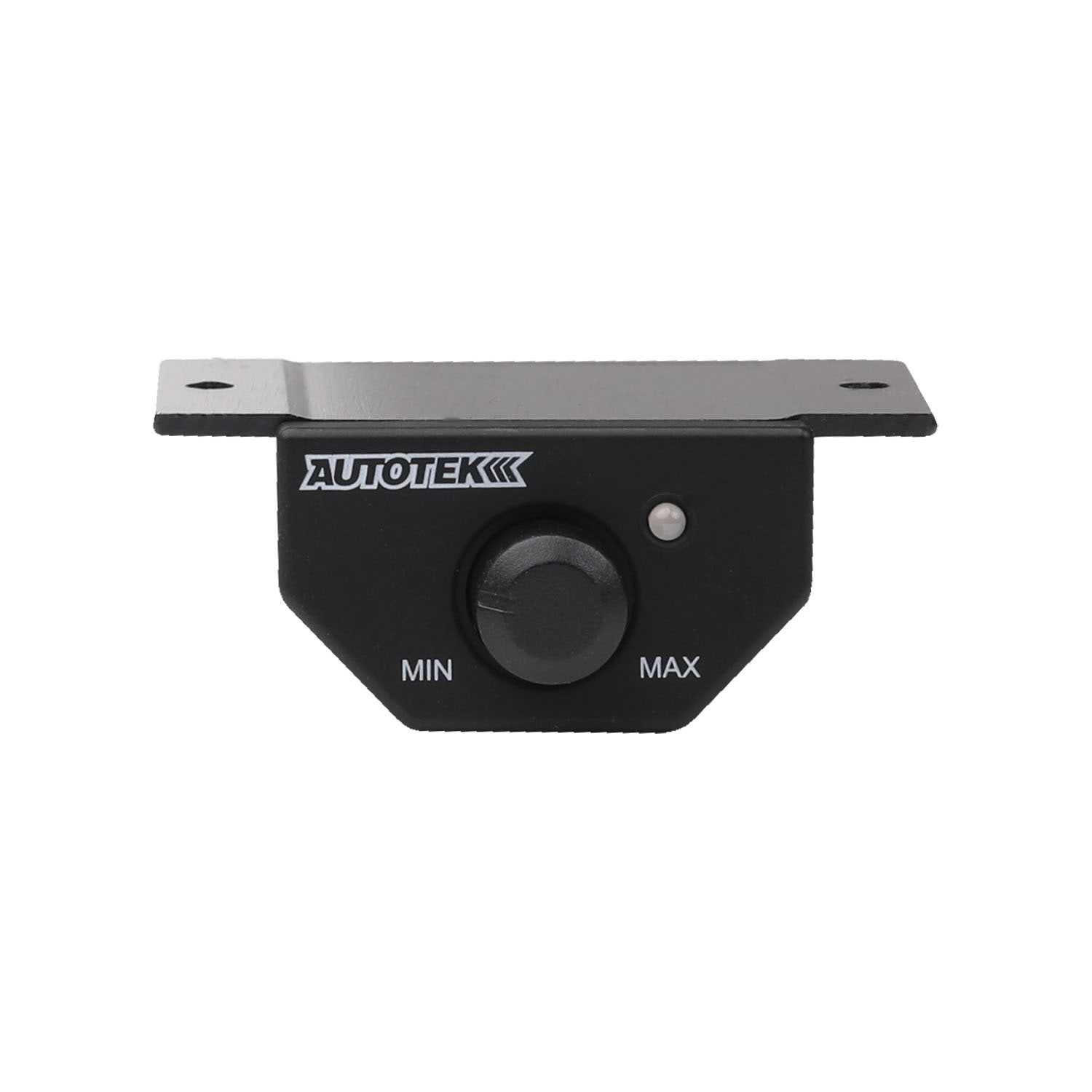

| Bass Remote Included | Wired remote control for adjusting bass from anywhere in the vehicle |
Overview
Autotek MEAN MACHINE compact series of car audio amplifiers bring extreme power with PRO-FI™ High Speed MOSFETS and high sound quality with minimum distortion levels. The MM-3025.1D features 3000 watts of power in a 1 Ohm stable monoblock amplifier designed to power a mono subwoofer system. The Class D technology provides extreme power in a smaller footprint.
