Description
DS18 ZR212LD
The ZR212LD is a 12-inch dual subwoofer engineered to deliver deep, high-impact bass for car audio and professional sound systems. Designed for high SPL performance, it produces powerful low frequencies with precision and minimal distortion, ensuring clear and punchy bass even at elevated volumes. Built with a reinforced cone, heavy-duty magnet, and durable voice coils, the ZR212LD offers long-lasting reliability and consistent performance under demanding conditions. Ideal for custom builds or upgraded vehicle audio systems, this subwoofer enhances the overall listening experience by providing strong low-end presence and exceptional bass response.
Specifications
General Specs
| Category | Specification |
|---|---|
| SKU | ZR212LD |
| Speaker Type / Size | Dual 12″ / 316mm |
| Total Impedance | 1 Ohm |
| Total RMS Power Handling | 1600W |
| Total MAX Power Handling | 3200W |
| Sensitivity (1W/1m) | 86 dB |
| Frequency Response | 20–200 Hz |
| Recommended Lo Pass Crossover | 70 Hz |
Speaker Specifications
| Attribute | Specification |
|---|---|
| Voice Coil Diameter | 2.5″ / 61.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 100 Oz |
Box Specifications
| Attribute | Specification |
|---|---|
| Internal Volume | 141.6L / 5 ft³ |
| Port Tune (Fb) | 29 Hz |
| Load Configuration | Ported Box |
| Box Type | Double 12″ |
| Box Material | 3/4″ (19mm) MDF |
| Finish Material | Black Carpet |
| Logo | Red Stitched |
| -3dB Dropping Point (F3) | 24 Hz |

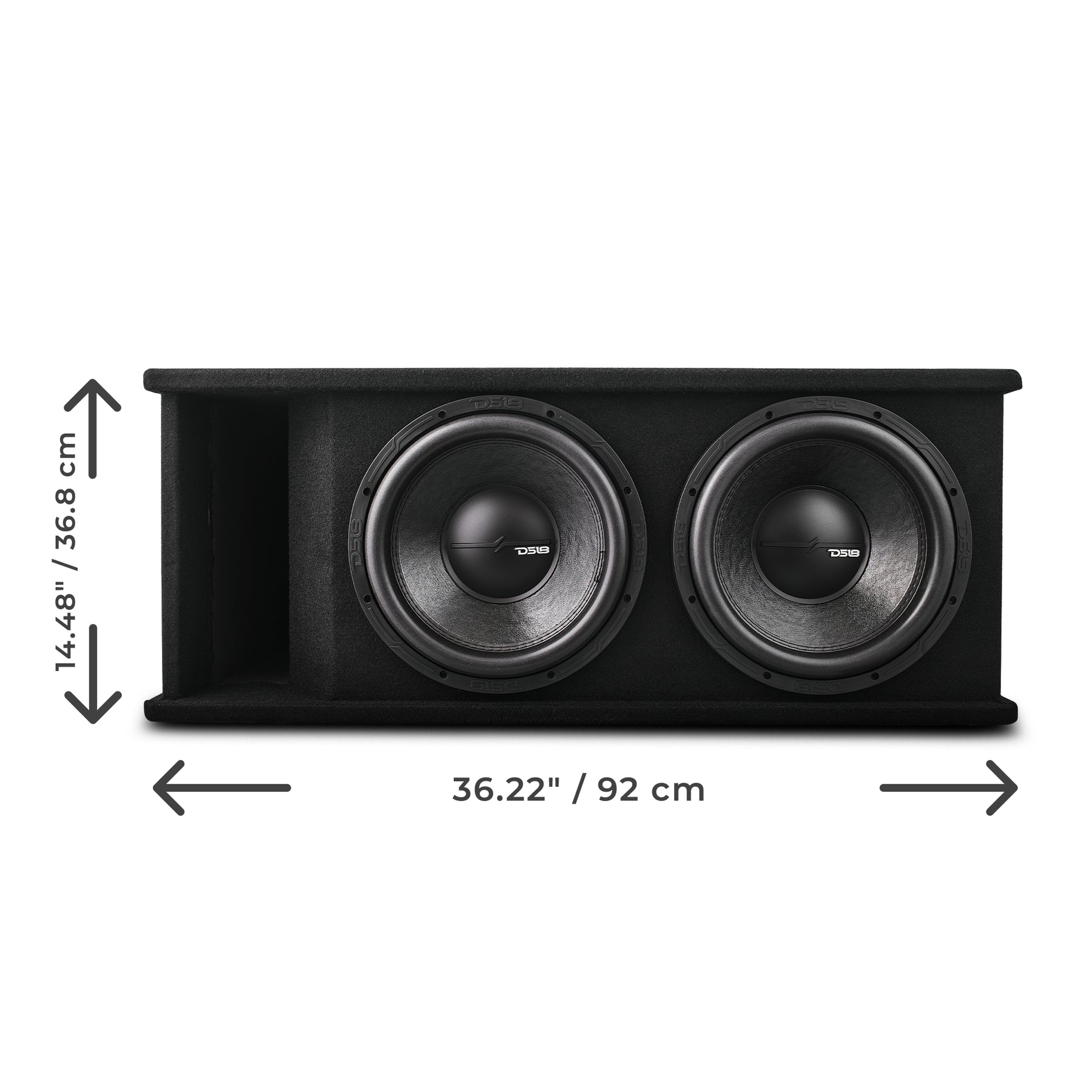

Measurements
| Dimension / Attribute | Specification |
|---|---|
| Height | 14.48″ / 36.8 cm |
| Width | 36.22″ / 92 cm |
| Depth 1 | 19.68″ / 50 cm |
| Depth 2 | 21.65″ / 55 cm |
| Gross Single Unit Weight | 107 lbs |
| Single Unit Box Dimensions (W×L×H) | 39.5 × 25.25 × 18.75″ |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight | 107 lbs |
| Master Carton Dimensions (W×L×H) | 39.5 × 25.25 × 18.75″ |
Product Overview

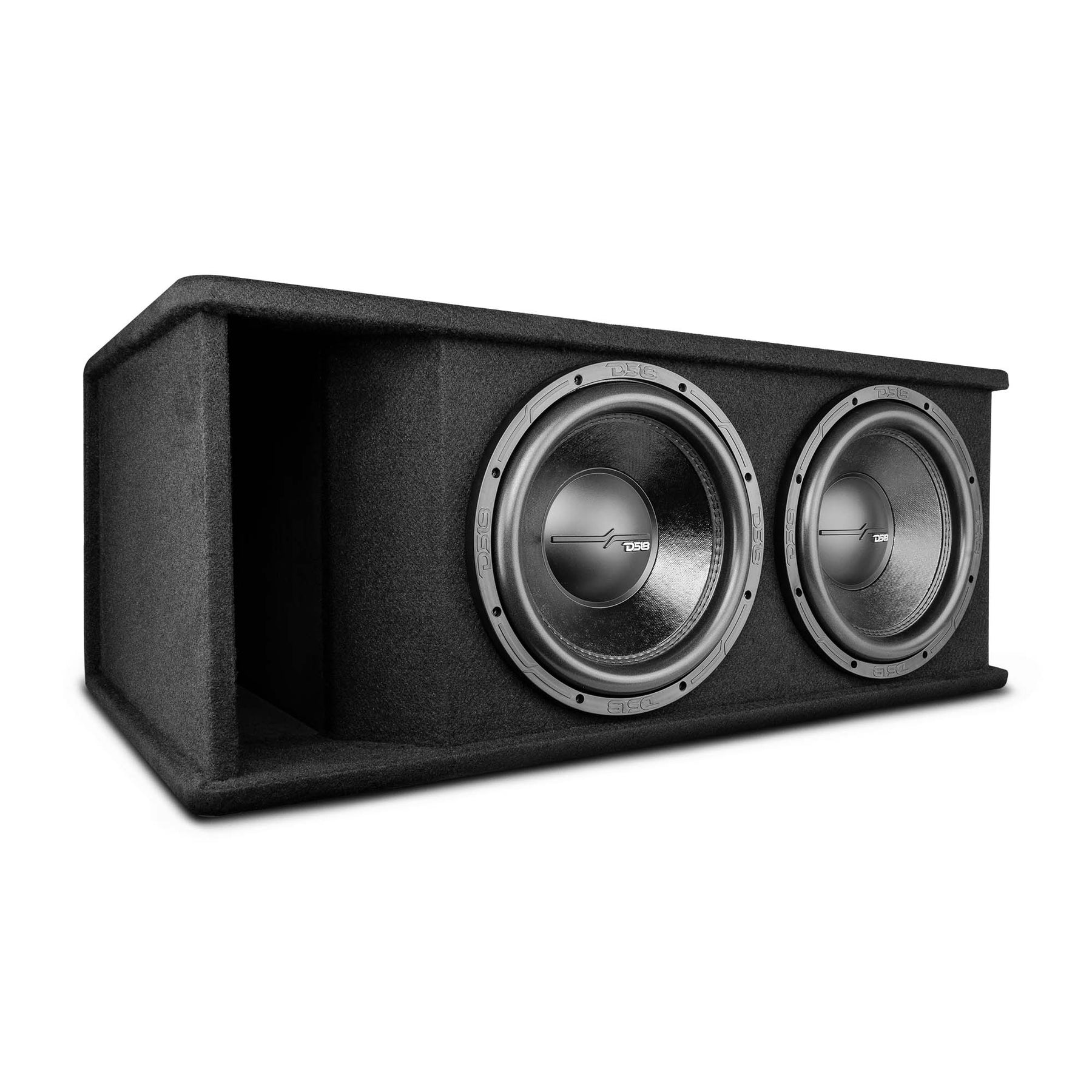

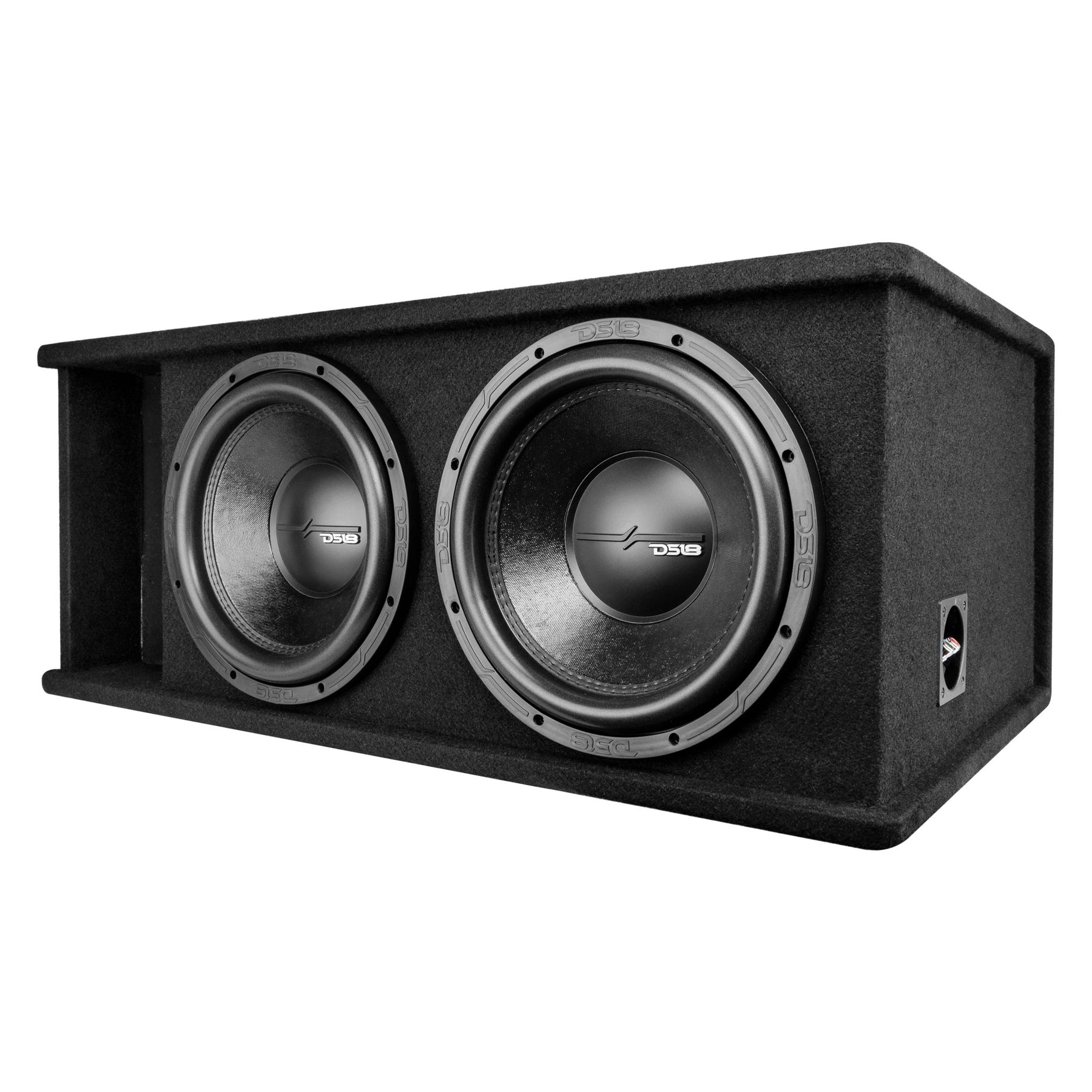

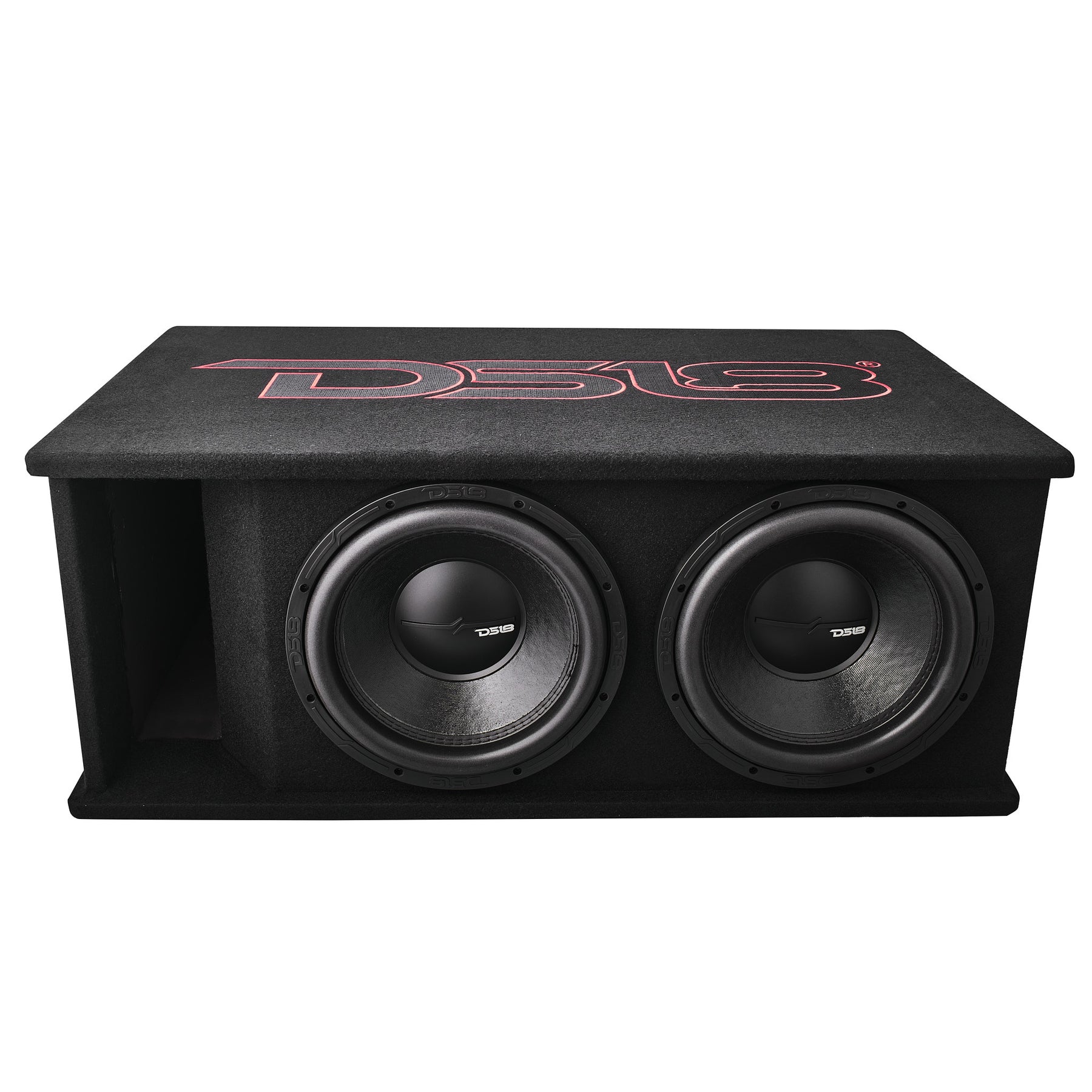

2x ZR12.2D Dual 12” Subwoofer in a Ported Box 3200W
Experience car audio like never before with the DS18 ZR212LD Bass Package: the perfect combination of power and precision for the audio enthusiasts who demand excellence.
The star of this package is two of DS18’s high-powered subwoofers – the ZR12.2D subwoofer. It’s no wonder this subwoofer is one of our best sellers. With its dual voice coil 2-ohm configuration, this dynamic subwoofer is wired in parallel offering a lower level 1-ohm nominal impedance and producing higher volume levels than other subwoofers, which means a better utilization of power and less distortion in reproduction. The ZR12.2D requires a robust 800W RMS Power and can handle up to 1600W of MAX Power each.

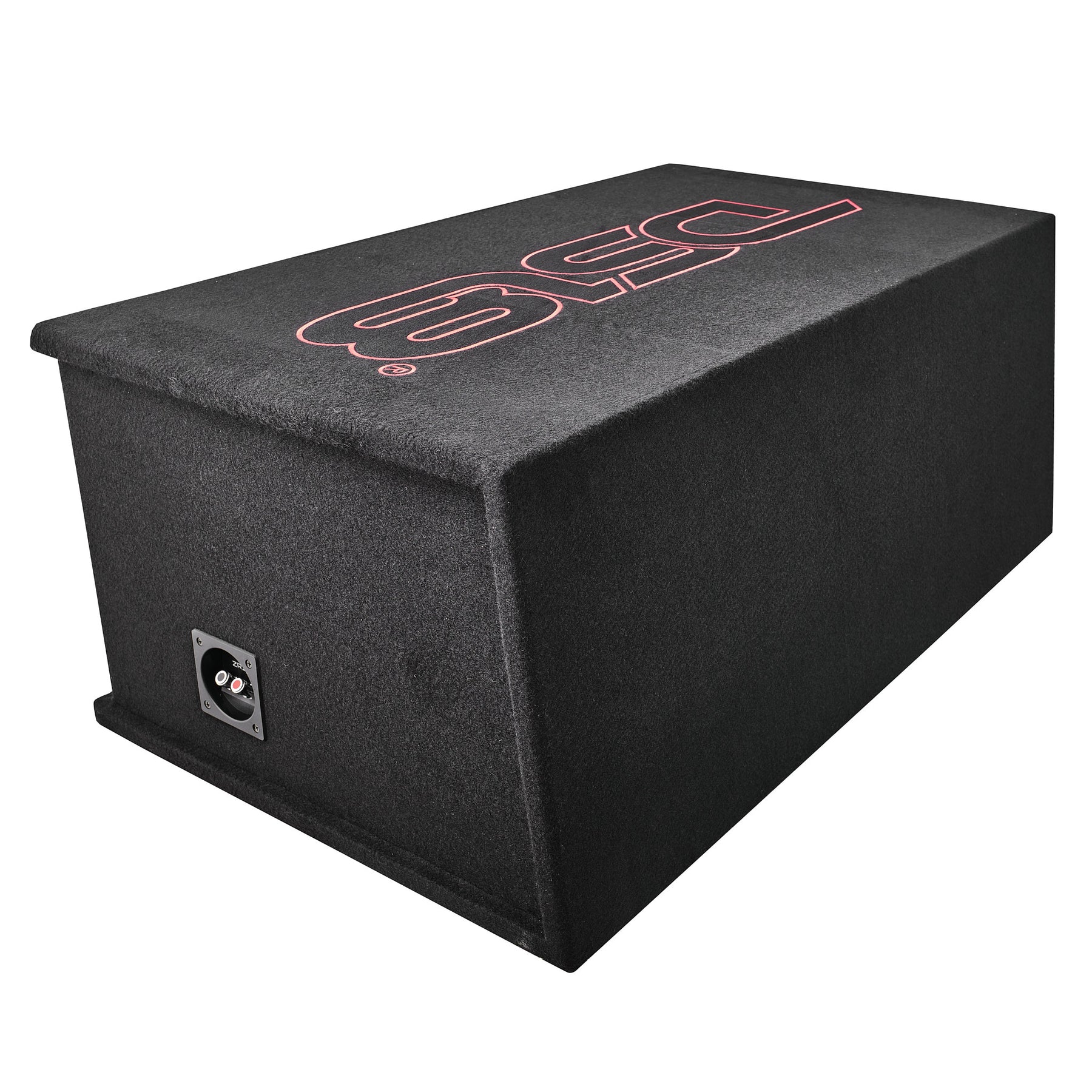

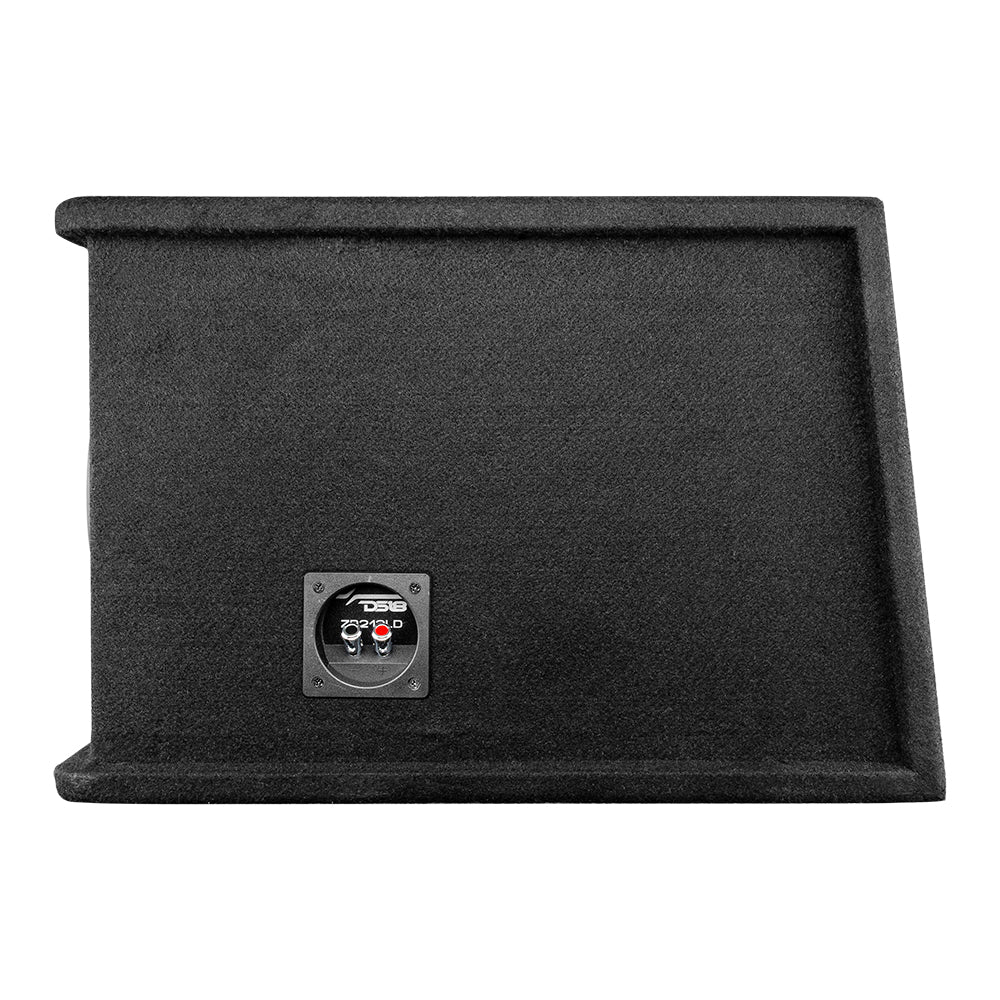

The enclosure that houses the ZR12.2D’s is crafted from thick 3/4-inch MDF for unparalleled acoustical resonance. Tuned precisely at 29 Hz, this ported box is engineered to enhance your low frequency response for hard-hitting bass that will rattle you to your core. Wrapped in a beautiful carpet adorned with classic DS18 designs, the aesthetics of this ported box complement the perfect audio reproduction of the combined subwoofer.
To truly unleash the potential of your ZR12.2D’s, we recommend pairing them with the ZR2000.1D amplifier. The ZR2000.1D is made to deliver 2000W RMS @ 1-Ohm, 1300W RMS @ 2-Ohms, and 800W RMS @ 4 ohms giving you the perfect power for your bass. The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. Together, this combo will elevate your car audio setup to insane heights.
