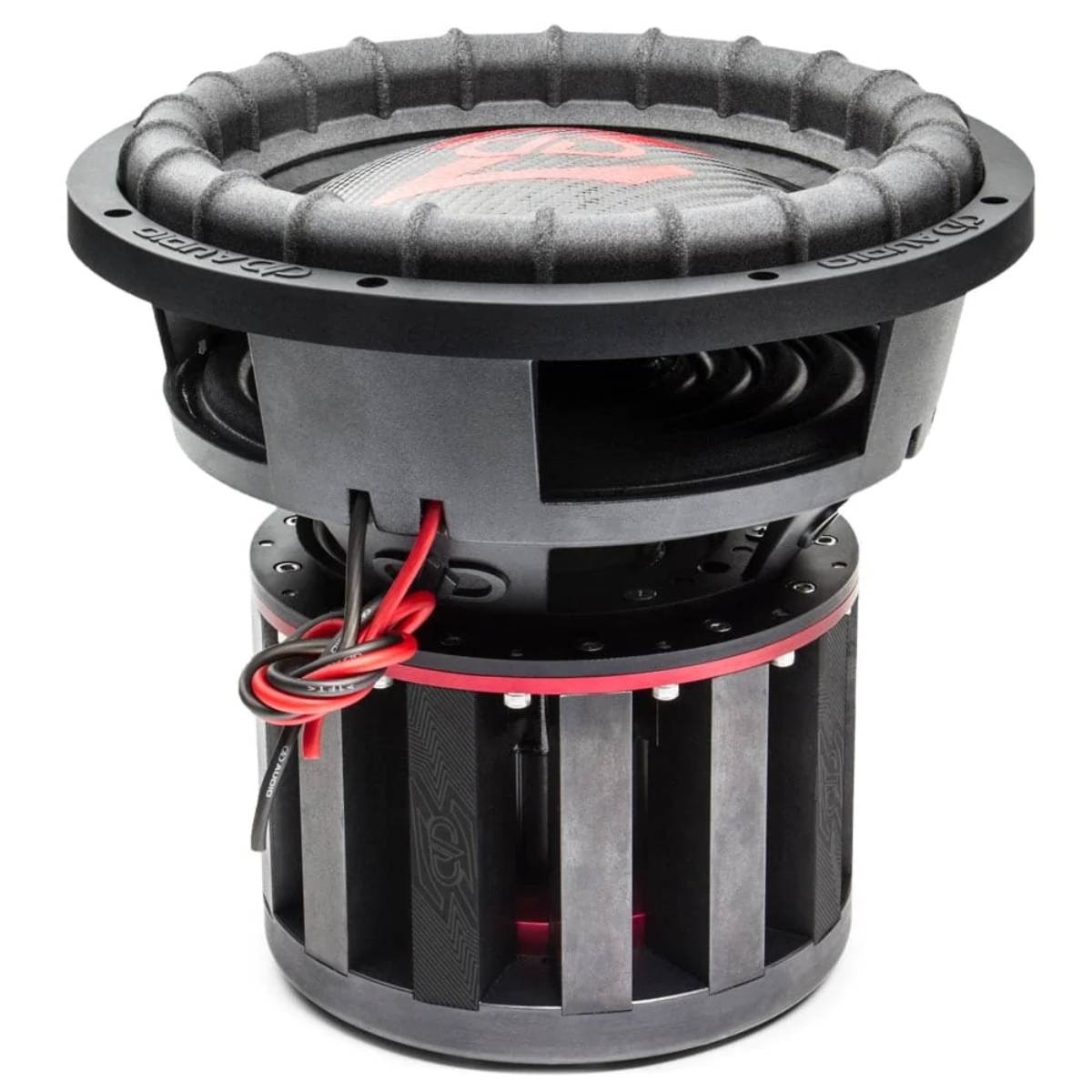

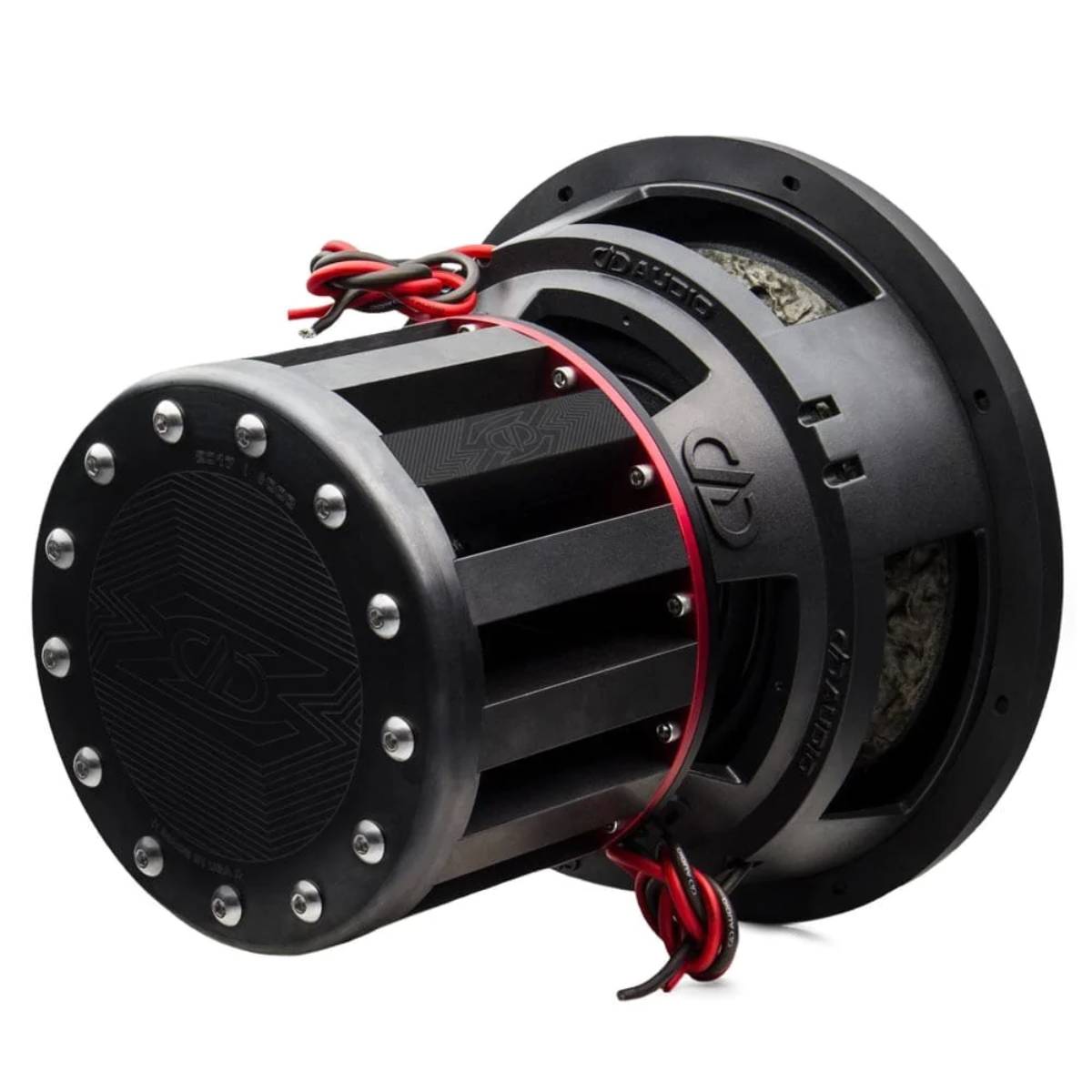

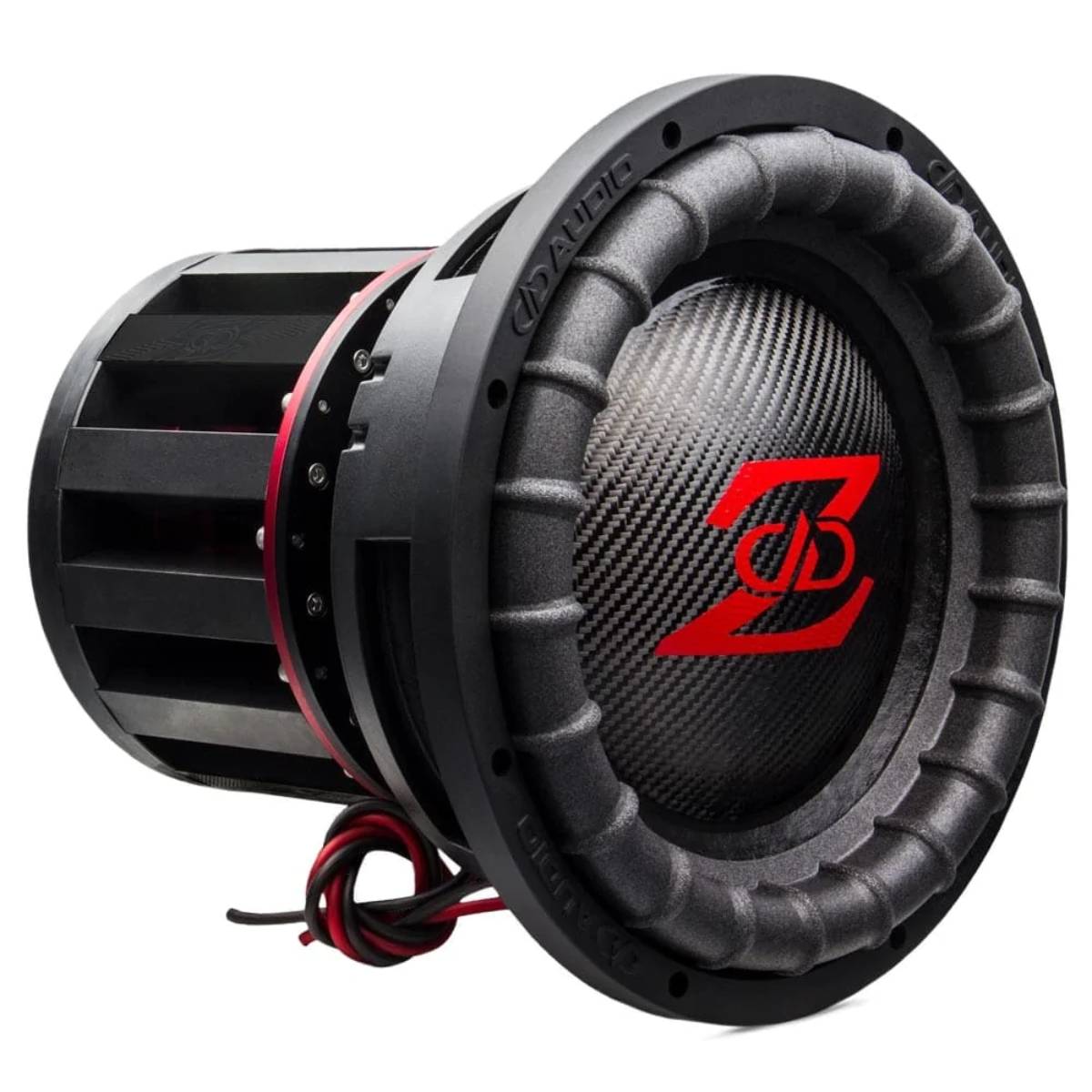

2508F-D4 | DD Audio Digital Designs 8″ Dual 4-Ohm 3200W Subwoofer

FEATURES:

SPECIFICATIONS:

Speaker Size (In): 8
Watts RMS: 400 – 800
Watts Peak: 3200
Impedance: D2 / D4
VCD (In): 2.5
Piston Diameter (In): 7
Fs (Hz): 47.78
Qms: 6.07
Qes: 0.98
Qts: 0.84
Vas: 2.07
Xmech (MM): 57
Xmax (MM): 17
Frame OD (In): 9 1/16
Frame OD w/Gasket (In): 9 1/4
Mounting Diameter (In): 8
Mounting Depth (In): 6 7/16
Motor Diameter (In): 6 3/8
Motor Depth (In): 2 15/16
Woofer Displacement (CuFt): 0.08
Ported Enclosure (CuFt): 0.75 – 1.25
