Description

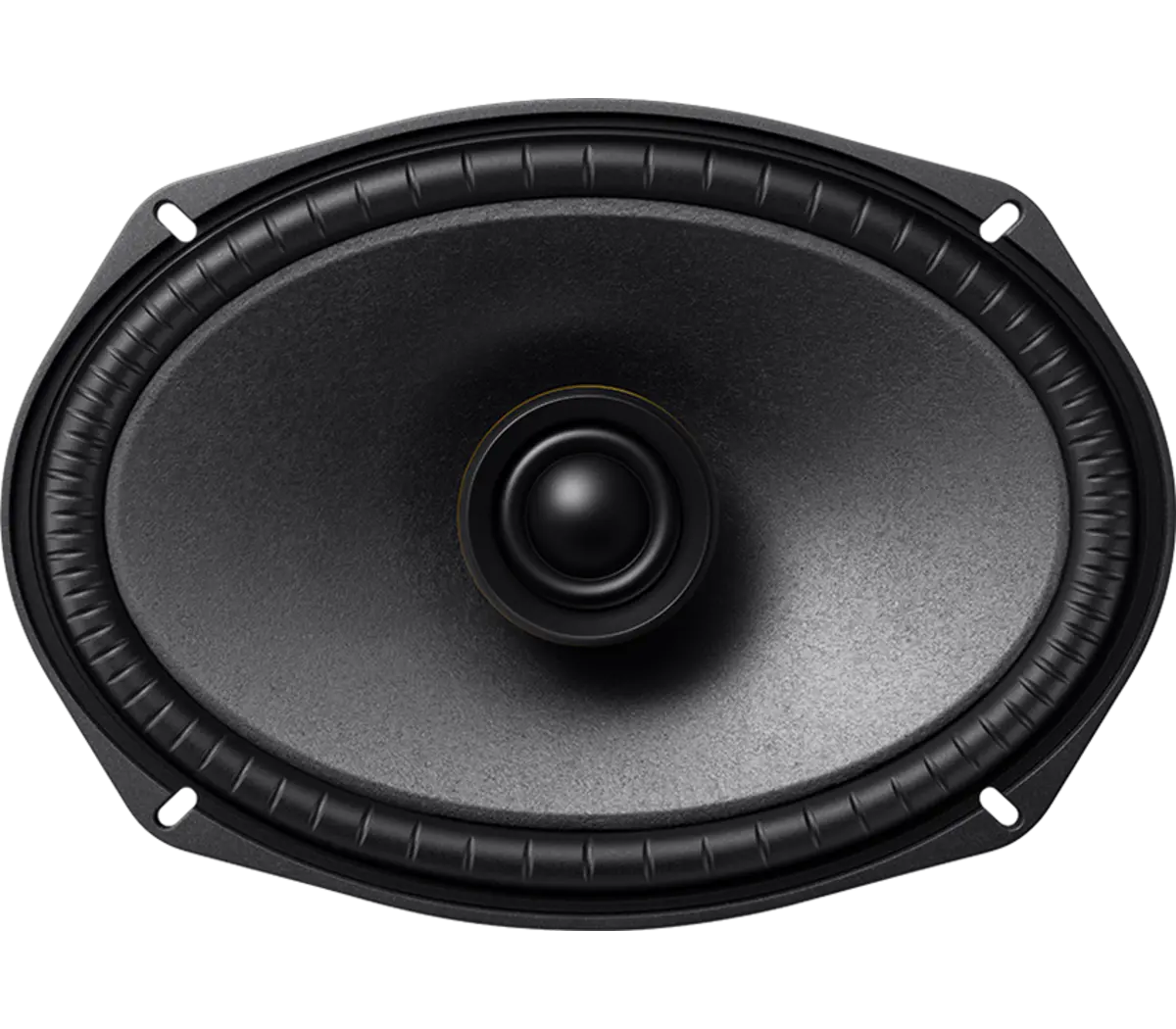

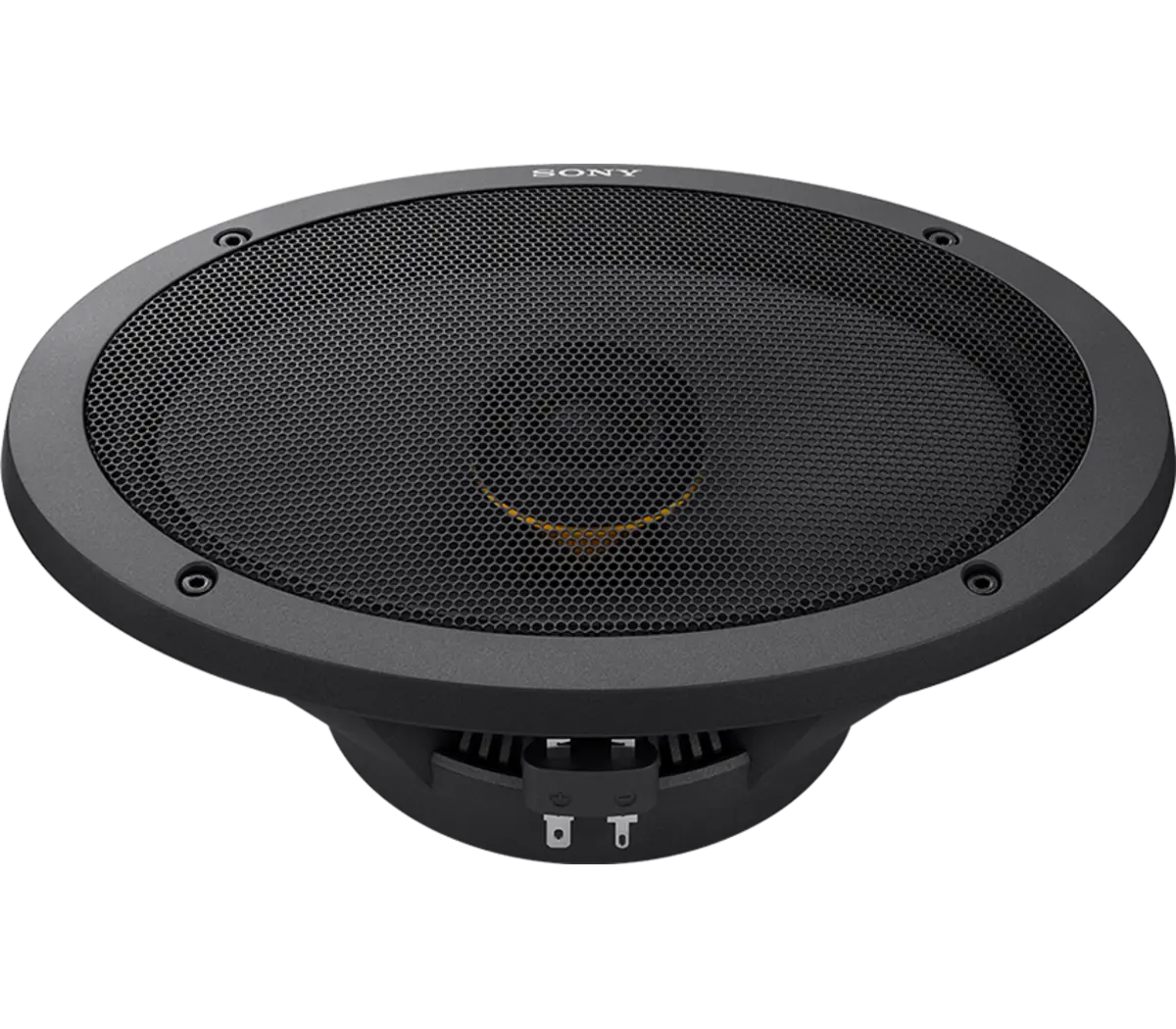

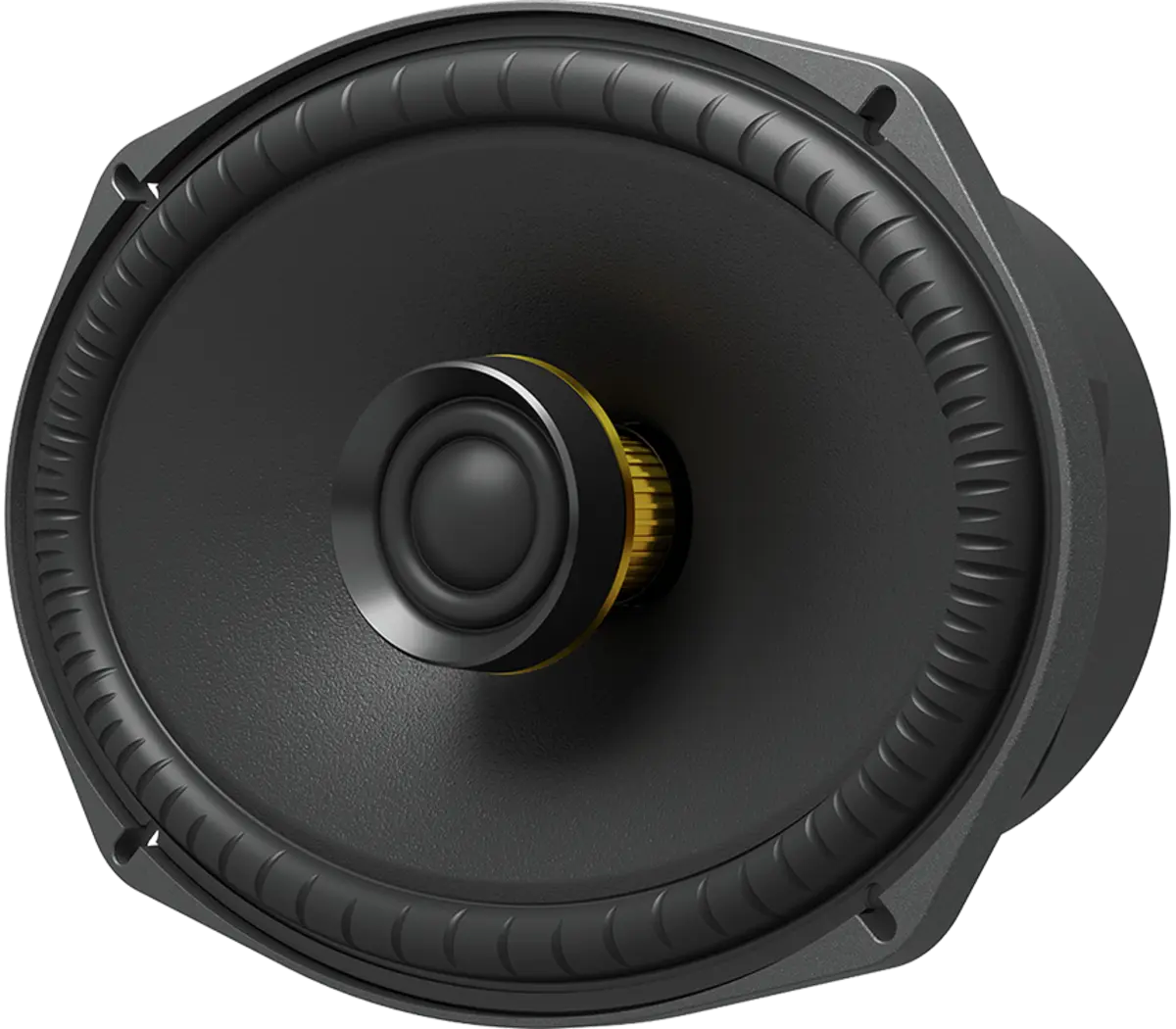

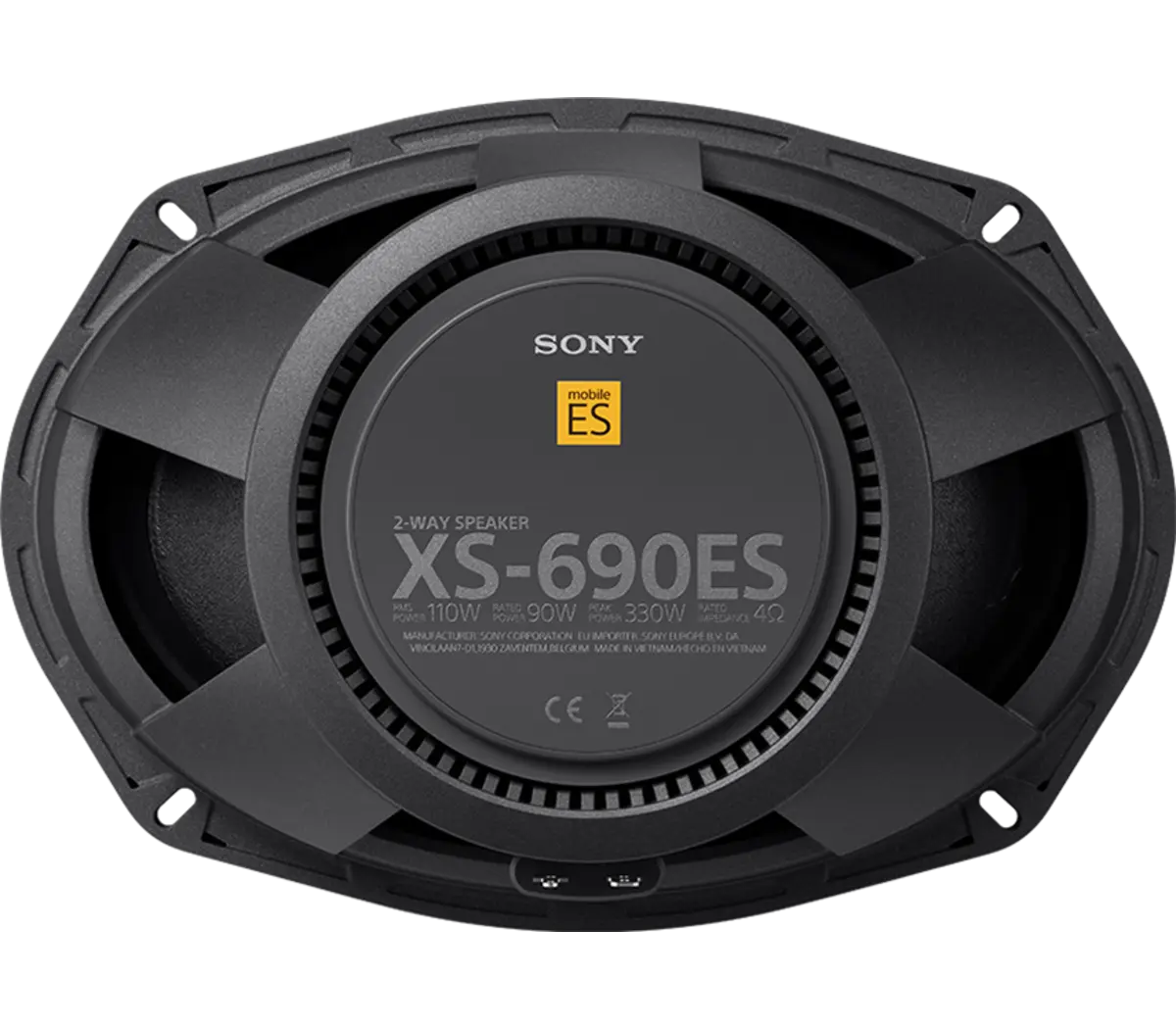

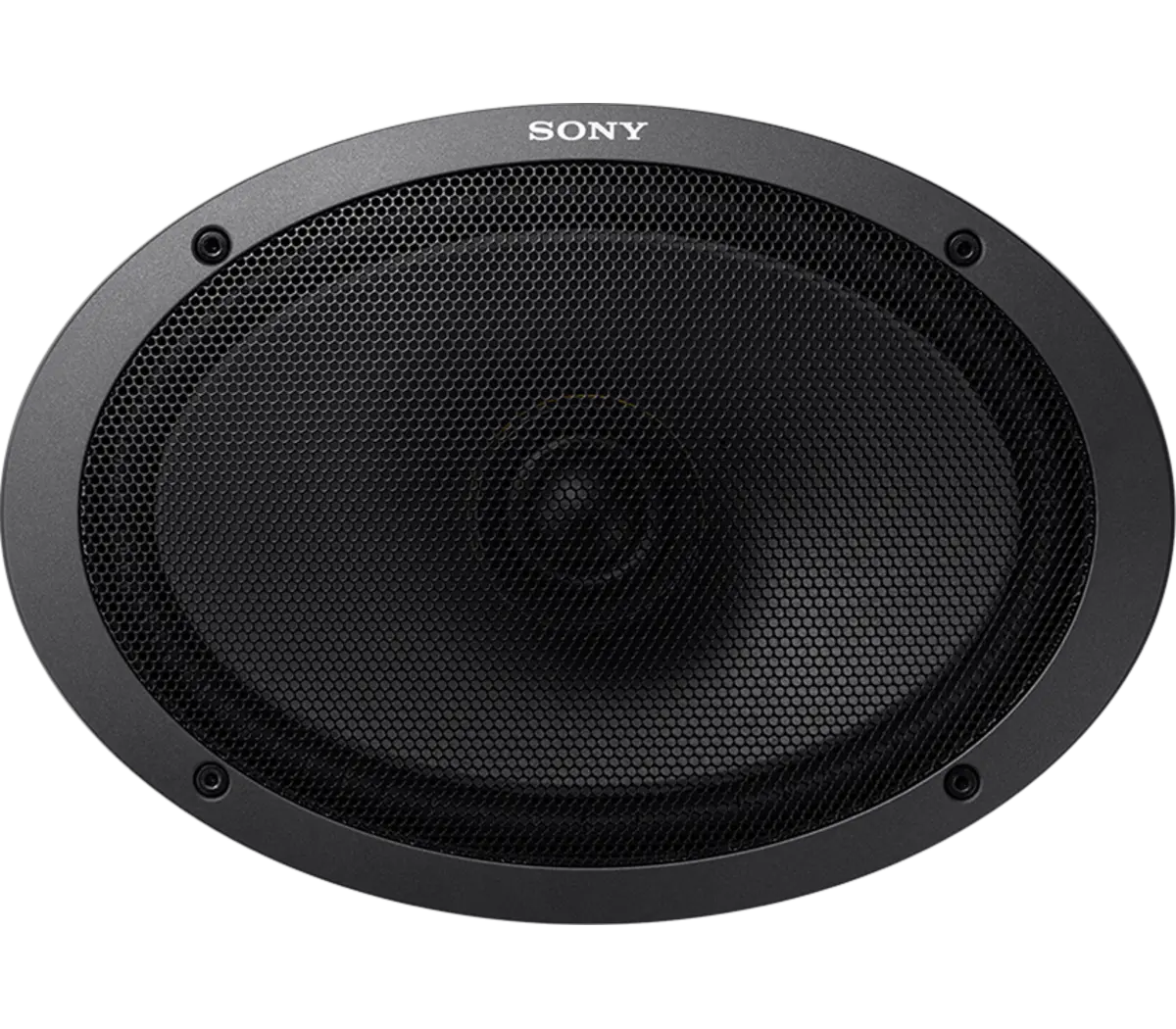

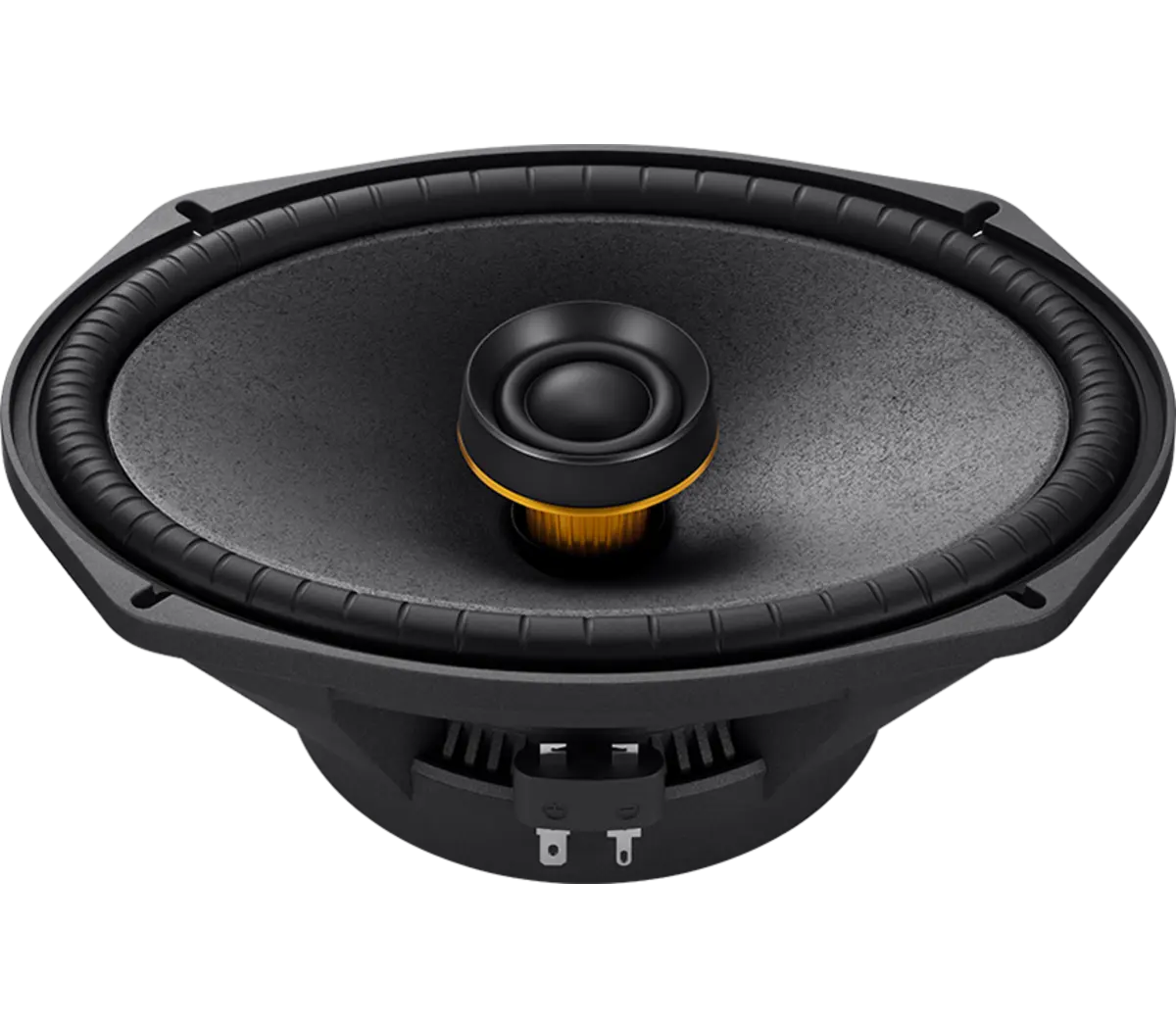

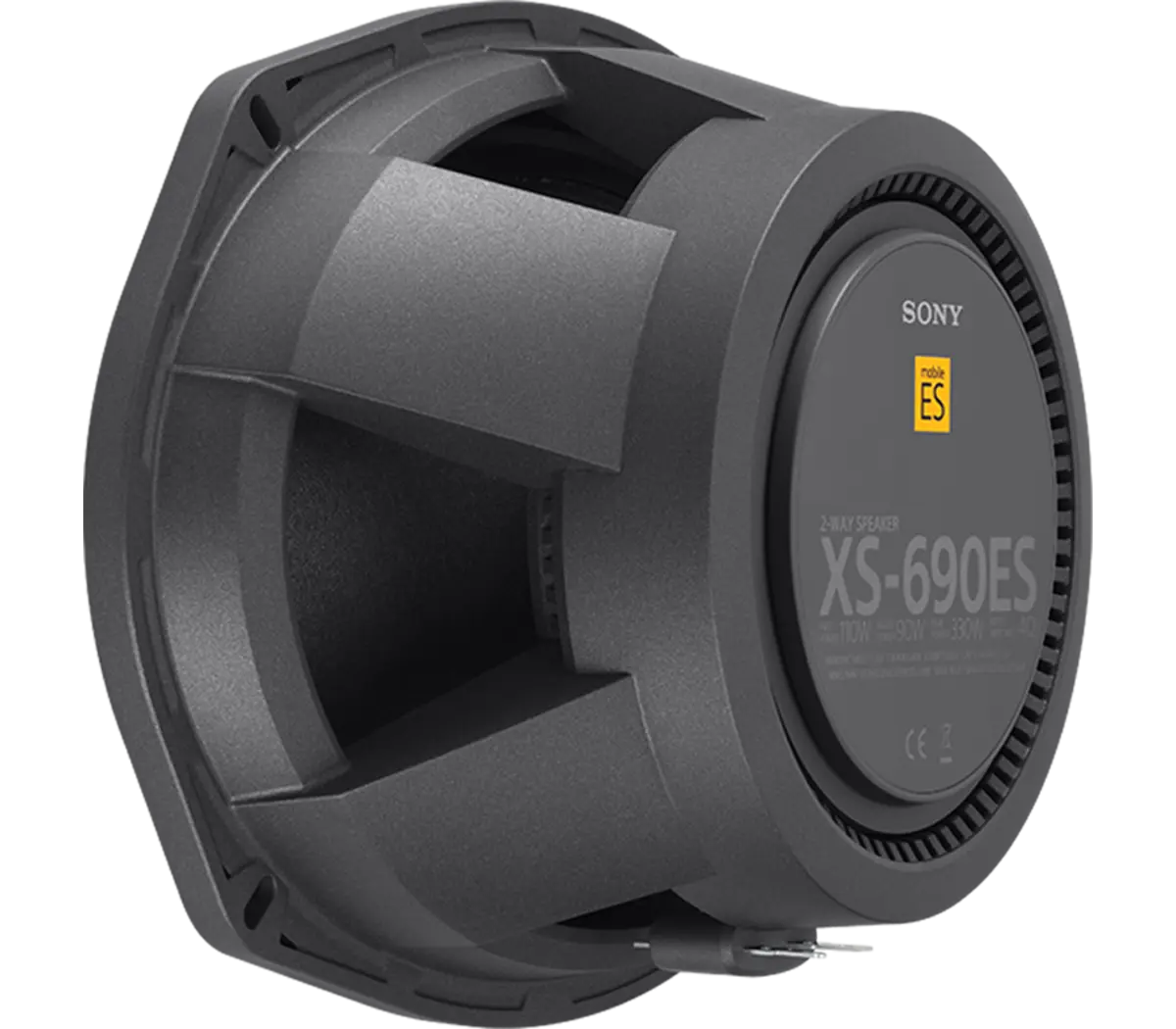

Sony XS690ES
The Sony XS-690ES is a 6×9-inch 2-way coaxial speaker from Sony’s premium Mobile ES series, designed to deliver audiophile-grade clarity and precision. It features an MRC (Mica Reinforced Cellular) aramid fiber matrix woofer for deep, tight bass and a soft dome tweeter for detailed high frequencies. With 90W RMS and 450W peak power handling, the XS-690ES ensures powerful and distortion-free sound for any car audio system.
Specifications
Speaker System Configuration
| Feature | Specification |
|---|---|
| Type | Coaxial, 2-way |
| Size | 6 x 9″ (16 x 24 cm) |
Woofer
| Feature | Specification |
|---|---|
| Diaphragm Material | MRC Aramid Fiber Matrix |
| Magnet Material | Ferrite |
| Cone Type | Cone |
| Surround Material | Rubber (Separated Notch) |
Tweeter
| Feature | Specification |
|---|---|
| Diameter | 1″ (2.5 cm) |
| Diaphragm Material | Synthetic Fiber |
| Magnet Material | Neodymium |
| Type | Soft Dome |
Power & Performance
| Feature | Specification |
|---|---|
| Rated Power | 90 W |
| RMS Power | 110 W |
| Peak Power | 330 W |
| Impedance | 4 Ω |
| Effective Frequency Range | 35 – 40,000 Hz |
| Output Sound Pressure | 90 dB ±2 dB SPL (1 W, 1 m) |
| Weight | 3.20 lb |
About The Product
Lightweight Rigid Cellular Aramid Fiber Matrix Woofer
The main speaker diaphragm on the XS-690ES is crafted from Sony’s unique Lightweight Rigid Cellular material, formerly known as MRC. The latest generation compound has been further optimized alongside mechanical driver improvements to deliver an even wider frequency response and smoother, more natural sound characteristics.
Optimal Formulation
Embedding in a unique matrix with aramid fibers suppresses diaphragm resonance and minimizes distortion, not only in the lows but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.

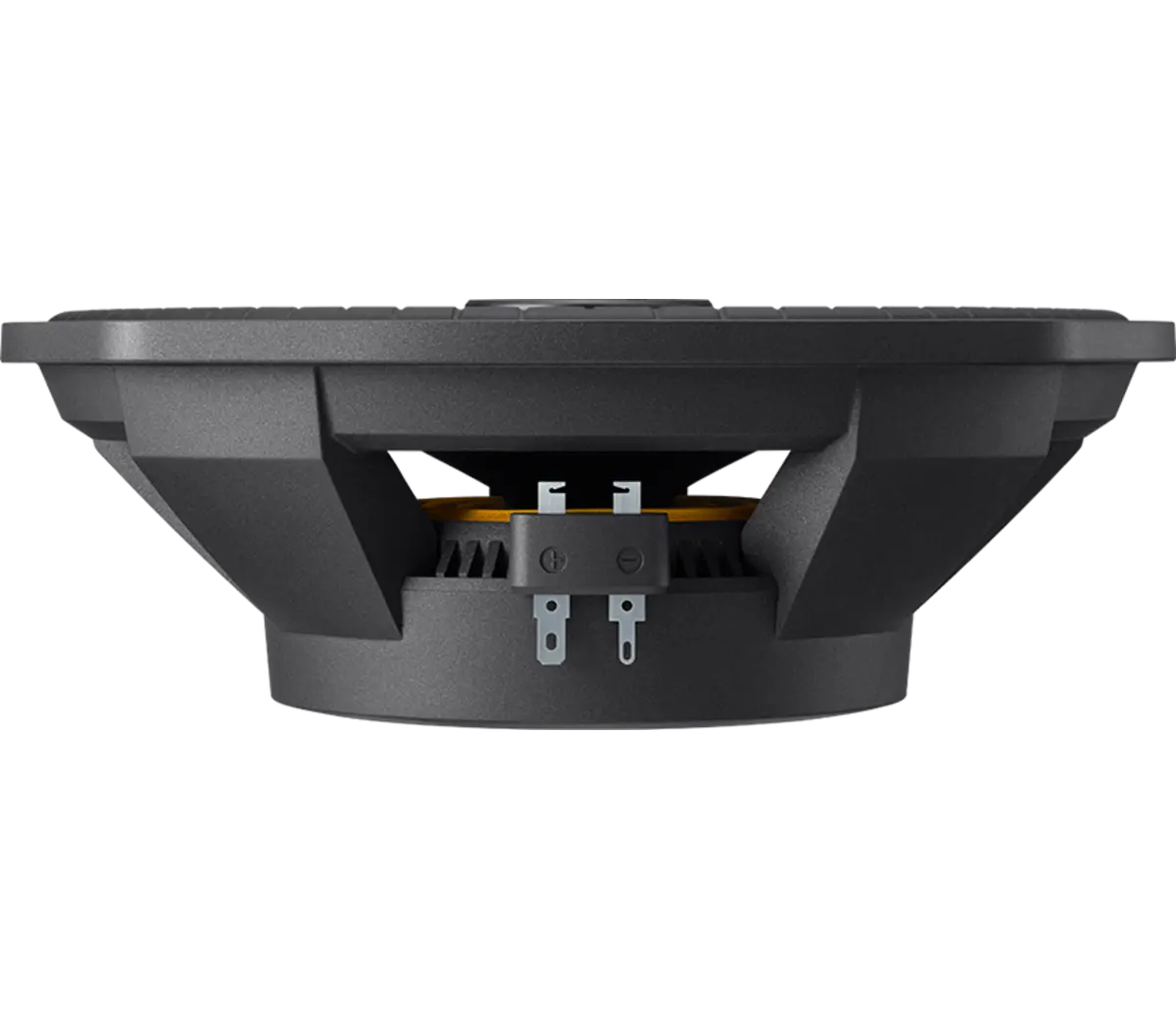

Five-Beam Frame Structure & Dynamic Air Diffuser
The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.
Progressive Height Rate Spider
The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone.
Tweeters to Hit the High Notes
Compatible with High-Resolution Audio, a soft dome tweeter diaphragm is directly attached to the voice coil, designed to cover your music’s ultra-high ends, with a frequency range extending up to 40kHz.
About This Item
- Lightweight Rigid Cellular aramid fiber matrix woofer for precise and responsive bass
- Soft-dome tweeter covers up to 40 kHz ultra-highs
- Separated Notch Edge Surround for reduced distortion and clear sound
- Five-beam frame design disperses resonance
- Dynamic Air Diffuser ensures efficient air circulation for smooth cone movement and cooling
