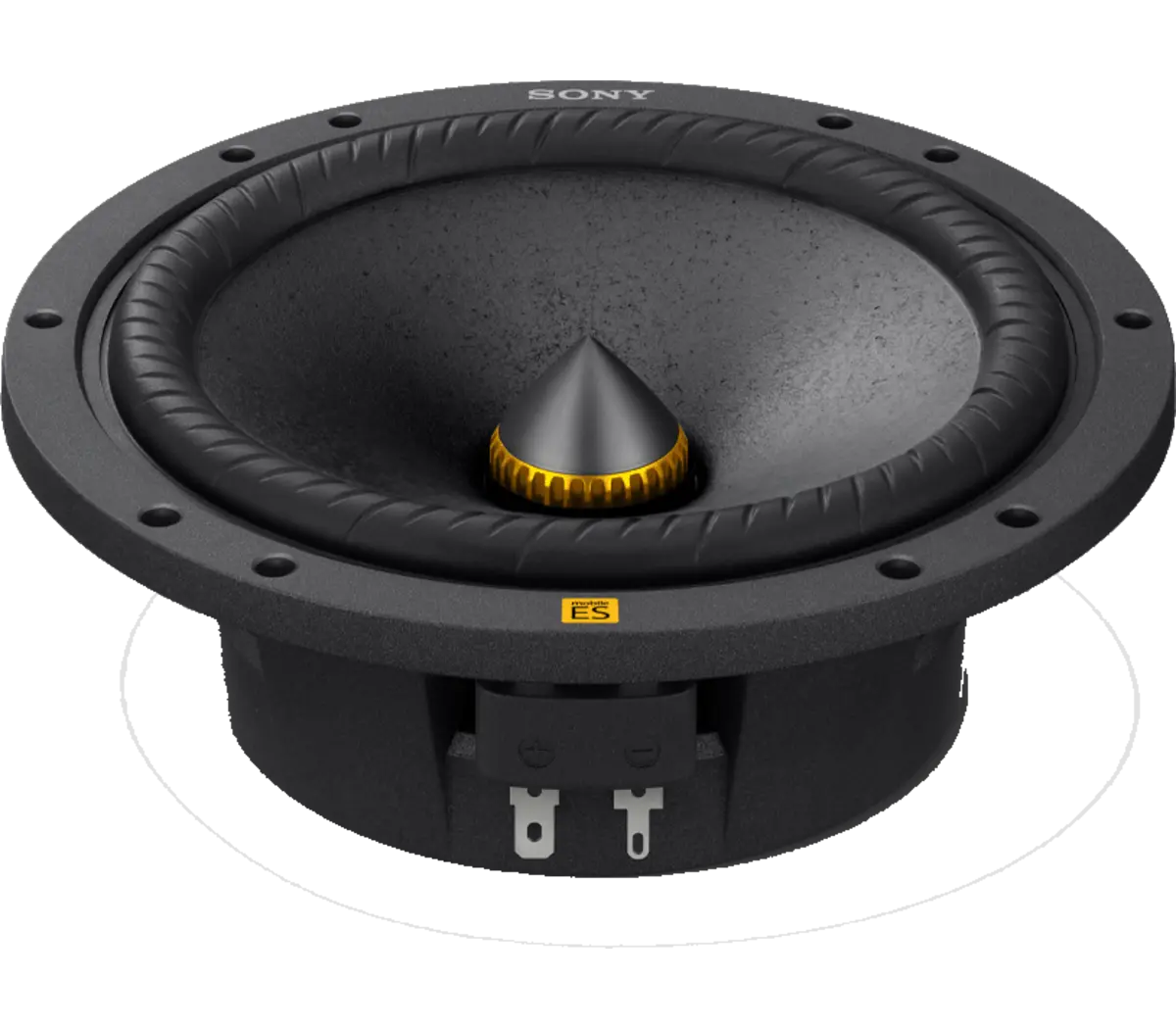

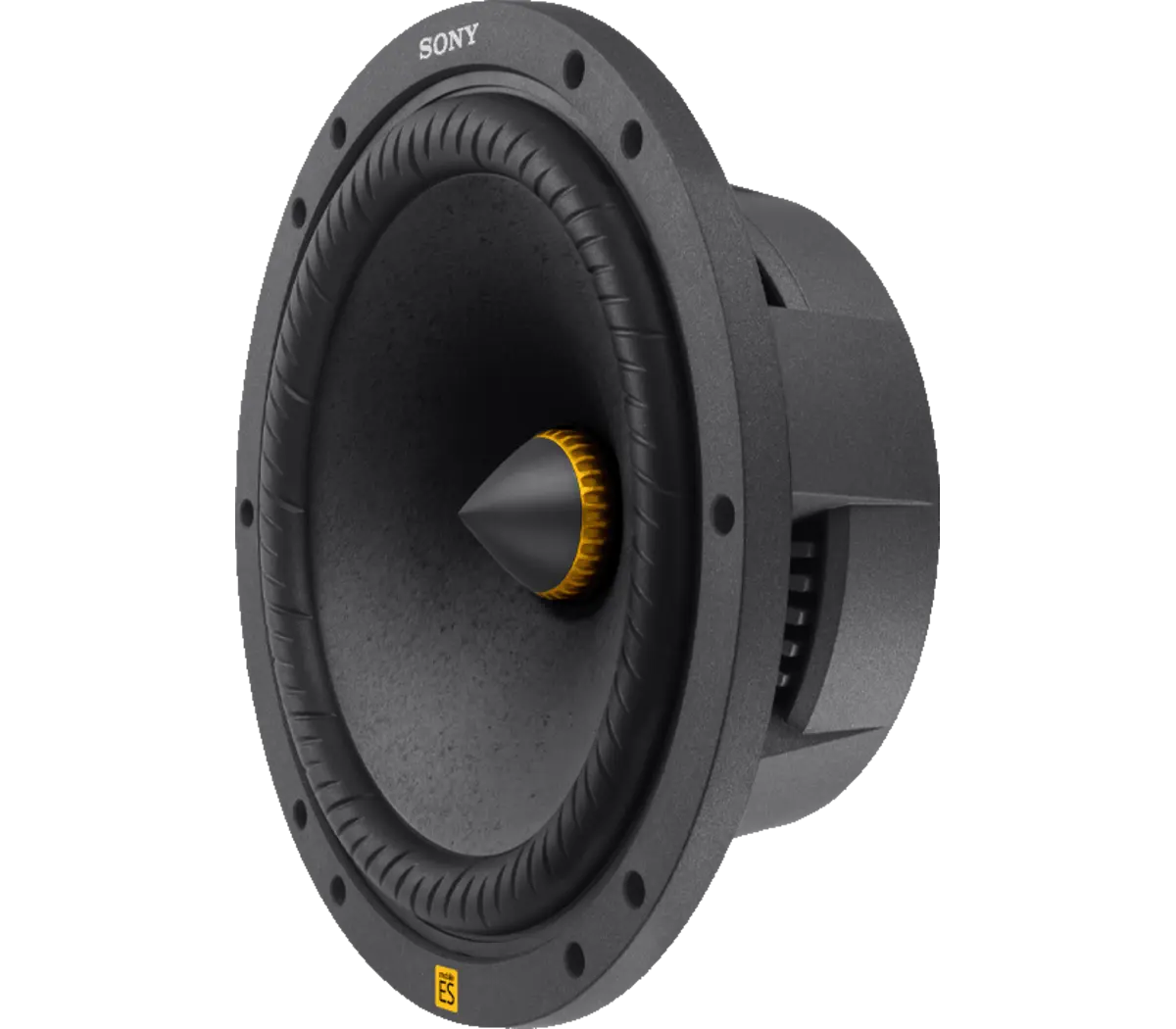

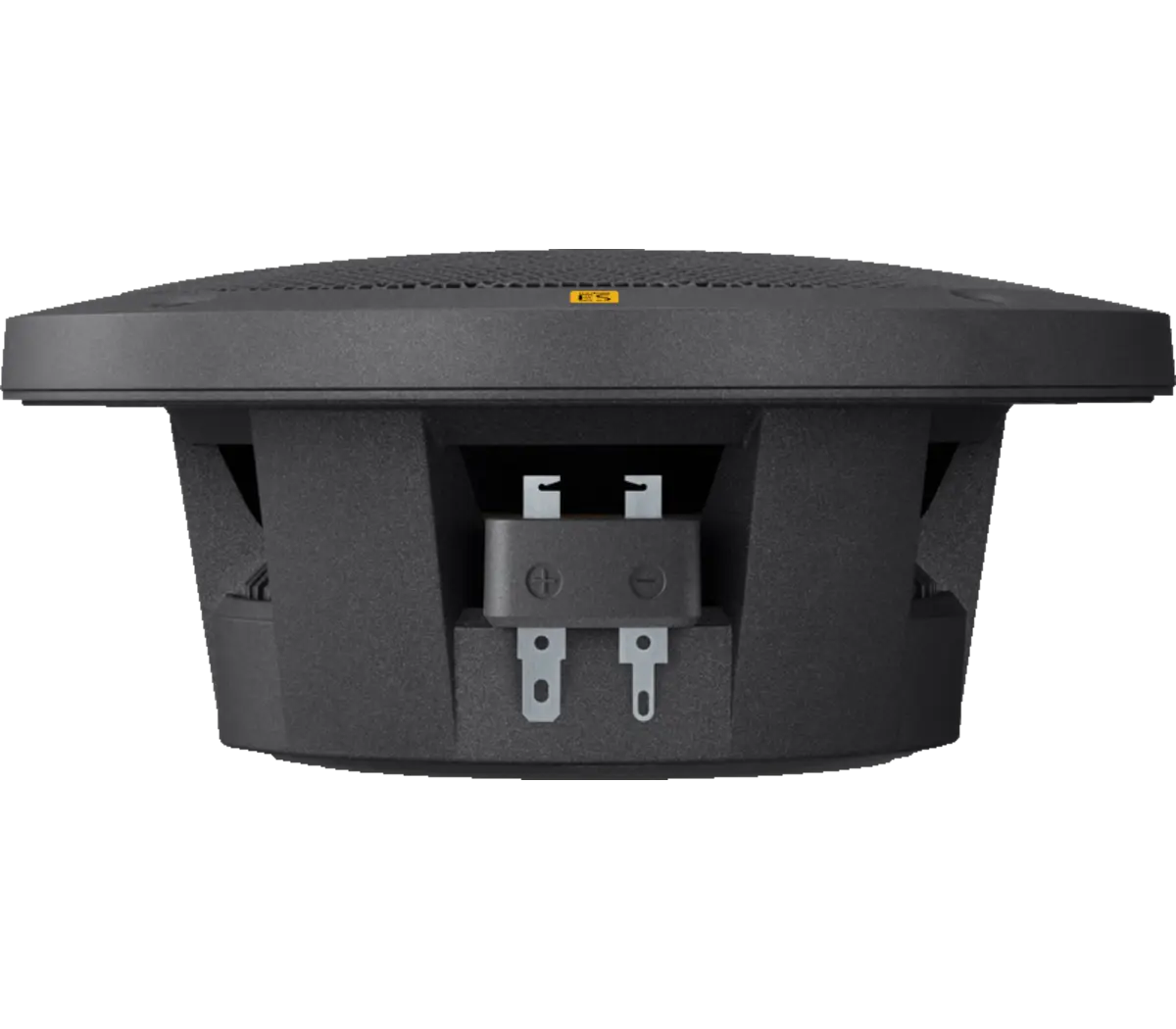

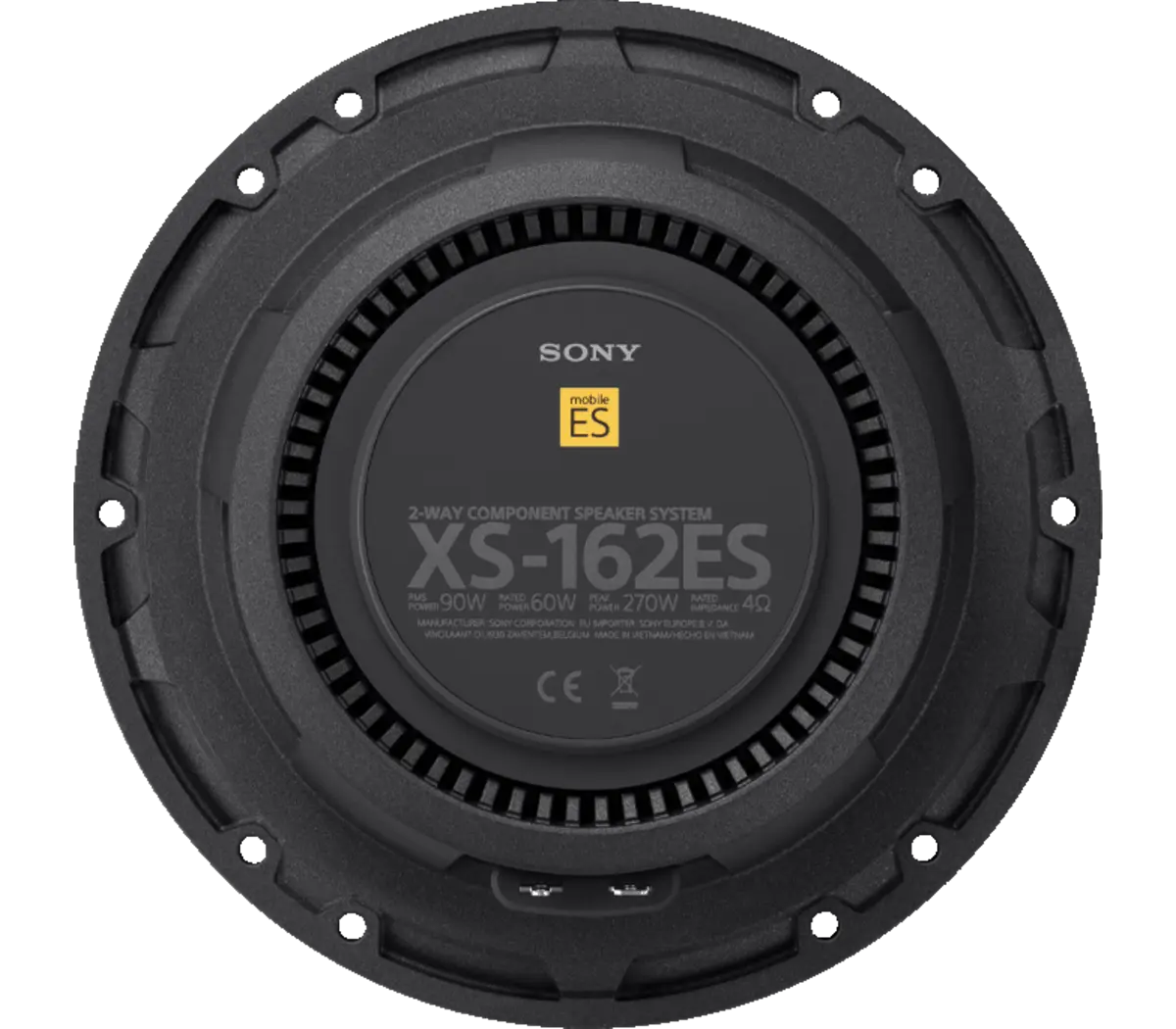

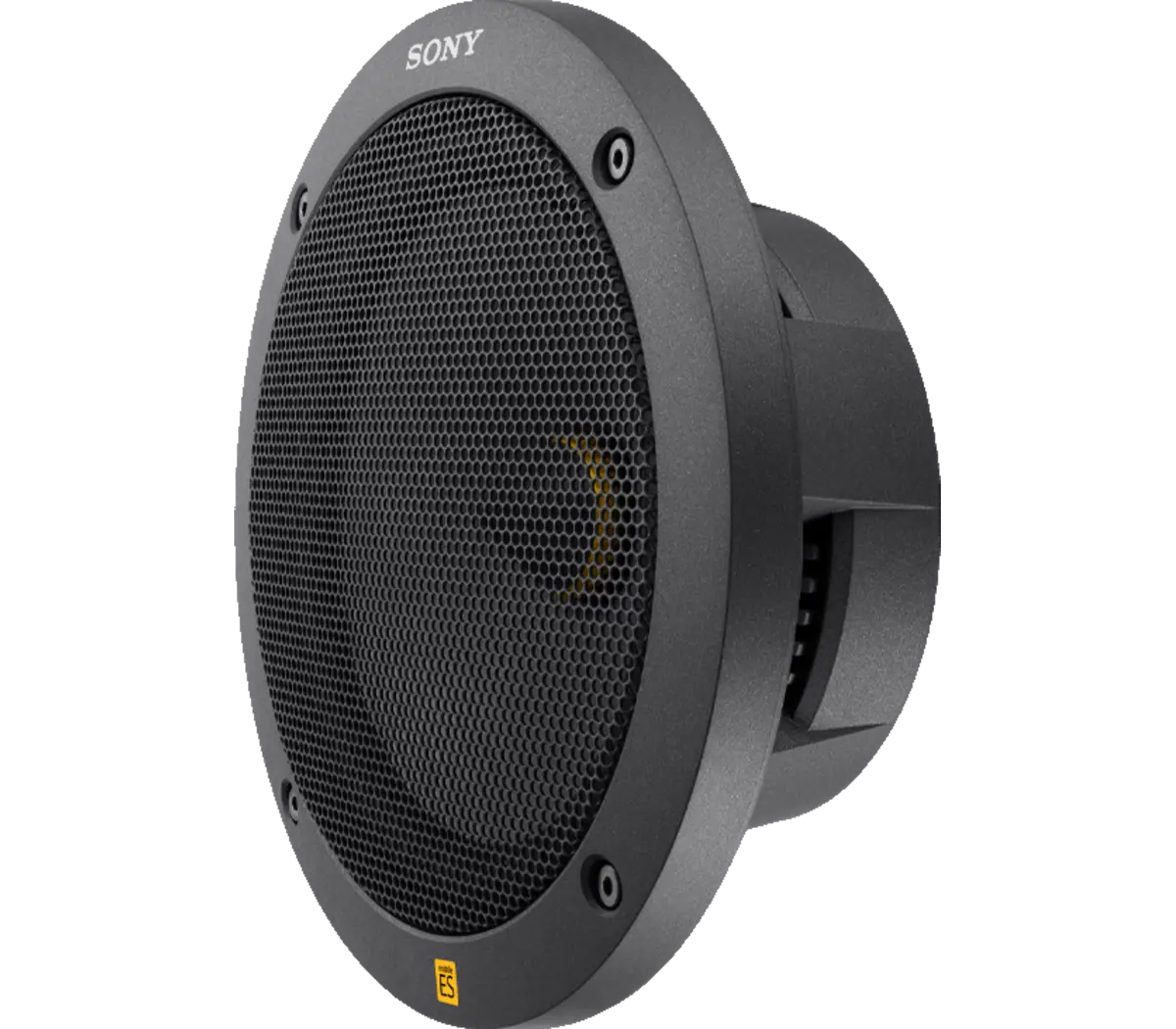

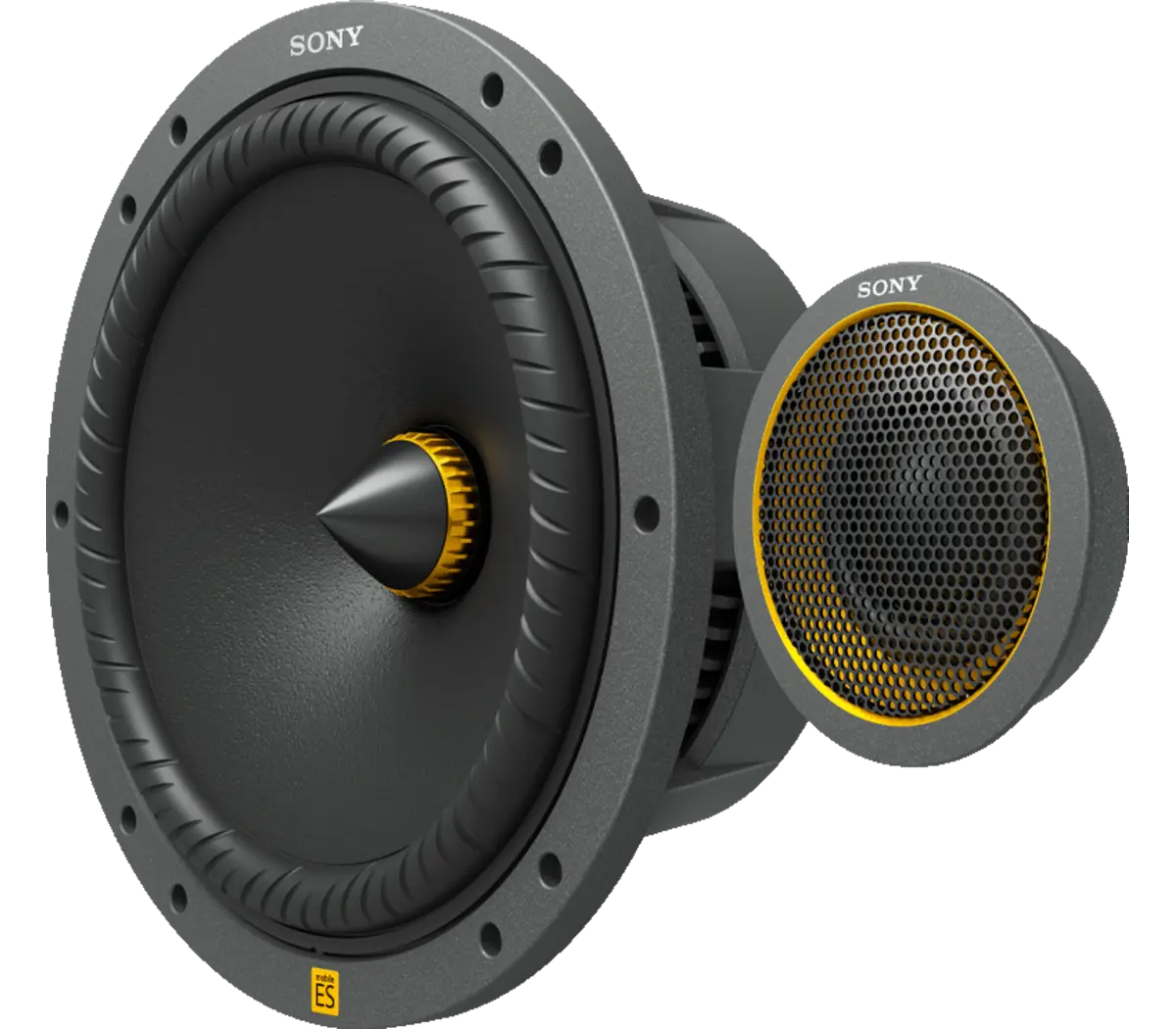

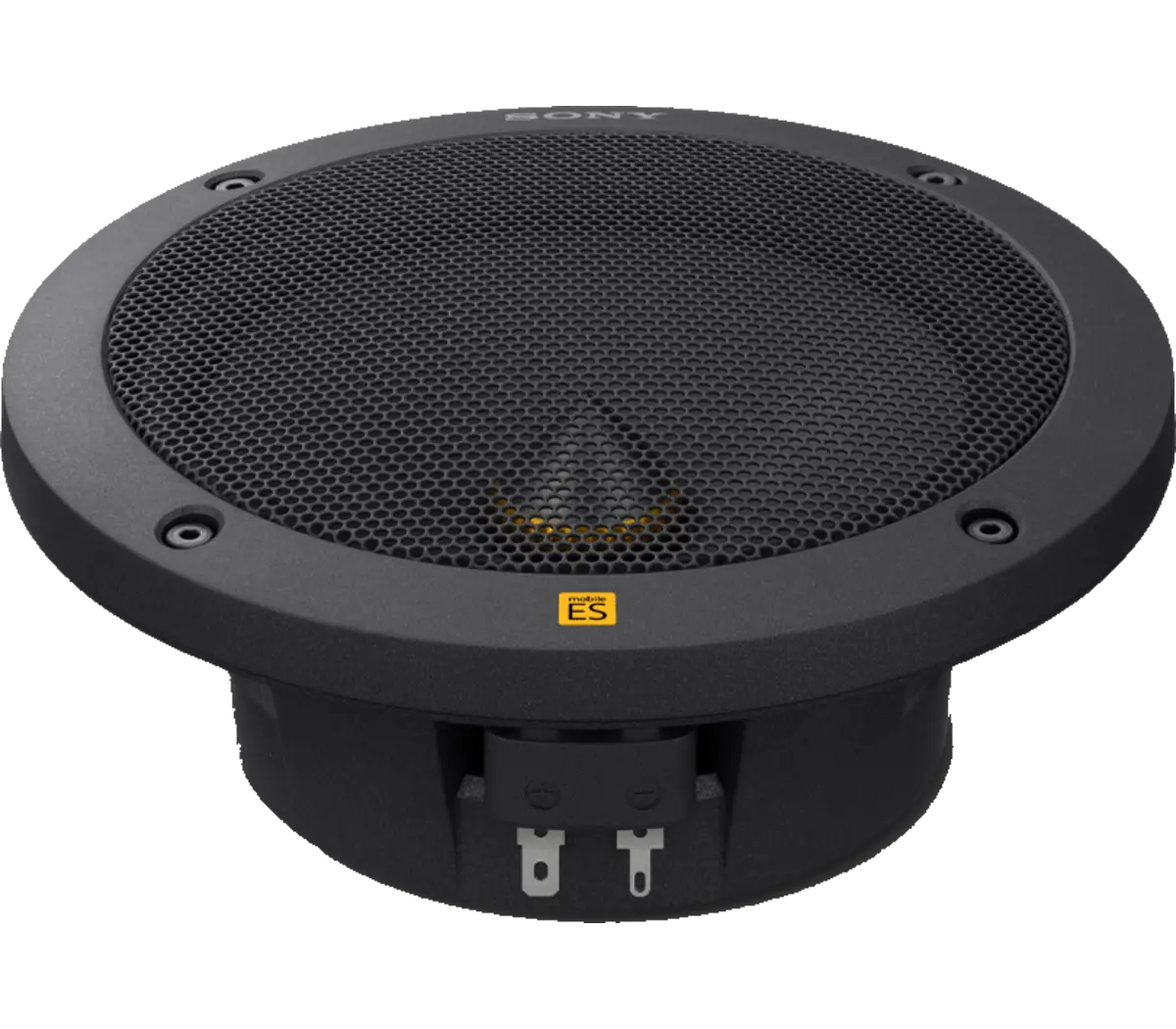

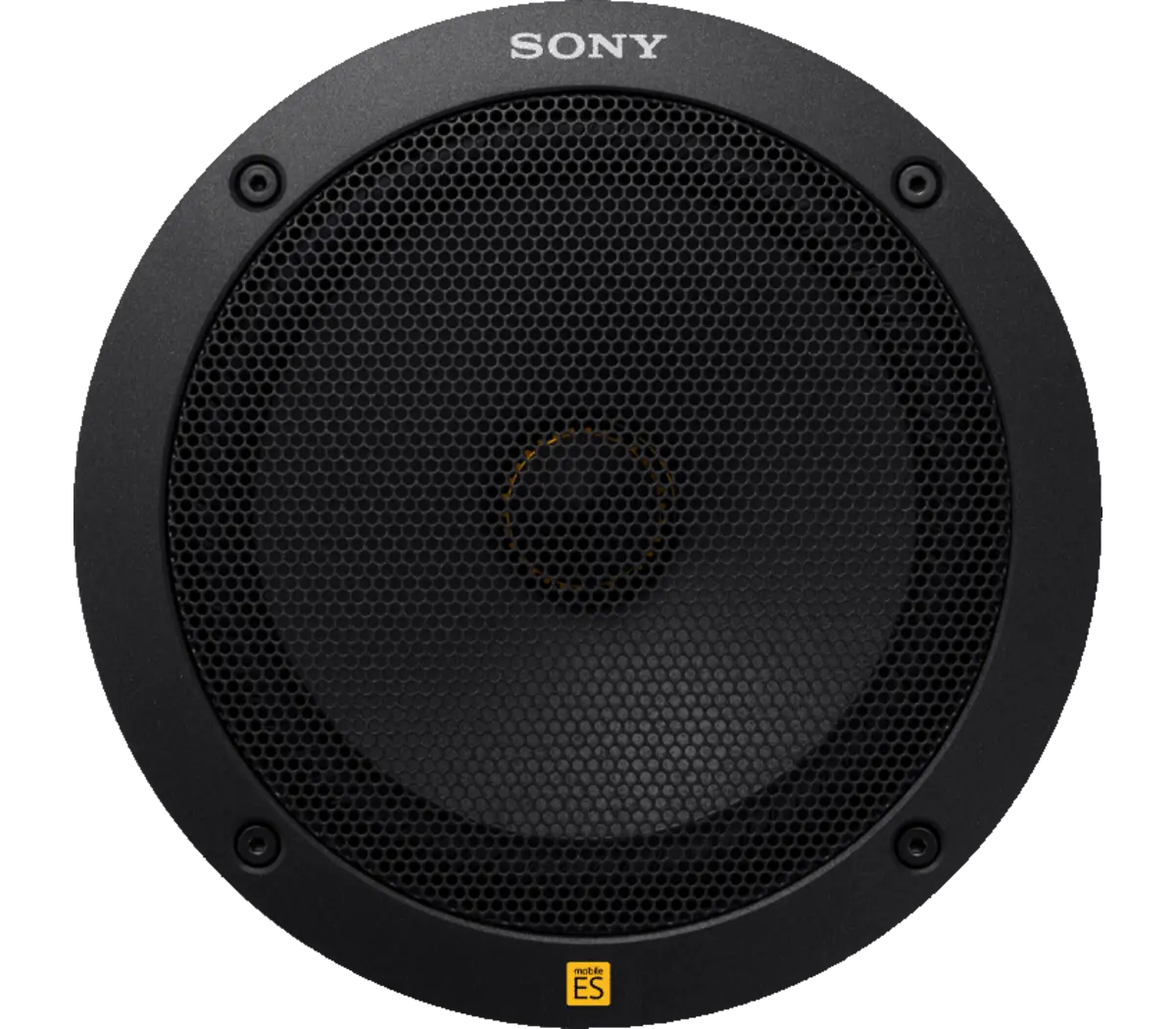

Sony XS-162ES
The Sony XS-162ES is a 6.5-inch 2-way coaxial speaker from Sony’s premium Mobile ES (Elevated Standard) series, designed to deliver precise, high-fidelity in-car audio. It features an MRC (Mica Reinforced Cellular) aramid fiber matrix woofer for deep, accurate bass and a soft dome tweeter for crisp, detailed highs. With 45W RMS and 270W peak power handling, the XS-162ES ensures clear, distortion-free sound for audiophile-quality listening.
Specifications
Woofer
| Feature | Specification |
|---|---|
| Woofer Diaphragm Material | MRC Aramid Fiber Matrix |
| Woofer Magnet Material | Ferrite |
| Surround Material | Rubber (Separated Notch) |
| Type | Cone |
Tweeter
| Feature | Specification |
|---|---|
| Diameter | 1″ (2.5 cm) |
| Tweeter Diaphragm Material | Synthetic Fiber |
| Tweeter Magnet Material | Neodymium |
| Type | Soft Dome |
Speaker System
| Feature | Specification |
|---|---|
| Configuration | Component, 2-way |
| Size | 6.5″ (16 cm) |
Size & Weight
| Feature | Specification |
|---|---|
| Weight (Network Box) | 5.64 oz |
| Weight (Tweeter) | 2.12 oz |
| Weight (Woofer) | 33.51 oz |
General Features
| Feature | Specification |
|---|---|
| Rated Power | 60 W |
| Peak Power | 270 W |
| Effective Frequency Range | 40–40,000 Hz |
| Impedance (ohms) | 4 |
| Output Sound Pressure | 89 dB ±2 dB SPL (1 W, 1 m) |
| RMS Power | 90 W |
About The Product
Lightweight Rigid Cellular Aramid Fiber Matrix Woofer
The main speaker diaphragm on the XS-162ES is crafted from Sony’s unique Lightweight Rigid Cellular material, formerly known as MRC. The latest generation compound has been further optimized alongside mechanical driver improvements, to deliver an even wider frequency response and smoother, more natural sound characteristics.
Optimal formulation
Embedding in a unique matrix with aramid fibers suppresses diaphragm resonance and minimizes distortion, not only in the lows but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.
Bi-amp capable crossover with gain selector
The audiophile-grade crossover features an optimal, lower-resistance film capacitor for smooth high-end. Its bi-amp capable design mitigates current distortion to the tweeter when running the woofer with high input levels. A dedicated gain selector helps keep balance of woofer and tweeter signal levels and enables tweeter level adjustment even when driving the components from a single amplifier.
About This Item
- Lightweight Rigid Cellular aramid fiber matrix woofer for precise and responsive bass
- Soft-dome component tweeter covers up to 40 kHz ultra-highs
- Separated Notch Edge Surround for reduced distortion and clear sound
- Five-beam frame design disperses resonance
- Dynamic Air Diffuser ensures efficient air circulation for smooth cone movement and cooling
