Description

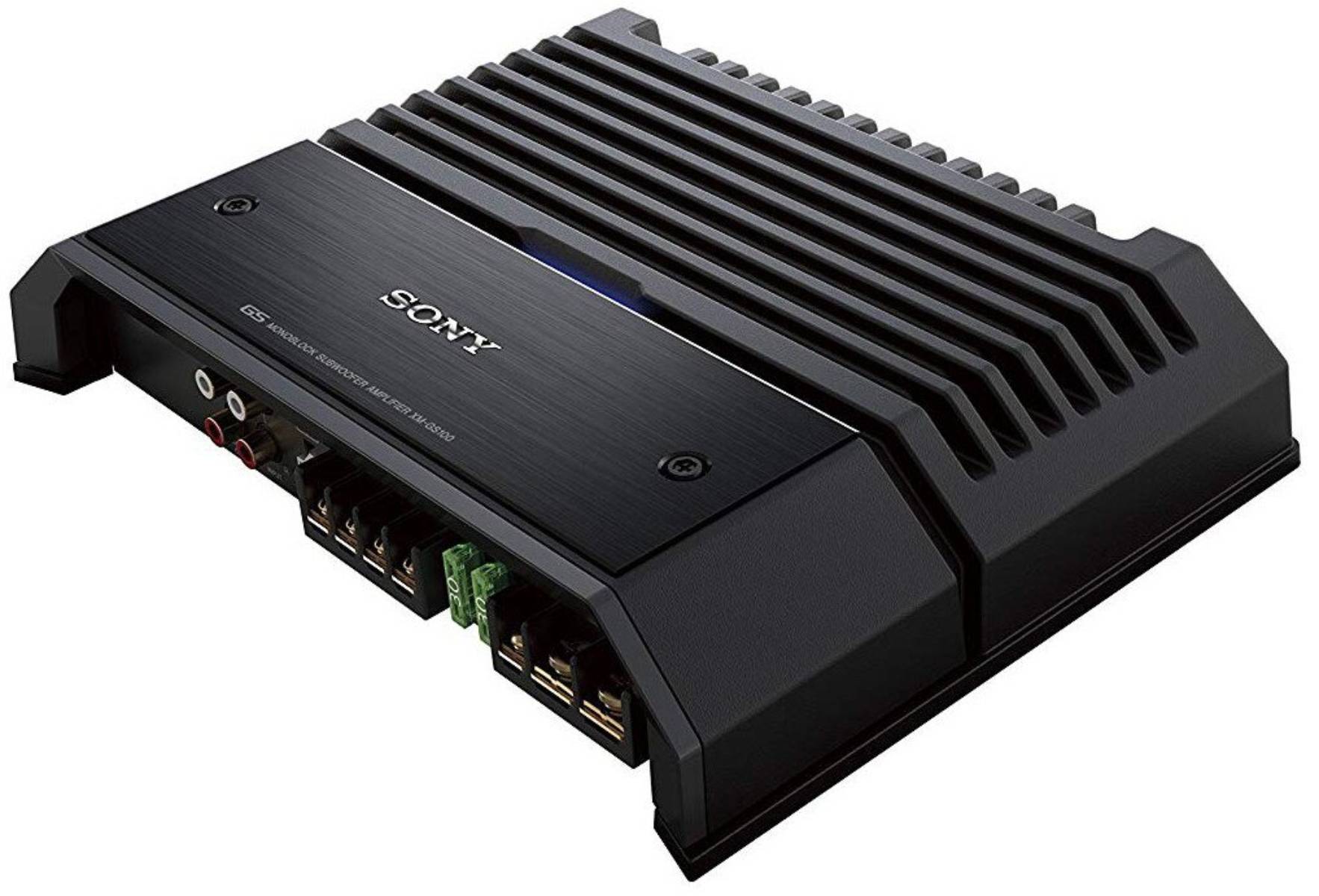

Sony XM-GS100
The Sony XM-GS100 is a high-performance Class D mono car amplifier from Sony’s GS series, built to deliver powerful and clean bass. Designed for subwoofer applications, it provides strong RMS output with low distortion and superior thermal management. Its compact and durable design makes it a perfect fit for both daily drivers and high-end audio setups.
Specifications
Physical & General
| Feature | Specification |
|---|---|
| Dimensions (W x H x D) | 2.01 x 10.71 x 7.95 in (≈51 x 272 x 202 mm) |
| Weight | 5.51 lb |
| Gold-Plated Connectors | Yes |
| MOSFET Power Supply | Yes |
| Speaker Level Input | Yes |
| Line Out | Yes (Through) |
| Subsonic High Pass Filter | Yes |
Output Power
| Configuration | RMS / THD | Maximum |
|---|---|---|
| 1 channel @ 2 Ω | 600 W / 1.0% (50 Hz) | 1100 W |
| 1 channel @ 4 Ω | 330 W / 1.0% (20-200 Hz) | 600 W |
Frequency & Signal
| Feature | Specification |
|---|---|
| Frequency Response | 10 – 300 Hz |
| Signal-to-Noise Ratio | 100 dB |
| Total Harmonic Distortion (1 kHz) | 0.1% (50 Hz) |
| Tolerance | +0.5 / -3 dB |
Filters & Audio Adjustment
| Feature | Range / Slope |
|---|---|
| Bass Boost Frequency | 40 Hz, 0–10 dB |
| Low Pass Filter | 50–300 Hz, 12 dB/oct |
Current & Sensitivity
| Feature | Specification |
|---|---|
| Current Drain @ Rated Output 4 Ω | 30 A |
| Line In Sensitivity | 0.3–6 V |
| Load Capability | Yes |
About This Item
- 330 W high power output
- 600 W (at 4 ohms), 1100 W x 1 (at 2 ohms)
- Active Thermal Control for stable playback
- Dynamic Distortion Suppressor for clear sound
- Low pass filte
