Description
Sony XM-5ES
The Sony XM5ES is a high-performance 12-inch subwoofer from Sony’s Mobile ES (Elevated Standard) series, engineered for deep, accurate bass and superior low-frequency performance. It features a rigid honeycomb-patterned diaphragm, five-beam frame structure, and dynamic air diffusion system to minimize distortion and maximize cooling. With 600W RMS and 2400W peak power handling, the XM5ES delivers powerful, clean bass suitable for premium car audio systems.
Specifications
Power Output
| Feature | Specification |
|---|---|
| Rated Output Power (14.4 V, 2 Ω) | 165 W × 4 + 750 W × 1 at 1 kHz, 1% THD |
| Rated Output Power (14.4 V, 4 Ω) | 100 W × 4 + 450 W × 1 at 1 kHz, 1% THD |
| 4 Ω — BTL (Bridge-Tied Load) | 330 W × 2 BTL + 450 W × 1 at 1 kHz, 1% THD |
| CTA Rated Output Power (4 Ω) | 100 W × 4, 450 W × 1 |
Amplifier Specifications
| Feature | Specification |
|---|---|
| Channel Configuration | 4-ch / 3-ch / 2-ch / 1-ch (Mono) |
| Frequency Response | 10 Hz – 40 kHz (Channels), 10 – 500 Hz (Subwoofer) |
| Low-Pass Filter | Variable (50 – 500 Hz), 12 dB/oct (channels) + 24 dB/oct (subwoofer) |
| High-Pass Filter | Variable (500 – 5 kHz), 12 dB/oct |
| CTA Signal-to-Noise Ratio | 77 dB |
| Signal-to-Noise Ratio | 100 dB |
| Total Harmonic Distortion @ 1 kHz | < 0.05% |
| MOSFET Power Supply | Yes |
| Speaker Level Input | Yes |
| Gold-Plated Connectors | Yes |
| Subsonic High-Pass Filter | Yes |
Size & Weight
| Feature | Specification |
|---|---|
| Dimensions (W × H × D) | 14.96″ × 2.36″ × 8.46″ |
| Weight | Not specified |
About The Product
Optimized Power Blocks
The power supply block is optimally designed for low-noise, highly efficient electric power transmission. A DC converter with a toroidal core transformer is chosen to reduce electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the Class-D amplification are isolated with their own ground circuitry, minimizing any signal interference.
Select Components for Superior Sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while high-capacity electrolytic capacitors contribute to precise and responsive bass.

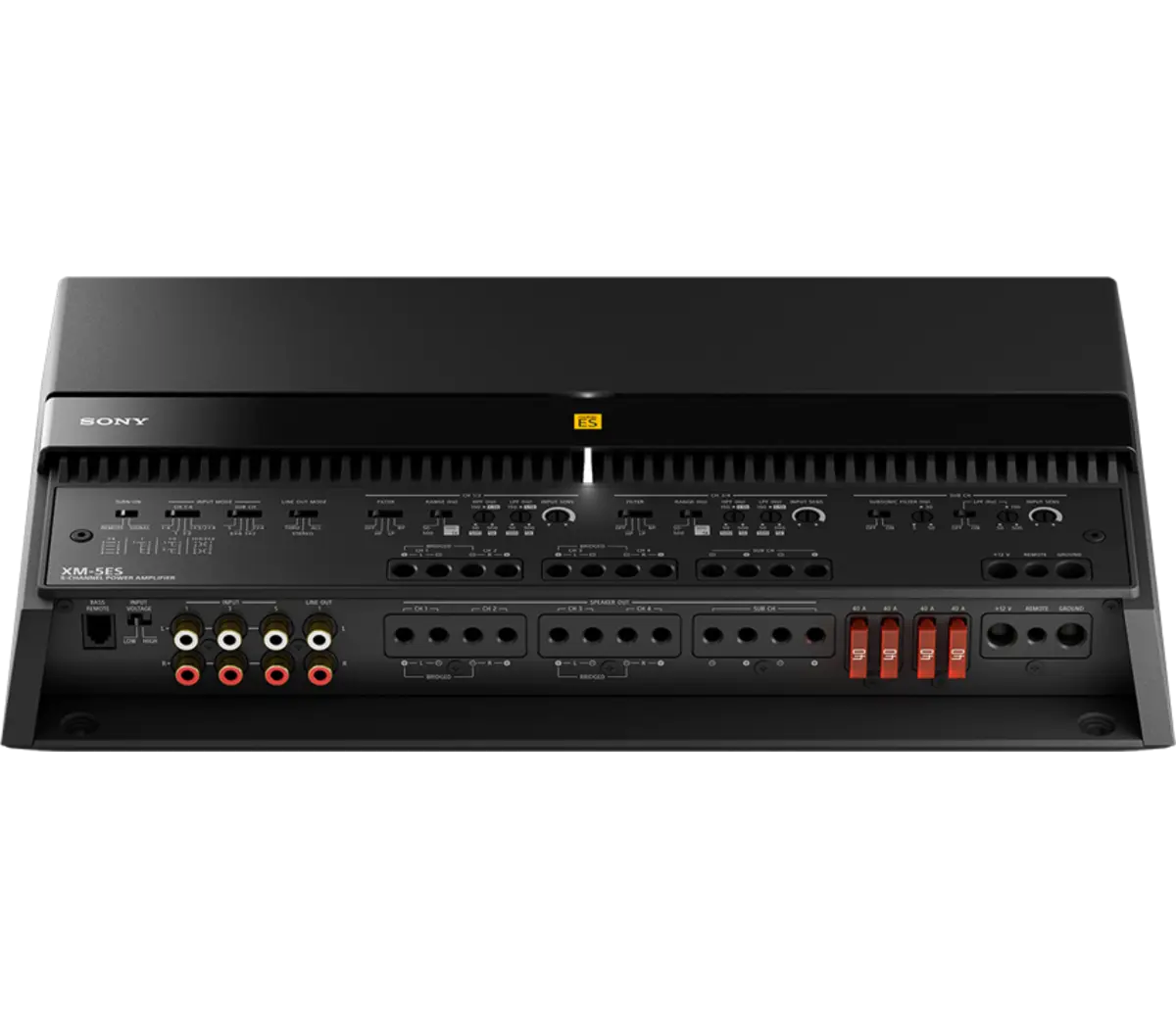

High-Quality Speaker Terminal
The speaker terminal features Hex-key screws, providing a durable method for tightening wire connections. It accepts bare wire or wire ferrules (up to AWG #8) for superior electrical performance, high-quality sound, and safe connection.
About This Item
- 100 W x 4 (330 W x 2 bridged) and 450 W x 1 RMS output power at 4 ohms
- 165 W x 4 and 750 W x 1 RMS output power at 2 ohms
- High-Resolution Audio compatible
- Signal summing for seamless connection to factory audio and combined pre-outs

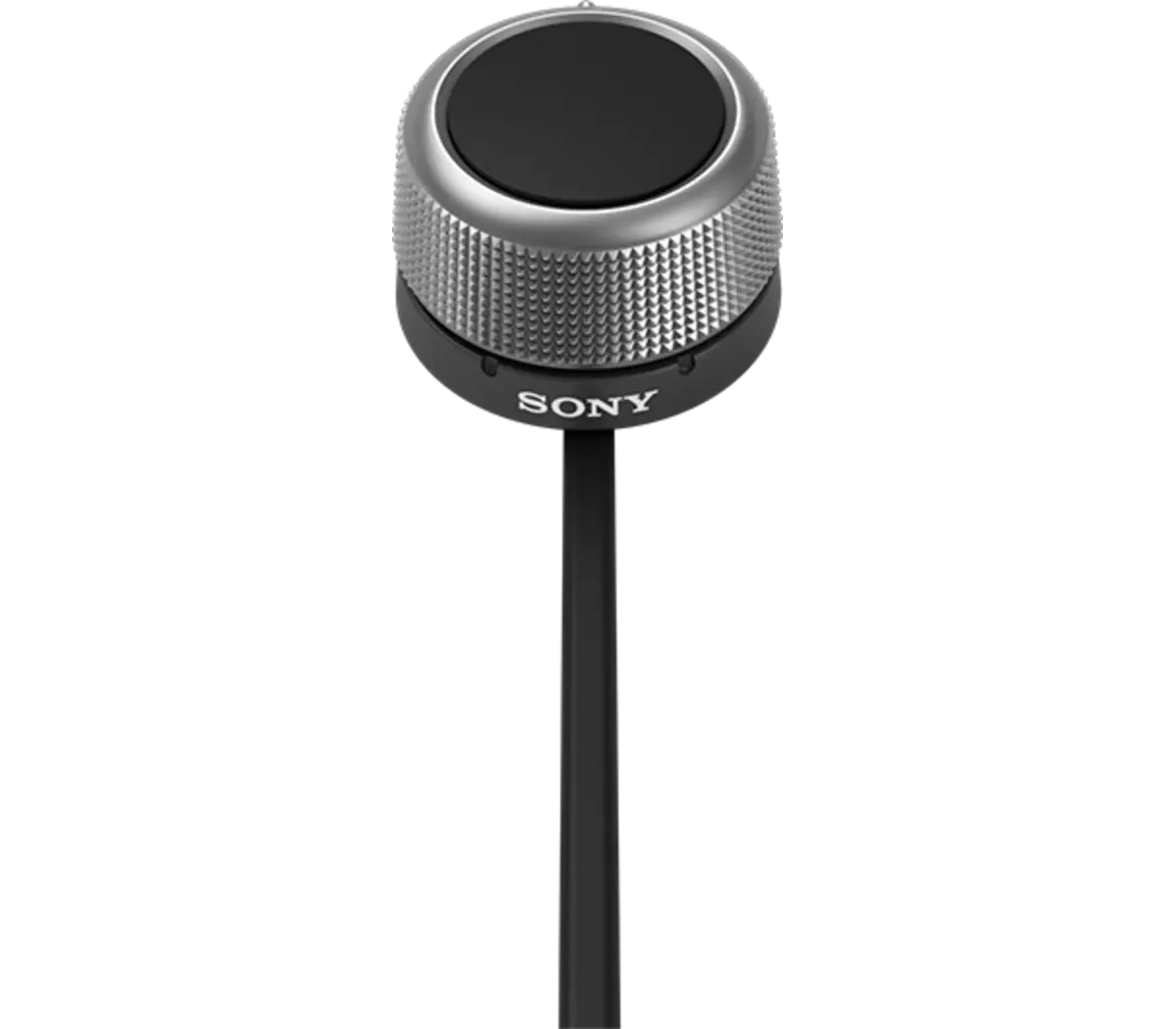

- Updated connection terminal/control panel design, and supplied bass remote
