Description
Sony XM-1ES
The Sony XM1ES is a 10-inch subwoofer from Sony’s Mobile ES (Elevated Standard) series, designed to deliver deep, powerful, and distortion-free bass for premium car audio systems. It features a rigid honeycomb-patterned diaphragm, five-beam frame structure, and a dynamic air diffusion system to ensure maximum cooling and reliability. With 400W RMS and 1600W peak power handling, the XM1ES provides high-impact, accurate low-frequency performance.
Specifications
Power Output
| Feature | Specification |
|---|---|
| Rated Output Power (14.4 V, 2 Ω) | 1,000 W × 1 at 100 Hz, 1% THD |
| Rated Output Power (14.4 V, 4 Ω) | 600 W × 1 at 100 Hz, 1% THD |
| CTA Rated Output Power (4 Ω) | 600 W × 1 |
| Maximum Output Power (1 kHz, 2 Ω) | 1,550 W |
| Maximum Output Power (1 kHz, 4 Ω) | 1,000 W |
Amplifier Specifications
| Feature | Specification |
|---|---|
| Channel Configuration | 1-Channel (Mono) |
| Frequency Response | 10 – 500 Hz |
| Low-Pass Filter | Variable (50 – 500 Hz) |
| Low-Pass Filter Slope | 24 dB/oct |
| CTA Signal-to-Noise Ratio | 77 dB |
| Signal-to-Noise Ratio | 100 dB |
| Total Harmonic Distortion @ 1 kHz | < 0.05% |
| MOSFET Power Supply | Yes |
| Speaker Level Input | Yes |
| Subsonic High-Pass Filter | Yes |
| Gold-Plated Connectors | Yes |
Size & Weight
| Feature | Specification |
|---|---|
| Dimensions (W × H × D) | 10.63″ × 2.36″ × 8.46″ |
| Weight | 6.39 lb |
About The Product
Optimized Power Blocks
The power supply block is designed for low-noise, highly efficient electric power transmission. A DC converter with a toroidal core transformer is used to minimize electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the Class-D amplification are isolated with their own ground circuitry, minimizing any signal interference.
Select Components for Superior Sound
Upgraded inductors with OFC wires are chosen for lower internal resistance and improved sound character, while high-capacity electrolytic capacitors contribute to precise and responsive bass performance.

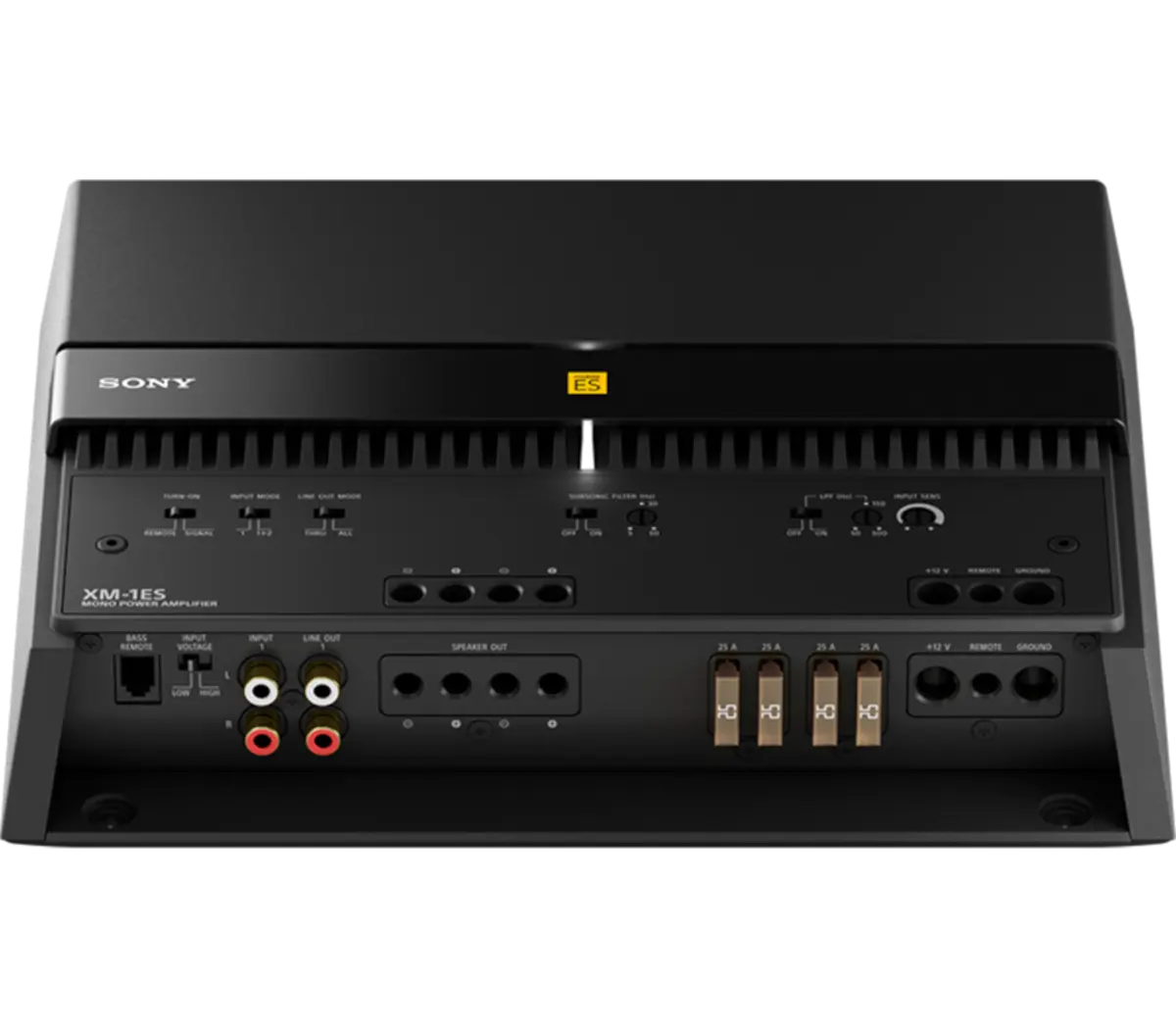

High-Quality Speaker Terminal
The speaker terminal features Hex-key screws, providing a durable and secure method for wire connections. It accepts bare wire or wire ferrules (up to AWG #8) for superior electrical performance, high-quality sound, and safe connection.
About This Item
- 600 W x 1 RMS output power at 4 ohms
- 1,000 W x 1 RMS output power at 2 ohms
- Resonance-damping compact and sturdy aluminum case
- Combined Pre-outs for more installation options

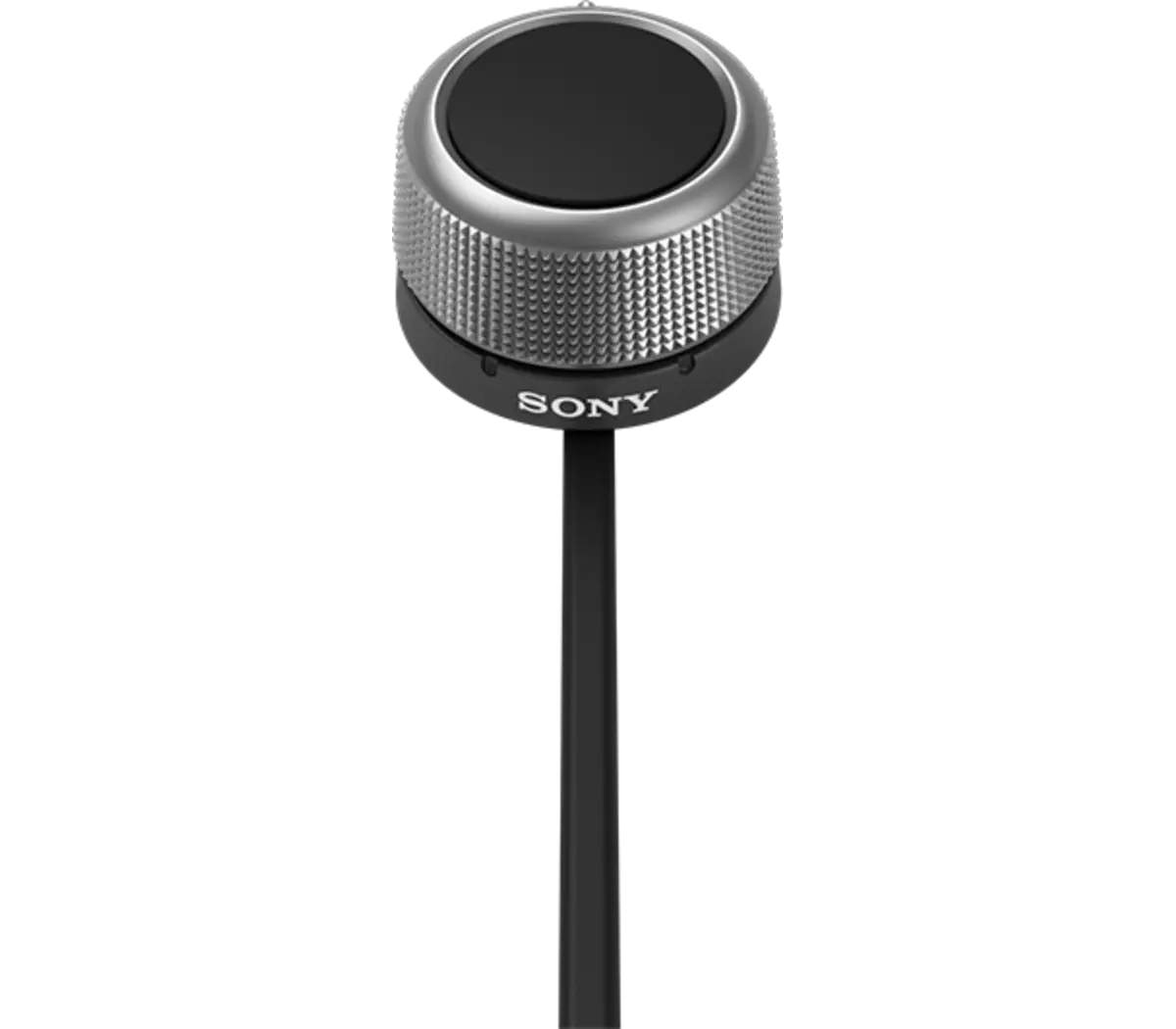

- Updated connection terminal/control panel design, and supplied bass remote
