Description

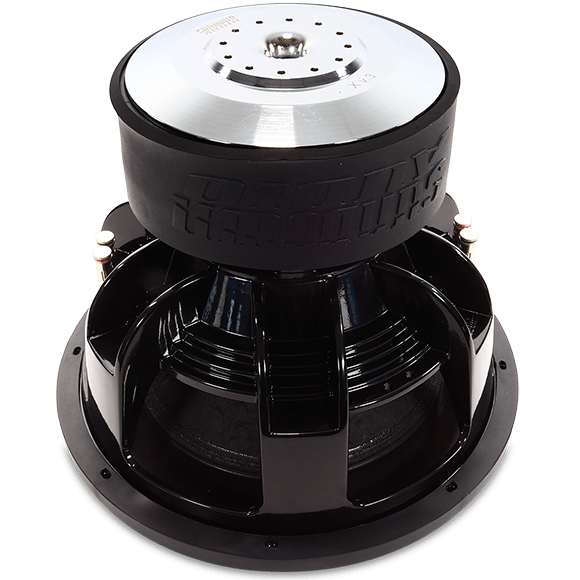

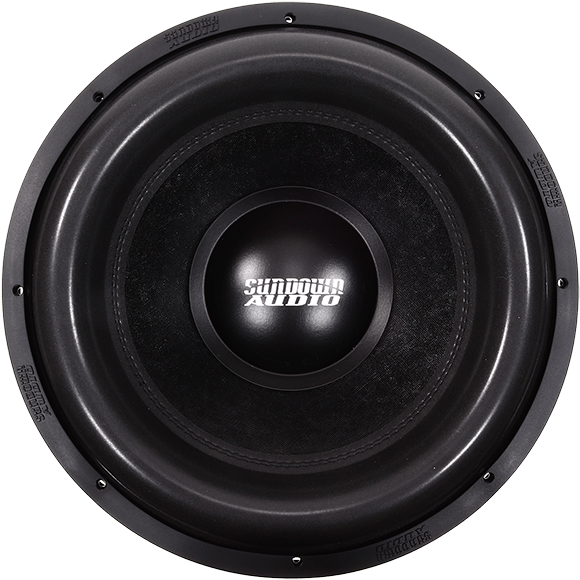

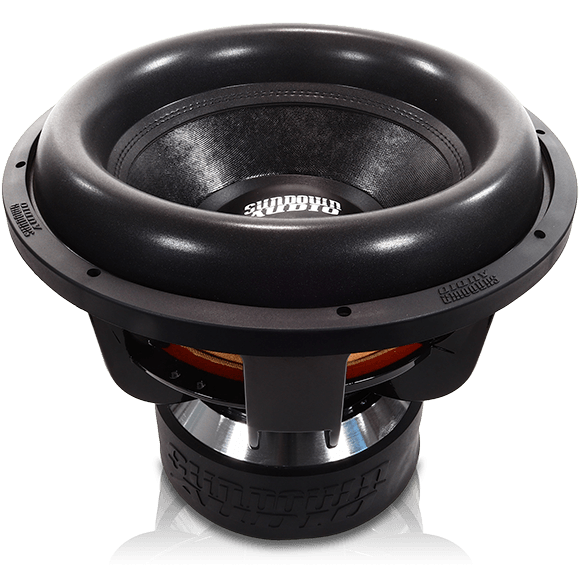

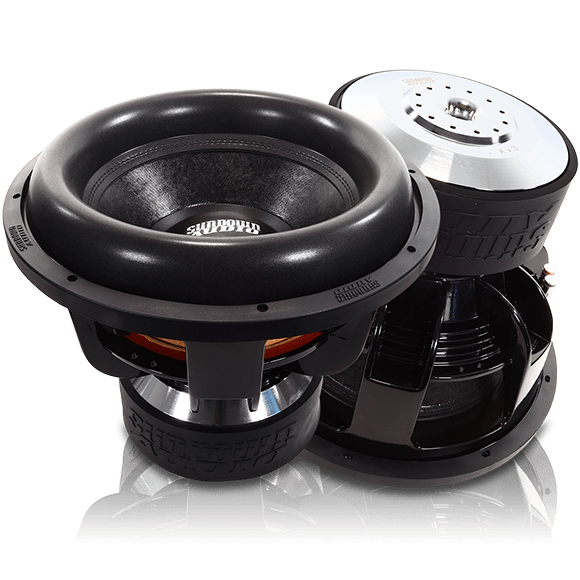

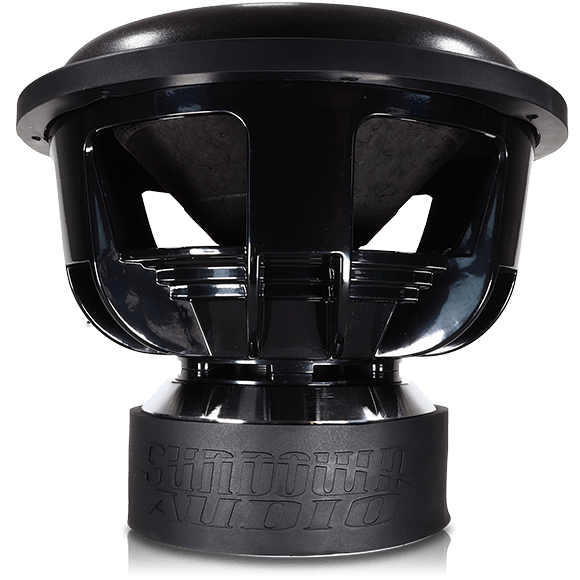

Sundown Audio X-15 v.3 D2

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension. The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the V.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.


Specifications

T/S SPECS X V.3 15″ D1 X V.3 15″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 31.418 31.423
VAS (L) 45.907 45.924
Qes 0.486 0.561
Qms 2.562 2.801
Qts 0.409 0.468
Le (mH)
BL (NA) 15.518 21.831
Mms (Grams) 423.721 423.436
Cms (uM/N) 60.563 60.585
Sens (dB @ 1w/1m) 86.5dB 85.9dB
Xmax 30mm 30mm

Enclosure Specifications
X v.3 15
Sealed Enclosure N/A
Ported Enclosure 4.25 cu ft
Recommended Tuning 32hz
Recommended Port Area 68 sq in
Displacement 0.22 cu ft
Depth 11.6″
Outside Diam. 15.51″
Cutout 13.83″



Reviews

There are no reviews yet.

Be the first to review “Sundown Audio X-15 v.3 D2”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: Is the Sundown Audio X-15 v.3 D2 a subwoofer or a speaker?

A1: It is a true subwoofer, built specifically for deep and powerful low-frequency bass, not mids or vocals.

Q2: What does D2 mean in X-15 v.3 D2?

A2: D2 means dual 2-ohm voice coils, allowing wiring options such as 1 ohm or 4 ohm, depending on amplifier configuration.

Q3: Is this subwoofer suitable for SPL and competition systems?

A3: Yes. The X-Series v.3 is engineered for extreme excursion and very high power handling, making it ideal for SPL and competition-level builds.

Q4: Can the X-15 v.3 D2 be used in sealed and ported enclosures?

A4: Yes. It performs well in large sealed enclosures for controlled bass and ported enclosures for maximum output.

Q5: What amplifier is recommended for the X-15 v.3 D2?

A5: A high-quality high-power mono Class-D amplifier matched to the final wired impedance is recommended for best performance.
