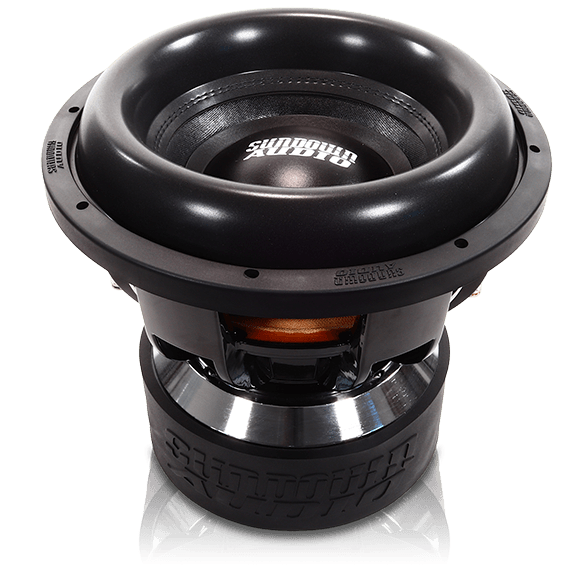

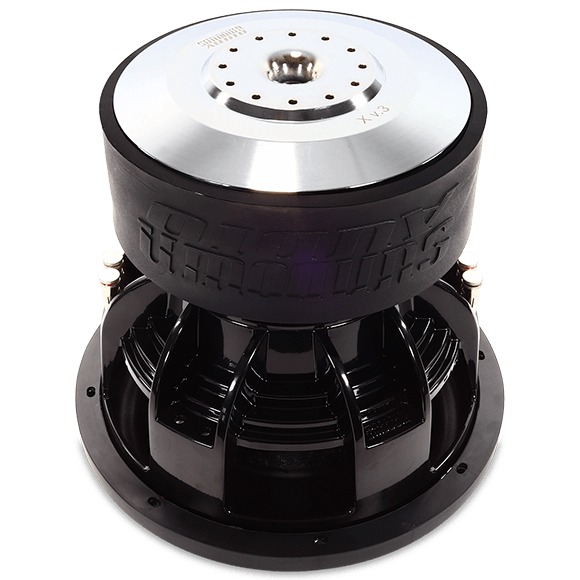

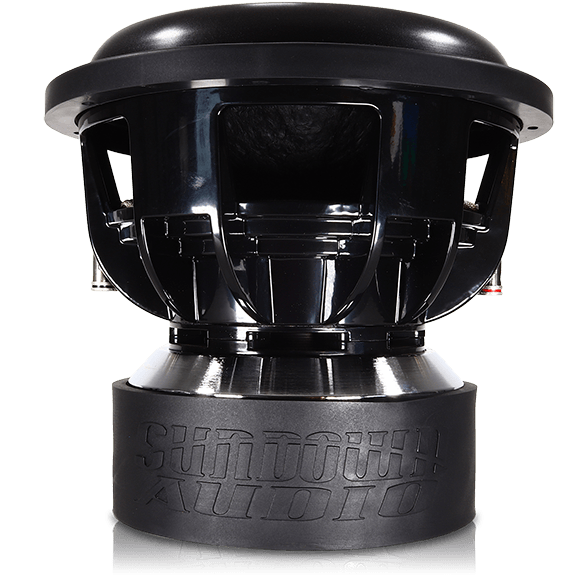

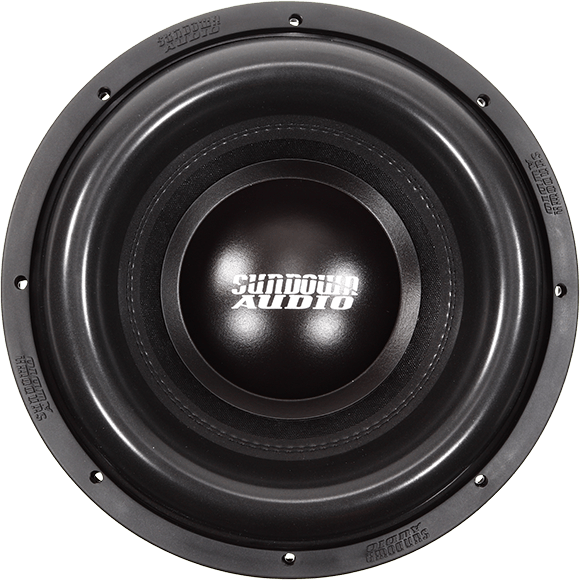

Sundown Audio X-12 v.3 D2

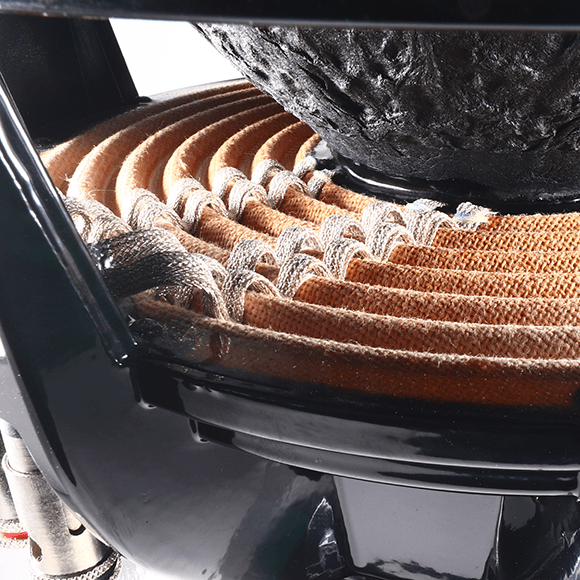

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.


Specifications

T/S SPECS X V.3 12″ D1 X V.3 12″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 37.098 37.235
VAS (L) 12.986 17.077
Qes 0.486 0.543
Qms 2.597 2.779
Qts 0.409 0.454
Le (mH)
BL (NA) 15.943 19.857
Mms (Grams) 378.626 285.817
Cms (uM/N) 48.611 63.922
Sens (dB @ 1w/1m) 83.2dB 84.0dB
Xmax 30mm 30mm

Enclosure Specifications
X v.3 12
Sealed Enclosure N/A
Ported Enclosure 2.5 cu ft
Recommended Tuning 32hz
Recommended Port Area 40 sq in
Displacement 0.2 cu ft
Depth 10.4″
Outside Diam. 12.68″
Cutout 11.09″

Reviews

There are no reviews yet.

Be the first to review “Sundown Audio X-12 v.3 D2”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: Is the Sundown Audio X-12 v.3 D2 a subwoofer or a speaker?

A1: It is a true subwoofer, designed specifically for deep low-frequency bass, not mids or vocals.

Q2: What does D2 mean in X-12 v.3 D2?

A2: D2 means dual 2-ohm voice coils, allowing wiring options such as 1 ohm or 4 ohm, depending on amplifier requirements.

Q3: Can this subwoofer be used in sealed and ported enclosures?

A3: Yes. The X-12 v.3 D2 is optimized for both sealed and ported enclosures, giving flexibility in system design.

Q4: Is this subwoofer suitable for SPL systems?

A4: Yes. The X-Series v.3 is built for extreme excursion and high power handling, making it ideal for SPL and loud daily bass systems.

Q5: What amplifier is recommended for the X-12 v.3 D2?

A5: A high-quality mono Class-D amplifier matched to the subwoofer’s RMS power rating and final wired impedance is recommended.
